Model #: N520-100M

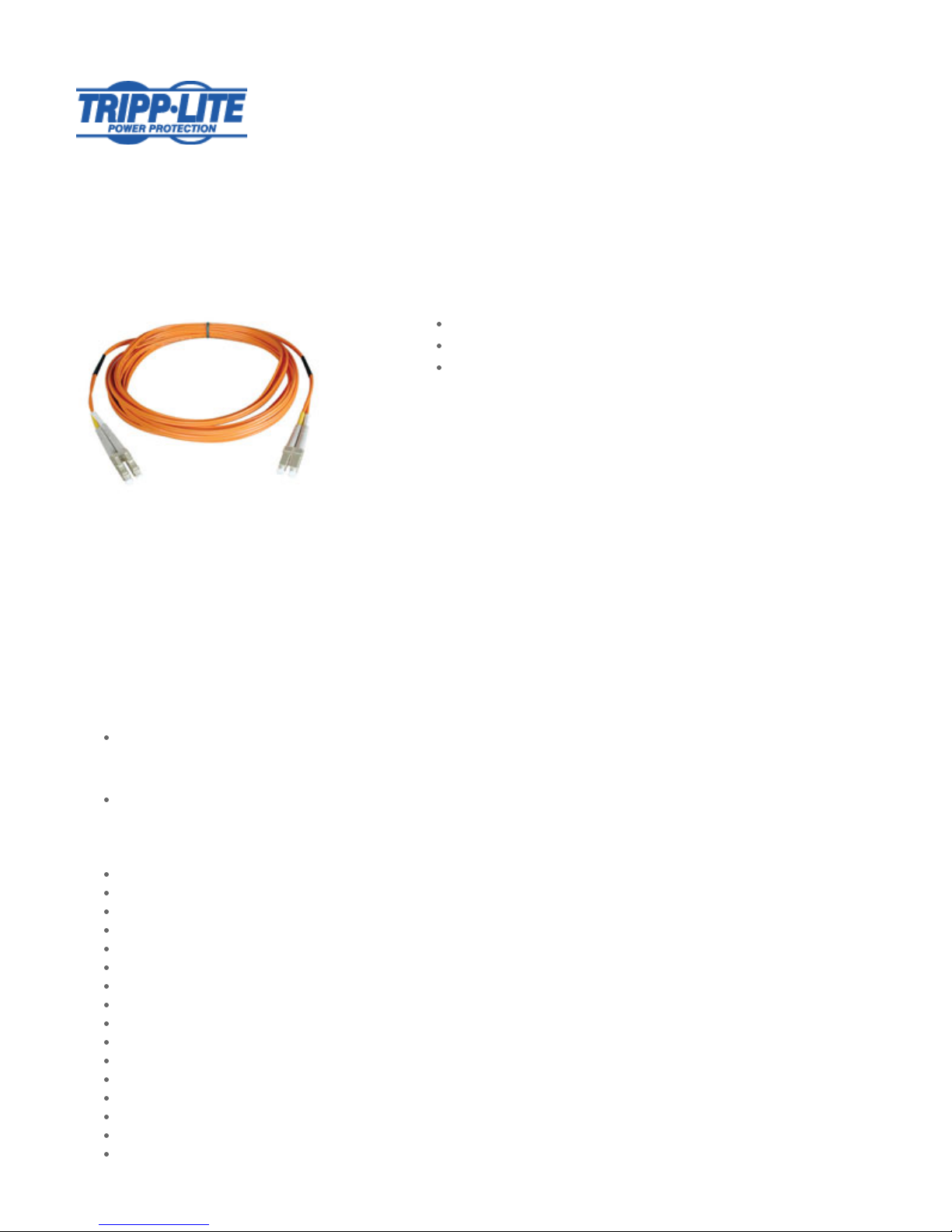

100M (328-ft.) Duplex MMF 50/125 Patch Cable (LC/LC)

Highlights

Premium PVC multimode patch cables

Attenuation loss meets or exceeds the latest industry standards

Higher bandwidth optimized for gigabit and 10Gbps networks

Description

Tripp Lite's 100-meter multimode duplex Fibre Channel optic LC/LC patch cable is manufactured from 50/125 zipcord fiber. The cable has LC

connectors on each end. It has a PVC jacket and is FDDI and OFNR rated. 50/125 Duplex multimode fiber is most commonly used in Fibre Channel

applications. It is backward compatible with 62.5 micron fiber and provides built-in headroom for future applications. The cable provides higher

bandwidth optimized for Gigabit and 10Gbps networks as well. Also available in 1, 2, 3, 5, 10, 15, 20, 25, 30, and 50 meter lengths. Enter "N520-" in

the search field to bring up all lengths. For LC-SC cables, search "N516-", and for SC-SC, search "N506-".

System Requirements

Any fiber optic hardware or NIC card requiring multimode duplex cable with LC/LC connectors

Package Includes

100M Duplex MMF Cable LC/LC 50/125 Fiber

Features

Constructed with 50/125 micron cable

Length - 100M - Ships on a Reel

Use on fiber and fibre channel installations

LC male to LC male connectors

Higher bandwidth optimized for gigabit and 10Gbps networks

Backward compatible with 62.5 micron fiber

Built-in headroom for future applications

Number of fibers: 2

Fiber type: all glass graded index

Core diameter: two 50+/-3 microns

CLAD diameter: 125+/-2 microns

Primary coating diameter: 245+/-15 microns

Primary coating material: acrylate

Secondary coating diameter: 900+/-50 microns

Secondary coating material: PVC

Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum

Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum

Numeric apeture: .275 nominal

Proof test level: 100,000 PSI

Insertion loss testing performed on every connector (0.2db typical) and provided with cable

Beveled edge on ends of glass makes insertion of plug a breeze

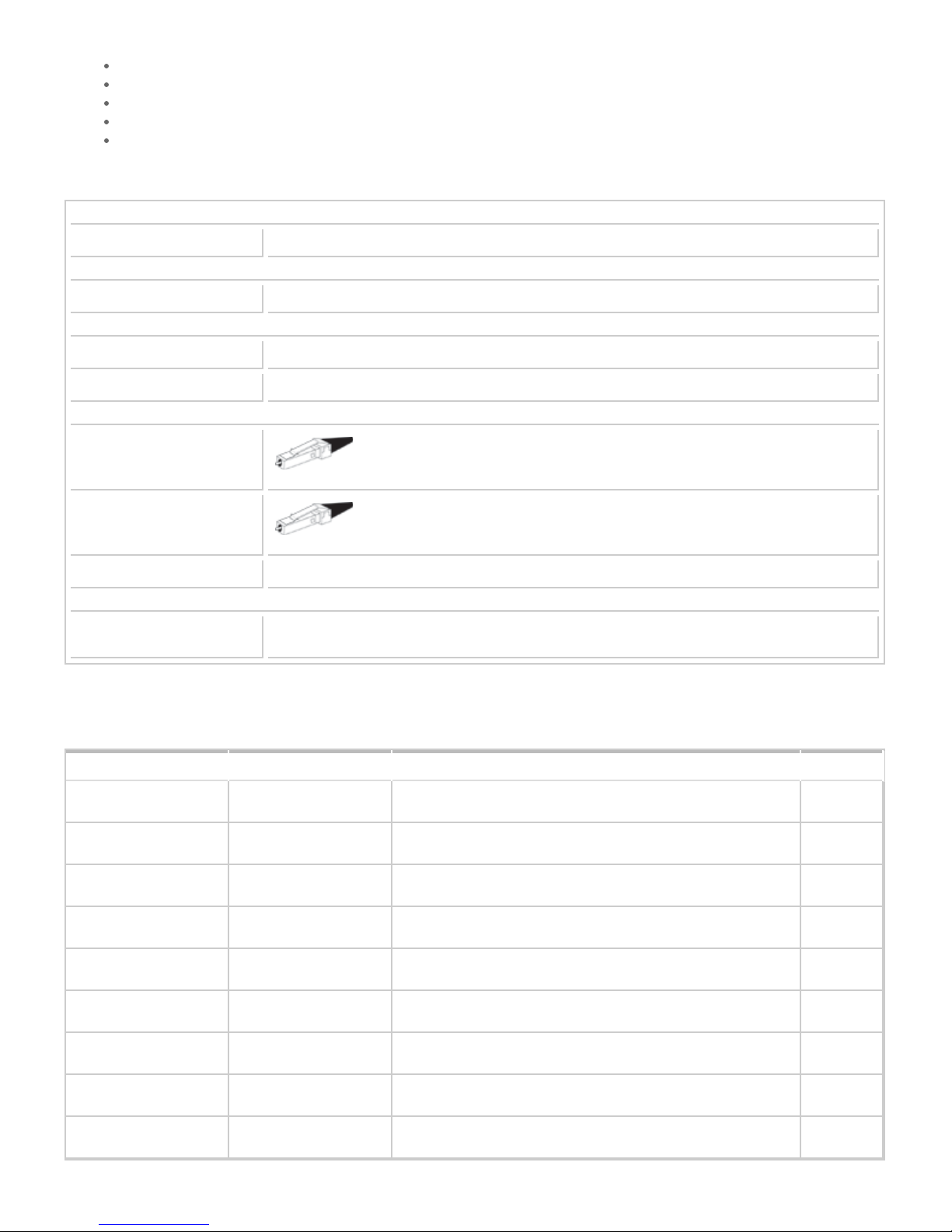

Specifications

OVERVIEW

Intended Application Computer Networking (Fiber)

INPUT

Cable Length (m) 100

PHYSICAL

Color Orange

Style Fiber Optic

CONNECTIONS

Connector A

Connector B

Number of Connectors 4

WARRANTY

Product Warranty Period

(Worldwide)

Lifetime limited warranty

Related Items

Optional Products

Product Type Related Model Description Qty.

Fiber Optic Cables &

Adapters

N520-01M 1M (3-ft.) Duplex MMF 50/125 Patch Cable

(LC/LC)

Fiber Optic Cables &

Adapters

N520-02M 2M (6-ft.) Duplex MMF 50/125 Patch Cable

(LC/LC)

Fiber Optic Cables &

Adapters

N520-03M 3M (10-ft.) Duplex MMF 50/125 Patch Cable

(LC/LC)

Fiber Optic Cables &

Adapters

N520-05M 5M (16-ft.) Duplex MMF 50/125 Patch Cable

(LC/LC)

Fiber Optic Cables &

Adapters

N520-10M 10M (33-ft.) Duplex MMF 50/125 Patch Cable

(LC/LC)

Fiber Optic Cables &

Adapters

N520-152M 152M (500-ft.) Duplex MMF 50/125 Patch Cable

(LC/LC)

Fiber Optic Cables &

Adapters

N520-15M 15M (50-ft.) Duplex MMF 50/125 Patch Cable

(LC/LC)

Fiber Optic Cables &

Adapters

N520-30M 30M (100-ft.) Duplex MMF 50/125 Patch Cable

(LC/LC)

Fiber Optic Cables &

Adapters

N520-50M 50M (164-ft.) Duplex MMF 50/125 Patch Cable

(LC/LC)

More information, including related products, owner's manuals, and additional technical specifications, can be found online at

www.tripplite.com/en/products/model.cfm?txtModelID=3504.

improvement. Specifications are subject to change without notice. Photos may differ slightly from final products.
