Tripp Lite N506-03M Manuel utilisateur
Tripp Lite
1111 West 35th Street
Chicago, IL 60609 USA
Telephone: +(773) 869 1234
E-mail: [email protected]
Model #: N506-03M

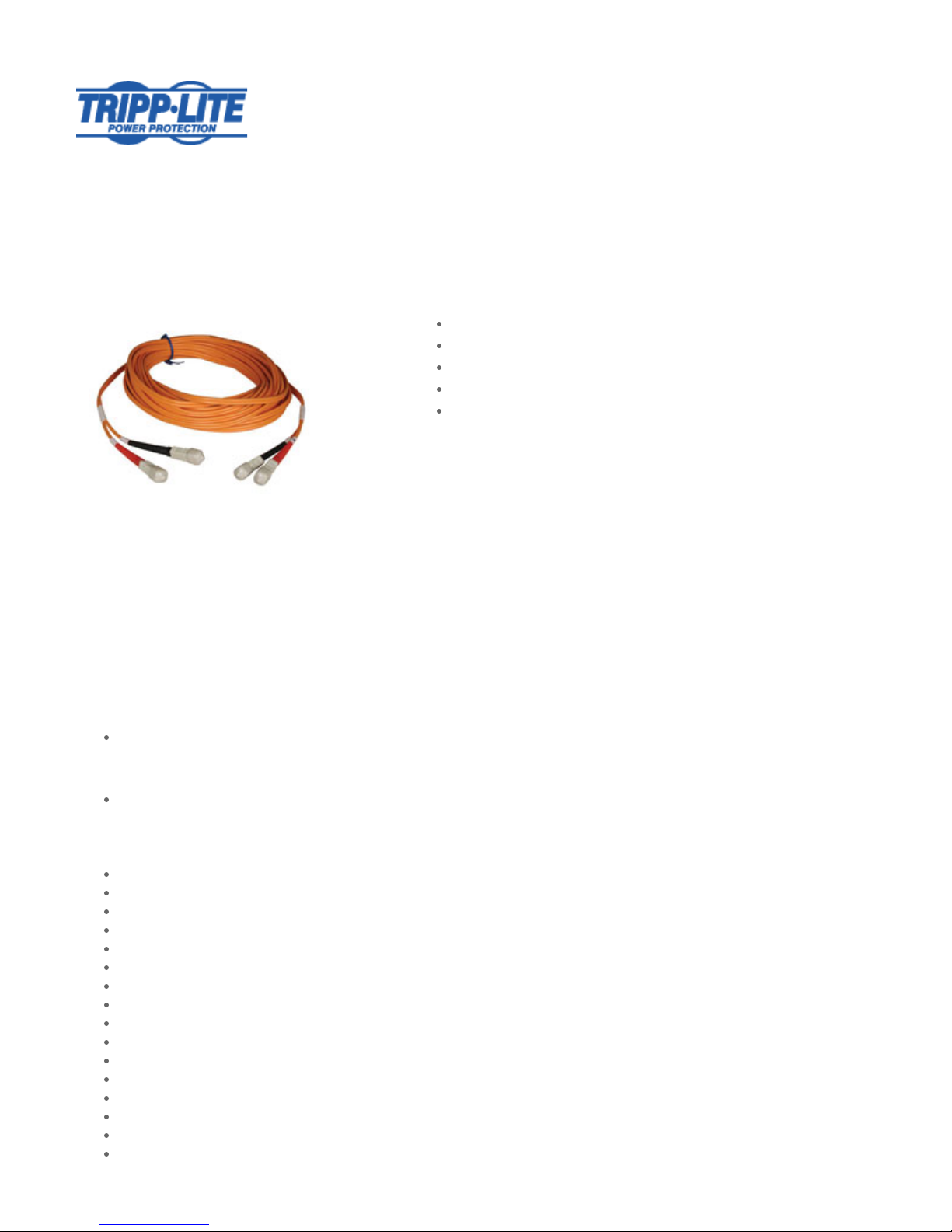

3M (10-ft.) Duplex MMF 50/125 Patch Cable (SC/SC)
Highlights
Premium PVC 50/125 multimode patch cables
Attenuation loss meets or exceeds the latest industry standards
Higher bandwidth, optimized for gigabit and 10Gbps networks
Backward compatible with 62.5 micron fiber
Built-in headroom for future applications
Description
Tripp Lite's 3-meter multimode duplex Fibre Channel SC/SC patch cable is manufactured from 50/125 zipcord fiber. The cable has SC connectors on
each end, a PVC jacket and is FDDI and OFNR rated. 50/125 Duplex multimode fiber is most commonly used in Fibre Channel applications. It is
backward compatible with 62.5 micron fiber and built-in headroom for future applications. The cable provides higher bandwidth optimized for Gigabit
and 10Gbps networks as well. Also available in 1, 2, 5, 10, 15, 30, and 50 meter lengths. Search "N506-" to bring up all lengths. Also search "N516-"
for SC-LC cables, and "N520-" for LC-LC cables.
System Requirements
Any fiber optic hardware or NIC card requiring multimode duplex cable with SC/SC connectors
Package Includes
3M duplex MMF cable SC/SC 50/125 fiber
Features
Constructed with 50/125 micron cable
Length - 3 meters
Use on fiber and fibre channel installations
SC male to SC male connectors
Higher bandwidth optimized for gigabit and 10Gbps networks
Backward compatible with 62.5 micron fiber
Built-in headroom for future applications
Number of fibers: 2
Fiber type: all glass graded index
Core diameter: two 50+/-3 microns
CLAD diameter: 125+/-2 microns
Primary coating diameter: 245+/-15 microns
Primary coating material: acrylate
Secondary coating diameter: 900+/-50 microns
Secondary coating material: PVC
Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum
Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum
Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum
Numeric aperture: .275 nominal
Proof test level: 100,000 PSI
Insertion loss testing performed on every connector (0.2db typical) and provided with cable
Beveled edge on ends of glass makes insertion of plug a breeze
Specifications
OVERVIEW
Attenuation @ 1300NM 1.0 DB/KM MAXIMUM
Attenuation @ 850NM 3.5 DB/KM MAXIMUM
Bandwidth @ 1300NM 600 MHZ-KM MINIMUM
Bandwidth @ 850NM 220 MHZ-KM MINIMUM
Clad Diameter 125 +/- 2 MICRONS
Core Diameter TWO 50 +/- 3 MICRONS
Fiber Type ALL GLASS GRADED INDEX
Number of Fibers 2
Numerical Aperture .275 NOMINAL
Primary Coating Diameter 245 +/- 15 MICRONS
Primary Coating Material ACRYLATE
Proof Test Level 100,000 PSI
Secondary Coating Diameter 900 +/- 50 MICRONS
Secondary Coating Material PVC
Intended Application Computer Networking (Fiber)
INPUT
Cable Length (m) 3
PHYSICAL
Color Orange
Style Fiber Optic
CONNECTIONS
Connector A
SC
Connector B
SC
WARRANTY
Product Warranty Period
(Worldwide)
Lifetime limited warranty
Related Items
Optional Products
Product Type Related Model Description Qty.
Fiber Optic Cables &
Adapters
N506-01M 1M (3-ft.) Duplex MMF 50/125 Patch Cable
(SC/SC)
1
Fiber Optic Cables &
Adapters
N506-02M 2M (6-ft.) Duplex MMF 50/125 Patch Cable
(SC/SC)
1
Fiber Optic Cables &
Adapters
N506-05M 5M (16-ft.) Duplex MMF 50/125 Patch Cable
(SC/SC)
1
Fiber Optic Cables &
Adapters
N506-10M 10M (33-ft.) Duplex MMF 50/125 Patch Cable
(SC/SC)
1
Fiber Optic Cables &
Adapters
N506-15M 15M (50-ft.) Duplex MMF 50/125 Patch Cable
(SC/SC)
1
Fiber Optic Cables &
Adapters
N506-30M 30M (100-ft.) Duplex MMF 50/125 Patch Cable
(SC/SC)
1
Fiber Optic Cables &
Adapters
N516-03M 3M (10-ft.) Duplex MMF 50/125 Patch Cable
(LC/SC)
1
Fiber Optic Cables &
Adapters
N516-10M 10M (33-ft.) Duplex MMF 50/125 Patch Cable
(LC/SC)
1
Fiber Optic Cables &
Adapters
N520-03M 3M (10-ft.) Duplex MMF 50/125 Patch Cable
(LC/LC)
1
Fiber Optic Cables &
Adapters
N520-10M 10M (33-ft.) Duplex MMF 50/125 Patch Cable
(LC/LC)
1
More information, including related products, owner's manuals, and additional technical specifications, can be found online at
www.tripplite.com/en/products/model.cfm?txtModelID=2185.
Copyright © 2012 Tripp Lite. All rights reserved. All trademarks are the sole property of their respective owners. Tripp Lite has a policy of continuous
improvement. Specifications are subject to change without notice. Photos may differ slightly from final products.
