Tripp Lite U209-18N-NULL Manuel utilisateur

Owner’s Manual

USB to Null Modem

Serial Adapter Cable

Model: U209-18N-NULL

1111 W. 35th Street, Chicago, IL 60609 USA

www.tripplite.com/support

PROTECT YOUR INVESTMENT!

and ultimate peace of mind.

You could also win an ISOBAR6ULTRA

surge protector—a $100 value!

www.tripplite.com/warranty

16-10-007-933605-EN-V2.indd 1 10/7/2016 2:30:44 PM

Product Features

Package Includes

• Converts a USB port into an RS232 Null Modem

serial port to connect a DTE serial device

• Solves DCE/DTE conﬂicts directly without requiring

additional cross-wired serial cables or adapters

• COM Retention allows the same COM port values

to be reassigned to the port in case a cable is

disconnected or the system is rebooted

• FTDI chipset supports advanced features and

compatibility

• Supports data transfer rates up to 256 Kbps

• Premium double-shielded cable eliminates cross-

talk and reduces EMI/RFI interference

• Provides overcurrent protection

• Compatible with Windows®, Mac®, Linux®and

Android™

• Hot-swappable

• External power not required

• U209-18N-NULL

• Driver CD

• Owner’s Manual

16-10-007-933605-EN-V2.indd 2 10/7/2016 2:30:44 PM

System Requirements

Installation

• Computer with an available USB port

• Compatible with Windows, Mac, Linux and Android

operating systems

• Compatible with Android devices (tablet/phones)

with USB Host Mode (OTG) support and Android

OS version 3.2 and above

• Android-powered devices will require a USB OTG

cable to connect to the U209-18N-NULL

Note: The following instructions show how to install the driver

on a Windows®7 computer. The installation steps are similar

for other Windows operating systems. For non-Windows

operating systems, refer to the installation ﬁles on the driver

CD or on www.tripplite.com/support.

1Without connecting the U209-18N-NULL, power

on your computer and insert the driver CD that

came with the product into your computer’s CD

ROM drive.

2Click on the CD icon to access its ﬁle contents,

then run the driver ﬁle appropriate for your OS.

16-10-007-933605-EN-V2.indd 3 10/7/2016 2:30:44 PM

3Before the driver installation program launches,

an FTDI CDM Drivers window will appear. Click

the Extract button.

Installation

16-10-007-933605-EN-V2.indd 4 10/7/2016 2:30:45 PM

Installation

4After extracting the FTDI CDM Drivers, the driver

installer program will launch. Click the Next

button to start the installation.

16-10-007-933605-EN-V2.indd 5 10/7/2016 2:30:45 PM

Installation

5The driver installation will begin.

16-10-007-933605-EN-V2.indd 6 10/7/2016 2:30:45 PM

Installation

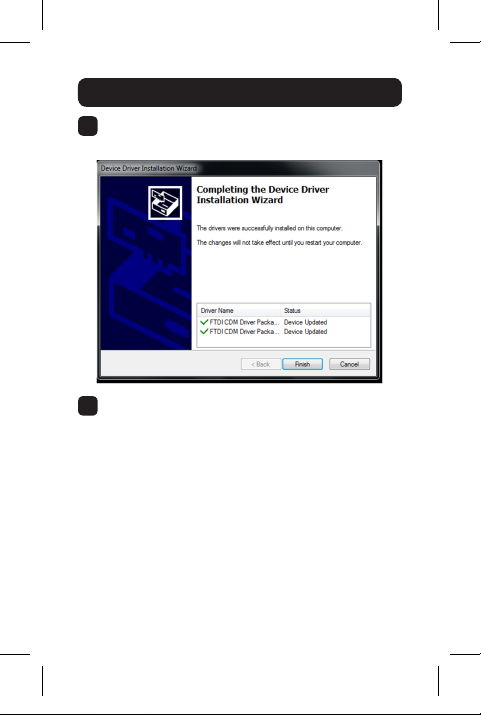

6Once the installation process is complete, click

the Finish button to close out the program.

7Connect the U209-18N-NULL to an available

USB port on your computer. Windows will detect

the adapter and assign it a COM port upon

completing the installation.

16-10-007-933605-EN-V2.indd 7 10/7/2016 2:30:45 PM

Installation

Pinout

8To verify your adapter has been successfully

installed, navigate to your computer’s Control

Panel and open the Device Manager screen. The

adapter will appear in the Ports section with its

assigned COM port next to it.

16-10-007-933605-EN-V2.indd 8 10/7/2016 2:30:45 PM

Warranty and Product Registration

2-Year Limited Warranty

TRIPP LITE warrants its products to be free from defects in

materials and workmanship for a period of two (2) years

from the date of initial purchase. TRIPP LITE’s obligation

under this warranty is limited to repairing or replacing (at its

sole option) any such defective products. To obtain service

under this warranty, you must obtain a Returned Material

Authorization (RMA) number from TRIPP LITE or an authorized

TRIPP LITE service center. Products must be returned to

TRIPP LITE or an authorized TRIPP LITE service center with

transportation charges prepaid and must be accompanied by

a brief description of the problem encountered and proof of

date and place of purchase. This warranty does not apply to

equipment, which has been damaged by accident, negligence

or misapplication or has been altered or modiﬁed in any way.

EXCEPT AS PROVIDED HEREIN, TRIPP LITE MAKES NO

WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES

OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE.

Some states do not permit limitation or exclusion of implied

warranties; therefore, the aforesaid limitation(s) or exclusion(s)

may not apply to the purchaser.

EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL TRIPP LITE

BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR

CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS

PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH

DAMAGE. Speciﬁcally, TRIPP LITE is not liable for any costs,

such as lost proﬁts or revenue, loss of equipment, loss of

use of equipment, loss of software, loss of data, costs of

substitutes, claims by third parties, or otherwise.

16-10-007-933605-EN-V2.indd 9 10/7/2016 2:30:45 PM

PRODUCT REGISTRATION

Visit www.tripplite.com/warranty today to register your new

Tripp Lite product. You’ll be automatically entered into a

drawing for a chance to win a FREE Tripp Lite product!*

* No purchase necessary. Void where prohibited. Some

restrictions apply. See website for details.

FCC Notice, Class B

This device complies with part 15 of the FCC Rules. Operation

is subject to the following two conditions: (1) This device may

not cause harmful interference, and (2) this device must

accept any interference received, including interference that

may cause undesired operation.

Note: This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant to part

15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference

by one or more of the following measures:

• Reorient or relocate the receiving antenna.

•

Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for

help.

Warranty and Product Registration

16-10-007-933605-EN-V2.indd 10 10/7/2016 2:30:46 PM
