Tripp Lite N520-07M Manuel utilisateur
Tripp Lite
1111 West 35th Street
Chicago, IL 60609 USA
Telephone: +(773) 869 1234
E-mail: [email protected]

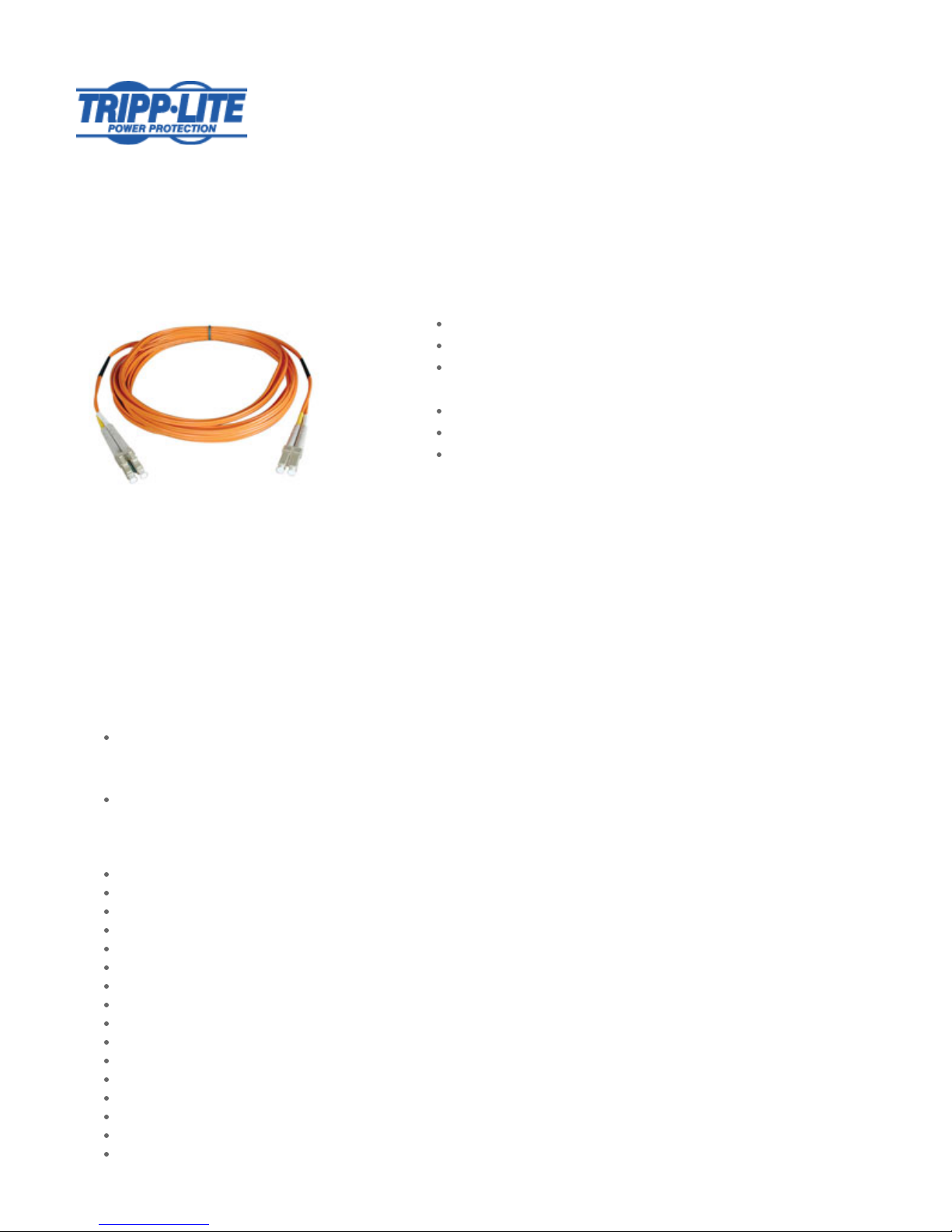

Model #: N520-07M
7M (23-ft.) Duplex MMF 50/125 Patch Cable (LC/LC)
Highlights
Premium PVC multimode LC/LC patch cable - 7m
Attenuation loss meets or exceeds the latest industry standards
Loop-back cables provide an easier, "single-person" solution for testing fiber
optic cable systems
Higher bandwidth optimized for gigabit and 10Gbps networks
Backward compatible with 62.5 micron fiber
Built-in headroom for future applications
Description
Tripp Lite's 7-meter multimode duplex Fibre Channel optic LC/LC patch cable is manufactured from 50/125 zipcord fiber. The cable has LC
connectors on each end. It has a PVC jacket and is FDDI and OFNR rated. 50/125 Duplex multimode fiber is most commonly used in Fibre Channel
applications. It is backward compatible with 62.5 micron fiber and provides built-in headroom for future applications. The cable provides higher
bandwidth optimized for Gigabit and 10Gbps networks as well. Also available in lengths up to 152 meters. Enter "N520-" in the search field to bring
up all lengths. For LC-SC cables, search "N516-", and for SC-SC, search "N506-".
System Requirements
Any fiber optic hardware or NIC card requiring multimode duplex cable with LC/LC connectors
Package Includes
7-meter duplex MMF cable LC/LC 50/125 fiber
Features
Constructed with 50/125 micron cable
Length: 7-meters
Use on fiber and fibre channel installations
LC male to LC male connectors
Higher bandwidth optimized for gigabit and 10Gbps networks
Backward compatible with 62.5 micron fiber
Built-in headroom for future applications
Number of fibers: 2
Fiber type: All glass graded index
Core diameter: Two 50+/-3 microns
CLAD diameter: 125+/-2 microns
Primary coating diameter: 245+/-15 microns
Primary coating material: Acrylate
Secondary coating diameter: 900+/-50 microns
Secondary coating material: PVC
Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum
Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum
Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum
Numeric apeture: .275 nominal
Proof test level: 100,000 PSI
Insertion loss testing performed on every connector (0.2db typical) and provided with cable
Beveled edge on ends of glass makes insertion of plug a breeze

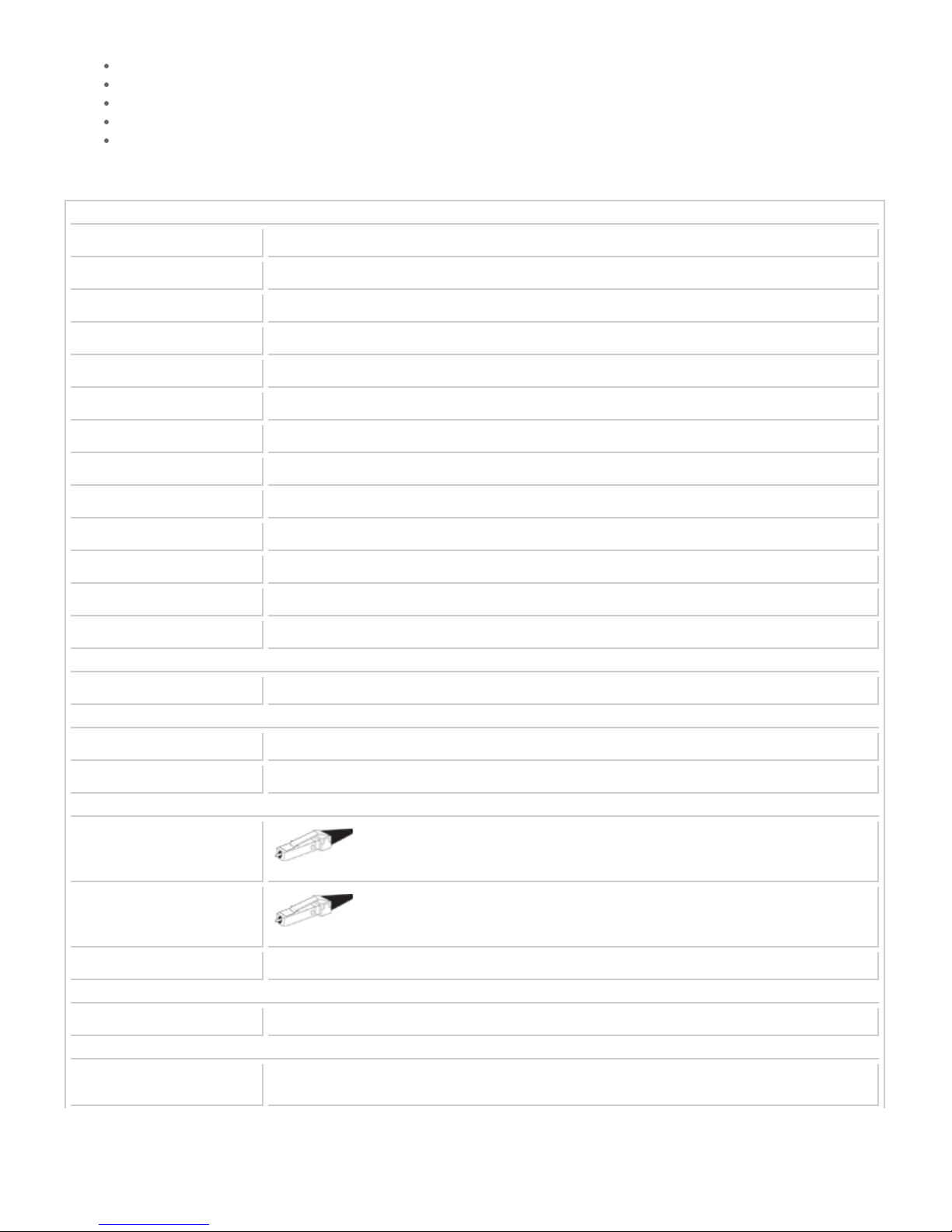

Specifications
OVERVIEW
Attenuation @ 850NM 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum
Bandwidth @ 850NM 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum
Clad Diameter 125+/-2 microns
Core Diameter Two 50+/-3 microns
Fiber Type All glass graded index
Number of Fibers 2
Numerical Aperture .275 nominal
Primary Coating Diameter 245+/-15 microns
Primary Coating Material Acrylate
Proof Test Level 100,000 PSI
Secondary Coating Diameter 900+/-50 microns
Secondary Coating Material PVC
Intended Application Computer Networking (Fiber)
INPUT
Cable Length (m) 7
PHYSICAL
Color Orange
Style Fiber Optic
CONNECTIONS
Connector A
LC
Connector B
LC
Number of Connectors 4
CERTIFICATIONS
Certifications ROHS
WARRANTY
Product Warranty Period
(Worldwide)
Lifetime limited warranty
Related Items
Optional Products
Product Type Related Model Description Qty.
Fiber Optic Cables &
Adapters
N506-01M 1M (3-ft.) Duplex MMF 50/125 Patch Cable
(SC/SC)
1
Fiber Optic Cables &
Adapters
N516-01M 1M (3-ft.) Duplex MMF 50/125 Patch Cable
(LC/SC)
1
Fiber Optic Cables &
Adapters
N520-02M 2M (6-ft.) Duplex MMF 50/125 Patch Cable
(LC/LC)
1
Fiber Optic Cables &
Adapters
N520-03M 3M (10-ft.) Duplex MMF 50/125 Patch Cable
(LC/LC)
1
Fiber Optic Cables &
Adapters
N520-05M 5M (16-ft.) Duplex MMF 50/125 Patch Cable
(LC/LC)
1
Fiber Optic Cables &
Adapters
N520-10M 10M (33-ft.) Duplex MMF 50/125 Patch Cable
(LC/LC)
1
Fiber Optic Cables &
Adapters
N520-15M 15M (50-ft.) Duplex MMF 50/125 Patch Cable
(LC/LC)
1
Fiber Optic Cables &
Adapters
N520-30M 30M (100-ft.) Duplex MMF 50/125 Patch Cable
(LC/LC)
1
Fiber Optic Cables &
Adapters
N520-50M 50M (164-ft.) Duplex MMF 50/125 Patch Cable
(LC/LC)
1
More information, including related products, owner's manuals, and additional technical specifications, can be found online at
www.tripplite.com/en/products/model.cfm?txtModelID=3706.
Copyright © 2012 Tripp Lite. All rights reserved. All trademarks are the sole property of their respective owners. Tripp Lite has a policy of continuous
improvement. Specifications are subject to change without notice. Photos may differ slightly from final products.
