TRACKSO INSTALLATION GUIDE FOR TRINITY NF29 METER

Brand: Trinity

Type: Multi-line Digital Display Panel Meter

Models: Trinity NF29 Meters

CONNECTION DIAGRAM

On the rear panel, Trinity NF29 Meters has an RS-485 communication socket as shown in the following figure.

Figure T1 –Rear view of Trinity NF29 Meter

1. Please unscrew the RS485 terminal as shown in Figure T1.

2. Connect the cables to the RS485 bus terminal blocks.

3. Please make the connections from Terminal Block chip to TrackSo IoT

Gateway as mentioned in the Table –TT1.

Table TT1 –Trinity NF29 Meter RS485 chip

connections with TrackSo IoT Gateway

Trinity NF29 Pin No. &

Assignment

TrackSo Pin No. &

Assignment

D+

D-

DEFAULT CONFIGURATION IN TRACKSO IOT GATEWAY

Inverter ID: 1 (Range: 1 to 247)

Baud Rate: 9600

Data Bits: 8

Stop Bit: 1

Parity: N/A (None)

CONFIGURATION AT THE METER END

Enter into programming mode to setup meter for communication

In order to operate for all the field programmable parameters, it is easy user interface by pressing the keys such as

keys. Once the unit displays CT PRIMARY, press key to move into the next programmable parameter, UNIT

ADDRESS for RS485 communication.

SETTING DEVICE ID

The unit has the provision to specify a meter address at site for RS485 port. This address can be set starting from 1 to 255 with a

fixed baud rate of 9600

To set the Device ID, proceed the following instruction:

1) Press key for about 4 to 5 seconds on Run Mode display.

2) The unit will enter into Programming Mode display with the settable parameter, unit ADDRESS such as shown below

3) Press key. Immediately, P starts blinking with an interval of one second which shows that the parameter is now

settable. Set the ADDRESS by using keys until the desired value is received and then, press key to

confirm the set value.

4) Now, the unit will reset and return into Run Mode.

NOTE: The above details are mentioned in the Installation & Operation Manual for Trinity NF29 Meter.

CONNECTING MULTIPLE METER

Set Unit Id (Modbus Address) as mentioned on

the TrackSo Device

TRACKSO WORKING

1. Insure correct connections as detailed in the installation guide.

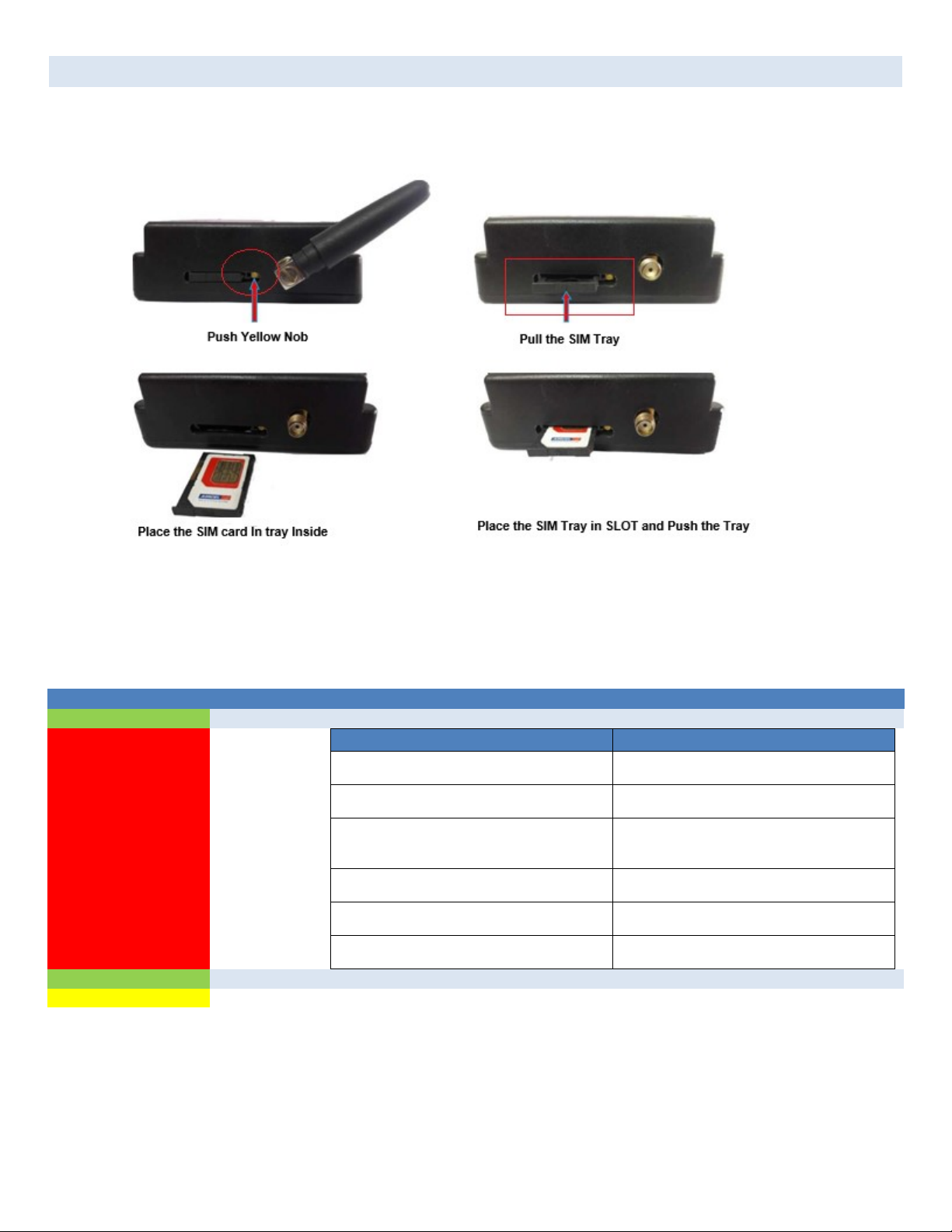

2. Insert the SIM card.

3. Switch on the power to the TrackSo device. (Minimum 12V/1A input is required)

4. Power LED (Red) of TrackSo IoT gateway glows and stays ON.

NOTE: TrackSo IoT Gateway will only be able to send data if the GPRS network is available at the

installed location.

LED

NAME

DESCRIPTION

GREEN

POWER

Light when Power on the device

RED

GSM

LED Status

Connection State

Flashing (ON for 100ms and OFF for 100ms)

SIM Card not found

Flashing (ON for 500ms and OFF for 500ms)

Searching for GSM Network

Flashing (ON for 0.1s and OFF for 2.9s)

Once at every 3sec

GSM Network Registered

Flashing twice at every 3sec

GPRS IP Connected

Flashing 5times

GPRS IP Sending data

LED OFF

GSM Fault

GREEN

COM TX

Blink on data transmission in RS485 port

YELLOW

COM RX

Blink on data reception in RS485 port

5. To check the exact network status send the following message to mobile number of the device

SMS Command= *2222#<Stat.gsm>

IMEI

IMEI No. of the data logger (Device Key)

Network

SIGN

Signal Strength out of 31

GPRS

CONT- connected , NC- not connected

PIP

Connected to TrackSo Server or not

CONT- connected, NC- not connected

LOG

no. of data points stored in devices incase of no interet

6. If the GSM light starts flashing 5 times then Login to www.trackso.in with your Username/Password.

7. Click on ‘Units’ from the menu bar. You will be able to view your installed unit in the table as shown

below.

8. Check if the Status becomes Receiveing for the relevant Unit.

9. If the state remains Not receiveing for more than 10 minutes, click on your email ID at the top right of the

screen and click on ‘Event Ingestion Logs’ in the dropdown.

10. Check if there is some log generated at the time of installation of the TrackSo IoT Gateway device.

a. If NO, please restart the device and try the same flow again.

b. If YES, email us at support @trackso.in to consult the same.
