TEG-S160TX

TEG-S240TX

Table of Contents

Version 04.02.2008

English ......................................................................................................

Technical Specifications .........................................................................................

Troubleshooting ......................................................................................................

1. Before You Start

2. Hardware Installation .........................................................................

................................................................................

1. Before You Start

English

Installation Requirements

Computer with Network adapter installed

An environment that is fairly cool and dry

Package Content

TEG-S160TX/TEG-S240TX

User’s Guide

2 mounting brackets and screws

4 Rubber Feet

AC Power Adapter

EIA Standard, 19 inch rack or sturdy, level surface that can support the

weight of the Switch

An environment that is free from strong electromagnetic field generators

(such as motors), vibration, dust and direct exposure to sunlight

Leave at least 10 cm of space at the front and rear of the Switch for

ventilation

English

Application

Gigabit

Notebooks with

(TEG-PCBUSR)

Gigabit PC Card

(TEG-S160TX)

Servers with Gigabit PCI Adapter

(TEG-PCITXR)

Workstations with Gigabit PCI Adapter

(TEG-PCITXR)

16-Port Gigabit Switch

Notebooks with

(TEG-PCBUSR)

Gigabit PC Card

24-Port Gigabit Switch

(TEG-S240TX) Servers with Gigabit PCI Adapter

(TEG-PCITXR)

Workstations with Gigabit PCI Adapter

(TEG-PCITXR)

Gigabit

English

Rack Mount

The Switch can be mounted in an EIA standard-size, 19-inch rack, which can

be placed in a wiring closet with other equipment.

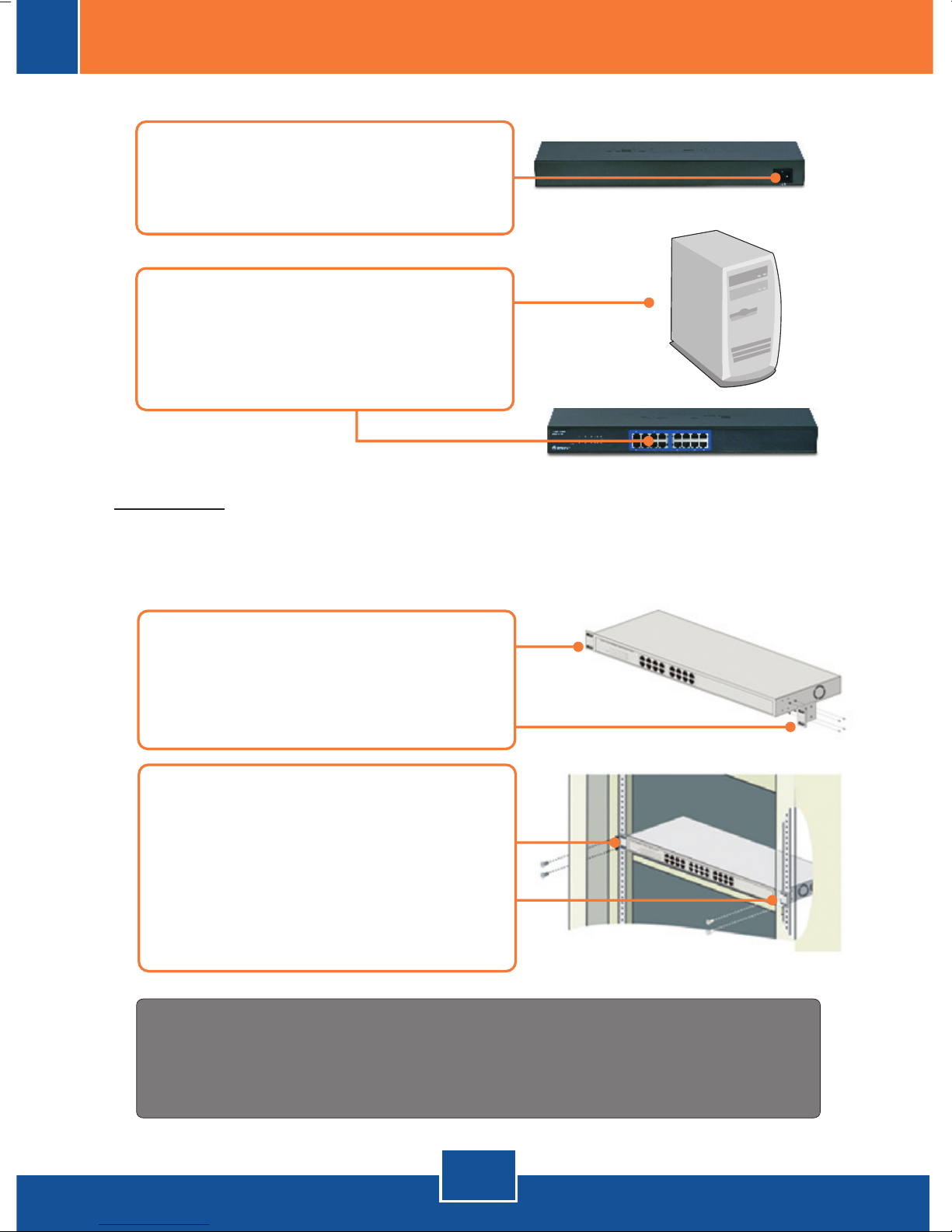

3. Attach the mounting brackets to

both sides of the chassis and

secure them with the provided

screws.

4. Carefully position the chassis onto

the rack. Align the bracket to the

screw holes on the rack, then use

the screws provided with the

equipment rack to mount the

chassis.

To ensure the highest level of customer service and support, please take a moment to

Thank you for choosing TRENDnet

2. Hardware Installation

1. Connect the AC Power Adapter to

the TEG-S160TX/TEG-S240TX

and then to a power outlet.

2. Connect a CAT-5e or CAT-6 RJ-45

network cable from the computer to

an available Ethernet port on the

TEG-S160TX/TEG-S240TX.

Standards

IEEE 802.3 10BASE-T Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3ab 1000BASE-T

IEEE 802.3x Full-Duplex Flow Control

Protocol CSMA/CD

Data Transfer

Rate

Ethernet: 10Mbps (half-duplex), 20Mbps (full-duplex)

Fast Ethernet: 100Mbps (half-duplex), 200Mbps (full-duplex)

Gigabit Ethernet: 2000Mbps (full-duplex)

Topology Star

Network Cables

Ethernet: UTP/STP CAT-3, -4, -5

Fast Ethernet: UTP/STP CAT-5

Gigabit : UTP/STP CAT-5e, CAT-6 (Recommended)

Number of Ports

Weight

Temperature

16/24 x 10/100/1000Mbps Auto-Negotiation, Auto-MDIX

3Kg

Operating: 0° ~ 40° C (32° ~ 104° F)

Storage: -10° ~ 70° C (14° ~ 158° F)

Hardware

Technical Specifications

Physical and Environmentalware

Power 100-240V AC Universal, 50/60 Hz Internal Power Supply

Power

Consumption

13.5 Watts. Max (TEG-S160TX)

19 Watts Max (TEG-S240TX)

Humidity 5% ~ 90% (non-condescending)

Dimensions 440 x 140 x 44 mm

Emissions CE, FCC

Filtering Address

Table 8K entries per device

Performance

RAM Buffer 340KB per device (TEG-S160TX)

500KB per device (TEG-S240TX)

Transmission

Method Store-and-Forward

Packet Filtering/

Forwarding Rate

10Mbps Ethernet: 14,880pps (packet per second)

100Mbps Fast Ethernet: 148,800pps

1000Mbps Gigabit Ethernet: 1,488,000pps

MAC Address

Learning: Self-learning, auto-aging

Troubleshooting

Q1:

A1:

Q2:

A2:

Q3:

A3:

Q4:

A4:

After connecting the Switch to a power outlet, the LEDs do not turn on.

Check the connection of the power adapter to the

and the power outlet. Also check that the power outlet is receiving

power.

When I connect a computer to the Switch port, the LINK/ACT LED turns on,

but the 1000Mbps LED remains off.

First, check the Ethernet Cable. Make sure you are using CAT-5e or CAT-6

Ethernet Cables. Some CAT-5 cables are not rated to run Gigabit. Second,

make sure that you have a Gigabit Ethernet Adapter installed on your computer.

After I connect my PCs to the Switch, I am unable to share files.

First, check the LEDs on the Switch. Make sure the LINK/ACT LED is on.

Second, check the network cable. The minimum length of the cable is 1.5 meters

and the maximum length of the cable is 100 meters. Third, disable any software

firewall program. Fourth, verify that you have file and printer sharing enabled.

Please contact Microsoft support for more information.

After I connect my PCs to the Switch, I can only get onto the Internet from one

computer.

The Switch was not designed to share Internet between multiple computers.

You need to get an Internet router.

If you still encounter problems or have any questions regarding the

please contact TRENDnet's Technical Support

Department.

TEG-S160TX/

TEG-S240TX

TEG-S160TX/TEG-S240TX

Certifications

This equipment has been tested and found to comply with FCC and CE Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received. Including interference that may

cause undesired operation.

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV

INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS

EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO

OPERATE THE EQUIPMENT.

ADVERTENCIA EN CASO DE REQUERIR AC ADAPTER

En todos nuestros equipos se mencionan claramente las caracteris-ticas del adaptador de

alimentacón necesario para su funcionamiento El uso de un adaptador distinto al

mencionado puede producir daños fisicos y/o daños al equipo conectado.

Waste electrical and electronic products must not

be disposed of with household waste. Please

recycle where facilities exist. Check with you Local

Authority or Retailer for recycling advice.

20675 Manhattan Place

Torrance, CA 90501

USA

TRENDnet Technical Support

Product Warranty Registration

US Canada

24/7 Tech Support

Europe (Germany France Italy Spain Switzerland UK)

English/Espanol - 24/7

Worldwide

Toll Free Telephone: +00800 60 76 76 67

. . . . .

Please take a moment to register your product online.

Go to TRENDnet’s website at http://www.trendnet.com/register
