TRENDnet TEW-P1U1P Mode d’emploi
Step 2. Change IP Address:
In this dialog box, you can change the IP address. When completed, click “OK”.
TEW-P1U1P F.A.Q.
Q: Why doesn't Bi-Admin utility detect my print server?
A:
Q: How do I change the IP address of my print server?
A:
If you are using Windows XP you will have to disable the built in firewall. But for all operating
systems you have to disable any other form of firewall software such as Norton Internet Security,
Black Ice, and ZoneAlarm.

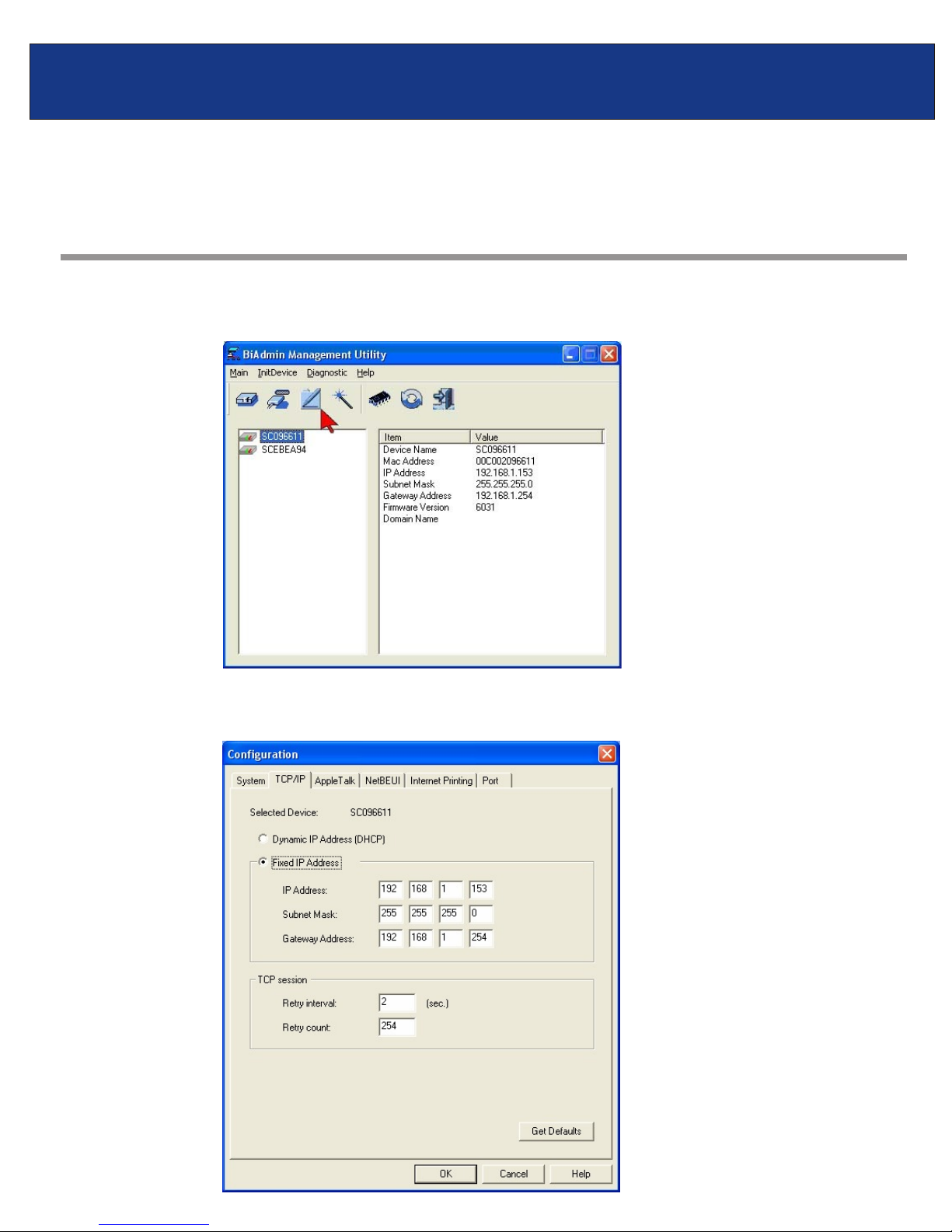

Step 1. Open up the Bi-Admin Utility and click on “Configure” icon indicated by the red arrow.
Q: How do I find the Port Name of the Print Server?
A:The print server already has a pre-defined port names, L1 for the Parallel port and L2 for the USB
port.
Q: How do I setup my wireless settings
A:Step 1.
Step 2.

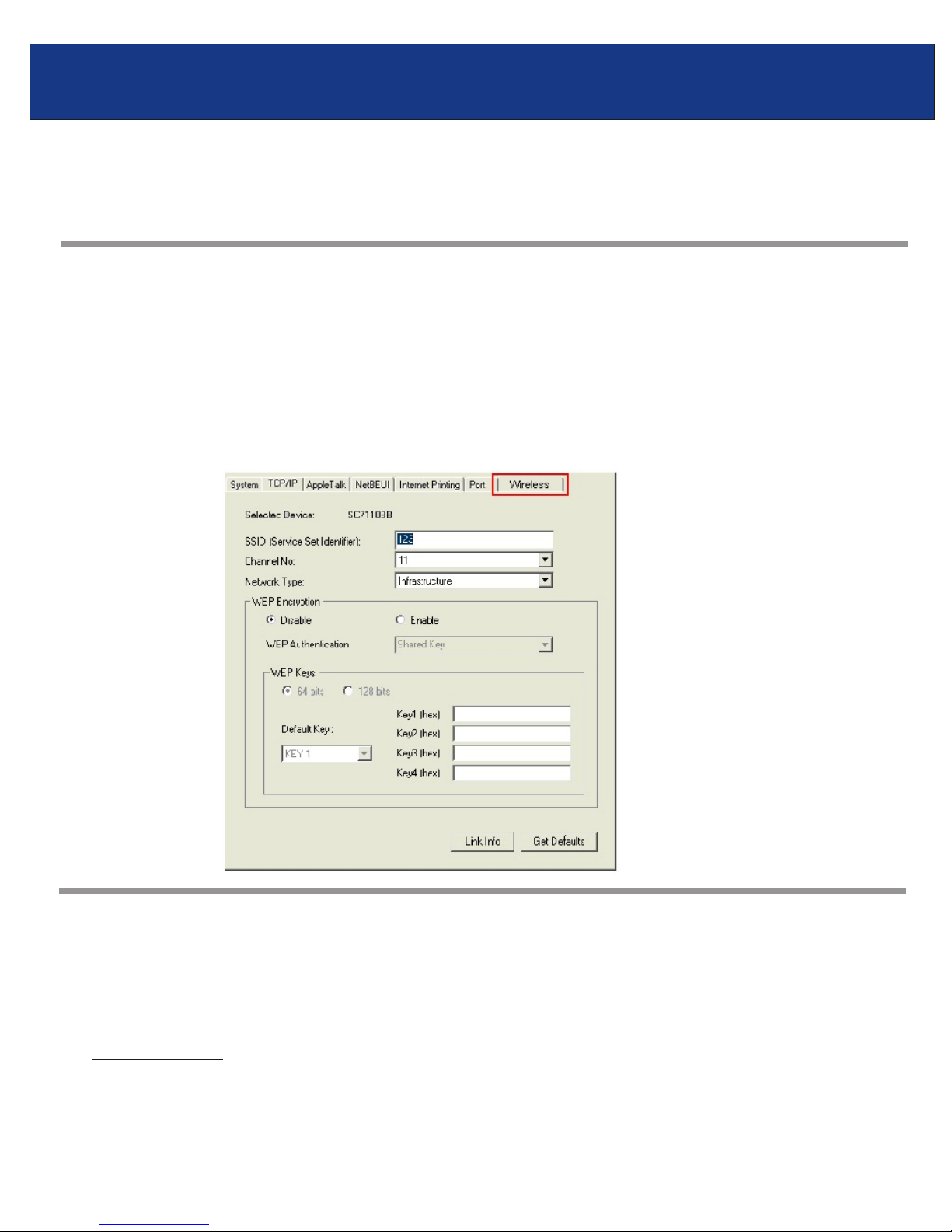

Click on the wireless tab and it will bring up the screen listed below.
Input the SSID and channel of your wireless access point or router. If you are using
Encryption on your wireless network, you will be required to input the WEP key. For 64bit
hex you will be required to input 10 characters and for 128bit WEP, you will be required
to input 26 characters. If you are using ASCII you will be required to input 5 characters
for 64 bit and 13 characters for 128bit encryption then click OK.
TEW-P1U1P F.A.Q.
Q: How do I install my printer on Windows 95/98/ME?
A:In Windows 98/Me you will need to install the LPR client.
Installing LPR:
Step 1. Once the file is downloaded and extracted, Go to Start > Settings > Control Panel >
double-click on Networks. Click on Add.
For Windows 98/ME you will also need to know the port name that you are printing to (The Port
Name is L1 for the Parallel port and L2 for the USB port.)

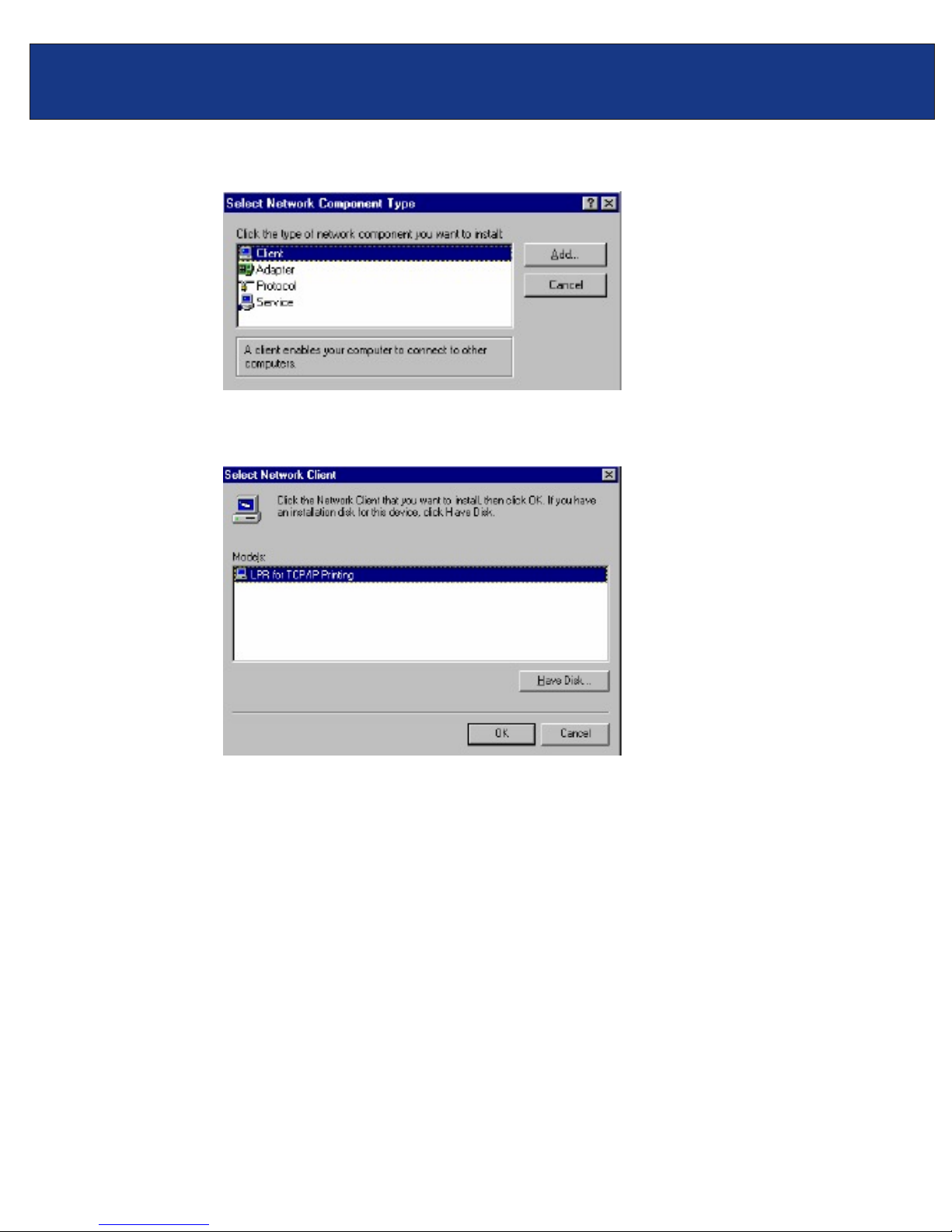

Step 2. Highlight Client and click on Add.
Step 3. Click on Have Disk > Browse. Browse to the location of the extracted LPR Client.
Step 4. Click OK 3 times.
TEW-P1U1P F.A.Q.

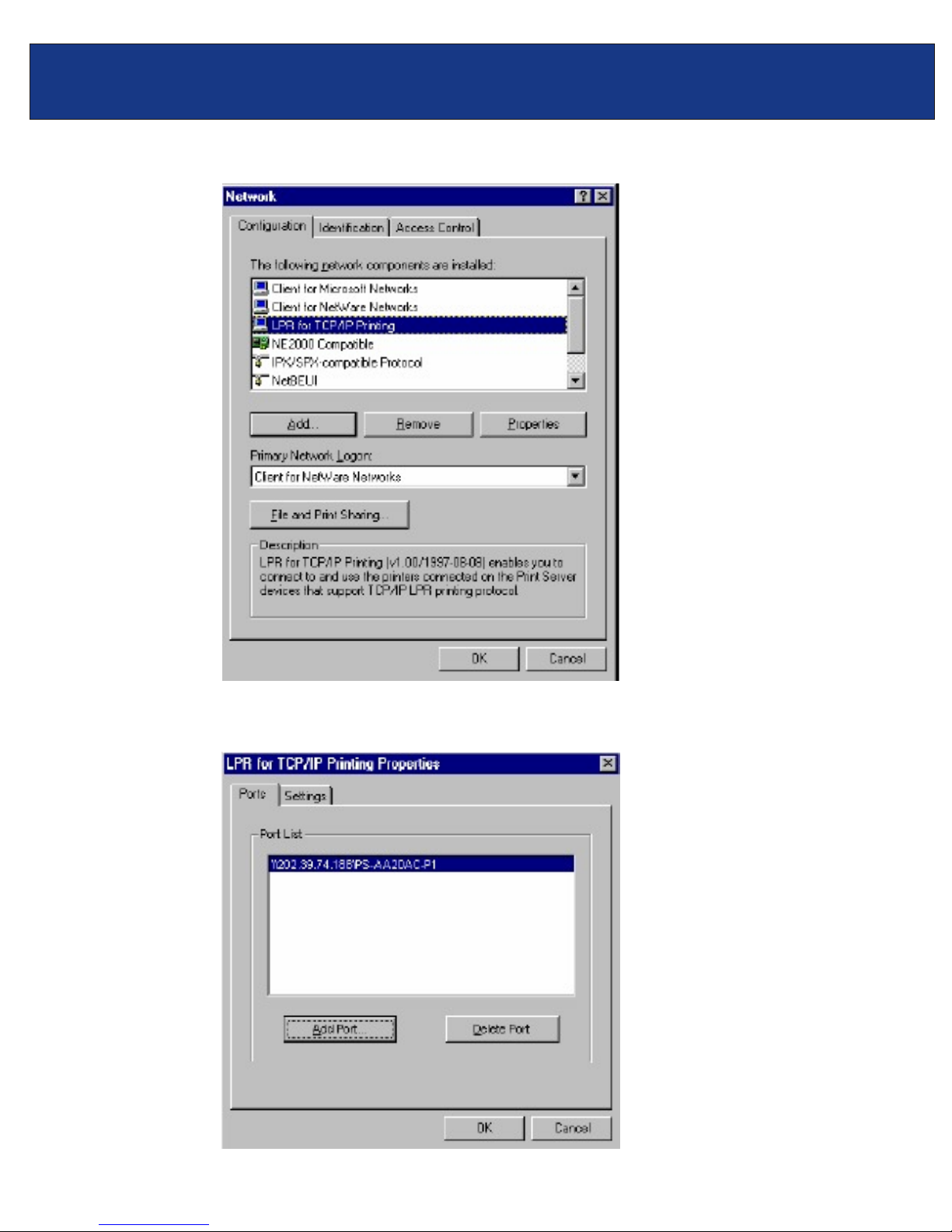

Step 6. Click on Add Port.
Step 5. From the list highlight LPR For TCP/IP and click on Properties.
TEW-P1U1P F.A.Q.
Step 7. Click on OK. Windows will ask you to restart. Click Yes.
LPR is now properly installed on your computer.
Printer Installation
Step 1. Open your printers folder. Go to Start > Settings > Printers.
Step 2. Double-click on the Add Printer icon which will launch the Add Printer Wizard.

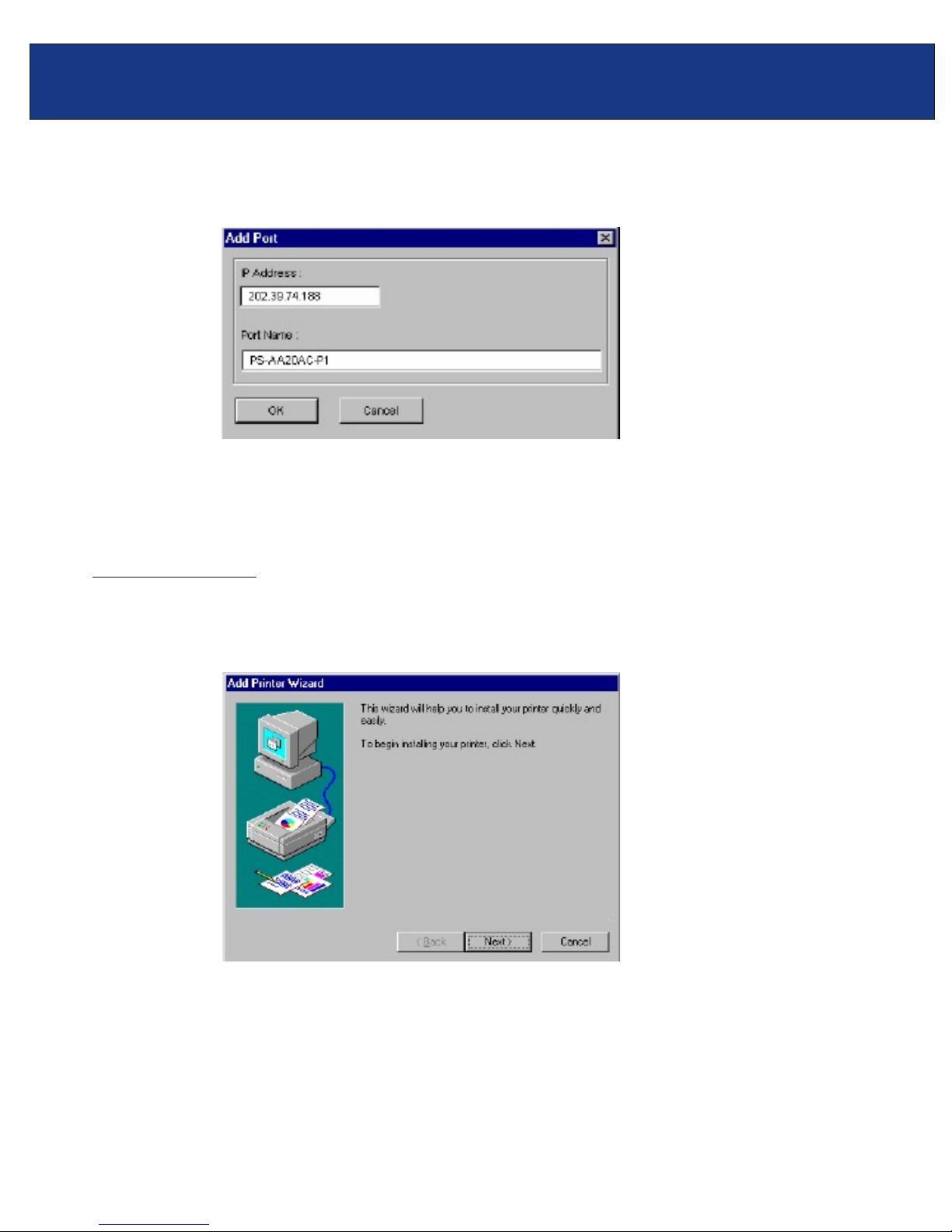

In the top field type in the IP address of your print server. In the bottom field type in the port name
of your print server, the Port Name is the PS-xxxxxx-P1. X being the actual number listed in the
Port Name box. Click on OK.
TEW-P1U1P F.A.Q.

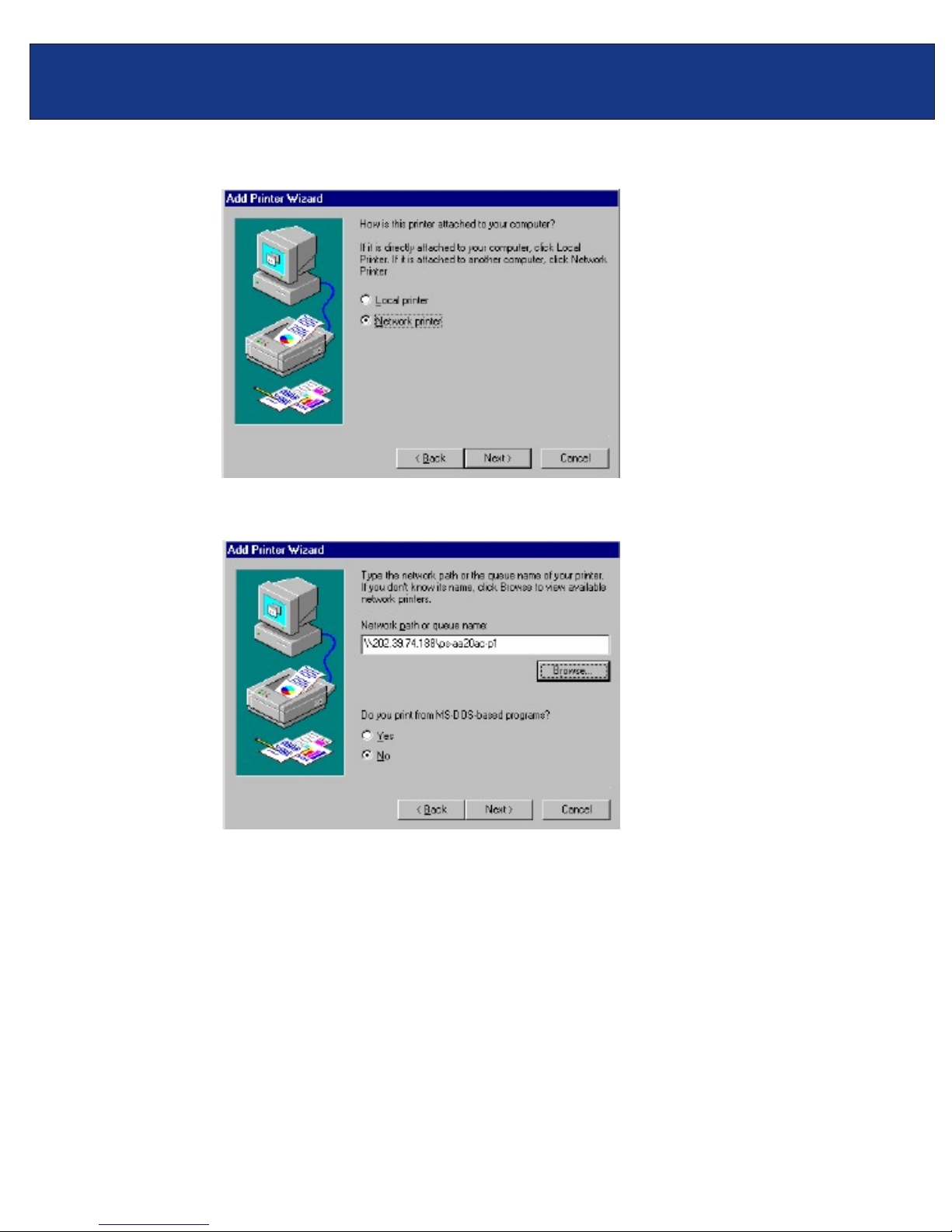

Step 3. Select Network Printer and click on Next.

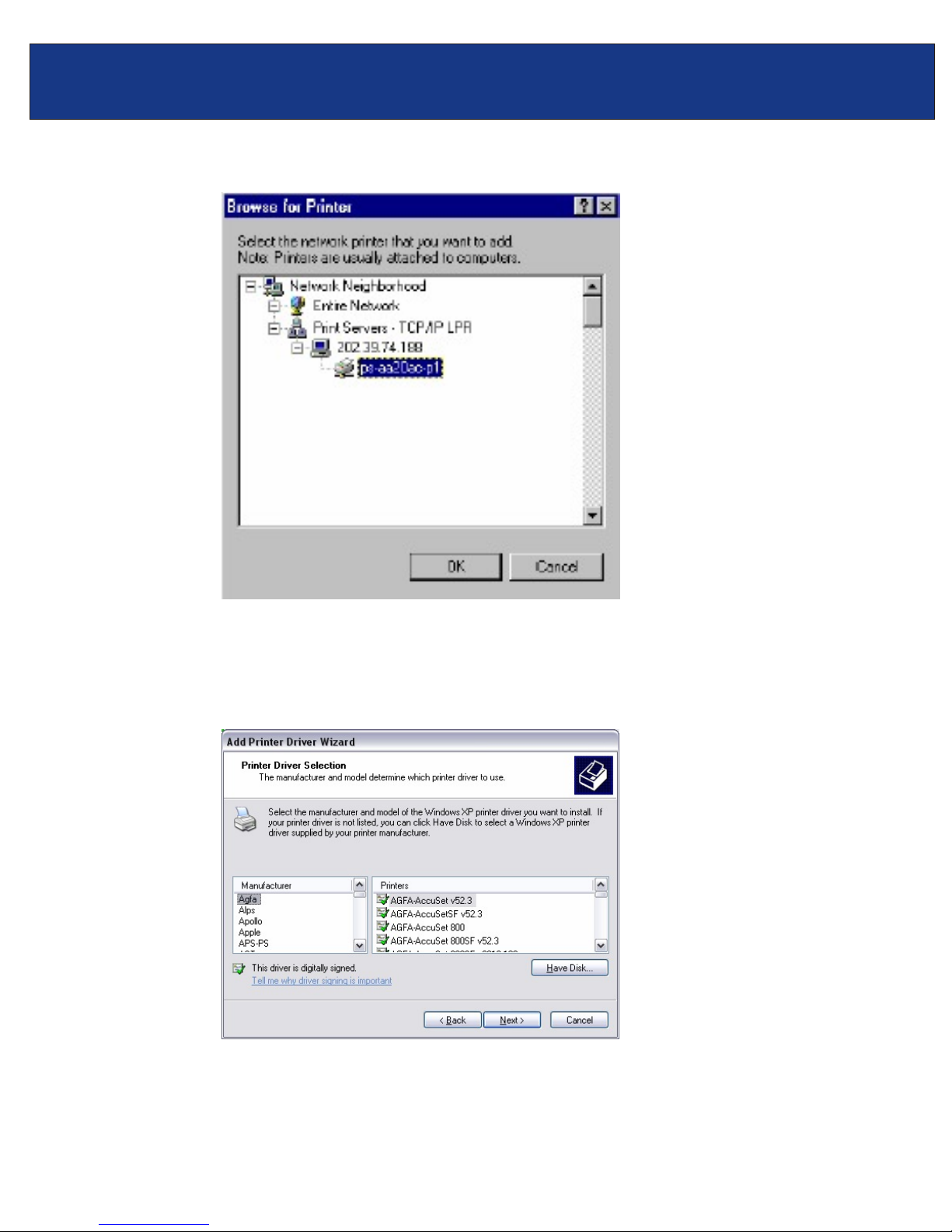

Step 4. Click on the Browse button and browse to the print server.
TEW-P1U1P F.A.Q.
Step 6.
Step 7.
Click on Next. If you are unable to do this you can manually enter the Print Server by
using two backlashes, the IP address, one backlash and the port name of you printer.
You will now be asked to select a printer to install.
Step 5. Highlight the Print Server and click on OK to return to the Add Printer Wizard.
If you can not find your printer from the list, click on the Have Disk button and browse to the
printer drivers for your printer (floppy, CD, or downloaded).
Step 8. If you find your printer in the list, click on it and then click on OK. Windows will install the
drivers.
TEW-P1U1P F.A.Q.

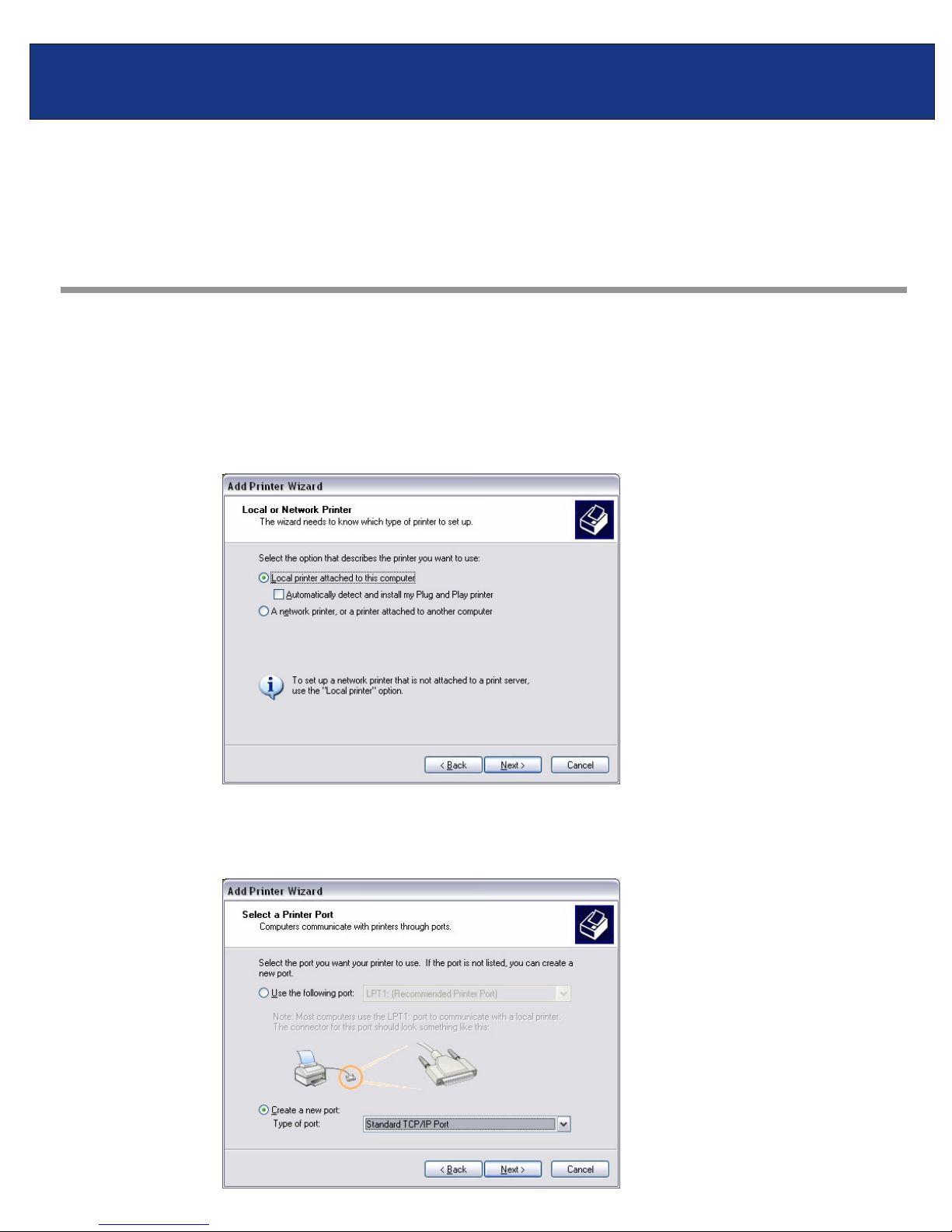

Step 1. Go to Start>Settings>Printers>Add New Printer (Win XP - Start>Printers and
Faxes>Add a Printer).
Step 2. Select Local Printer. Make sure to uncheck Automatically detect and install my plug
and play printer. Click Next.
Step 3. Select Create a New Port and select Standard TCP/IP port. Click Next.
Q: How do I install my printer on Windows 2000/XP?
A:
Step 9. Once the drivers been installed, click Finish to complete the installation. You may be
prompted for your Windows CD. If you are prompted for the CD, browse to the Win98 f
older on the Windows CD and click on OK
Step 10. After the drivers have been installed for your printer, you will be prompted to print a test
page. Select Yes and click on Finish.
TEW-P1U1P F.A.Q.

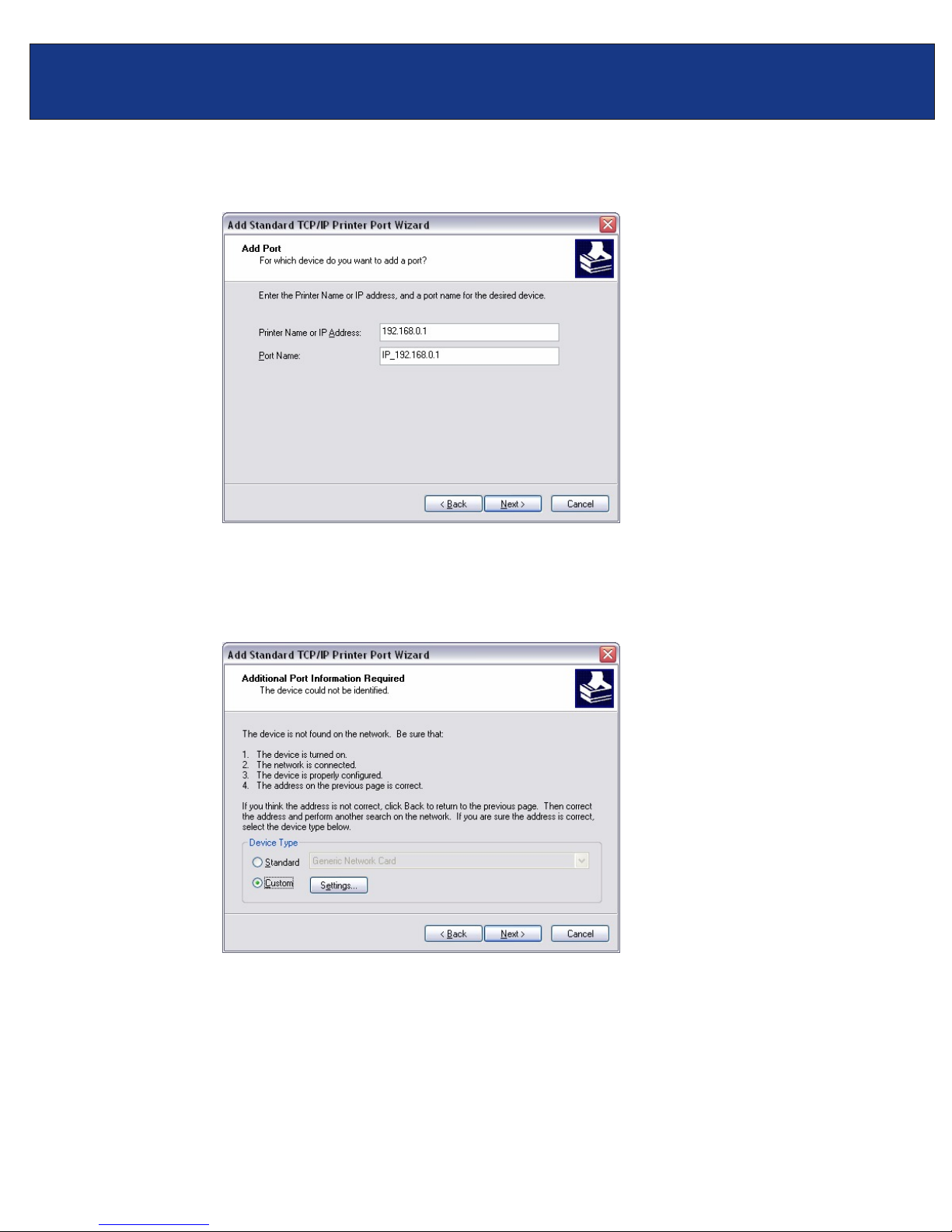

Step 4. Enter the IP address of the router (192.168.0.1). Leave the port name with the default
name. Click Next.
Step 5. You will get a message saying that additional port information required.
Step 6. Select Custom and then click Settings.
TEW-P1U1P F.A.Q.

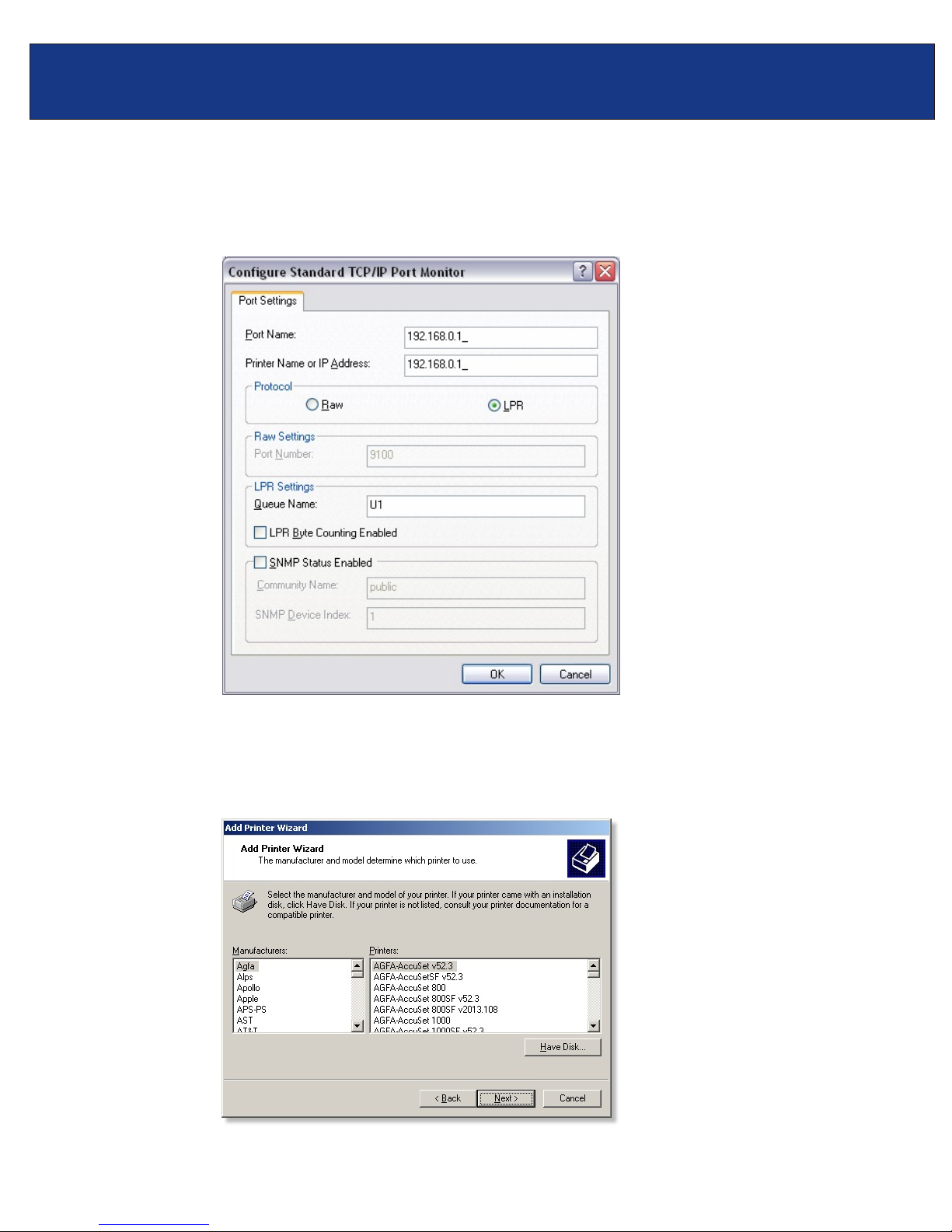

Step 7. Set Protocol to LPR.
Step 8. For the LPR Settings for the TEW-P1U1P the Queue Name will be L1 for the Parallel
port and L2 for the USB port. It is case sensitive!
Step 9. Select OK > Finish.
Step 10. Continue with the Add Printer Wizard. Choose your printer from the list or click Have
Disk and point to your printer driver disk.
TEW-P1U1P F.A.Q.
