TRENDnet TE100-S32 Manuel

Quick Installation Guide

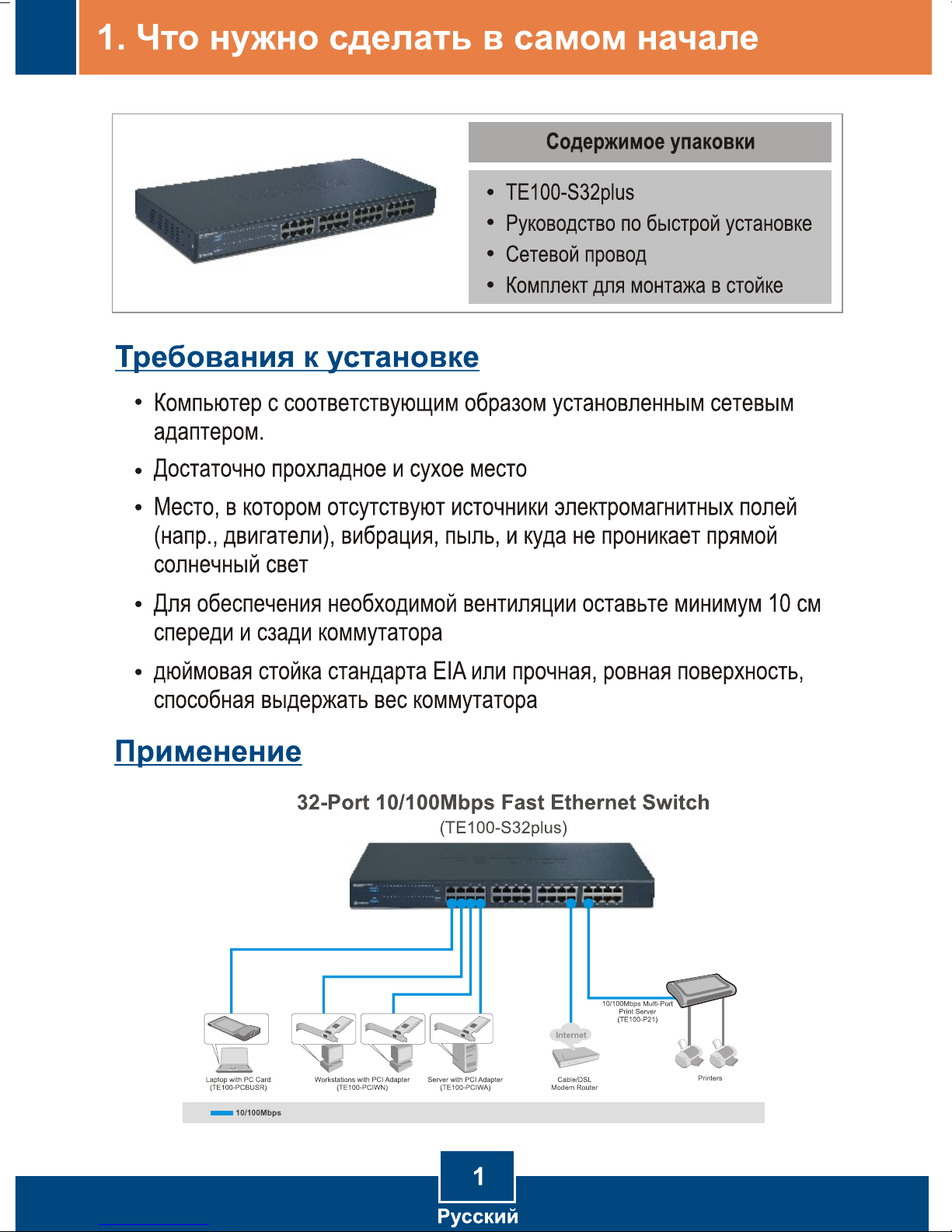

TE100-S32plus

Standards

IEEE 802.3 10BASE-T Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3x Full-Duplex Flow Control

Protocol CSMA/CD

Data Transfer Rates

Ethernet:

10Mbps (Half-Duplex), 20Mbps (Full-Duplex)

Fast Ethernet:

100Mbps (Half-Duplex), 200Mbps (Full-Duplex)

Network Cables Ethernet: UTP/STP CAT-3, 4, 5

Fast Ethernet: UTP/STP CAT-5

Number of Ports

32 x 10/100Mbps Auto-negotiation, Auto-MDIX

1 x 100Base-FX Fiber Module Slot for Optional

Fiber Adapter (TE100-SFXM)

General

Topology Star

Technical Specifications

Transmission Method

MAC Address Learning

Store-and-forward

Self-learning, Auto-aging

RAM Buffer 1Mbyte per device

Packet Filtering/

Forwarding Rate

Filtering Address Table

Ethernet: 14,880pps (packet per second)

Fast Ethernet: 148,800pps (packet per second)

4K entries per device

Performance

Power 100-240VAC. 50/60Hz. Internal Power Supply

Power Consumption 40 Watts max.

Temperature Operating: 0 ~ 40 C, Storage: -10 ~ 70 C° ° ° °

Dimensions (L x W x H) 440 x 200 x 44 mm (17.3 x 7.9 x 1.73 in.)

Weight 2.66 kg (5.86 lbs)

Physical and Environmental

Humidity

Certification

10% ~ 90%

FCC, CE

Troubleshooting

Q1:

A1:

Q2:

A2:

Q3:

A3:

Q4:

A4:

Q5:

A5:

After connecting the Switch to a power outlet, the LEDs do not turn on.

Check the connection of the external power adapter to the TE100-S32plus and

the power outlet. Also check that the power outlet is receiving power.

When I connect a computer to the Switch's port, the LINK/ACT LED turns on,

but the 100Mbps LED remains off.

When the 100Mbps LED remains off, the computer's connection speed is

10Mbps.

After I connect my PCs to the Switch, I am unable to share files.

First, check the LEDs on the Switch. Make sure the LINK/ACT LED is on.

Second, check the network cable. The minimum length of the cable is 1.5 meters

and the maximum length of the cable is 100 meters. Third, disable any software

firewall program. Fourth, verify that you have file sharing enabled. Please contact

your operating system provider for more information.

After I connect my PCs to the Switch, I can only get onto the Internet from one

computer.

The Switch was not designed to share Internet between multiple computers.

You need to install an Internet router such as the TRENDnet TW100-S4W1CA.

I purchased the optional fiber module, TE100-SFXM. After I installed it on the

switch, I can not make a connection. What should I do?

First, make sure the opposing fiber connection (e.g. fiber switch, fiber converter,

fiber adapter) is a 100Mbps multi-mode fiber device with SC-type connector.

Second, make sure that you are using 50/125um or 62.5/125um multi-mode fiber

cables. Third, verify that the TX and RX cables have been reversed on the

opposing Fiber connection. Fourth, power down the switch and the opposing fiber

connection. Wait 15 seconds, and then power everything back up. Fifth, make sure

the distance between the two fiber connections does not exceed 2 kilometers.

If you still encounter problems or have any questions regarding the TE100-S32plus,

please contact TRENDnet's Technical Support Department.

Limited Warranty

- 5-Year Warranty

TRENDnet warrants its products against defects in material and workmanship, under

normal use and service, for the following lengths of time from the date of purchase.

TE100-S32plus

If a product does not operate as warranted above during the applicable warranty period,

TRENDnet shall, at its option and expense, repair the defective product or deliver to

customer an equivalent product to replace the defective item. All products that are

replaced will become the property of TRENDnet. Replacement products may be new or

reconditioned.

TRENDnet shall not be responsible for any software, firmware, information, or memory

data of customer contained in, stored on, or integrated with any products returned to

TRENDnet pursuant to any warranty.

There are no user serviceable parts inside the product. Do not remove or attempt to

service the product through any unauthorized service center. This warranty is voided if

(i) the product has been modified or repaired by any unauthorized service center, (ii) the

product was subject to accident, abuse, or improper use (iii) the product was subject to

conditions more severe than those specified in the manual.

Warranty service may be obtained by contacting TRENDnet office within the applicable

warranty period for a Return Material Authorization (RMA) number, accompanied by a

copy of the dated proof of the purchase. Products returned to TRENDnet must be pre-

authorized by TRENDnet with RMA number marked on the outside of the package, and

sent prepaid, insured and packaged appropriately for safe shipment.

WARRANTIES EXCLUSIVE: IF THE TRENDNET PRODUCT DOES NOT OPERATE

AS WARRANTED ABOVE, THE CUSTOMER’S SOLE REMEDY SHALL BE, AT

TRENDNET’S OPTION, REPAIR OR REPLACEMENT. THE FOREGOING

WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER

WARRANTIES, EXPRESSED OR IMPLIED, EITHER IN FACT OR BY OPERATION OF

LAW, STATUTORY OR OTHERWISE, INCLUDING WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. TRENDNET

NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT

ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION,

MAINTENANCE OR USE OF TRENDNET’S PRODUCTS.

TRENDNET SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND

EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES

NOT EXIST OR WAS CAUSED BY CUSTOMER’S OR ANY THIRD PERSON’S

MISUSE, NEGLECT, IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED

ATTEMPTS TO REPAIR OR MODIFY, OR ANY OTHER CAUSE BEYOND THE

RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING, OR OTHER

HAZARD.

LIMITATION OF LIABILITY: TO THE FULL EXTENT ALLOWED BY LAW TRENDNET

ALSO EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY LIABILITY, WHETHER

BASED IN CONTRACT OR TORT (INCLUDING NEGLIGENCE), FOR INCIDENTAL,

CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND,

OR FOR LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF

INFORMATION OR DATE, OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN

CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE, USE,

PERFORMANCE, FAILURE, OR INTERRUPTION OF THE POSSIBILITY OF SUCH

DAMAGES, AND LIMITS ITS LIABILITY TO REPAIR, REPLACEMENT, OR REFUND

OF THE PURCHASE PRICE PAID, AT TRENDNET’S OPTION. THIS DISCLAIMER OF

LIABILITY FOR DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED

HEREIN SHALL FAIL OF ITS ESSENTIAL PURPOSE.

Governing Law: This Limited Warranty shall be governed by the laws of the state of

California.

Note: AC/DC Power Adapter, Cooling Fan, Cables and Power Supply carry a 1-Year

Warranty
