TRENDnet TE100-S16 - 10/100Mbps Ethernet Switch Manuel utilisateur

TE100-S24

24-Port 10/100Mbps

Fast Ethernet Switch

User’s Guide

FCC Warning

This equipment has been tested and found to comply with the

regulations for a Class A digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated in a

commercial environment. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed and used in

accordance with this user’s guide, may cause harmful interference to

radio communications. Operation of this equipment in a residential

area is likely to cause harmful interference, in which case the user will

be required to correct the interference at his own expense.

CE Mark Warning

This is a Class A product. In a domestic environment, this product

may cause radio interference, in which case the user may be required

to take adequate measures.

UL Warning

a) Elevated Operating Ambient Temperature-If installed in a closed or

multi-unit rack assembly, the operating ambient temperature of the

rack environment may be greater than room ambient. Therefore,

consideration should be given to installing the equipment in an

environment compatible with the manufacturer's maximum rated

ambient temperature (Tmra).

b) Reduced Air Flow-Installation of the equipment in a rack should

be such that the amount of air flow required for safe operation of the

equipment is not compromised.

c) Mechanical Loading-Mounting of the equipment in the rack should

be such that a hazardous condition is not achieved due to uneven

mechanical loading.

d) Circuit Overloading-Consideration should be given to the

connection of the equipment to the supply circuit and the effect that

overloading of circuits might have on over current protection and

supply wiring. Appropriate consideration of equipment nameplate

ratings should be used when addressing this concern.

e) Reliable Earthing-Reliable earthing of rack-mounted equipment

should be maintained. Particular attention should be given to supply

connections other than direct connections to the branch circuit (e.g.,

use of power strips).

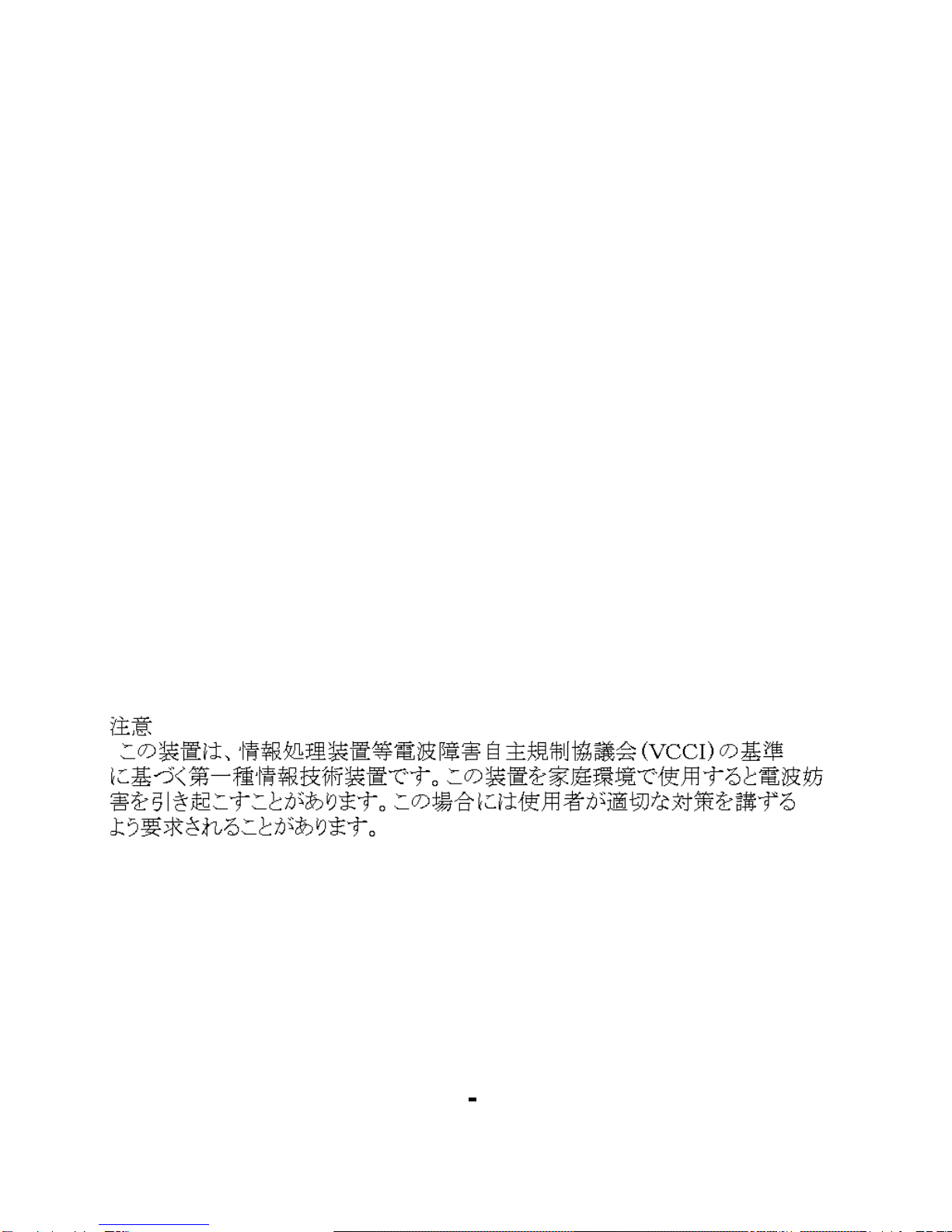

P/N :1907ESW24E15000

iii

TABLE OF CONTENTS

About This Guide..............................................1

PURPOSE 1

OVERVIEW OF THIS USER’S GUIDE 1

Introduction.......................................................2

FAST ETHERNET TECHNOLOGY 2

SWITCHING TECHNOLOGY 3

FEATURES 4

Unpacking and Installation.................................6

UNPACKING 6

INSTALLATION 6

RACK MOUNTING 7

Identifying External Components.......................8

FRONT PANEL 8

REAR PANEL 9

Technical Specification....................................10

ABOUT THIS GUIDE

Congratulations on your purchase of the 24-port 10/100Mbps

Auto-negotiation Fast Ethernet Switch. This device integrates

100Mbps Fast Ethernet and 10Mbps Ethernet network

capabilities in a highly flexible package.

Purpose

This guide discusses how to install your 24-port 10/100Mbps Fast

Ethernet Switch.

TERMS/USAGE

In this guide, the term “Switch” (first letter upper case) refers to your

24-port 10/100Mbps Fast Ethernet Switch, and ”switch” (first letter

lower case) refers to other Ethernet switches.

Overview of this User’s Guide

Introduction. Describes the Switch and its features.

Unpacking and Installation.Helps you get started with the basic

installation of the Switch.

Identifying External Components. Describes the front panel, rear

panel,and LED indicators of the Switch.

Technical Specifications. Lists the technical (general, physical and

environmental, and performance) specifications of the Switch.

INTRODUCTION

This chapter describes the features of the Switch and some

background information about Ethernet/Fast Ethernet switching

technology.

Fast Ethernet Technology

The growing importance of LANs and the increasing complexity of

desktop computing applications are fueling the need for high

performance networks. A number of high-speed LAN technologies

have been proposed to provide greater bandwidth and improve

client/server response times. Among them, 100BASE-T (Fast

Ethernet) provides a non-disruptive, smooth evolution from the

current 10BASE-T technology. The non-disruptive and smooth

evolution nature, and the dominating potential market base, virtually

guarantee cost effective and high performance Fast Ethernet solutions

in the years to come.

100Mbps Fast Ethernet is a new standard specified by the IEEE 802.3

LAN committee. It is an extension of the 10Mbps Ethernet standard

with the ability to transmit and receive data at 100Mbps, while

maintaining the CSMA/CD Ethernet protocol. Since the 100Mbps

Fast Ethernet is compatible with 10Mbps Ethernet and 100Mbps Fast

Ethernet environments, it provides a straightforward network upgrade

and takes advantage of the existing investment in hardware, software,

and personnel training.

Switching Technology

Another approach to pushing beyond the limits of Ethernet technology

is the development of switching technology. A switch bridge Ethernet

packets at the MAC address levelof the Ethernet protocol transmitting

among connected Ethernet or FastEthernet LAN segments.

Switching is a cost-effective way of increasing the total network

capacity available to users on a local area network. A switch

increases capacity and decreases network loading by dividing a local

area network into different segments, which don’t compete with each

other for network transmission capacity.

The switch acts as a high-speed selective bridge between the

individual segments. The switch, without interfering with any other

segments, automatically forwards traffic that needs to go from one

segment to another. By doing this the total network capacity is

multiplied, while still maintaining the same network cabling and

adapter cards.

For Fast Ethernet networks, a switch is an effective way of eliminating

problems of chaining hubs beyond the “repeater-counts”limitation.A

switch can be used to split parts of the network into different collision

domains, making it possible to expand your Fast Ethernet network

beyond the 205-meter network diameter limit for 100BASE-TX

networks. Switches supporting both traditional 10Mbps Ethernet and

100Mbps Fast Ethernet are also ideal for bridging between the

existing 10Mbps networks and the 100Mbps networks.

Switching LAN technology is a marked improvement over the

previous generation of network bridges, which were characterized by

higher latencies. Routers have also been used to segment local area

networks, but the cost of a router, the setup and maintenance required

make routers relatively impractical. Todayswitches are ideal

solutionsto most kinds of local area network congestion problems.

Features

The Switch were designed for easy installation and high performance

in an environment where traffic on the network and the number of

user increase continuously.

The Switch with its rack size is specifically designed for middle to

large workgroups. The Switch provides immediate access to a rapidly

growing network through a wide range of user-reliable functions.

The Switch is ideal for deployment with multiple high-speed servers

for shared bandwidth 10Mbps or 100Mbps workgroups. With the

highest bandwidth 200Mbps (100Mbps full-duplex mode), any port

can provide workstation with a congestion-free data pipe for

simultaneous access to the server.

The Switch is expandable by cascading two or more switches

together. As all ports support 200Mbps, the Switch can be cascaded

from any port and to any number of switches.

The Switch is a perfect choice for site planning to upgrade to Fast

Ethernet in the future. Ethernet workgroups can connect to the

Switch now, and change adapters and hubs anytime later without

needing to change the Switch or reconfigure the network.

The Switch combine dynamic memory allocation with

store-and-forward switching to ensure that the buffer is effectively

allocated for each port, while controlling the data flow between the

transmit and receive nodes to guarantee against all possible packet

loss.

The Switch is an unmanaged 10/100 Fast Ethernet Switch that offers

solutions in accelerating small Ethernet workgroup bandwidth. Other

key features are:

?? 24-port 10/100BASE Ethernet Switch with RJ-45

connectors

?? SupportsAuto-negotiation for speed and duplex

modes on each port

?? Supports Auto-MDI/MDI-X on each port

?? Wire-speed reception and transmission

?? Store-and-Forward switching method

?? Integrated address Look-Up Engine, supports 8K

absolute MAC addresses

?? Supports 2.5Mbytes RAM for data buffering

?? Front-panel diagnostic LEDs

?? No cooling fans,for quite operation

?? Broadcast storm protection

?? IEEE 802.3x flow control for full-duplex

?? Back pressure flow control for half-duplex

?? Standard 19” Rack-mountable size

UNPACKING AND INSTALLATION

This chapter provides unpacking and setup information for

the Switch.

Unpacking

Open the shipping cartons of the Switch and carefully unpacks its

contents. The carton should contain the following items:

?? One the 24-port 10/100Mbps Fast Ethernet Switch

?? One AC powercord, suitable for your area’s electrical

powerconnections

?? Four rubber feet to be used for shock cushioning

?? Screws and two rack-mounting brackets

?? This User’s Guide

If any item is found missing or damaged, please contact your local

reseller for replacement.

Installation

The site where you install the Switch stack may greatly affect its

performance. When installing, consider the following pointers:

Install the Switch in a fairly cool and dry place. See Specifications

for the acceptable temperature and humidity operating ranges.

Install the Switch in a site free from strong electromagnetic field

generators (such as motors), vibration, dust, and direct exposure to

sunlight.

Leave at least 10cm of space at the front, rear, and both right and left

sides of the hub for ventilation. Do not block the vent holes on the

sides.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels TRENDnet Routeur réseau

TRENDnet

TRENDnet TEW-733GR Manuel utilisateur

TRENDnet

TRENDnet TEW-WLC100P Manuel utilisateur

TRENDnet

TRENDnet TEW731BRV2 Manuel utilisateur

TRENDnet

TRENDnet TE100-S50g Manuel utilisateur

TRENDnet

TRENDnet TEW-752DRU Manuel utilisateur

TRENDnet

TRENDnet TWG-BRF114 Manuel utilisateur

TRENDnet

TRENDnet TEW-652BRP Manuel utilisateur

TRENDnet

TRENDnet TW100-BRF104 Manuel utilisateur

TRENDnet

TRENDnet CAMEO/TEW-632BRP Manuel utilisateur

TRENDnet

TRENDnet TPA-311 Manuel utilisateur

TRENDnet

TRENDnet TEW-633GR - Wireless Router Manuel d'installation et d'exploitation

TRENDnet

TRENDnet TW100-BRF214 Manuel utilisateur

TRENDnet

TRENDnet TW100-BRV204 SHEETS Manuel utilisateur

TRENDnet

TRENDnet TEW-635BRM - Wireless Router Manuel utilisateur

TRENDnet

TRENDnet TE100-S16Eg Manuel utilisateur

TRENDnet

TRENDnet TVP-224HR Guide de l'utilisateur

TRENDnet

TRENDnet TW100-W2plus Manuel utilisateur

TRENDnet

TRENDnet TPE-S44 - Switch Manuel de la liste des pièces

TRENDnet

TRENDnet TE100-S5Pplus Guide de démarrage rapide

TRENDnet

TRENDnet TEW-637AP - 300Mbps Wireless Easy-N-Upgrader Manuel utilisateur

TRENDnet

TRENDnet TEG-S5g - Gigabit GREENnet Switch Manuel utilisateur

TRENDnet

TRENDnet TW100-BRF114 Manuel utilisateur

TRENDnet

TRENDnet TE100-S5Pplus Guide de démarrage rapide

TRENDnet

TRENDnet TK-EX4 Manuel utilisateur

Manuels Routeur réseau populaires d'autres marques

Allnet

Allnet ALL0333AU Manuel utilisateur

HomeSeer

HomeSeer HT-SEL Manuel utilisateur

Sercomm

Sercomm Genesis OC3505D Manuel utilisateur

Billion

Billion BIPAC 5102 Series Manuel utilisateur

TP-Link

TP-Link TD-8817 Manuel utilisateur

Motorola

Motorola MR1900 Manuel utilisateur

Digi

Digi IX14 Manuel utilisateur

Cisco

Cisco NCS 540 Manuel

XAVi

XAVi X8821e Manuel utilisateur

BEC

BEC 6200WZL Manuel utilisateur

MikroTik

MikroTik hAP ac3 Series Manuel utilisateur

Korenix

Korenix JetNet 5428G Series Manuel utilisateur

NETGEAR

NETGEAR FS526T - Switch Manuel utilisateur

Korenix

Korenix JetNet 5710G Series Manuel utilisateur

Automated Logic

Automated Logic ZN551 Manuel du propriétaire

Cisco

Cisco ASR 1000 Series Manuel de l'opérateur

EnGenius

EnGenius ESR-9710 Manuel utilisateur

Cisco

Cisco 805 Series Instructions d'utilisation et de sécurité
