TRENDnet TU-S9 Manuel utilisateur

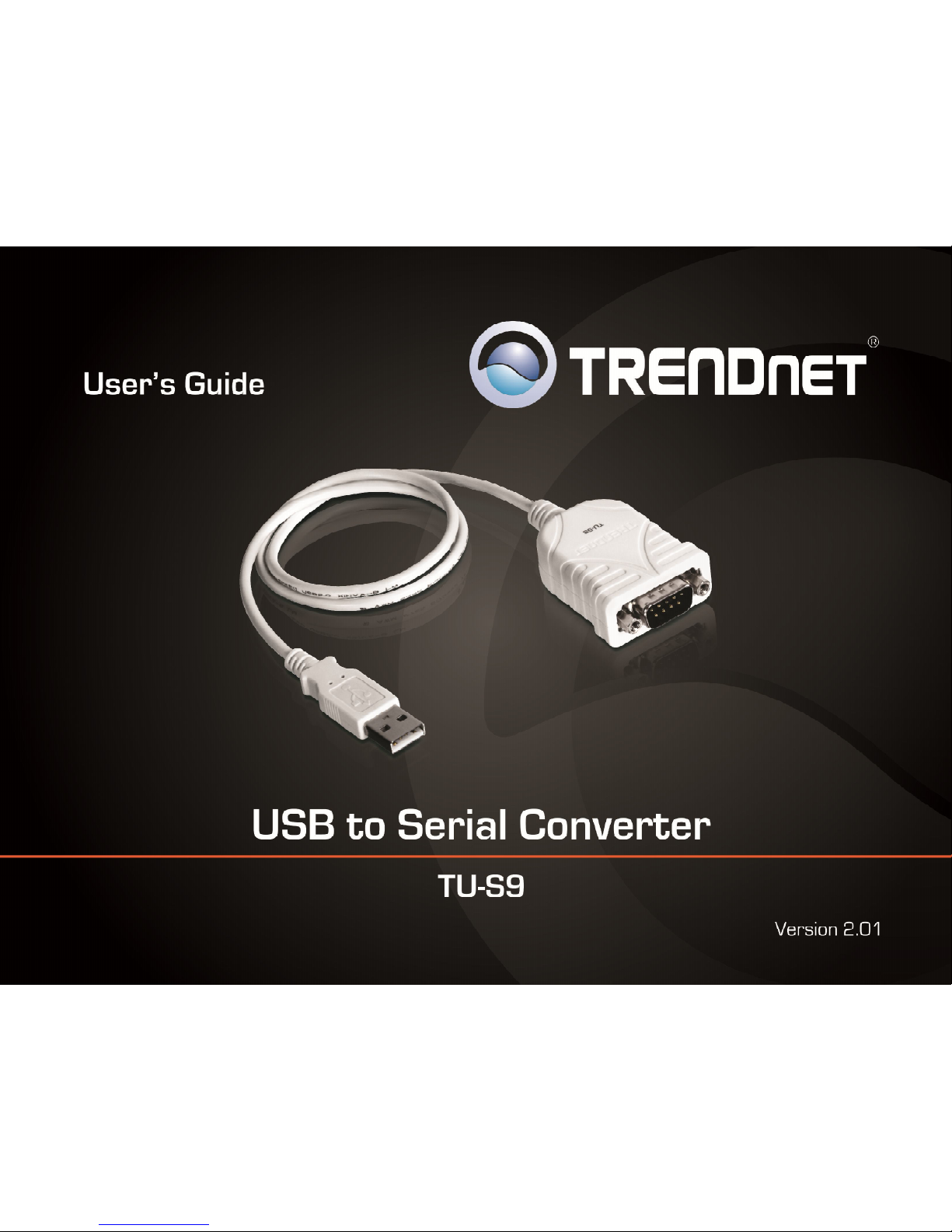

TRENDnet User’s Guide Cover Page

TRENDnet User’s Guide Table of Contents

Contents

Product Overview....................................................................................1

Package Contents ...................................................................................................... 1

Features .................................................................................................................... 1

Product Hardware Features ....................................................................................... 2

Application Diagram .................................................................................................. 2

Windows Installation...............................................................................3

Windows 7 / Vista ...................................................................................................... 3

Windows XP / 2000 / ME / 98SE ................................................................................. 4

Verify the Driver Installation on Windows .................................................................. 6

Mac Installation.......................................................................................7

Mac OS X 10.7 ........................................................................................................... 7

Mac OS X 10.1 ~ 10.6 ................................................................................................. 9

Verify the Driver Installation on Windows ................................................................ 11

Technical Specifications.........................................................................11

Limited Warranty...................................................................................12

TRENDnet User’s Guide TU-S9

Product Overview

TU-S9

Package Contents

TU-S9

Quick Installation Guide

CD-ROM (Driver & User’s Guide)

If any package contents are missing or damaged, please contact the retail store, online

retailer, or reseller/distributor that the item was purchased.

Features

This USB to Serial converter allows you to connect a RS-232 serial device such as a

modem to a USB port on your Desktop or Laptop PC.

Connect a RS-232 serial device such as a modem to a USB port on your

computer

Easy installation with Universal Plug and Play

Supports multiple operating systems

TRENDnet User’s Guide TU-S9

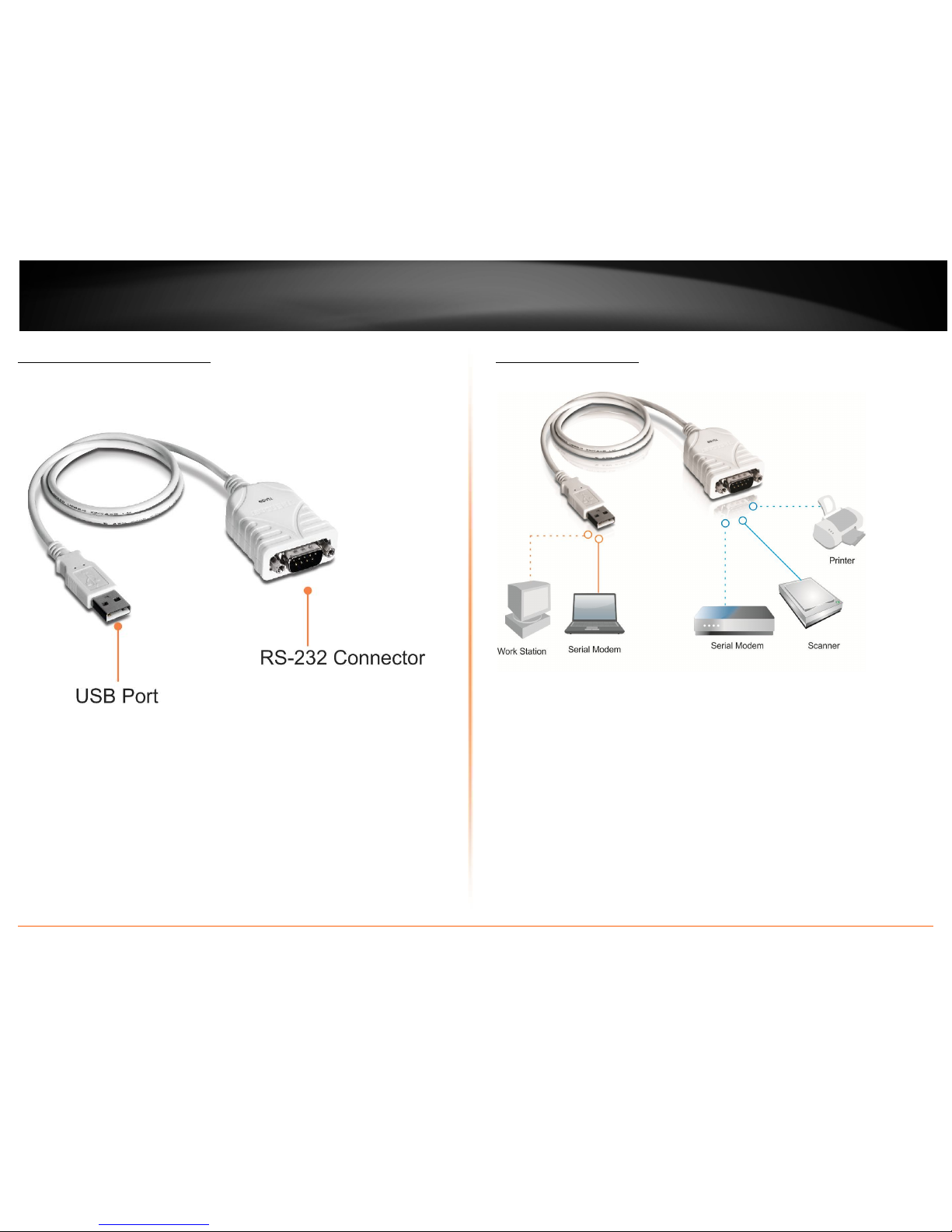

Product Hardware Features

Product View

USB Port - Connect the USB Port to your computer

RS-232 Connector– Connect the RS-232 connector to your Series Device.

Application Diagram

TRENDnet User’s Guide TU-S9

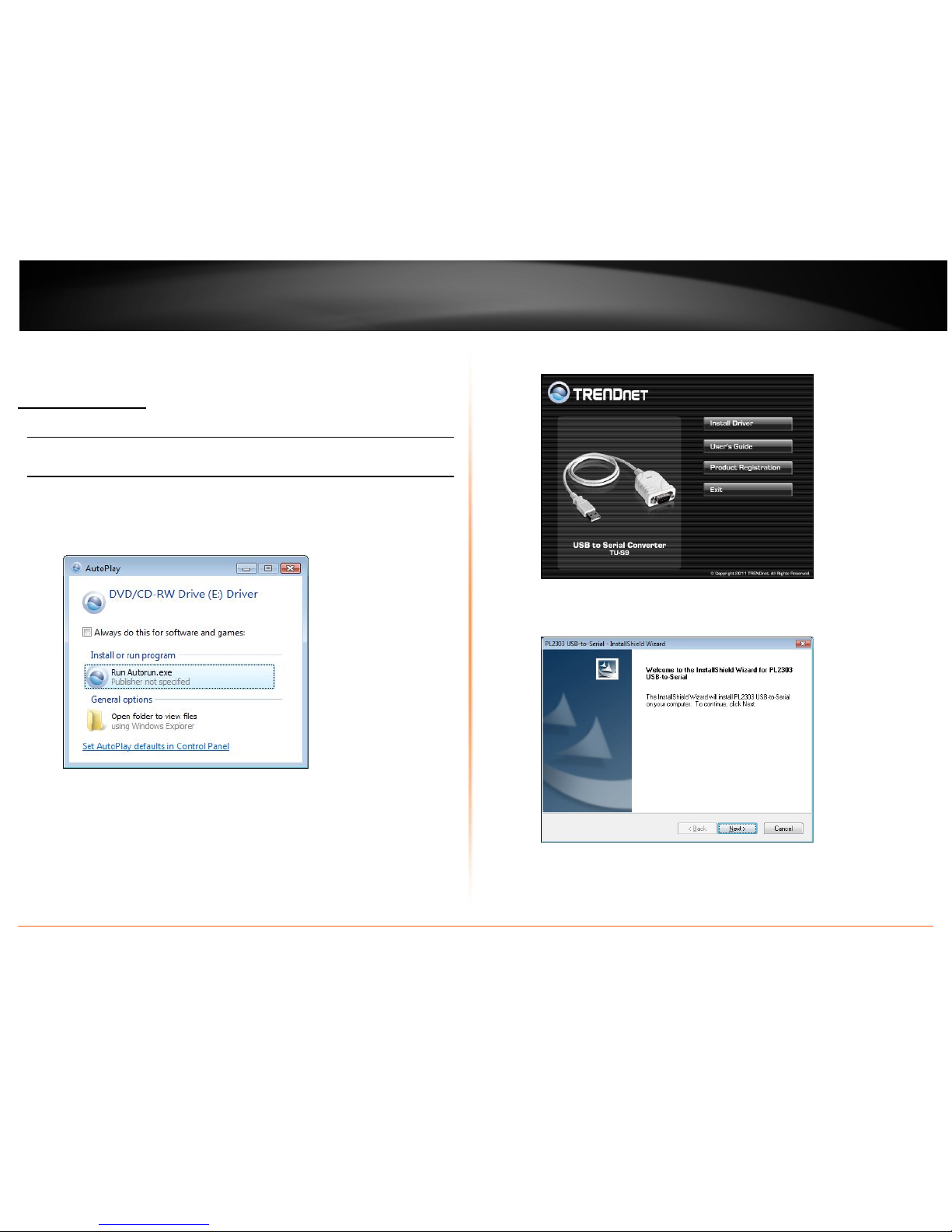

Windows Installation

Windows 7 / Vista

Note: DO NOT connect the USB Serial Converter to your computer before completing

the driver installation.

1. Insert the provided CD into your CD-ROM drive.

2. Click Autorun.exe.

3. Click Install Driver.

4. Click Next.

TRENDnet User’s Guide TU-S9

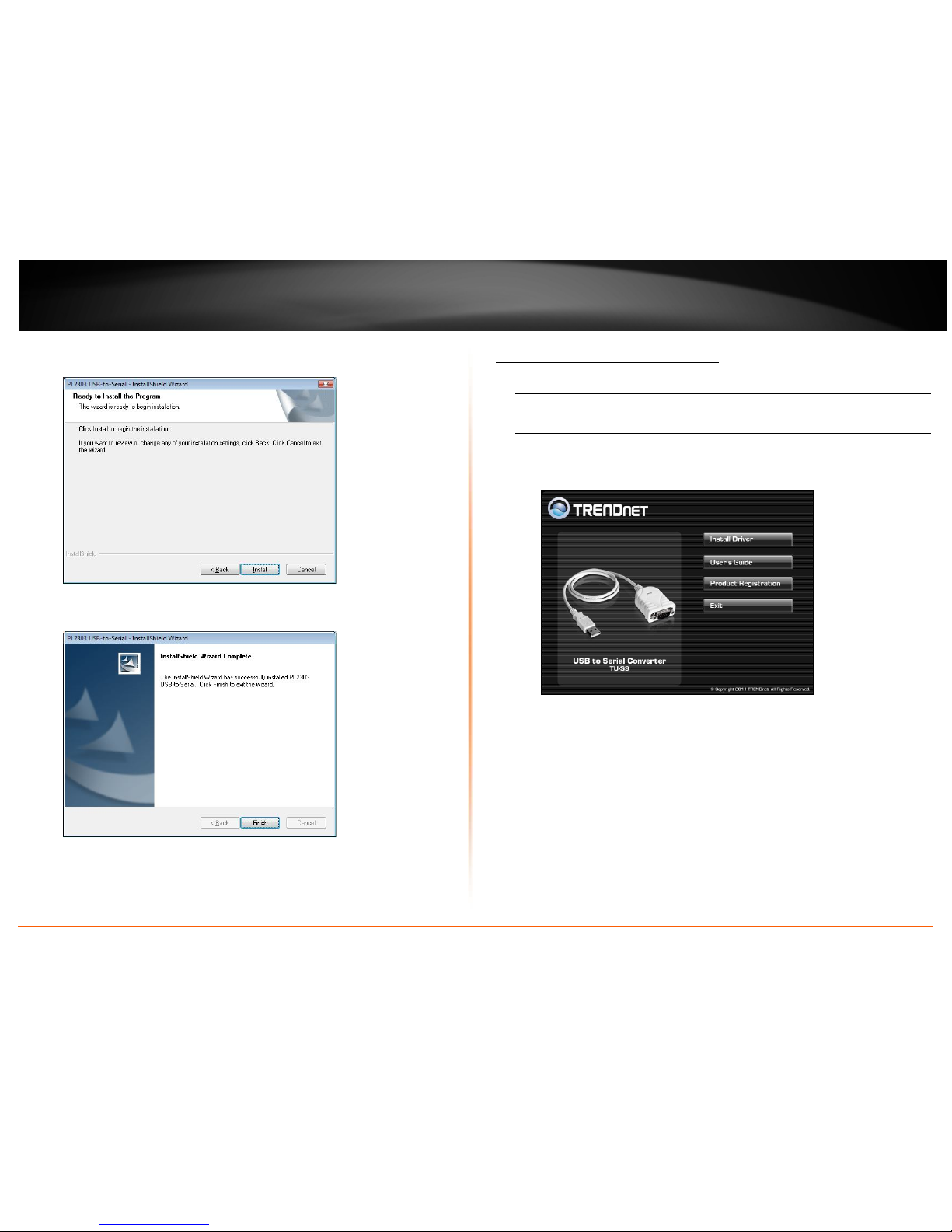

5. Click Install.

6. Click Finish.

7. Connect the TU-S9 to an available USB port of your computer

8. Drivers will install automatically.

Windows XP / 2000 / ME / 98SE

Note: DO NOT connect the USB Serial Converter to your computer before

completing the driver installation.

1. Insert the provided CD into your CD-ROM drive.

2. Click Install Driver.

TRENDnet User’s Guide TU-S9

3. Click Next.

4. Click Install.

5. When the following screen appears, click Finish.

6. Connect the TU-S9 to an available USB port of your computer

7. Drivers will install automatically.

TRENDnet User’s Guide TU-S9

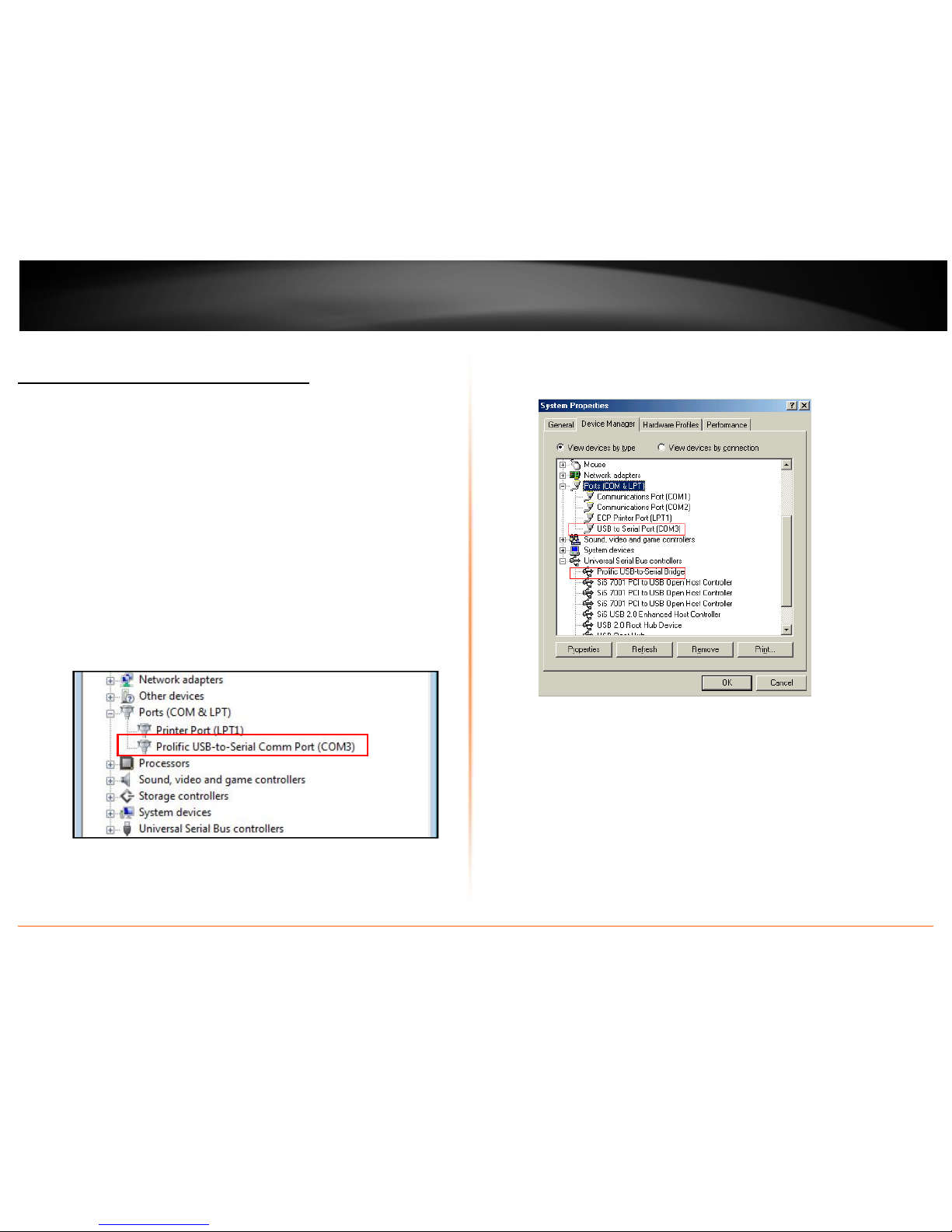

Verify the Driver Installation on Windows

To verify your converter installation, please launch DeviceManager by the steps

below:

On Windows 7/Vista: Right-Click on Computer > Properties> Device

Manager.

On Windows XP/ 2000 / ME / 98SE: Right-click on My Computer >

Properties > System > (Hardware) > Device Manager.

In the Ports (COM & LPT) group, a string similar to USB to Serial Port or Prolific

USB to Serial Comm Port should be displayed.

If there is a question or exclamation mark next to that item, then the driver is

not properly installed. Please delete the item and repeat the installation steps.

Windows 7 / Vista / XP / 2000

Windows 98SE/ME

TRENDnet User’s Guide TU-S9

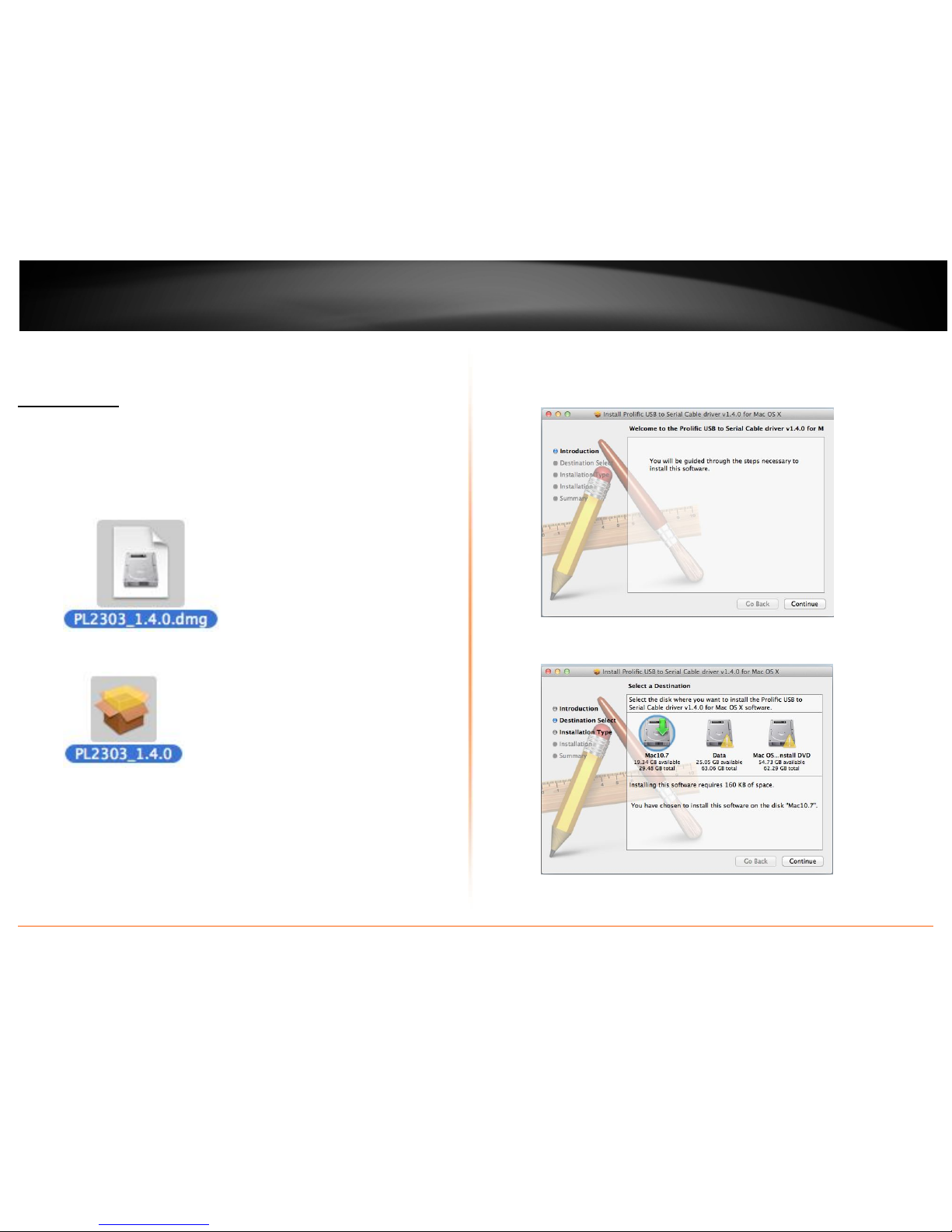

Mac Installation

Mac OS X 10.7

1. Insert the provided driver CD into your CD-ROM drive. Double-click the CD icon

on the desktop and navigate to the directory of

Driver\Mac_OSX\Mac_OSX10.7

2. Double-click the PL2303_1.4.0.dmg file to mount the driver installer image .

3. Please double-click pl PL2303_1.4.0 to execute the installer program

4. When the welcome screen appears, click Continue.

5. Select a destination disk to install the driver and click Continue.

TRENDnet User’s Guide TU-S9

6. Click Install.

7. When the Authenticate screen appears, enter your password in the provided

field and click OK.

8. Click Continue Installation.

9. Click Restart to finish installing the driver and reboot your Mac.

10. Connect the converter to a free USB port on your Mac.
