TRENDnet TFC-1000 Manuel utilisateur
TFC-1000
TFC-210 Series
TFC-2000 Series
Quick Installation Guide
Table of Contents
English ...........................................................................................
LLCF Function ................................................................................
Technical Specifications .................................................................
Troubleshooting ..............................................................................
1
1
2
3
9
11
1. Before You Start
2. Product Details ......................................................................
3. ............................................................
....................................................................
Hardware Installation
Table of Contents
Version 02.13.2007
13
TFC-1000
Quick Installation Guide
AC Power Cord
Mounting Bracket and Screws
Fiber Converter
Quick Installation Guide
AC Power Supply (9V DC, 700mA)
Package Contents
Package Contents
1. Before You Start
English
1
TFC-1000 Fiber Converter Chassis for TFC-210 and TFC-2000
Series Converters:
TFC-210 or TFC-2000 Series Fiber Converter:
2. Product Detail
10/100Base-TX to 100Base-FX Fiber Converters
Model Name Multi/
Single-Mode
Fiber
Connector Distance
WavelengthPower Budget
TFC-210MST
TFC-210MSC
TFC-210S20D3
TFC-210S30
TFC-210S20D5
Multi-Mode
Single-Mode
Single/
Bidirectional
Single-Mode
ST (Duplex)
SC (Duplex)
SC (Simplex)
2Km
30Km
20Km
1310nm
(1270nm ~ 1380nm)
1310nm
(1260nm ~ 1360nm)
TX:1310nm
(1280nm ~ 1355nm)
RX:1550nm
(1530nm ~ 1570nm)
TX:
(1530nm ~ 1570nm)
RX:1310nm
(1280nm ~ 1355nm)
1550nm
50/125um: 7.5dBm
62.5/125um: 11dBm
50/125um: 8.5dBm
62.5/125um: 8.5dBm
9/125um: 12dBm
1000Base-T to 1000Base-SX/LX Fiber Converters
Model Name Multi/
Single-Mode
Fiber
Connector Distance
Wavelength
Power Budget
TFC-2000MSC
TFC-2000S20
TFC-2000S10D3
TFC-2000S50
TFC-2000S10D5
Multi-Mode
Single-Mode
Single/
Bidirectional
Single-Mode
SC (Duplex)
SC (Simplex)
550M
50Km
20Km
220M
10Km
850nm
(830nm ~ 860nm)
1310nm
(1270nm ~ 1355nm)
1550nm
(1520nm ~ 1580nm)
TX:1310nm
(1280nm ~ 1355nm)
RX:1550nm
(1530nm ~ 1570nm)
TX:
(1530nm ~ 1570nm)
RX:1310nm
(1280nm ~ 1355nm)
1550nm
50/125um:8.5dBm
9/125um:15dBm
9/125um:12dBm
9/125um:19dBm
62.5/125um:8.5dBm
English
2

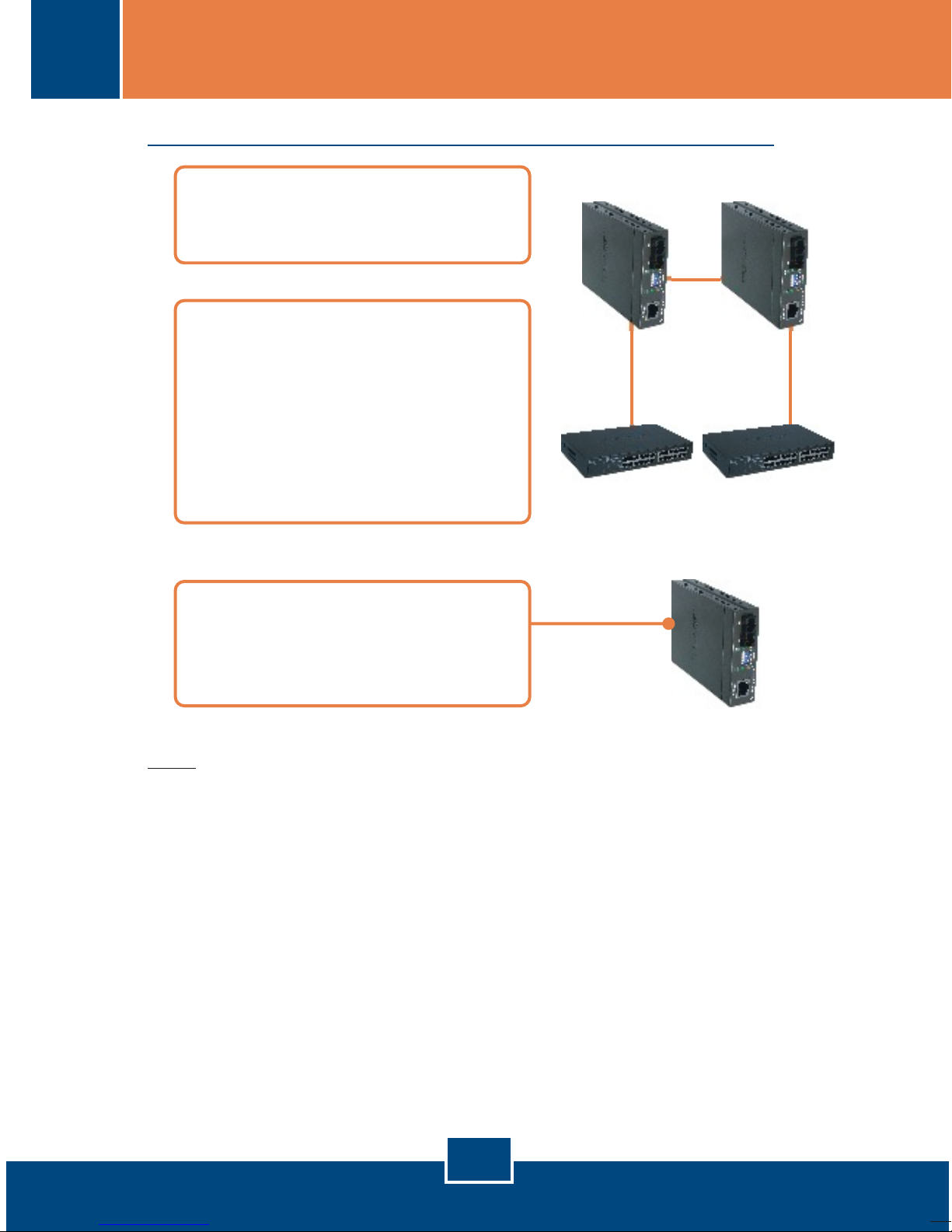

Installing Two Stand Alone Fiber Converters
1. Connect the fiber cable to
the Fiber Converters.
2. Connect an RJ-45 Ethernet
cable from the Ethernet port
on the fiber converters to an
Ethernet port on your switch
(e.g TE100-S24R or
TEG-S240TX).
Note:
– Cabling:
Multi-Mode Optic Cable: TFC-210MST, TFC-210MSC, TFC-2000MSC
Single-Mode Optic Cable: TFC-210S30, TFC-210S50, TFC-2000S30,
TFC-2000S50
Single Strand Optic Cable for TFC-210S20D3/D5, TFC-210S10D3/D5
– The TX and RX cables must be reversed on the opposing Fiber
connection.
– The TFC-210S20D3 must be paired with the TFC-210S20D5. The
TFC-2000S10D3 must be paired with the TFC-2000S10D5.
– The TX and FX ports on the TFC-2000 series do not support auto
negotiation. The opposing Copper and Fiber connection must be
Gigabit.
English
3
3. Hardware Installation
3. Connect the power adapter
to the back of the fiber
converter.
2. Connect an RJ-45 Ethernet
cable from the Ethernet port
on the Fiber Converters to
an Ethernet port on your
Switch (e.g. TE100-S24R or
TEG-240TX).

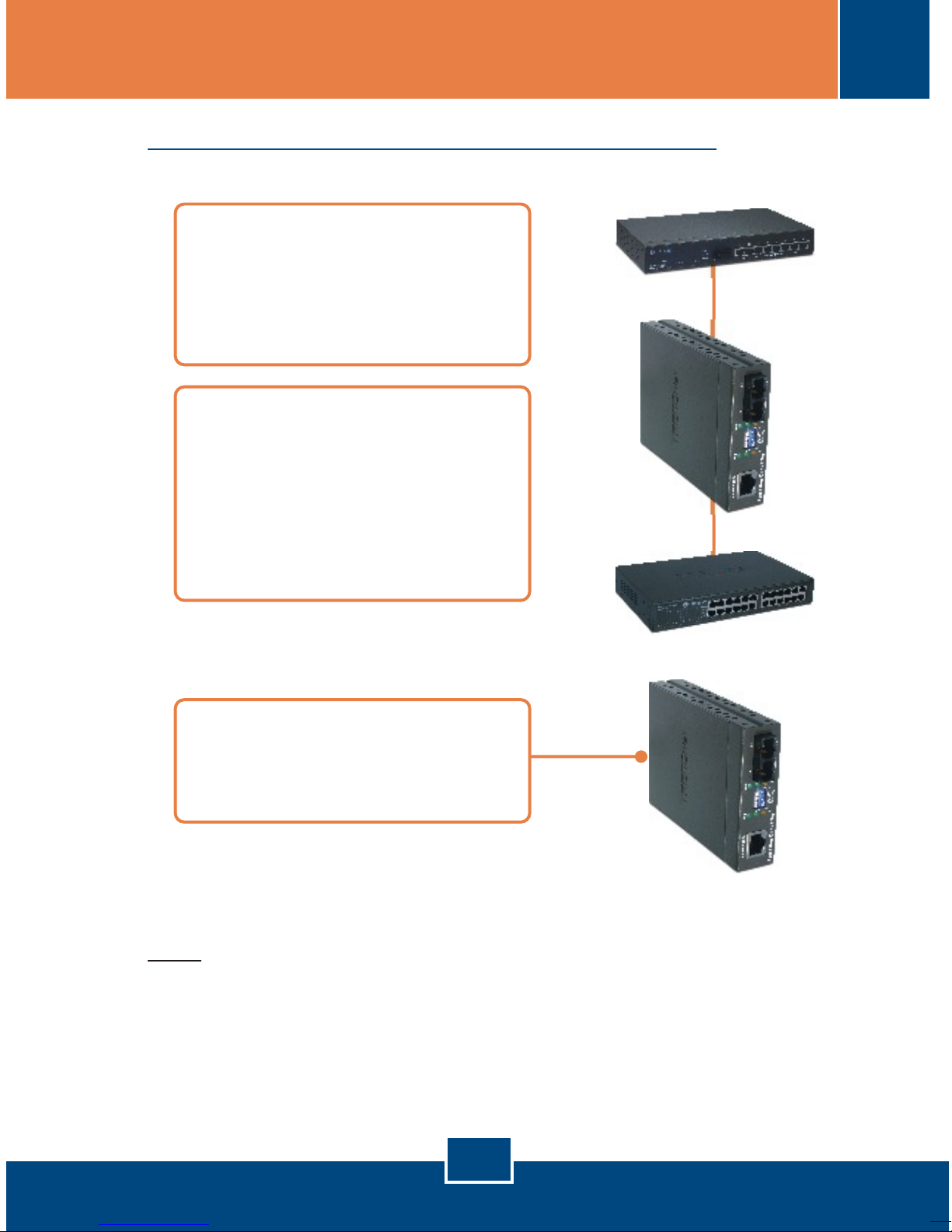

1. Connect the fiber cable from
the Fiber Converter to a
Fiber Switch
(e.g. TE100-S810Fi)
3. Connect the power adapter
to the back of the Fiber
Converter.
Installing a Fiber Converter to a Switch
Note: This application does not apply to the TFC-210S20D3,
TFC-210S20D5, TFC-2000S10D3 and TFC-2000S10D5.
English
4

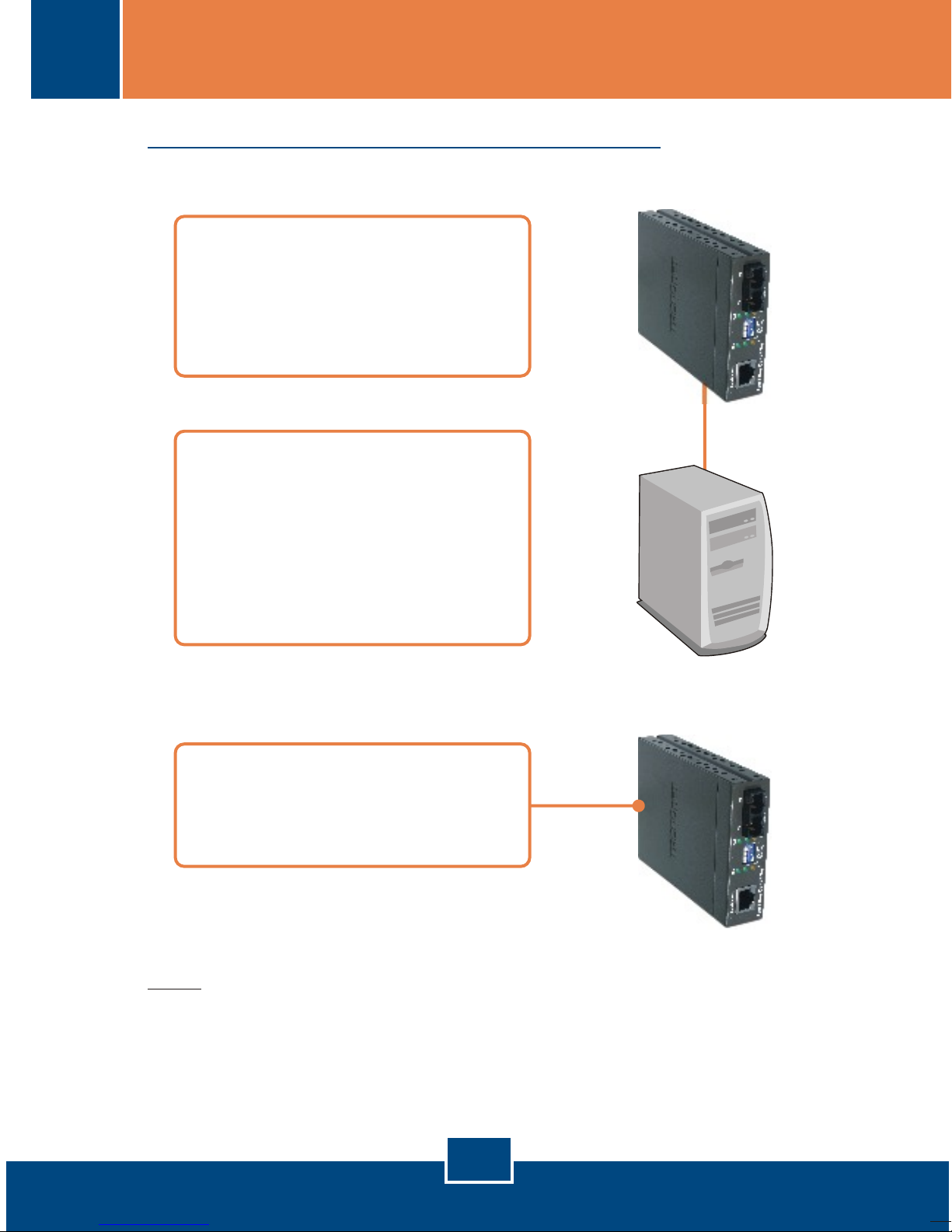

1. Connect the fiber cable from
the Fiber Converter to a PC
with a Fiber Adapter (e.g.
TE100-PCIFX+)
Installing a Fiber Converter to a PC
Note: This application does not apply to the TFC-210S20D3,
TFC-210S20D5, TFC-2000S10D3 and TFC-2000S10D5.
English
5
2. Connect an RJ-45 Ethernet
cable from the Ethernet port
on the Fiber Converters to
an Ethernet port on your
Switch (e.g. TE100-S24R or
TEG-240TX).
3. Connect the power adapter
to the back of the Fiber
Converter.
English
6

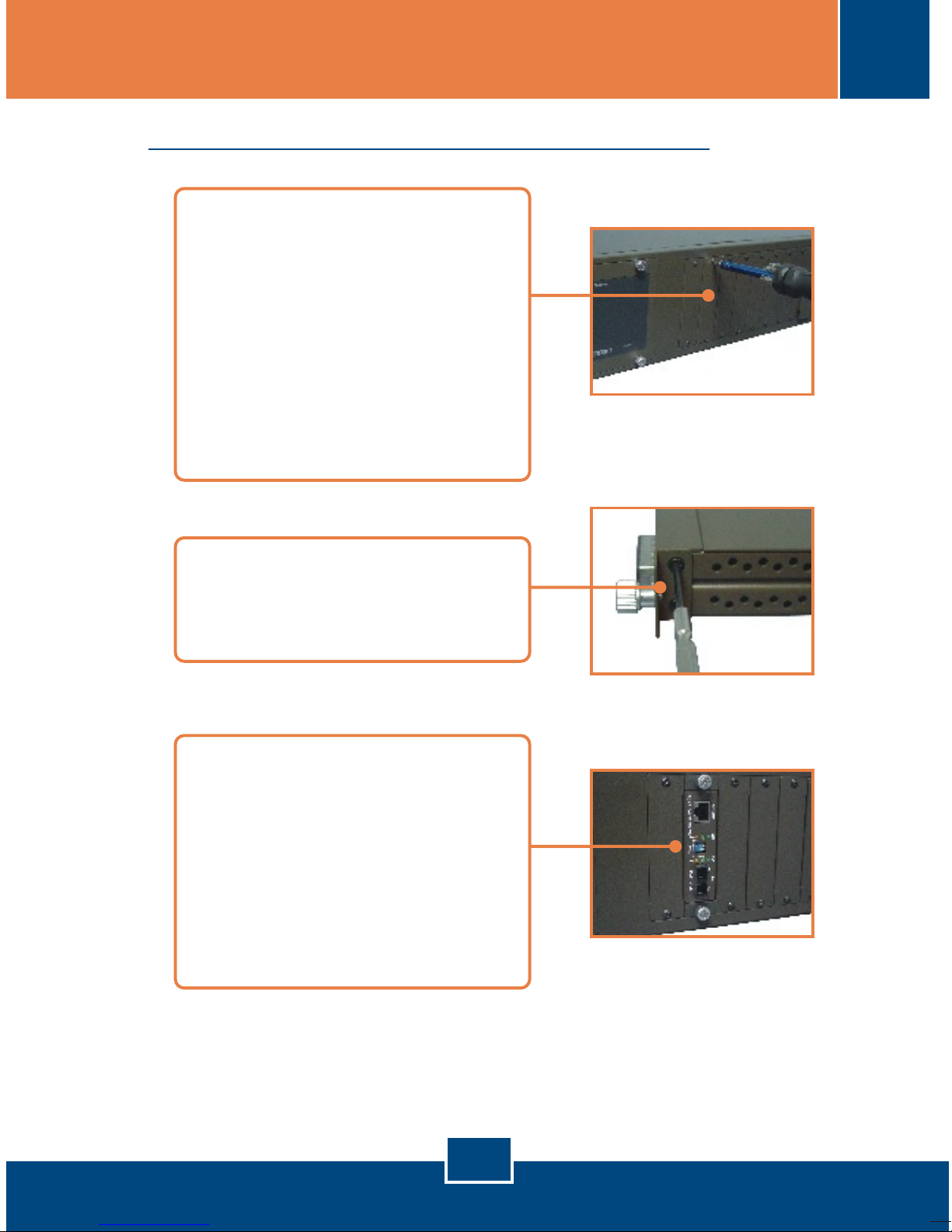

1. Using a screwdriver
unscrew the Module Bay
Cover from the desired bay
on the Chassis and remove
the cover. Save the screw
and cover in case you need
to cover up the module bay
in the future.
2. Attach the Mounting Bracket
to the side of Fiber
Converter.
Installing Fiber Converter in a Chassis
3. Slide the Fiber Converter
into an available slot. Install
the Fiber Converter with the
fiber port near the bottom of
the Chassis. Then fasten
the screws to secure the
Fiber Converter.

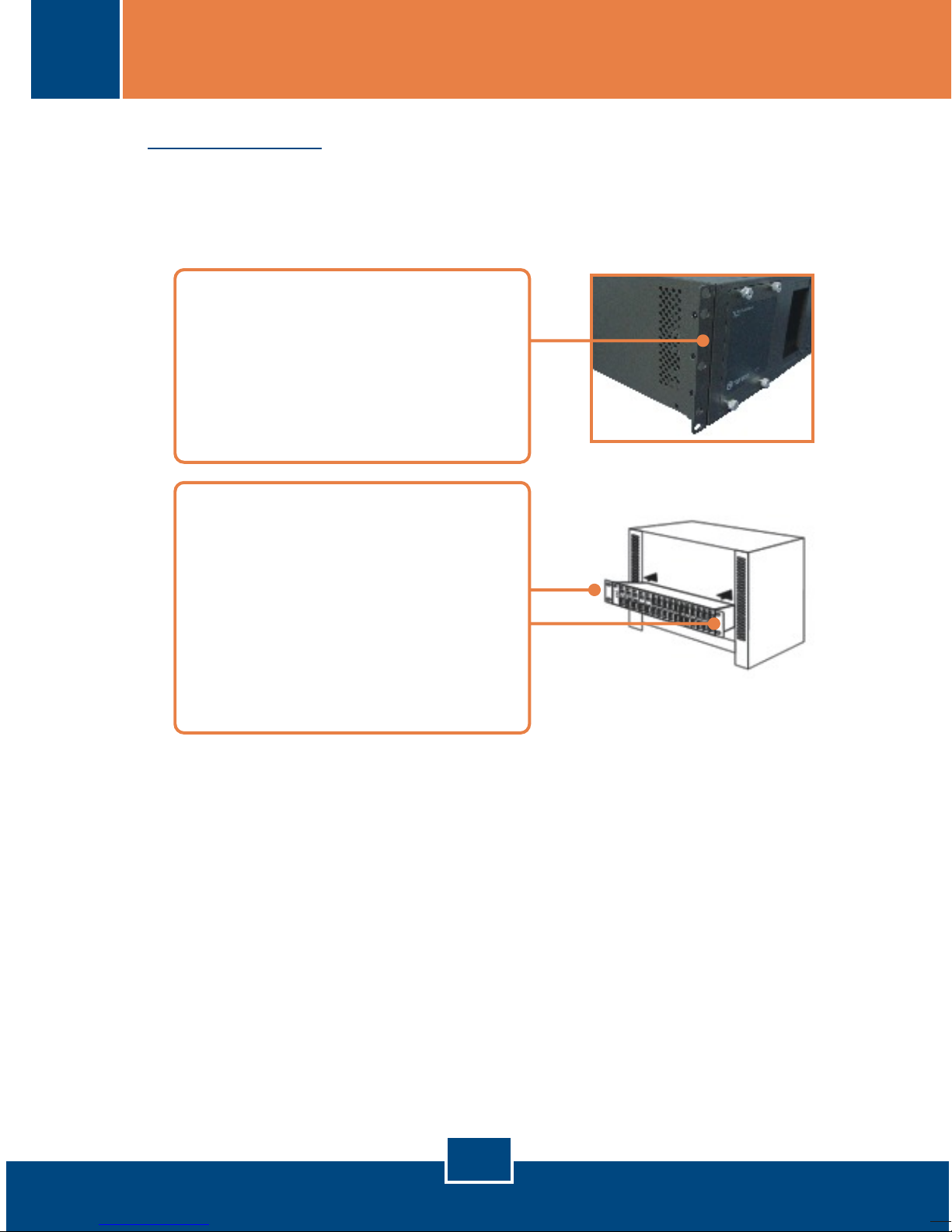

1. Attach the mounting
brackets to the Chassis's
front panel (one on each
side), and secure them with
the provided screws.
Rack Mount
2. Carefully position the
Chassis onto the rack. Align
the bracket to the screw
holes on the rack, then use
the screws provided with the
equipment rack to mount the
Chassis.
The Chassis can be mounted in an EIA standard-size, 19-inch
rack, which can be placed in a wiring closet with other equipment.
English
7
English
8

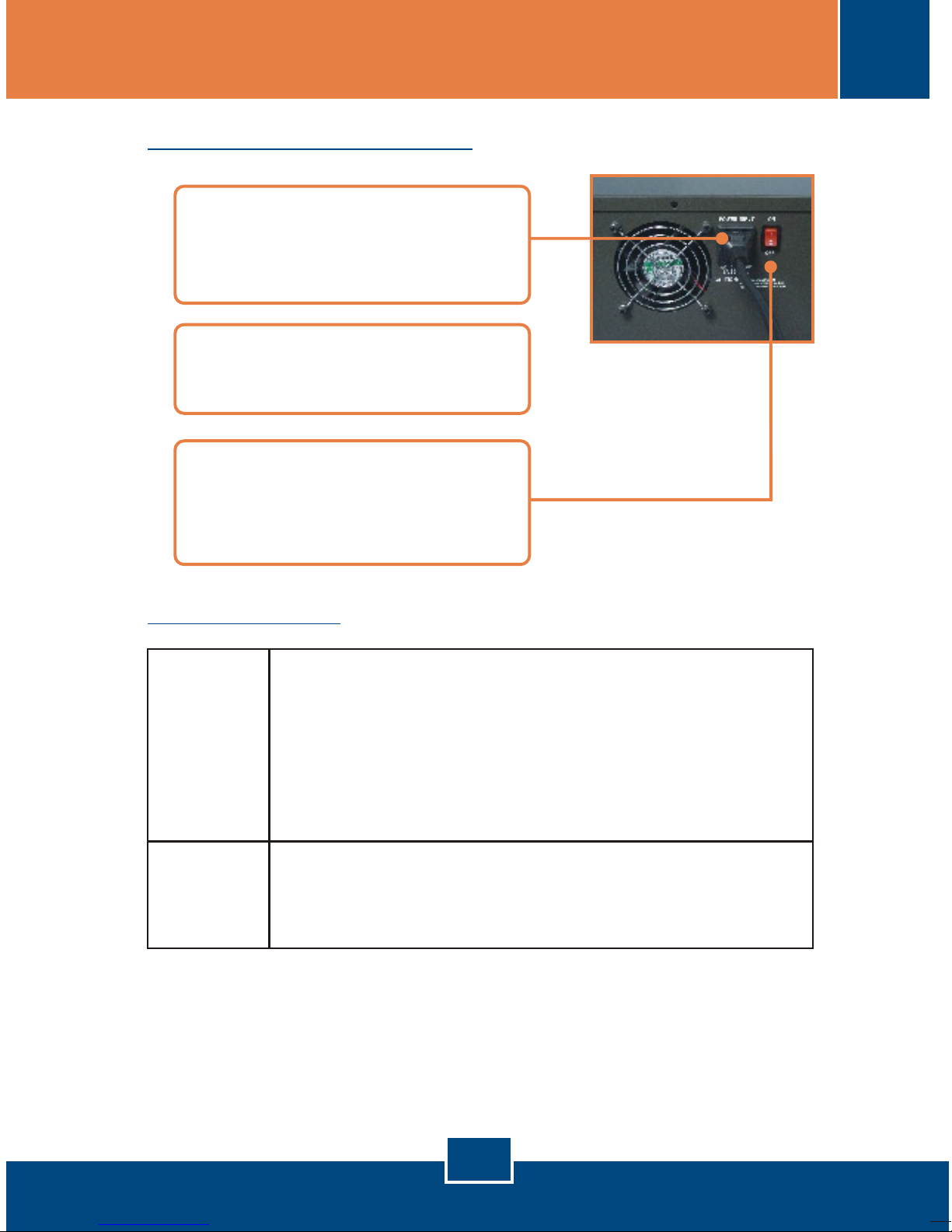

Connecting the Power
1. Connect the supplied power
cord to the back of the
Chassis.
2. Connect the power cord into
a power outlet.
3. Flip the switch to the ON
position to power up the
Chassis.
DIP Switches
TFC-210
series
Switch 1:ON:TX Full Duplex Mode
OFF:TX Auto-Negotiation
Switch 2:ON:FX Half Duplex OFF:FX Full Duplex
Switch 3:ON:LLCF Enable OFF:LLCF Disable
Switch 4:ON:Pure Mode OFF:Switch Mode
TFC-2000
series
Switch 1: ON: TX LLCF Enable OFF: TX LLCF (Disable)
Switch 2: ON: Fiber LLCF Enable
OFF: Fiber LLCF (Disable)
*After changing the DIP Switch settings,power cycle the Fiber Converter.
**LLCF stands for Link Loss Carry Forward.
