TRENDnet TU3-HDMI Manuel utilisateur

TRENDnet User’s Guide Cover Page

TRENDnet User’s Guide Table of Contents

Contents

Product Overview ...........................................................................1

Package Contents .......................................................................................................... 1

Features ......................................................................................................................... 1

Product Hardware Features........................................................................................... 2

System Requirements.................................................................................................... 2

Application Diagram ...................................................................................................... 2

Installing your USB to HD TV Adapter ..............................................3

Software Installation...................................................................................................... 3

Hardware Installation .................................................................................................... 4

Using the USB to HD TV Adapter......................................................5

Display Modes ............................................................................................................... 5

General Settings ............................................................................................................ 6

Adapter Settings ............................................................................................................ 7

Using Multiple Adapters ................................................................................................ 8

Minimum System Requirements for Multiple Adapters ........................................... 8

Disconnecting the Adapter ............................................................................................ 9

Uninstalling the Adapter drivers and Software ............................................................. 9

Technical Specifications.................................................................10

Troubleshooting............................................................................11

Appendix ......................................................................................12

TRENDnet User’s Guide TU3-HDMI

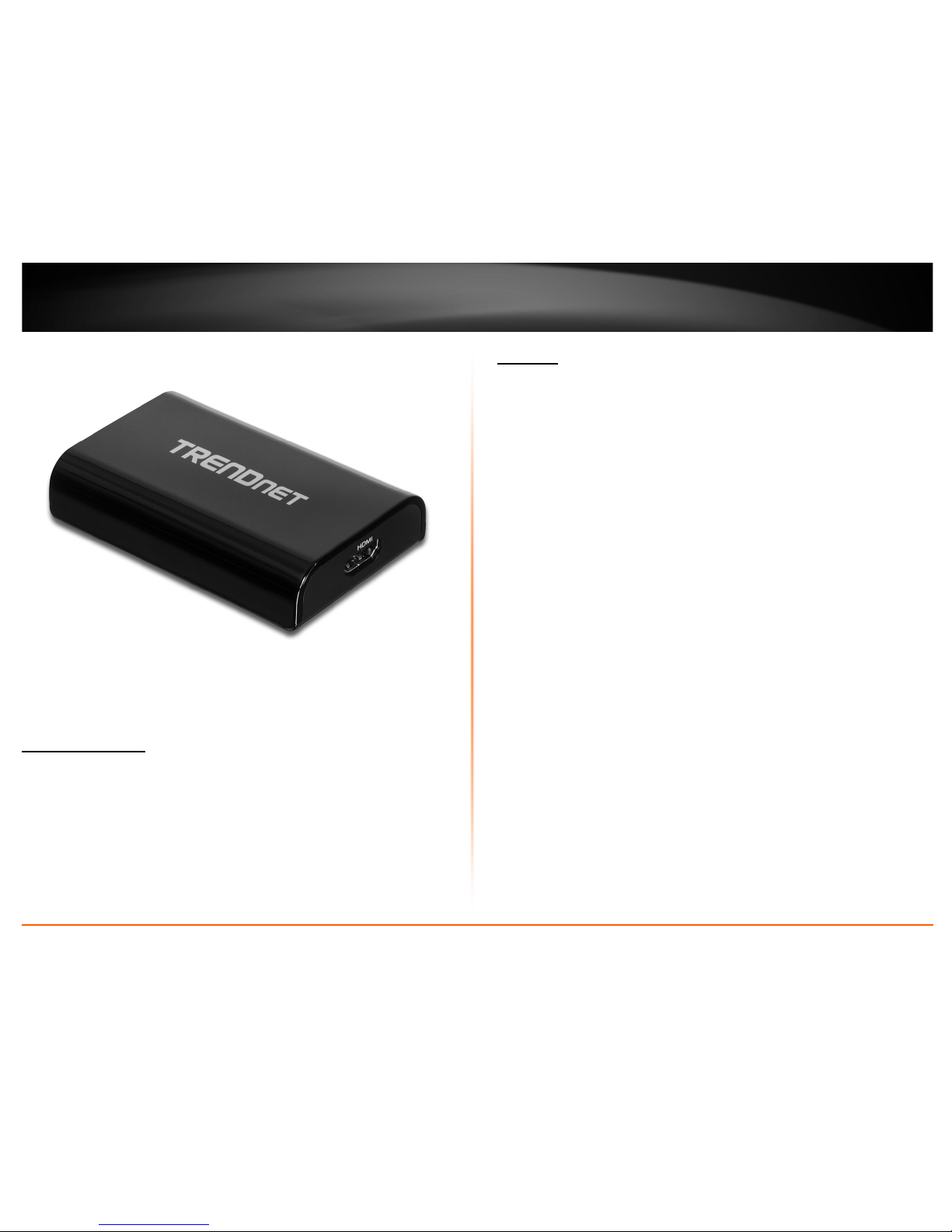

Product Overview

TU3-HDMI

Package Contents

In addition to your wireless adapter, the package includes:

•CD-ROM (Utility & Drivers)

•Multi-Language Quick Installation Guide

•1 x USB 3.0 cable (50 cm / 19.7 in.)

If any package contents are missing or damaged, please contact the retail store, online

retailer, or reseller/distributor from which the product was purchased.

Features

View your computer or browse the internet on a big screen HD TV with TRENDnet’s USB

3.0 to HD TV Adapter, model TU3-HDMI. The adapter converts a USB port on your

Window’s based computer to an HDMI port to extend your computer’s viewing field to

an HD TV, monitor, or projector (with an HDMI port).

Extend mode adds an HD TV viewing field to the left, right, top, or bottom of your

existing monitor. Mirror mode, copies your monitor’s viewing field to the TV. The

Primary Display function tranfers operating system controls to the TV viewing field.

Install up to six TU3-HDMIs to add HD TVs to your workstation. Experience the visual

impact of 32-bit True Color Depth technology and a sparkling 1920 x 1080 high

definition image. Standard and wide screen viewing modes are supported.

•Micro-B USB 3.0 Port

•HDMI port

•Adapter powered by computer’s USB port

•Micro-B to USB 3.0 cable: 50 cm (1.6 ft.)

•Compliant with monitors, televisions, and projectors with an HDMI port

•Connect up to 6 TU3-HDMI adapters

•High definition of up to QWXGA 2048 x 1152 resolution for standard or wide

screen ratios

•Extended mode (default): extend screen to the left, right, top, or bottom

•Mirror mode: mirror a computer screen view to a television or projector

•Primary display support: setting an HD TV as a primary display transfers

operating system controls to the TV

•Main Monitor Off turns off the computer’s monitor

•Resumes from computer hibernation and standby modes

•USB hot swapping allows for easy adding or removal of TVs or monitors

•Digital RGB, DAC, DVI, FPI display connectivity

•32-bit True Color Depth technology

•60 Hz refresh rate

•Supports Windows 8, 7, Vista, and XP operating systems

TRENDnet User’s Guide TU3-HDMI

Product Hardware Features

System Requirements

•Windows 8 (32/64-bit), Windows 7 (32/64-bit), Vista (32/64-bit), or XP (32-bit)

•Available USB 3.0 or 2.0 port (USB 3.0 recommended to ensure quality)

•CD-ROM Drive (Driver & Utility Installation with included CD)

•System Hardware Requirements (For office use)

oWindows XP: Processor 1.6GHz: Intel® Atom or Celeron, RAM 512MB

oWindows 8/7/Vista: Processor 1.4GHz: Intel® Core 2 Duo or better,

RAM: 1GB

•System Hardware Requirements (For video streaming and playback)

oWindows XP: Processor 2.0GHz: Intel® Core 2 Duo or better, RAM: 1GB

oWindows 8/7/Vista: Processor: 2.4GHz: Intel® Core 2 Duo or better,

RAM: 1GB, Video Card: Intel® GMA X5400, ATI Radeon™ HD3xxxx,

NVIDIA® GeForce® 9-series or better

Application Diagram

The laptop is able to extend or mirror its display on to an HD monitor or TV by

connecting an available USB 3.0 port to the USB to HD TV adapter using the included

USB 3.0 cable and connecting an HDMI cable from the USB to HD TV adapter to the HD

monitor or TV.

HDMI Port

(Connect to Display,

HDMI cable not

included))

USB 3.0 Micro-B Port

(Connect to computer

USB 3.0 port, USB 3.0

cable included)

TRENDnet User’s Guide TU3-HDMI

Installing your USB to HD TV Adapter

This section describes how to install the software driver and utility for the USB to HD TV

Adapter.

Software Installation

1. Insert the included CD-ROM into your computer’s CD-ROM drive.

2. At the CD Autorun Prompt window, click Run Autorun.exe.

Note: If the Autorun prompt does not appear automatically, open the CD contents

and double-click Autorun.exe.

3. At the CD-ROM main menu, click Install Drivers & Utility.

4. At the installation window, click I Accept to accept the license agreement.

5. Please wait for the installation to complete. When the installation window disappears

from your task bar, the software installation is complete.

Note: Your display may temporarily turn black or flash during the installation.

TRENDnet User’s Guide TU3-HDMI

Hardware Installation

1. Connect the included USB 3.0 cable from an available USB 3.0 (or USB 2.0) port on

your computer to the USB 3.0 micro-B port on the adapter.

Note: Please check your computer documentation to verify which ports are

designated USB 3.0 ports or USB 2.0 ports. You can also easily identify the USB 3.0

ports with the blue color on the inside of the port or USB 3.0 symbol next to the port.

2. Connect an HDMI cable from the adapter HDMI port to the HD monitor or TV.

3. Turn on your HD monitor or TV and make sure the input is set to the corresponding

HDMI input. Your installation is complete.

TRENDnet User’s Guide TU3-HDMI

Using the USB to HD TV Adapter

Display Modes

There are 3 modes the USB to HD TV adapter can support.

Primary – Assigns the additional HD monitor or TV to be the primary display and your computer display as secondary.

Mirror – Mirrors the primary display on to the secondary HD monitor or TV.

Extend – Extends the desktop display of the primary display on to the secondary HD

monitor or TV.

TRENDnet User’s Guide TU3-HDMI

General Settings

Upon completing the software installation, the task tray utility icon should appear in your desktop task tray at the bottom right-hand corner. The task tray utility icon will not be available

until your computer is connected to the USB to HD TV adapter. The general settings allow you to setup your video and audio configuration of your computer display and check for driver/

and utility updates.

Note: If you do not see the task tray utility icon, please check your USB connections.

Right-click the task tray utility icon to configure your adapter settings.

DisplayLink Manager & Video Setup

Opens the built-in display configuration

of your operating system. You can use

your operating system’s built-in display

settings to set your computer’s display

resolution, orientation, and the mode

(Primary, Extend, or Duplicate(Mirror)).

Lists the USB to HD Adapter display number and

provides the configuration options for the adapter or

display. Up to 6 USB to HD Adapters can be connected

to a single computer.

Audio Setup

Opens the built-in

audio configuration

of your operating

system. To send

the audio from

your computer to

your HD monitor or

TV using the USB to

HD TV Adapter,

select the item

DisplayLink Audio

and click Set

Default, then click

OK to apply the

configuration.

Check for updates… - Checks for utility/driver updates

for your USB to HD TV adapter.

TRENDnet User’s Guide TU3-HDMI

Adapter Settings

The adapter settings allow you to configure the settings of your adapter and the HD monitor or TV display connected.

Screen Resolution – Allows you to select the screen resolution of the HD

monitor or TV. Please note that this option is not available in Mirror Mode

as the resolution is dependent on the settings of the primary display. The

available resolution options will be dependent on the capabilities of your

HD monitor or TV.

Screen Rotation – Allows you to rotate the screen orientation of the HD

monitor or TV. (Normal (default), Rotated Left, Rotated Right, Upside-Down)

Extend To – (Extend mode only) Allows you to select where to extend the

primary display on to the secondary HD monitor or TV. (Right (default),

Left, Above, or Below the primary display.)

Extend (Extend Mode default) – Sets the

adapter to Extend mode to extend your primary

computer display on to the HD monitor or TV.

Set as Main Monitor (Primary Mode) – Set the

HD monitor or TV to the primary display and

your computer display as secondary. By default,

your computer is set to the primary display.

Notebook Monitor Off – Turns off your

computer display only and leaves your HD

monitor or TV display on.

Mirror (Mirror Mode) – Sets the adapter to

Mirror mode to mirror your primary

computer display to the HD monitor or TV.

Off – Turns off/disables the adapter and

disconnects the connected HD monitor or TV.

Optimize for Video – Optimizes the video

quality for play back for the HD monitor or

TV. Please note that text may not appear as

clear or may not be as high quality when

selecting this option.

Fit to TV – Allows you to adjust

the vertical and horizontal size of

the desktop displayed on the HD

monitor or TV.

TRENDnet User’s Guide TU3-HDMI

Using Multiple Adapters

Up to 6 USB to HD TV adapters can be connected and used concurrently with one computer, each adapter connecting to an additional HD monitor or TV.

To use multiple displays, simply connect the additional adapters to your computer via USB and HDMI to the displays following the steps on page 4.

Additional adapters will be listed

in this section numbered 3,4,5,etc.

Minimum System Requirements for Multiple Adapters

•1-2 Displays: 1.2GHz Single Core CPU / 512MB RAM

•3 Displays: 1.6GHz Single Core CPU / 1GB RAM

•6 Displays: 1.8GHz Dual Core CPU / 1GB RAM

Note: Only the first USB to HD TV adapter connected may be

able to use extended mode and the others will be forced to

mirror if using a computer with hardware below the minimum

system requirements.

Autres manuels pour TU3-HDMI

Table des matières

Autres manuels TRENDnet Adaptateur

TRENDnet

TRENDnet TEW-444UB Manuel utilisateur

TRENDnet

TRENDnet TPL-101U Guide d'installation

TRENDnet

TRENDnet TPL-406E2K Manuel utilisateur

TRENDnet

TRENDnet TEW-684UB - Manuel utilisateur

TRENDnet

TRENDnet TU2-ET100 Manuel utilisateur

TRENDnet

TRENDnet TE100-PCI Manuel utilisateur

TRENDnet

TRENDnet TEW-604UB Manuel utilisateur

TRENDnet

TRENDnet TEW-648UBM Manuel utilisateur

TRENDnet

TRENDnet TU2-DVIV Manuel utilisateur

TRENDnet

TRENDnet TEW-809UB Manuel utilisateur

TRENDnet

TRENDnet HotFlash TEW-429UF Manuel utilisateur

TRENDnet

TRENDnet TE-16PCTplus Manuel utilisateur

TRENDnet

TRENDnet TE100-PCI Manuel utilisateur

TRENDnet

TRENDnet TPL-303E2K Manuel utilisateur

TRENDnet

TRENDnet TPL-302E2K - Powerline AV Fast EN Adapter Manuel utilisateur

TRENDnet

TRENDnet TE100-PCBUSR - DATA SHEETS Manuel utilisateur

TRENDnet

TRENDnet TEW-687GA Manuel utilisateur

TRENDnet

TRENDnet TPL-331EP Manuel utilisateur

TRENDnet

TRENDnet TE-PCIWTplus Manuel utilisateur

TRENDnet

TRENDnet Powerline 1300 AV2 Adapter Manuel utilisateur

TRENDnet

TRENDnet TEW-646UBH Manuel utilisateur

TRENDnet

TRENDnet TPE-101I Mode d’emploi

TRENDnet

TRENDnet TEW-646UBH Manuel utilisateur

TRENDnet

TRENDnet TPL-407E Manuel utilisateur

Manuels Adaptateur populaires d'autres marques

PCB Piezotronics

PCB Piezotronics 090B274 Manuel utilisateur

Auvidea

Auvidea J20 Manuel du produit

Gossen MetraWatt

Gossen MetraWatt AT3-III E Manuel utilisateur

Akribis

Akribis ITF-21-BISS-MIT Manuel utilisateur

Tenda

Tenda W54U Manuel utilisateur

ROHO

ROHO AGILITY Manuel utilisateur

PROLiNK

PROLiNK WN2001 Manuel utilisateur

Hawking

Hawking HUF2 Manuel utilisateur

Airlink101

Airlink101 AWLC4030 Manuel utilisateur

NETGEAR

NETGEAR XAV101v1 - Powerline AV Ethernet Adapter Manuel utilisateur

Philips

Philips SWA4554S/10 Manuel utilisateur

JVC

JVC TS-C9D2B Manuel d'instructions

NETGEAR

NETGEAR A6100 Manuel utilisateur

D-Link

D-Link DWA-121 Manuel utilisateur

Philips

Philips SWA2037 Manuel utilisateur

Basalte

Basalte 0610-20 Manuel utilisateur

Yealink

Yealink EHS40 Manuel utilisateur

Balluff

Balluff BIC 1B0-IT1A7-Q40KFU-SM4A4A Manuel utilisateur
