Transcend Tsonic 320 2GB Manuel utilisateur

TS2G/4GMP320

Description

TS2G/4GMP320 is a 2GB/4GB USB

Flash Drive with 1 pcs of 2Gx8/4Gx8

Flash Memory assembled on the printed

circuit board. It combines a USB Flash

Drive with an MP3 player, AB repeater,

voice recorder and an FM radio.

Outline

Dimensions

Side Millimeters

A 85.50 ± 0.20

B 25.50 ± 0.20

C 13.00 ± 0.20

Features

 MP3 Player – supports MP3, WMA,

WMA-DRM10 (subscription music)

and WAV music formats

 FM Radio (FM Radio recording and

the ability to preset 20 FM radio

stations)

 Advanced Digital Voice Recorder

 Karaoke-style lyrics display

 Brilliant, dual-color 4-Line OLED

Display produces vibrant clear text

easily viewed at any angle and in

any light

 VAD (Voice Activity Detection) for

high quality gapless audio

recordings

 A-B repeat function allows you to

continuously replay a designated

section of a track

 Variable track playback speeds

 Supports 13 languages including

song title, artist name and lyrics

display

 USB flash drive capabilities for data

transfer and storage

 Included software can be used to

lock your computer and

password-protect your files

 7 Equalizer effects, including a

customizable USER EQ setting

 Powered using a rechargeable

Li-ion battery (fully charged battery

supports over 15 hours of

continuous operation)*

 Hi-Speed USB 2.0 connector for

easy computer connectivity and

fast file transfers

 Real Time Clock (RTC) displays

local and world times

* Max. playback time achieved with

screen saver set to “Blank” and

“Lyrics Sync” disabled.

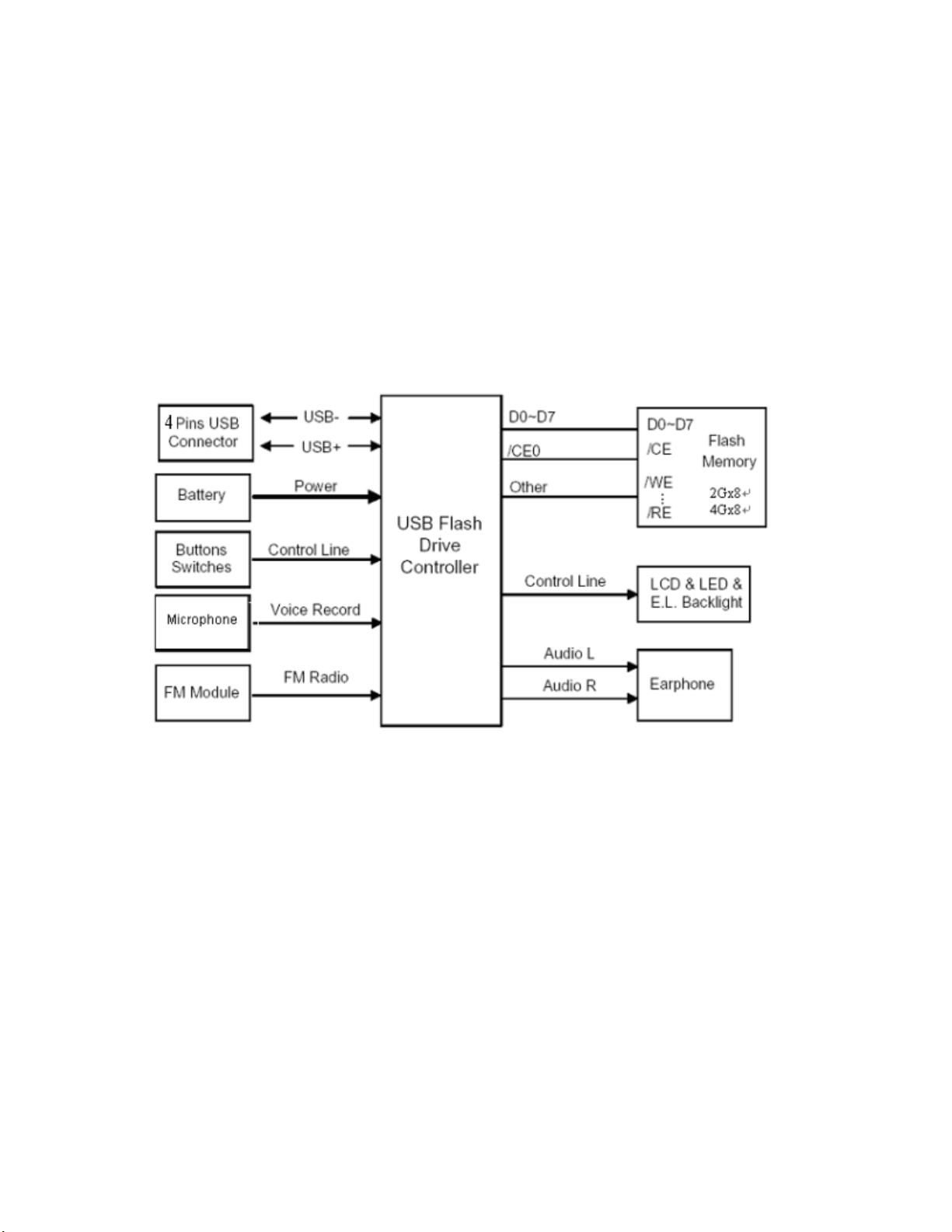

Block Diagram

With 1 pcs of 2G/4G x8 Flash Memory

Pinouts

Pin No. Pin Name

01 VCC

02 USB-

03 USB+

04 VSS

05 GND

Pin Identification

Symbol Function

USB+

USB- USB differential signal:

The pairs are used to transmit Data/Address/Command

VCC USB Power Input

VSS Ground

GND Ground

Specifications

 Size (L x W x H): 85.5 mm × 25.5 mm × 13 mm

 Weight: 29g (with Li-ion battery)

 Music Formats: MP3 WMA and WMA-DRM10 (Subscription

music)

 Recording Format: ADPCM (WAV)

 Estimated Battery Life: 15 hours Music playback (fully charged battery)

 Compression Rates: 32Kbps to 320Kbps

 Data Retention: Up to 10 years

 Erase Cycles: ≥100,000 times

 Signal-to-Noise Ratio: ≥90dB

 Power Supply USB mass storage: DC5V ±10%

MP3 Player: 3.7V Li-ion battery

 Certificates: CE, FCC, BSMI

 Warranty: 2-years
