Transcend StoreJet TS250GSJ25C Manuel utilisateur

StoreJet® 25C

User’s Manual

Table of Contents

Introduction︱......................................................................................1

Package Contents︱............................................................................1

Features︱............................................................................................2

System Requirements︱.....................................................................2

Safety Precautions︱...........................................................................3

General Use.................................................................................................................... 3

Backing Up Data............................................................................................................ 3

Transporting .................................................................................................................. 3

Power.............................................................................................................................. 3

Reminders...................................................................................................................... 4

Product Overview︱............................................................................5

Connecting to a Computer︱..............................................................6

Disconnecting from a Computer︱....................................................8

Windows®...................................................................................................................... 8

Mac®OS 9.0 or Later ..................................................................................................... 8

Linux®Kernel 2.4 or Later ................................................................................................ 9

Formatting the Hard Drive︱.............................................................10

Windows® 2000/XP....................................................................................................... 10

Windows®7/Vista........................................................................................................ 11

Mac®OS........................................................................................................................ 14

Linux®........................................................................................................................... 16

Troubleshooting︱.............................................................................17

Specifications︱.................................................................................19

Ordering Information︱.....................................................................19

Transcend Limited Warranty︱........................................................20

Introduction︱

Congratulations on purchasing Transcend’s StoreJet®25C.This elegant, ultra-portable,

high-speed USB storage device is the perfect data management system for uploading,

downloading, storing and transferring your vital data and information. With its huge storage

capacity and fast 480Mbps USB 2.0 data transfer rates, the compact StoreJet 25 is ideal for

carrying your files, folders, documents, photos, music and videos to and from desktop or notebook

computers. In addition, the StoreJet 25 comes with very useful software* that can increase your

mobile productivity. This User’s Manual is designed to help you get the most from your new device,

please read both in detail before using the StoreJet 25.

*Note: The StoreJet elite software only works in Windows - please see the Software User's Manual for details

Package Contents︱

The StoreJet 25 package includes the following items:

StoreJet 25C

Carrying Case

1 Mini USB to 2 Standard-A USB cable (USB Y cable)

Quick Start Guide

Features︱

Luxurious polished metal case with piano gloss connection panel

Elegant faux-leather backing cushions drive against vibration

Stylish protective carrying case

High-speed USB 2.0 compliant and backwards compatible with USB 1.1

Easy Plug and Play operation – no drivers required

High capacity hard drive for storing, carrying, and backing-up files

Completely USB powered. No external power supply or battery needed

High-Speed data transfer rates up to 480Mbits per second

Includes StoreJet®elite data-management software

LED power and data transfer activity indicator

System Requirements︱

Desktop or notebook computer with a working USB port. exquisite

One of following Operating Systems (OS):

• Windows®2000

• Windows®XP

• Windows®Vista

• Windows®7

• Mac®OS 9.0 or later

• Linux®Kernel 2.4 or later

Safety Precautions︱

These usage and safety guidelines are IMPORTANT! Please follow them carefully.

Please ensure that you connect the USB cable to the StoreJet 25 and your

computer correctly (small end ÆStoreJet 25, large end ÆPC)

General Use

• Carefully unpack the contents of the StoreJet 25 package.

• During operation, avoid exposing your StoreJet 25 to extreme temperatures above 55℃,

or below 5℃.

• Do not drop your StoreJet 25.

• Do not allow your StoreJet 25 to come in contact with water or any other liquids.

• Do not use a damp/wet cloth to wipe or clean the exterior case.

• Do not store your StoreJet 25 in any of the following environments:

o Direct sunlight

o Next to an air conditioner, electric heater or other heat sources

o In a closed car that is in direct sunlight

o In an area with strong magnetic fields or excessive vibration

Backing Up Data

• Transcend does NOT take any responsibility for data loss or damage during

operation. If you decide to store data on your StoreJet 25 we strongly advise that you

regularly backup the data to a computer, or other storage medium.

• To ensure High-Speed USB 2.0 data transfer rates when using your StoreJet 25 with a

computer, please check that the computer has the relevant USB drivers. If you are

unsure about how to check this, please consult the computer or motherboard User’s

Manual for USB driver information.

Transporting

• Do not pack your StoreJet 25 into luggage without the proper padded support. Other

items in the luggage may damage your StoreJet 25 if it does not have the proper

protection.

• Avoid squeezing your StoreJet 25 (to prevent damage to the internal HDD).

• Avoid placing objects on top of your StoreJet 25 (to prevent compression damage).

Power

• The StoreJet 25 is powered directly via a computer USB port. However, the power

supplied by the USB port on some older computers is below the 5V DC required to

power the StoreJet 25. In this instance, please connect the spare large connector of the

provided USB Y cable to a second USB port on the computer, this will provide the

additional power necessary to run the drive.

The spare USB connector can provide additional power fo

the StoreJet 25 when needed

• Please use the Mini USB to USB A-Type cable that came with the StoreJet 25 to

connect it to a computer, and always ensure that the cable you are using is in good

condition. NEVER use a cable that is frayed or damaged.

• Ensure nothing is resting on the USB cable and that the cable is not located where it can

be tripped over or stepped on.

Reminders

Always follow the procedures in the “Disconnecting from a Computer” section to remove the

StoreJet from your computer.

Product Overview︱

Figure 1: StoreJet 25C

Mini USB Port

Connecting to a Computer︱

If you want to use the StoreJet 25 as an external hard drive to upload/download data to and from

your computer, you will need to connect it to a USB port on the computer using the provided USB

Y-cable.

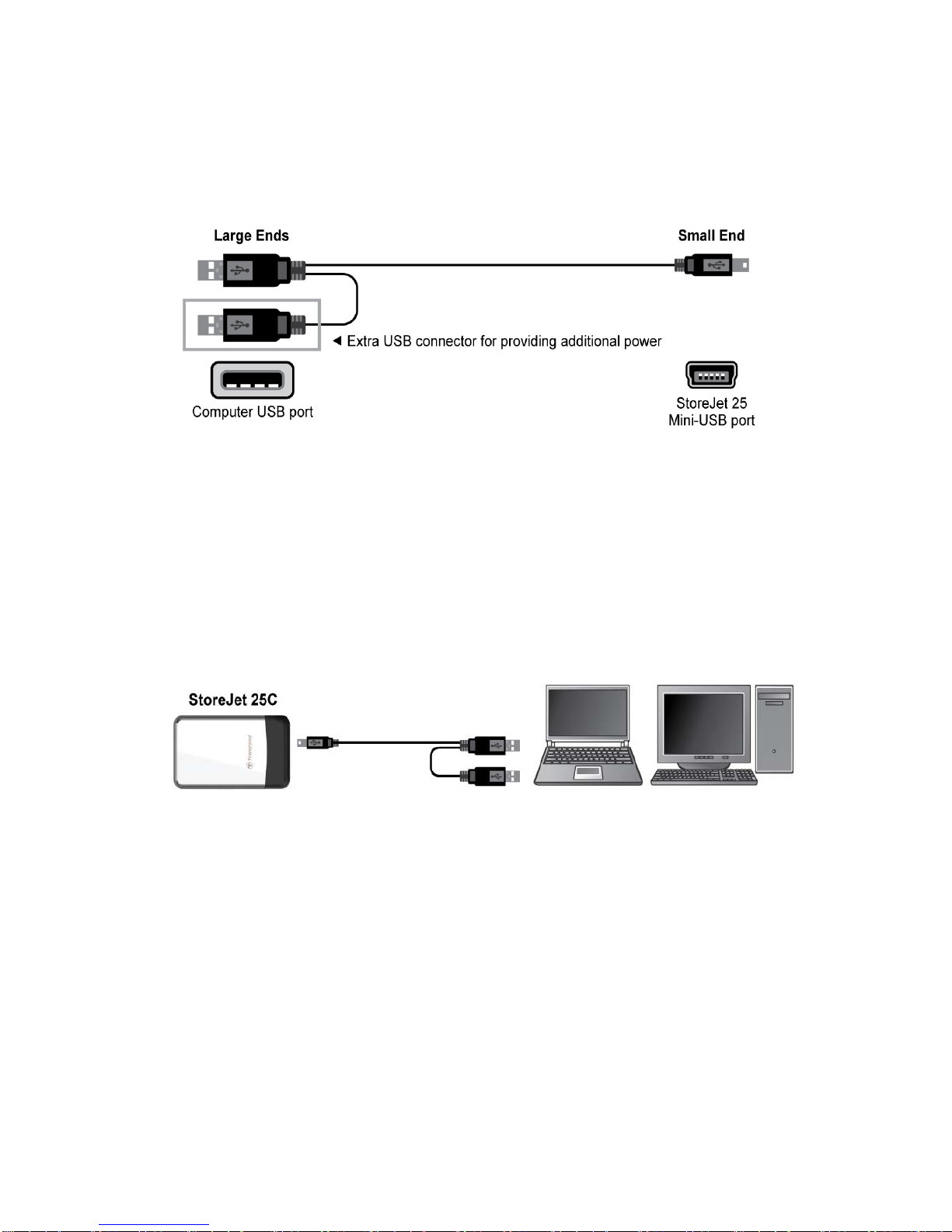

Figure 2: Mini USB to Standard-A USB cable (USB Y-cable)

1. Plug the small end of the USB Y-cable into the Mini USB port on the StoreJet 25.

2. Plug the large end of the cable into an available USB port on your desktop, or notebook

computer.

*On some older computers, the power supplied by the USB port is below the required 5V DC

power. In this instance, please connect the spare large connector on the provided USB Y-cable

to a second USB port on the computer. This will provide the additional power necessary to run

the drive.

Figure 3: Connecting to a Computer

3. When the StoreJet 25 is successfully connected to a computer, the StoreJet’s Power LED

will light up, a new Local Disk drive with a newly-assigned drive letter will appear in the My

Computer window, and a Removable Hardware icon will appear on the Windows

System Tray. The StoreJet 25’s internal hard drive comes pre-formatted for FAT32.

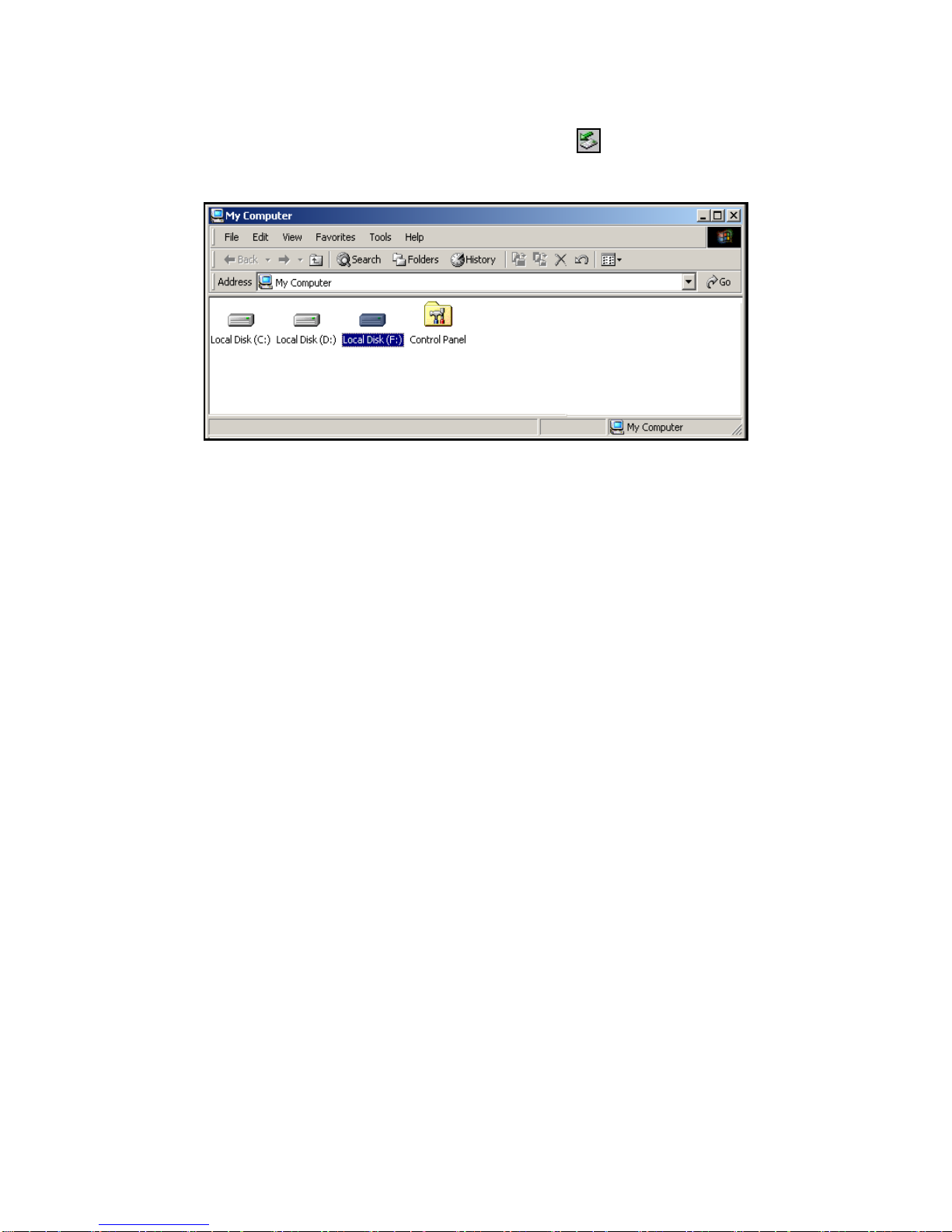

Figure 4: *F: is an example drive letter, the letter in your "My Computer" window may differ

4. Once connected, you can use the StoreJet 25 as an external hard drive to transfer data to

and from your computer. Simply drag and drop files or folders onto the Local Disk drive

letter that represents the StoreJet 25.

Disconnecting from a Computer︱

NEVER disconnect the StoreJet from a Computer when its LED is flashing.

Windows®

1. Select the Hardware icon on the system tray.

2. The Safely Remove Hardware pop-up window will appear. Select it to continue.

Figure 5: Safely Remove Hardware

3. A window will appear stating, “The ‘USB Mass Storage Device’ device can now be

safely removed from the system.”

Figure 6: Safe to Remove Hardware

WARNING! To prevent data loss, always use this procedure to remove the StoreJet

from Windows®.

Mac®OS 9.0 or Later

Drag and drop the Disk icon that represents your StoreJet 25 into the Trashcan. Then unplug your

StoreJet 25 from the USB port.
