Trane 4TWA7 Instructions de montage

18-BC96D1-1A-EN

ALL phases of this installation must comply with NATIONAL, STATE AND LOCAL CODES

IMPORTANT — This Document is customer property and is to remain with this unit. Please return to service informa-

tion pack upon completion of work.

Heat Pumps

These instructions do not cover all variations in systems or provide for every possible contingency to be met in connection with

the installation. Should further information be desired or should particular problems arise which are not covered sufficiently for the

purchaser’s purposes, the matter should be referred to your installing dealer or local distributor.

Note: The manufacturer recommends installing only approved matched indoor and outdoor systems. All of the manufacture’s split

systems are AHRI rated only with TXV/EEV indoor systems. Some of the benefits of installing approved matched indoor and out-

door split systems are maximum efficiency, optimum performance and the best overall system reliability.

4TWA7

Installer’s Guide

Table of Contents

Section 1. Safety..................................................................................... 2

Section 2. Unit Location Considerations.............................................. 3

Section 3. Unit Preparation.................................................................... 5

Section 4. Setting the Unit ..................................................................... 5

Section 5. Refrigerant Line Considerations......................................... 6

Section 6. Refrigerant Line Routing ..................................................... 8

Section 7. Refrigerant Line Brazing...................................................... 8

Section 8. Refrigerant Line Leak Check ............................................. 10

Section 9. Evacuation........................................................................... 12

Section 10. Service Valves ................................................................... 12

Section 11. Electrical - Low Voltage .................................................... 13

Section 12. Electrical - High Voltage ................................................... 15

Section 13. Start Up.............................................................................. 16

Section 14. System Charge Adjustment............................................. 17

Section 15. Checkout Procedures and Troubleshooting................... 23

2 18-BC96D1-1A-EN

Section 1. Safety

▲

WARNING

This information is intended for use by individuals

possessing adequate backgrounds of electrical and

mechanical experience. Any attempt to repair a central

air conditioning product may result in personal injury

and/or property damage. The manufacture or seller

cannot be responsible for the interpretation of this

information, nor can it assume any liability in connec-

tion with its use.

These units use R-410A refrigerant which operates

at 50 to 70% higher pressures than R-22. Use only

R-410A approved service equipment. Refrigerant

cylinders are painted a “Rose” color to indicate the

type of refrigerant and may contain a “dip” tube to

allow for charging of liquid refrigerant into the sys-

tem. All R-410A systems use a POE oil that readily

absorbs moisture from the atmosphere. To limit this

“hygroscopic” action, the system should remain sealed

whenever possible. If a system has been open to the

atmosphere for more than 4 hours, the compressor oil

must be replaced. Never break a vacuum with air and

always change the driers when opening the system

for component replacement. For specific handling

concerns with R-410A and POE oil reference Retrofit

Bulletins SS-APG006-EN and APP-APG011-EN or

APP-APG012-EN.

Extreme caution should be exercised when opening

the Liquid Line Service Valve. Turn counterclockwise

until the valve stem just touches the rolled edge. No

torque is required. Failure to follow this warning will

result in abrupt release of system charge and may

result in personal injury and /or property damage.

UNIT CONTAINS R-410A REFRIGERANT!

R-410A operating pressures exceed the limit of R-22.

Proper service equipment is required. Failure to use

proper service tools may result in equipment damage

or personal injury.

SERVICE

USE ONLY R-410A REFRIGERANT AND AP-

PROVED POE COMPRESSOR OIL.

▲

WARNING

▲

WARNING

LIVE ELECTRICAL COMPONENTS!

During installation, testing, servicing, and trouble-

shooting of this product, it may be necessary to work

with live electrical components. Failure to follow all

electrical safety precautions when exposed to live

electrical components could result in death or serious

injury.

▲

WARNING

If using existing refrigerant lines make certain that all

joints are brazed, not soldered.

▲CAUTION

Scroll compressor dome temperatures may be hot. Do

not touch the top of compressor; it may cause minor to

severe burning.

▲CAUTION

▲

WARNING

18-BC96D1-1A-EN 3

50’

Max

Vertical

Change

Standard

Line Set

150’ Max

TOTAL Line Length

50’

Max

Vertical

Change

Section 2. Unit Location Considerations

2.1 Unit Dimensions and Weight

2.2 Refrigerant Piping Limits

Table 2.1

When mounting the outdoor unit on a roof, be

sure the roof will support the unit’s weight.

Properly selected isolation is recommended to

alleviate sound or vibration transmission to the

building structure.

Unit Dimensions and Weight

Models H x D x W (in)

Weight* (lb)

4TWA7036A3/4

45 x 34 x 37 245

4TWA7048A3/4

45 x 34 x 37 265

4TWA7060A3/4

45 x 34 x 37 265

* Weight values are estimated.

1. The maximum TOTAL length of refrigerant

lines from outdoor to indoor unit should

NOT exceed 150 feet* (including lift).

2. The maximum vertical change should not

exceed 50 feet*.

3. Standard and alternate line sizes and

service valve connection sizes are shown in

Table 5.1.

* See Table 5.1 for exceptions for certain

tonnages.

Note: For other line lengths, Refer to Refriger-

ant Piping Application Guide, SS-APG006-EN

or Refrigerant Piping Software Program, 32-

3312-xx (latest revision).

4 18-BC96D1-1A-EN

Min. 12” to

Shrubber

Avoid Install

Near Bedrooms

Min 5’ Unrestricted

Access Panel

Min 3’

Unrestricted

2.3 Suggested Locations for Best Reliability

Min. 12” to

Shrubber

Min. 12”

to Wall

2.4 Cold Climate Considerations

Ensure the top discharge area is unrestricted for

at least five (5) feet above the unit.

Three (3) feet clearance must be provided in

front of the control box (access panels) and any

other side requiring service.

It is not recommended to install in a location

where noise may distract the building occu-

pants. Some examples of these types of loca-

tions are sleeping quarters and by windows of

a living area. Please discuss location with the

building owner prior to installation.

NOTE: It is recommended that these precau-

tions be taken for units being installed in areas

where snow accumulation and prolonged below

freezing temperatures occur.

• Units should be elevated 3-12 inches above

the pad or rooftop, depending on local

weather. This additional height will allow

drainage of snow and ice melted during

defrost cycle prior to its refreezing. Ensure

that drain holes in unit base pan are not

obstructed preventing draining of defrost

water.

• If possible, avoid locations that are likely to

accumulate snow drifts. If not possible, a

snow drift barrier should be installed around

the unit to prevent a build-up of snow on the

sides of the unit.

Min. 12”

Snow

Barrier

3-12” Elevation

Snow Legs

Pad

Avoid locations such as near windows where

condensation and freezing defrost vapor can

annoy a customer.

Position the outdoor unit a minimum of 12” from

any wall or surrounding shrubbery to ensure

adequate airflow.

Outdoor unit location must be far enough away

from any structure to prevent excess roof runoff

water or icicles from falling directly on the unit.

18-BC96D1-1A-EN 5

2.5 Coastal Considerations

STEP 2 - To remove the unit from the pallet,

remove tabs by cutting with a sharp tool.

Section 3. Unit Preparation

3.1 Prepare The Unit For Installation

STEP 1 - Check for damage and report prompt-

ly to the carrier any damage found to the unit.

Section 4. Setting the Unit

4.1 Pad Installation

When installing the unit on a support pad, such

as a concrete slab, consider the following:

• The pad should be at least 1” larger than the

unit on all sides.

• The pad must be separate from any structure.

• The pad must be level.

• The pad should be high enough above grade

to allow for drainage.

• The pad location must comply with National,

State, and Local codes.

For other applications refer to application guide.

If installed within one mile of salt water, including seacoasts and inland waterways, models without factory sup-

plied Seacoast Salt Shields require the addition of BAYSEAC001 (Seacoast Kit) at installation time.

6 18-BC96D1-1A-EN

Section 5. Refrigerant Line Considerations

5.1 Refrigerant Line and Service Valve Connection Sizes

Table 5.1

RATED

LINE SIZES

Line Sizes Service Valve Connection Sizes Max Line & Lift Lengths

Vapor

Line

Liquid

Line

Vapor Line

Connection

Liquid Line

Connection

TOTAL Max

Line Length (ft.) Max Lift (ft.)

4TWA7036A3/4

3/4 3/8 3/4 3/8 80 25

4TWA7048A3/4

7/8 3/8 7/8 3/8 150 50

4TWA7060A3/4

1-1/8 3/8 7/8 3/8 80 25

ALTERNATE

LINE SIZES

Line Sizes Service Valve Connection Sizes Max Line & Lift Lengths

Vapor

Line

Liquid

Line

Vapor Line

Connection

Liquid Line

Connection

TOTAL Max

Line Length (ft.) Max Lift (ft.)

4TWA7036A3/4

5/8 3/8 3/4 3/8 150 50

7/8 3/8 3/4 3/8 80 25

4TWA7048A3/4

3/4 3/8 7/8 3/8 150 50

4TWA7060A3/4

3/4 3/8 7/8 3/8 150 50

7/8 3/8 7/8 3/8 150 50

Note: For other line lengths, Refer to Refrigerant Piping Application Guide, SS-APG006-EN or Refrigerant Piping

Software Program, 32-3312-xx (latest revision).

18-BC96D1-1A-EN 7

Line Length

5.3 Required Refrigerant Line Length

5.2 Factory Charge

5.4 Refrigerant Line Insulation

Important: The Vapor Line must always be

insulated. DO NOT allow the Liquid Line and

Vapor Line to come in direct (metal to metal)

contact.

Vapor Line

Liquid Line

Insulation

Determine required line length and lift. You will

need this later in STEP 2 of Section 14.

Total Line Length = __________ Ft.

Total Vertical Change (lift) = __________ Ft.

Trane outdoor condensing units are factory charged with the system charge required for the outdoor condensing

unit, ﬁfteen (15) feet of tested connecting line, and the smallest indoor evaporative coil match. If connecting line

length exceeds ﬁfteen (15) feet and/or a larger indoor evaporative coil is installed, then ﬁnal refrigerant

charge adjustment is necessary.

8 18-BC96D1-1A-EN

5.5 Reuse Existing Refrigerant Lines

For retrofit applications, where the existing

indoor evaporator coil and/or refrigerant lines

will be used, the following precautions should

be taken:

• Ensure that the indoor evaporator coil and

refrigerant lines are the correct size.

• Ensure that the refrigerant lines are free of

leaks, acid, and oil.

▲CAUTION

If using existing refrigerant lines make certain that

all joints are brazed, not soldered.

Section 6. Refrigerant Line Routing

6.1 Precautions

Important: Take precautions to prevent noise

within the building structure due to vibration

transmission from the refrigerant lines.

For Example:

• When the refrigerant lines have to be fastened to floor joists or other framing in a structure, use isolation type

hangers.

• Isolation hangers should also be used when refrigerant lines are run in stud spaces or enclosed ceilings.

• Where the refrigerant lines run through a wall or sill, they should be insulated and isolated.

• Isolate the lines from all ductwork.

• Minimize the number of 90º turns.

Comply with National, State, and Local Codes when

isolating line sets from joists, rafters, walls, or other

structural elements.

Isolation From Joist/Rafter

Side View

8 Feet Maximum

Secure Vapor line from joists using isolators every 8 ft. Secure

Liquid Line directly to Vapor line using tape, wire, or other appro-

priate method every 8 ft.

Joist/Rafter

Isolator

Line Set

8 Feet Maximum

18-BC96D1-1A-EN 9

Isolation In Wall Spaces

Side View

Wall

Isolator

Line Set

8 Feet Maximum

Secure Vapor Line using isolators every 8 ft. Secure Liquid Line

directly to Vapor Line using tape, wire, or other appropriate

method every 8 ft.

8 Feet Maximum

Isolation Through Wall DO NOT hang line sets from ductwork

Sealant

Insulation

Vapor Line

Wall

Ductwork

Isolator

Line Set

Section 7. Refrigerant Line Brazing

7.1 Braze The Refrigerant Lines

STEP 1 - Remove caps or plugs. Use a debur-

ing tool to debur the pipe ends. Clean both

internal and external surfaces of the tubing

using an emery cloth.

10 18-BC96D1-1A-EN

STEP 2 - Remove the pressure tap cap and

valve cores from both service valves.

STEP 3 - Purge the refrigerant lines and indoor

coil with dry nitrogen.

STEP 4 - Wrap a wet rag around the valve body

to avoid heat damage and continue the dry nitro-

gen purge.

Braze the refrigerant lines to the service valves.

For units shipped with a field-installed external

drier, check liquid line filter drier’s directional flow

arrow to confirm correct direction of refrigeration

flow (away from outdoor unit and toward evapo-

rator coil) as illustrated. Braze the filter drier to

the Liquid Line.

Continue the dry nitrogen purge. Do not remove

the wet rag until all brazing is completed.

Important: Remove the wet rag before stopping

the dry nitrogen purge.

Note: Install drier in Liquid Line.

NOTE: Precautions should be taken to avoid

heat damage to basepan during brazing. It is

recommended to keep the flame directly off of

the basepan.

3-4” from valve

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Trane Pompe à chaleur

Trane

Trane WSC120E Manuel du propriétaire

Trane

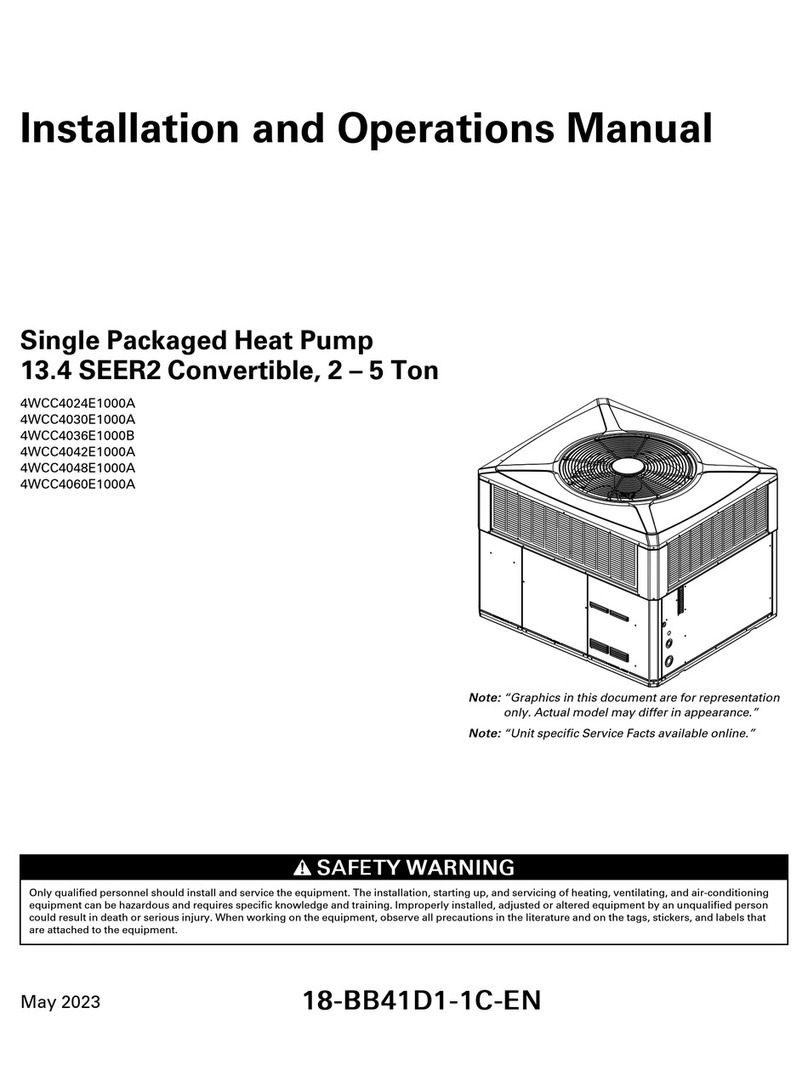

Trane 4WCC4036E1000B Manuel utilisateur

Trane

Trane GEHE 072-180 Instructions d'installation et d'utilisation

Trane

Trane 2/4WCC30 Series Instructions de montage

Trane

Trane CAUC-C80 Manuel du propriétaire

Trane

Trane 4TTX6 Instructions de montage

Trane

Trane 4TWR4 Instructions de montage

Trane

Trane Weathertron 22-5202-03-3605 Instructions d'installation

Trane

Trane 4TTR3 Instructions d'installation

Trane

Trane Exergy RE 210 Manuel utilisateur

Trane

Trane A4HP5018D1000A Instructions de montage

Trane

Trane 13.4 SEER2 J4PH4 Series Manuel utilisateur

Trane

Trane EXWA Manuel utilisateur

Trane

Trane TTPO30D Instructions de montage

Trane

Trane Arctic Thermafit AXM Instructions d'installation et d'utilisation

Trane

Trane A4AC4018B1000B Instructions de montage

Trane

Trane Horizon OABD Series Instructions d'installation et d'utilisation

Trane

Trane 4TTA4 Manuel utilisateur

Trane

Trane XR13 Manuel utilisateur

Trane

Trane 4TTR6024N Manuel utilisateur

Trane

Trane 4TWR5018G Instructions de montage

Trane

Trane ComfortLink II Charge Assist 4TTZ0 Series Instructions de montage

Trane

Trane UH-PRC001-EN Fiche technique

Trane

Trane 5TTR5018 Manuel utilisateur

Manuels Pompe à chaleur populaires d'autres marques

MICROWELL

MICROWELL HP 1000 GREEN Manuel utilisateur

Sanyo

Sanyo SAP120FCH Manuel utilisateur

Daikin

Daikin EHYHBH05AA Manuel utilisateur

Panasonic

Panasonic WH-SDF03E3E5 Mode d’emploi

Bryant

Bryant 544B Manuel utilisateur

Airxcel

Airxcel 45000 Series Manuel

Mitsubishi Electric

Mitsubishi Electric PUZ-SWM60VAA Manuel utilisateur

Dimplex

Dimplex LI 16I-TUR Guide de l'utilisateur

Carrier

Carrier WSHP Open v3 Guide de configuration rapide

TGM

TGM CTV14CN018A Manuel utilisateur

Carrier

Carrier 38MGQ Series Manuel utilisateur

Kokido

Kokido K2O K880BX/EU Guide de dépannage

Viessmann

Viessmann VITOCAL 300-G PRO Type BW 2150 Guide rapide

Carrier

Carrier 48EZN Manuel utilisateur

Viessmann

Viessmann KWT Vitocal 350-G Pro Series Mode d'emploi

Ariston

Ariston NIMBUS Manuel utilisateur

Weishaupt

Weishaupt WWP L 7 Guide de l'utilisateur

GE Zoneline AZ85H09EAC Manuel utilisateur
