Trane CNT06197 Instructions de montage

RS-485 Replacement

Board

CNT06197 is a replacement board kit for the RS-485

hydronic heat control

INSTALLER'S

GUIDE

IMPORTANT—This Document is customer property and is to remain with this unit. Please return to service information

pack upon completion of work.

ALL phases of this installation must comply with

NATIONAL, STATE AND LOCAL CODES

18-GJ59D1-2

11/12

Models:

CNT06197

Section 1. General Information

The CNT06197 kit is for use with the BAYWV 05, 07, 08 hy-

dronic heating coils. The kit is also used with BAYWA 05, 07,

08, and 11 series hydronic heating coils that have the RS-485

control.

Check the components received for damage. Report any de-

fects or shortages to the transportation company immediately.

Section 2. Safety Considerations

2.1 WARNINGS

IMPORTANT: Read this manual carefully before attempting to install,

operate, or perform maintenance on this hydronic coil. Installation,

service, and maintenance should be performed by qualiﬁed technicians

only.

NOTE: “Warnings” and “Cautions” appear at appropriate places in this

manual. Read these carefully. Your personal safety and the proper

operation of this heating product require that you follow them carefully.

The manufacturer assumes no liability for installations or services

performed by independent dealers.

Safety signal words are used to designate a degree or level of serious-

ness associated with a particular hazard. The signal words for safety

markings are WARNING and CAUTION.

▲WARNING

WARNING indicates a potentially hazardous situation which, if not

avoided, could result in property damage, death or serious personal

injury.

▲CAUTION

CAUTION indicates a potentially hazardous situation which, if not

avoided, may result in minor or moderate injury. It is also used to alert

against unsafe practices and hazards involving only property damage.

▲

WARNING

THE INFORMATION IN THIS GUIDE IS FOR USE BY INDIVIDUALS

HAVING ADEQUATE ELECTRICAL AND MECHANICAL BACK-

GROUND. ANY ATTEMPTS, BY UNQUALIFIED PERSONS, AT

PLUMBING, INSTALLING OR REPAIRING A HYDRONIC SYSTEM

OR CENTRAL AIR CONDITIONING PRODUCT COULD RESULT IN

PROPERTY DAMAGE, SEVERE PERSONAL INJURY OR DEATH. THE

MANUFACTURER OR SELLER CANNOT BE RESPONSIBLE FOR THE

INTERPRETATION OF THIS INFORMATION, NOR CAN IT ASSUME

ANY LIABILITY IN CONNECTION WITH ITS USE.

▲

WARNING

ELECTRICAL HAZARD!

DISCONNECT ALL ELECTRICAL POWER, INCLUDING REMOTE

DISCONNECTS BEFORE INSTALLING OR SERVICING. FOLLOW

PROPER LOCKOUT/TAGOUT PROCEDURES TO ENSURE THE

POWER CAN NOT BE INADVERTENTLY ENERGIZED. FAILURE TO

FOLLOW THIS WARNING COULD RESULT IN SERIOUS PERSONAL

INJURY, DEATH, OR PROPERTY DAMAGE.

Page 2

INSTALLER'S GUIDE

SAFETY HAZARD!

All joints must be leak free.

▲CAUTION

SAFETY HAZARD! Sharp Edge Hazard. Be careful of sharp

edges on equipment or any cuts made on sheet metal while install-

ing or servicing. Personal injury may result.

▲CAUTION

▲

WARNING

SAFETY HAZARD!

THIS HYDRONIC COIL MUST ONLY BE USED IN NON-POTABLE

CLOSED WATER SYSTEMS. FAILURE TO FOLLOW THIS WARN-

ING COULD RESULT IN SERIOUS PERSONAL INJURY, DEATH, OR

PROPERTY DAMAGE.

▲

WARNING

HIGH PRESSURE HAZARD!

MAXIMUM ENTERING WATER TEMPERATURE IS 180°F. WATER TEM-

PERATURES EXCEEDING 180°F COULD CAUSE A HIGH PRESSURE

BURST. FAILURE TO FOLLOW THIS WARNING COULD RESULT IN

SERIOUS PERSONAL INJURY, DEATH, OR PROPERTY DAMAGE.

▲

WARNING

SCALD HAZARD!

THIS SYSTEM CONTAINS HOT WATER AND OPERATES UNDER

PRESSURE. WATER TEMPERATURES ABOVE 125°F CAN INSTANT-

LY CAUSE SEVERE BURNS OR DEATH.

USE CAUTION WHEN SERVICING THIS EQUIPMENT. ALLOW SUF-

FICIENT TIME FOR THE WATER TO COOL BEFORE OPENING THE

SYSTEM DRAIN. FAILURE TO FOLLOW THIS WARNING COULD

RESULT IN SERIOUS PERSONAL INJURY, PROPERTY DAMAGE, OR

DEATH.

▲

WARNING

LEAK HAZARD!

IF THE HYDRONIC COIL HAS A LEAK, USE CAUTION WHEN SERVIC-

ING THIS EQUIPMENT. THOROUGHLY WIPE OFF EXCESS WATER

FROM ALL COMPONENTS AND ALLOW ADEQUATE TIME FOR

THE COMPONENTS TO DRY COMPLETELY BEFORE SERVICING

SYSTEM.

FAILURE TO FOLLOW THIS WARNING COULD RESULT IN SERIOUS

PERSONAL INJURY, PROPERTY DAMAGE, OR DEATH.

2.2 CAUTIONS

Page 3

INSTALLER'S GUIDE

D156015G01 CNT06197

HH CONTROL VXX

123

D156015G01

FAULT

STAT US

UNIT

Section 3. Hydronic Heat Control Board

HHC Board

LEDs

HHC Board

Dip Switches

P1 - Factory Low Voltage

Connection

P4 - Field Low Voltage Connection

IMPORTANT: Line voltage must not be applied.

NOTE: P4 relay contacts are not powered and

rated for 1.0 Amp at 24 VAC.

P5 - Water Sensor

Page 4

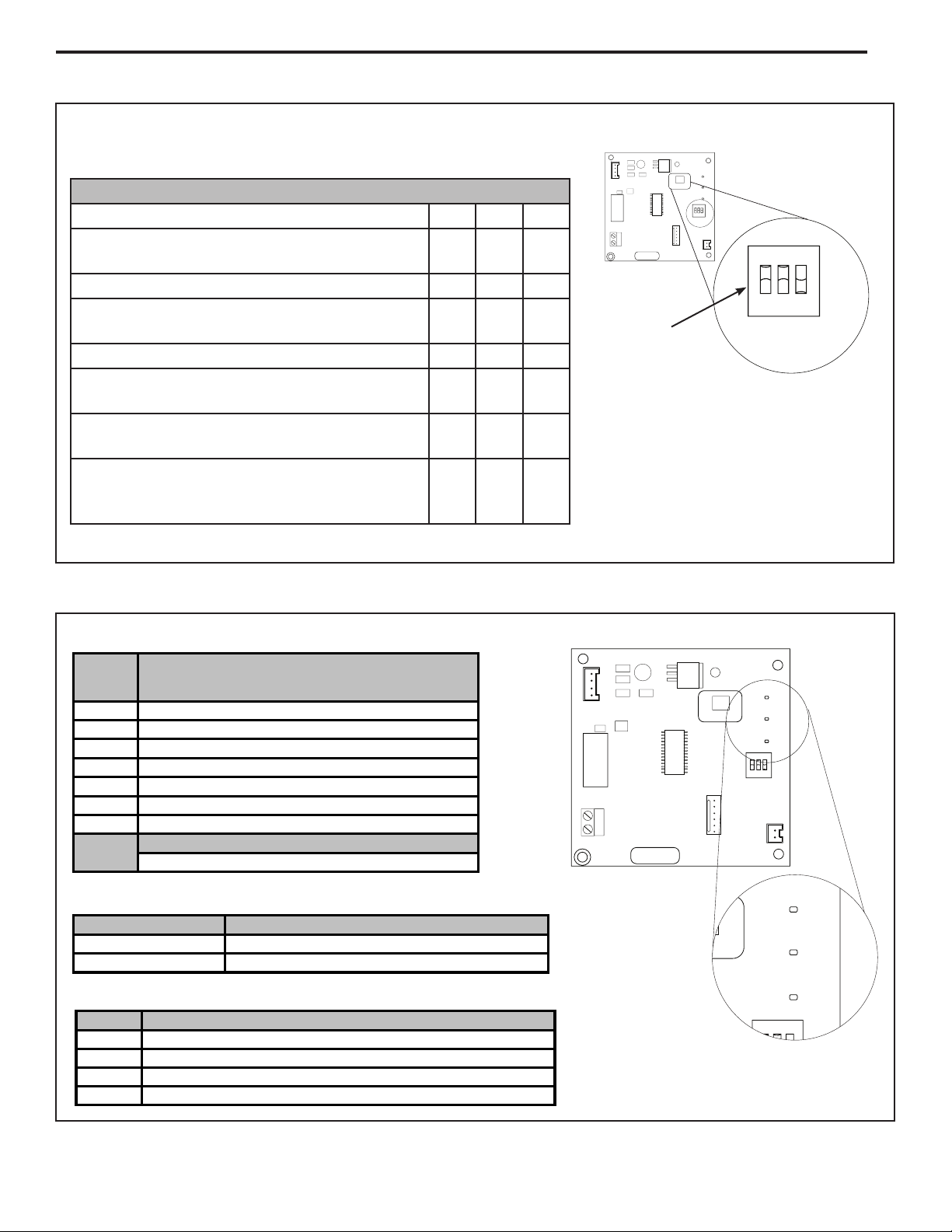

INSTALLER'S GUIDE

STEP 4 - Low Voltage board Dip Switches - DS1 dip

switches are not factory set. Adjustments must be

made per the table.

Dip

Switches

D156015P01 CNT06197

HH CONTROL VXX

123

D156015P01

FAULT

STATUS

UNIT

123

HHC DIP SWITCH SETTINGS

COIL MODEL / AHU MODEL S1-1 S1-2 S1-3

BAYWAAA05 w/*AM7A0A24, BAYWAAA05 w/*AM8A0A24

BAYWAAA05 w/TAMGA0A24 OFF OFF ON

BAYWABB07 w/*AM7A0B30, BAYWABB07 w/*AM8A0B30 OFF ON OFF

BAYWACC08 w/*AM7A0C36, BAYWACC08 w/*AM7A0C36

BAYWACC08 w/TAMGA0C36 OFF ON ON

BAYWACC08 w/*AM7A0C42, BAYWACC08 w/*AM8A0C42 ON OFF OFF

BAYWACC08 w/*AM7A0C48, BAYWACC08 w/*AM7A0C48

BAYWACC08 w/TAMGA0C48 ON OFF ON

BAYWACC08 w/*AM7A0C60, BAYWACC08 w/*AM7A0C60

BAYWACC08 w/TAMGA0C60 ON ON OFF

BAYWACC11SC1A w/*AM7A0C60

BAYWACC11SC1A w/TAMGA0C60

ON ON ON

* May be "A" or "T"

HHC

Fault LED Description

OFF Nofault

1 Internalcommunicationerror

2 Watertempisat38Forlower

3 Watertempsensorisshorted

4 Watertempsensorisopen

5Configurationerror(1)

6 Heatdemanderror

1) Confirm heater model and dip switch configuration

NOTES:

HHC STATUS CODES (GREEN LED)

HHC FAULT CODES (RED LED)

HHC UNIT LED (BLUE LED)

HHC STATUS LED

1 per second

2 per second

Description

Standby or idle (see note)

Heating demand is present

UnitLED

1Flash

Rapid

Off NoPower

Description

Normal(1flashevery4seconds)

CommunicationBusyError(2flashespersecond)

SOLIDON CommunicationscannotbeestablishedwiththeAFC

Section 5. Alert LED Codes

Section 4. Dip Switch Settings

D156015P01 CNT06197

HH CONTROL VXX

SW1

D156015P01

FAULT

STAT US

UNIT

FAULT

STATUS

UNIT

Since the manufacturer has a policy of continuous product and product data im-

provement, it reserves the right to change design and speciﬁcation without notice.

Trane

6200 Troup Highway

Tyler, TX 75707
