Trane BAYGARD311A Manuel utilisateur

SSAAFFEETTYY WWAARRNNIINNGG

Only qualified personnel should install and service the equipment The installation, starting up,

and servicing of heating, ventilating, and air-conditioning equipment can be hazardous and

requires specific knowledge and training Improperly installed, adjusted or altered equipment

by an unqualified person could result in death or serious injury When working on the

equipment, observe all precautions in the literature and on the tags, stickers, and labels that

are attached to the equipment

June 2021 RRTT--SSVVNN003399AA--EENN

Installation Guide

Hail Guards

Used with Medium Foundation Light

Commercial Rooftops

MMooddeell NNuummbbeerr:: BAYGARD311A

UUsseedd WWiitthh:: EBC 102-150, GBC 102-150

Warnings, Cautions, and Notices

Safety advisories appear throughout this manual as required Your personal

safety and the proper operation of this machine depend upon the strict

observance of these precautions

The three types of advisories are defined as follows:

WARNING

Indicates a potentially hazardous situation which, if not avoided,

could result in death or serious injury.

CAU

TION

Indicates a potentially hazardous situation which, if not avoided,

could result in minor or moderate injury. It could also be used to

alert against unsafe practices.

NOTICE

Indicates a situation that could result in equipment or property-

damage only accidents.

Important Environmental Concerns

Scientific research has shown that certain man-made chemicals can affect

the earth’s naturally occurring stratospheric ozone layer when released to

the atmosphere In particular, several of the identified chemicals that may

affect the ozone layer are refrigerants that contain Chlorine, Fluorine and

Carbon (CFCs) and those containing Hydrogen, Chlorine, Fluorine and

Carbon (HCFCs) Not all refrigerants containing these compounds have the

same potential impact to the environment Trane advocates the responsible

handling of all refrigerants-including industry replacements for CFCs and

HCFCs such as saturated or unsaturated HFCs and HCFCs

Important Responsible Refrigerant Practices

Trane believes that responsible refrigerant practices are important to the

environment, our customers, and the air conditioning industry All

technicians who handle refrigerants must be certified according to local

rules For the USA, the Federal Clean Air Act (Section 608) sets forth the

requirements for handling, reclaiming, recovering and recycling of certain

refrigerants and the equipment that is used in these service procedures In

addition, some states or municipalities may have additional requirements

that must also be adhered to for responsible management of refrigerants

Know the applicable laws and follow them

RT-SVN039A-EN 3

WWAARRNNIINNGG

PPrrooppeerr FFiieelldd WWiirriinngg aanndd GGrroouunnddiinngg RReeqquuiirreedd!!

Failure to follow code could result in death or serious injury

All field wiring MUST be performed by qualified personnel Improperly

installed and grounded field wiring poses FIRE and ELECTROCUTION

hazards To avoid these hazards, you MUST follow requirements for field

wiring installation and grounding as described in NEC and your local/state/

national electrical codes

WWAARRNNIINNGG

PPeerrssoonnaall PPrrootteeccttiivvee EEqquuiippmmeenntt ((PPPPEE)) RReeqquuiirreedd!!

Failure to wear proper PPE for the job being undertaken could result in

death or serious injury

Technicians, in order to protect themselves from potential electrical,

mechanical, and chemical hazards, MUST follow precautions in this manual

and on the tags, stickers, and labels, as well as the instructions below:

• Before installing/servicing this unit, technicians MUST put on all

PPE required for the work being undertaken (Examples; cut

resistant gloves/sleeves, butyl gloves, safety glasses, hard hat/

bump cap, fall protection, electrical PPE and arc flash clothing)

ALWAYS refer to appropriate Safety Data Sheets (SDS) and OSHA

guidelines for proper PPE

• When working with or around hazardous chemicals, ALWAYS

refer to the appropriate SDS and OSHA/GHS (Global Harmonized

System of Classification and Labelling of Chemicals) guidelines

for information on allowable personal exposure levels, proper

respiratory protection and handling instructions

• If there is a risk of energized electrical contact, arc, or flash,

technicians MUST put on all PPE in accordance with OSHA, NFPA

70E, or other country-specific requirements for arc flash

protection, PRIOR to servicing the unit NEVER PERFORM ANY

SWITCHING, DISCONNECTING, OR VOLTAGE TESTING

WITHOUT PROPER ELECTRICAL PPE AND ARC FLASH CLOTHING

ENSURE ELECTRICAL METERS AND EQUIPMENT ARE PROPERLY

RATED FOR INTENDED VOLTAGE

4RT-SVN039A-EN

WWAARRNNIINNGG

FFoollllooww EEHHSS PPoolliicciieess!!

Failure to follow instructions below could result in death or serious injury

• All Trane personnel must follow the company’s Environmental,

Health and Safety (EHS) policies when performing work such as

hot work, electrical, fall protection, lockout/tagout, refrigerant

handling, etc Where local regulations are more stringent than

these policies, those regulations supersede these policies

• Non-Trane personnel should always follow local regulations

This document and the information in it are the property of Trane, and may

not be used or reproduced in whole or in part without written permission

Trane reserves the right to revise this publication at any time, and to make

changes to its content without obligation to notify any person of such

revision or change

Trademar s

All trademarks referenced in this document are the trademarks of their

respective owners

RT-SVN039A-EN 5

Pre-Installation

Unit Inspection

To protect against loss due to damage incurred in transit, perform inspection

immediately upon receipt of the unit

Exterior Inspection

If the job site inspection reveals damage or material shortages, file a claim

with the carrier immediately Specify the type and extent of the damage on

the bill of lading before signing Notify the appropriate sales representative

IImmppoorrttaanntt:: Do not proceed with installation of a damaged unit without sales

representative’s approval.

• Visually inspect the complete exterior for signs of shipping damages

to unit or packing material

• Verify that the nameplate data matches the sales order and bill of

lading

• Verify that the unit is properly equipped and there are no material

shortages

• Verify that the power supply complies with the unit nameplate

specifications

Inspection for Concealed Damage

Visually inspect the components for concealed damage as soon as possible

after delivery and before it is stored

If concealed damage is discovered:

• Notify the carrier’s terminal of the damage immediately by phone and

by mail

• Concealed damage must be reported within 15 days

• Request an immediate, joint inspection of the damage with the carrier

and consignee

• Stop unpacking the unit

• Do not remove damaged material from receiving location

• Take photos of the damage, if possible

• The owner must provide reasonable evidence that the damage did

not occur after delivery

6RT-SVN039A-EN

General Information

The accessory hail guards referred to in this installation guide are provided

for use with Foundation™ 8 5-12 5 tons units

Parts List

Description Quantity

Hail Guard A (51.75" X 44.00") 1

Hail Guard B (40.50" X 43.94") 1

Screws (10 x 0.50") 12

PPrree--IInnssttaallllaattiioonn

RT-SVN039A-EN 7

Installation

1 Locate top screw locations by finding the corner post at the bend

of the coil See Figure 1, p 7

2 Align hail guard notches around existing screws

3 Ensure that the provided screws and attachment locations are not

going to penetrate the RTU coil

4 Use provided screws and attach Panel A and Panel B over respective

coils See Figure 1, p 7 You will have extra screws in the parts bag

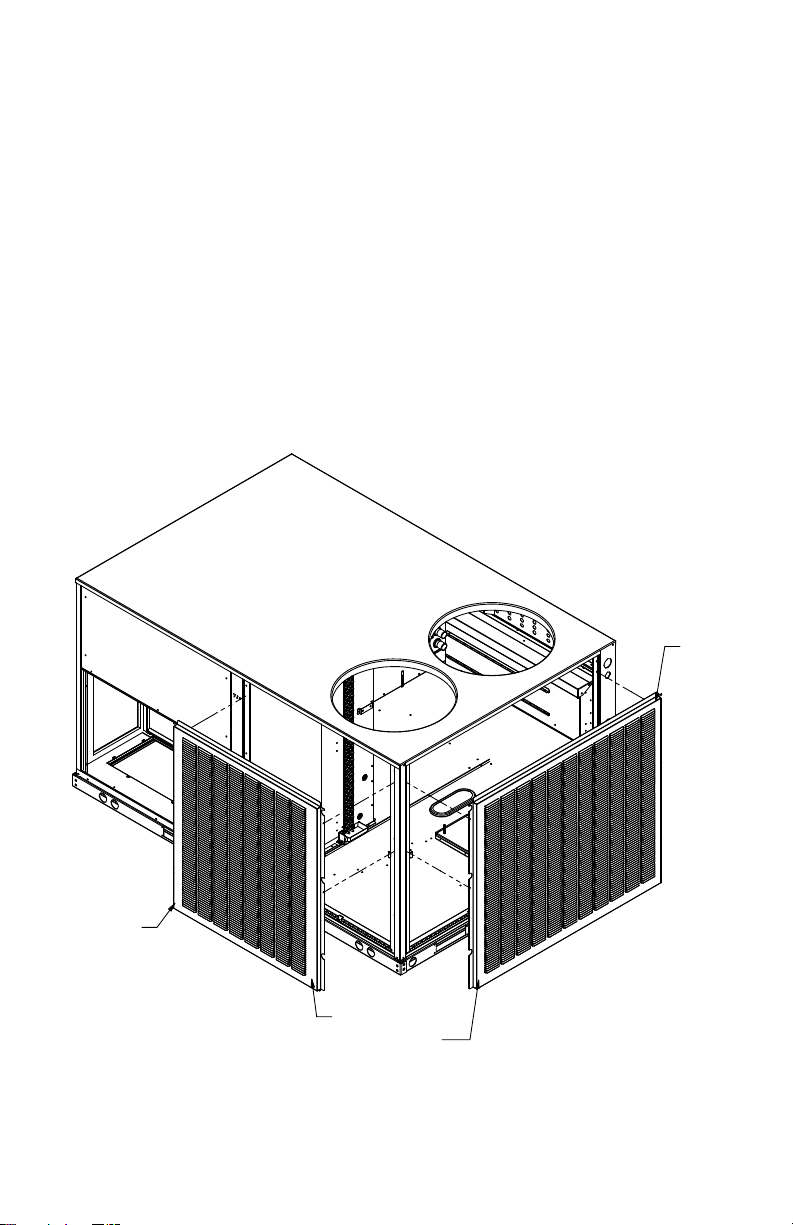

Figure 1. Hail guard installation

PANEL B

PANEL A

USE FOUR PRE-PUNCHED

HOLES ON HAIL GUARDS

TO ATTACH TO UNIT

Trane and American Standard create comfortable, energy efficient indoor environments for

commercial and residential applications For more information, please visit trane com or

americanstandardair com

Trane and American Standard have a policy of continuous product and product data improvement and reserve the

right to change design and specifications without notice We are committed to using environmentally conscious

print practices

RT-SVN039A-EN 11 Jun 2021
