TP-Link AP200 Manuel utilisateur

REV1.0.0 1910011653

AP200

User Guide

AC750 Wireless Gigabit Access Point

Contents

Chapter 1. About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Chapter 2. Get to Know About Your AP Device . . . . . . . . . . . . . . . . . . . . . . 2

1. 1. Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

1. 2. Main Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

1. 3. Panel Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1. 3. 1.Top View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1. 3. 2.The Back Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

1. 4. Position Your AP Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Chapter 3. Operation Modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2. 1. Determine the Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2. 2. Connect Your AP Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Chapter 4. Log into Your AP Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Chapter 5. Set Up Wireless Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

4. 1. Quick Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

4. 2. WPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

4. 3. Specify the Wireless Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

4. 4. Check the connection status. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Chapter 6. Customize Your Network and Security Settings. . . . . . . . . . 24

5. 1. Change the LAN Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

5. 2. Specify DHCP Server Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

5. 3. Access Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

5. 4. Advanced Wireless Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Chapter 7. Manage Your AP Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

6. 1. System Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

6. 2. Test the Network Connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

6. 3. Upgrade the Firmware. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

6. 3. 1.Local Upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

6. 3. 2.Online Upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

6. 4. Backup and Restore Configuration Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

6. 5. Change the Management Account. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

6. 6. Throughput Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

6. 7. Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

6. 8. SNMP Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

6. 9. Ping Watchdog. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

6. 10. LEDs Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

6. 11. Mode Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Chapter 8. FAQ. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Chapter 9. Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

About This Guide

This guide provides details of each function and shows how to configure the AP device

appropriate to your needs. In addition to this guide, a Quick Installation Guide is also

released with each TP-LINK AP device, you are suggested to configure your AP device

for quick Internet setup by following the published Quick Installation Guide before you

get started with a further configuration.

Conventions

In this guide the following conventions are used:

Convention Description

AP device Stands for 11AC Wireless Gigabit Access Point without any explanation.

parameters

Parameters provided in the screenshots are just references for setting up the device,

which may differ from the actual situation. You can set the parameters according to

your demand.

screenshots

The demonstrated screenshots may look a little different from the actual web page of

your device due to the various firmware versions. Please just configure your product

based on the actual web page.

Blue Italic Hyperlinks are in blue italic. You can click to redirect to a website or a specific section.

Blue Contents to be emphasized and texts on the web page are in blue, including the

menus, items, buttons, etc.

The menu structures to show the path to load the corresponding page. For example,

Advanced > Wireless > WPS means the WPS function page is under the Wireless menu

that is located in the Advanced tab.

Note: Ignoring this type of note might result in a malfunction or damage to the device.

Tips: Indicates important information that helps you make better use of your device.

symbols on the web

page

• click to edit the corresponding entry.

• click to delete the corresponding entry.

• click to enable or disable the corresponding entry.

Chapter 1

Get to Know About Your AP

Device

This chapter introduces what the AP device can do and shows its main features and

appearance.

This chapter contains the following sections:

• Product Overview

• Main Features

• Panel Layout

• Position Your AP Device

Chapter 1

1. 1. Product Overview

What This Product Does

TheTP-LINKWireless AC Access Point is designed to establish or expand a scalable high-

speed wireless AC network or to connect multiple Ethernet enabled devices such as

game consoles, digital media adapters, printers, or network attached storage devices

to a wireless network. The AP supports a host of different functions that make your

wireless networking experience more flexible than ever before. Now, you can enjoy a

better Internet experience when downloading, gaming or video streaming.

802.11ac - The Next Generation of Wi-Fi

TP-LINK’s Wireless AC Access Point comes with the next generation Wi-Fi standard -

802.11ac, backward compatible with 802.11n and 3 times faster than wireless N

speeds. With higher power efficiency and robust security, 802.11ac is the perfect way

to accelerate a home multimedia network and solve congestion that multiple devices

may cause.

Concurrent Dual Band - More Bandwidth, Less Interference

With the high wireless speeds over the crystal clear 5GHz band and the 2.4GHz band,

the Wireless AC Access Point offers you the flexibility of two dedicated networks and

ensures amazing wireless performance. Simple tasks such as sending e-mails or web

browsing can be handled by the 2.4GHz band while bandwidth intensive tasks like

online gaming or HD video streaming can be processed by the 5GHz band – all at the

same time.

Broad Wi-Fi Coverage and Targeted Connection

Featuring multiple detachable external antennas and high power amplifiers, the

Wireless AC Access Point is able to boost Wi-Fi coverage throughout your home.

Advanced Beamforming technology enables it to focus Wi-Fi signal on connected

devices, delivering a more targeted and highly efficient wireless connection.

Multiple Operating Modes - Easy to Build WLAN

Supports AP, Bridge/Repeater, Client and Multi-SSID operation modes to enable various

wireless applications to give you a more dynamic and comprehensive experience when

using the AP device. Multiple operating modes also helps you easily build wireless

network for hard-to-wire locations or eliminate wireless dead zone.

1. 2. Main Features

Wireless and Wired Performance

• Supports 802.11ac - The next generation of Wi-Fi, compatible with 802.11n

Chapter 1

• Support simultaneous 2.4GHz and 5GHz connections

• Two detachable external antennas and high power amplifiers provide stable

signals and optimal wireless coverage

• Support passive PoE

• Up to 4 SSIDs and VLAN support

• Provides WPA/WPA2, WPA-PSK/WPA2-PSK authentication, TKIP/AES encryption

security

• Supports MAC filter, throughput monitor

• Easy one-touch WPA wireless security encryption with the WPS button

• Supports firmware upgrade and Web management

• Supports system log and Traffic Statistics

1. 3. Panel Layout

1. 3. 1. Top View

The AP device’s LEDs are located on the top panel. You can check the AP device’s

working status by following the LED Explanation table (view from left to right).

Chapter 1

LED Explanation

Name Status Indication

(Power)

On System initialization completes.

Blinking System initialization or firmware upgrade is in process. Do not

disconnect or power off the AP device.

Off Power is off. Please ensure that the power adapter is connected

correctly.

(Wireless 2.4GHz)

On The wireless 2.4GHz band is working properly (in AP/Multi-SSID/

Repeater/Bridge mode).

Off

The wireless 2.4GHz band is disabled (in AP/Multi-SSID/Repeater/

Bridge mode).

The LED is always off (in Client mode).

(Wireless 5GHz)

On The wireless 5GHz band is working properly (in AP/Multi-SSID/

Repeater/Bridge mode).

Off

The wireless 5GHz band is disabled (in AP/Multi-SSID/Repeater/

Bridge mode).

The LED is always off (in Client mode).

(LAN)

On A device is connected to the Ethernet port.

Off No device is connected to the Ethernet port.

(WPS)

Slow blinking WPS connection is in process.

On WPS connection is successful. It will turn off after 5 minutes.

Quick blinking WPS connection is failed.

Solid green The signal strength is great (in Repeater/Bridge/Client mode).

Solid orange The signal strength is good (in Repeater/Bridge/Client mode).

Solid red The signal strength is too weak (in Repeater/Bridge/Client mode).

Off The device is disconnected from the host network (in Repeater/

Bridge/Client mode).

Note:

After a device is successfully added to the network by WPS function, the WPS LED will keep on for about 5 minutes

and then turn off.

Chapter 1

1. 3. 2. The Back Panel

The AP device’s back panel shows the connection ports, buttons and antennas. Refer to

the following for detailed instructions (view from left to right).

Item Description

Ethernet One LAN 10/100/1000Mbps Auto-Negotiation RJ45 Port connects to a network device

and supports passive PoE.

Reset

The switch for the reset function. With the device powered on, use a pin to press and

hold the Reset button for five seconds until the Power LED starts blinking, then release

the button.

WPS Press and hold this button for two seconds to enable the WPS function. When the WPS

LED blinks slowly, the device is trying to connect or to be connected.

LED Press this button to turn on or turn off the LEDs.

On/Off The switch for the power. Press it to power on or off the AP device.

Power The power port connects to the provided power adapter.

Antennas Used for wireless operation and data transmit. Upright them for the best Wi-Fi

performance.

1. 4. Position Your AP Device

• Place your AP device in a well-ventilated place far from any heater or heating vent

• Avoid direct irradiation of any strong light (such as sunlight)

• Keep at least 2 inches (5 cm) of clear space around your AP device

• Operating Temperature: 0℃~40℃(32℉~104℉)

• Operating Humidity: 10%~90%RH, Non-condensing

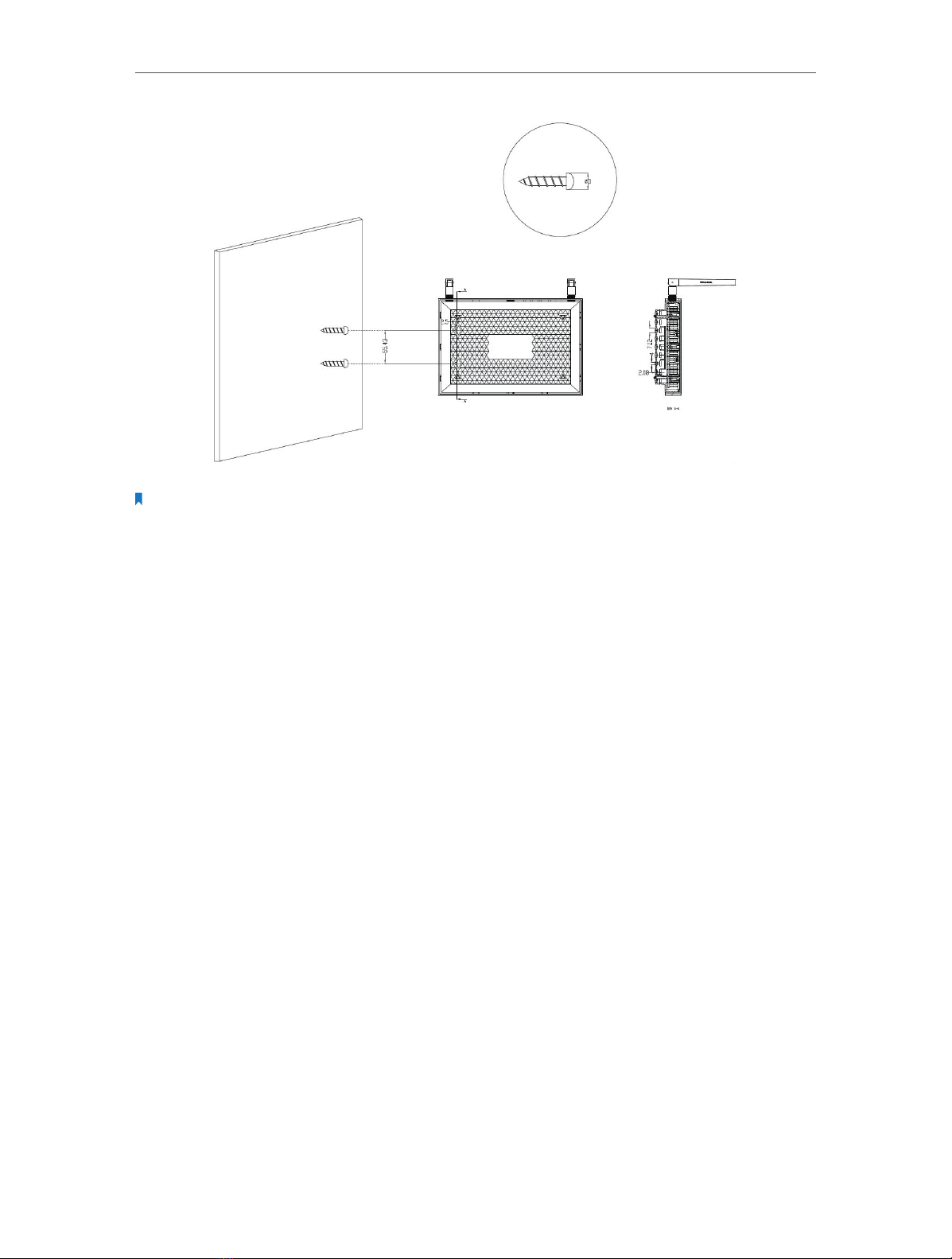

Generally, your AP device is placed on a horizontal surface. It also can be mounted on

the wall as shown below.

Chapter 1

Note:

The diameter of the screw, 4mm<D<7mm, and the distance of two screws is 55.43mm. The screw that projects from

the wall needs around 3.5mm based, and the length of the screw need to be at least 20mm to withstand the weight

of the product.

Autres manuels pour AP200

Table des matières

Autres manuels TP-Link Point d'accès sans fil

TP-Link

TP-Link 54Mbps Wireless Access Point TL-WA501G Manuel utilisateur

TP-Link

TP-Link AP300 Manuel utilisateur

TP-Link

TP-Link Auranet Manuel utilisateur

TP-Link

TP-Link AURANET CAP300-Outdoor Manuel utilisateur

TP-Link

TP-Link Deco X50-PoE Manuel utilisateur

TP-Link

TP-Link TL-WA701ND Manuel utilisateur

TP-Link

TP-Link TL-WA701ND Manuel utilisateur

TP-Link

TP-Link Omada EAP610 Manuel utilisateur

TP-Link

TP-Link Omada EAP225-Wall Manuel utilisateur

TP-Link

TP-Link TL-WA5210G Manuel utilisateur

TP-Link

TP-Link AP9650 V1 Manuel utilisateur

TP-Link

TP-Link Omada EAP Series Manuel utilisateur

TP-Link

TP-Link Auranet EAP110 Manuel utilisateur

TP-Link

TP-Link Pharos CPE210 Manuel utilisateur

TP-Link

TP-Link TL-WA901N Manuel utilisateur

TP-Link

TP-Link TL-WA7510N Manuel utilisateur

TP-Link

TP-Link TL-PA4010 Manuel utilisateur

TP-Link

TP-Link Auranet Series Manuel utilisateur

TP-Link

TP-Link Deco Manuel utilisateur

TP-Link

TP-Link TL-WA5110G Manuel utilisateur

TP-Link

TP-Link TL-WA1801 Manuel utilisateur

TP-Link

TP-Link TL-WA901ND Manuel utilisateur

TP-Link

TP-Link Omada TPL-EAP225 Manuel utilisateur

TP-Link

TP-Link TL-WA901ND Manuel utilisateur

Manuels Point d'accès sans fil populaires d'autres marques

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Manuel utilisateur

Ubiquiti

Ubiquiti NanoStation NSM2 Manuel utilisateur

Cisco

Cisco Aironet 1550 Series Manuel utilisateur

Aruba

Aruba IAP-335 Manuel utilisateur

Advantek Networks

Advantek Networks AWN-AP-54MR Manuel utilisateur

IP-COM

IP-COM AP355 Manuel utilisateur

Buffalo

Buffalo AirStation WLA-L11G Manuel utilisateur

EnGenius

EnGenius EnStationACv2 Manuel utilisateur

D-Link

D-Link DAP-3662 Manuel utilisateur

xG Technology

xG Technology xMax CN1300 Manuel utilisateur

Widelink

Widelink ezWave WAP-1100 Series Manuel utilisateur

Edimax

Edimax CAP1200 Manuel utilisateur

Ubiquiti

Ubiquiti LBE-5AC-Gen2 Manuel utilisateur

Aruba

Aruba AP-203R Manuel utilisateur

LuXout Shades

LuXout Shades LUXSHADE MOTION Manuel utilisateur

CreatComm

CreatComm TB5F Manuel utilisateur

SineDigital

SineDigital MW-1500AP(H) Manuel utilisateur

Draytek

Draytek VIGORAP 902 Manuel utilisateur
