TP-Link Omada EAP245 Manuel utilisateur

Typical Network Topology

Hardware Installation

Software Configuration

The EAP can be powered via a PSE device (such as a PoE switch) or a power adapter.

Power Supply

EAPEAPEAP

Manangement Host

A DHCP server (typically a router) is required to assign IP addresses to the EAPs and clients in your local network.

The management host can be in the same or different network segment with the EAPs.

Option 1: Ceiling Rail Mounting

Option 2: Ceiling Mounting

Option 3: Wall Mounting

The EAP can be ceiling rail mounted, ceiling-mounted, or wall-mounted.

The instructions for various mounting options are on the back of this Quick Installation Guide.

Switch

Router

Internet

To quickly set up a wireless network connection with mass EAPs, please follow the steps below.

Note: The IP address of the management host must be reachable for the EAPs in the network. In this example, the management

host is in the same LAN with the EAPs.

Connect an Ethernet cable from the PoE switch to the ETHERNET port.

Via PoE Switch

For More Congurations

Now you can manage your wireless network and view network statistic using the EAP Controller.

Please refer to the EAP Controller User Guide to learn more information about conguring and

using the Controller software.

Step 1: Installing the EAP Controller

On the management host, download the EAP Controller installation file from the product support

page at www.tp-link.com. Run the file and follow the wizard to install the EAP Controller.

Step 2: Configuring the EAP Controller

Launch the EAP Controller and follow the configuration wizard to create a primary wireless

network. After the wizard is finished, a login screen will appear. Enter the Admin name and

password you created and click Sign In.

Step 3: Adopting the EAP devices

Adopt the EAP devices in the Controller management interface to change their status from

Pending to Connected.

PoE Switch

RESET ETHERNET POWER

Switch

RESET ETHERNET POWER

PoE Adapter

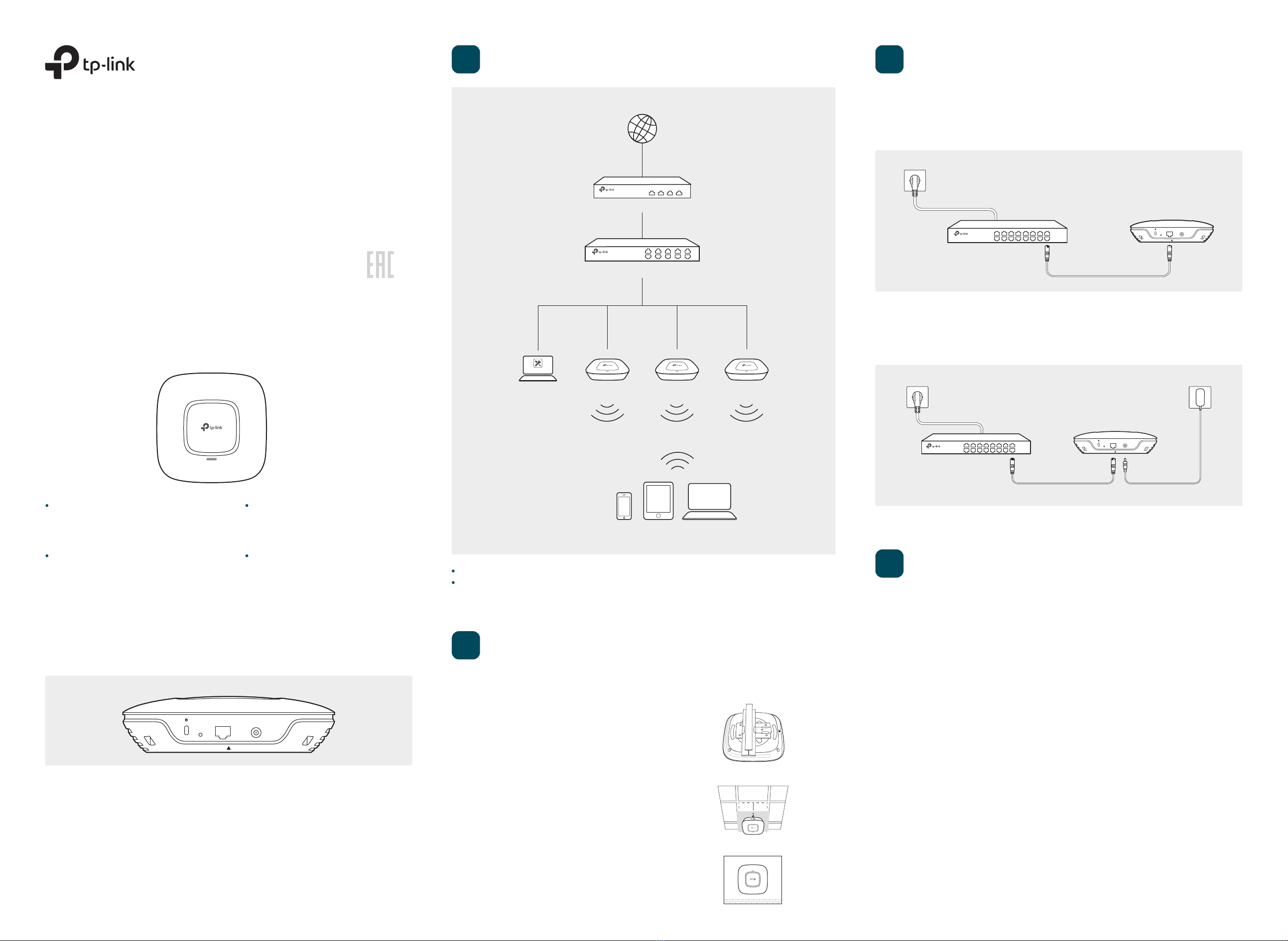

Quick Installation Guide

EAP245

AC1750 Wireless Dual Band Gigabit Access Point

LED Indication

Interface Panel

RESET

With the device powered on, press and hold the button for about 8 seconds until the LED

flashes red, then release the button. The device will restore to factory default settings.

The device is working properly.

Solid green

System errors. RAM, Flash,

Ethernet, WLAN or firmware may

be malfunctioning.

Flashing red

The device is being reset to its

factory default settings.

Double-flashing red, green, yellow

Firmware update is in progress. Do not

disconnect or power o the device.

Flashing yellow

RESET ETHERNET POWER

The port is used to connect to a router or a switch to transmit data or to a PSE (Power Sourcing

Equipment), such as a PoE switch, for both data transmission and Power over Ethernet (PoE)

through Ethernet cabling.

ETHERNET

Clients

1 3

EAP Controller

Via Power Adapter

Plug one end of the provided power adapter into the POWER port of the EAP and the other end to

a standard electrical wall outlet.

Option 1: Ceiling Rail Mounting Option 3: Wall Mounting

Option 2: Ceiling Mounting

M3×20 Self-tapping Screws (Qty.3)

M3×28 Plastic Wall Anchors(Qty.3)

Connect the Ethernet cable to the

ETHERNET port on the EAP.

Feed the Ethernet cable through the hole

and set the ceiling tile back into place.

Connect the Ethernet cable to the ETHERNET

port.

Connect the Ethernet cable to the

ETHERNET port.

Make two small pencil marks on the wall.

Make sure the two marks are level and

98.6mm apart.

Drill a 6mm hole through the center of

each mark.

Note: We recommend that you install the EAP with the Ethernet port downward.

Place the mounting bracket in the center of

the ceiling tile. Mark three positions for the

screw holes and a position for the Ethernet

cable hole.

Drill three 4mm holes for the screws and a

25mm hole for the Ethernet cable at the

marked positions.

Use an M3×6 pan-head screw to secure

the T-rail Clip onto the ceiling rail.

Position the Ceiling T-rail Clip and push the

movable part toward the rail base.

Remove the ceiling tile.

Insert the plastic wall anchors into the

6mm holes and drive the self-tapping

screws into the anchors. Do not drive the

screws all the way in and leave enough

clearance to hang the EAP.

Secure the mounting bracket to the ceiling

tile using three M3x30 pan-head screws,

washers and wing nuts, as shown on the

left.

Attach the mounting bracket to the Ceiling

T-rail Clip using four M3x6 pan-head screws.

Hang the EAP on the screws. Make sure

the EAP is firmly seated against the wall.

Attach the EAP to the mounting bracket by

aligning the arrow mark on the EAP with

the arrow mark on the mounting bracket,

then rotate the EAP until it locks into place, as

shown on the left.

Ceiling T-rail Clip M3×6 Pan-head Screws(Qty.5) Wing Nuts (Qty.3)Washers(Qty.3) M3×30 Pan-head Screws (Qty.3)

Hole for Ethernet cable

98.6mm

Attach the EAP to the mounting bracket

by aligning the arrow mark on the EAP

with the arrow mark on the mounting

bracket, then rotate the EAP until it locks

into place, as shown on the left.

Attach the EAP to the mounting bracket by

aligning the arrow mark on the EAP with the

arrow mark on the mounting bracket, then

rotate the EAP until it locks into place, as

shown on the left.
