Gigabit Smart Switch

Introduction

Chapter 1 Introduction

1.1 Product Overview

TP-LINK Gigabit Smart Switch, designed for workgroups and departments, provides

wire-speed performance and abundant layer 2 management features. It provides a

variety of service features and multiple powerful functions with high security.

The EIA-standardized framework and smart configuration capacity can provide flexible

solutions for a variable scale of networks. QoS and IGMP snooping/filtering optimize

voice and video application. Link aggregation increases aggregated bandwidth,

optimizing the transport of business critical data. SNMP, RMON, WEB/Telnet Log-in

bring abundant management policies. TP-LINK Gigabit Smart Switch integrates multiple

functions with excellent performance, and is friendly to manage, which can fully meet

the need of the users demanding higher networking performance.

TL-SG2424P Smart PoE Switch is also a Power Sourcing Equipment (PSE*). All the Auto-

Negotiation RJ45 ports on the switch support Power over Ethernet (PoE*) function,

which can automatically detect and supply power with those powered devices (PDs*)

complying with IEEE 802.3af and IEEE 802.3at.

*PSE: a device (switch or hub for instance) that will provide power in a PoE setup.

*PoE: This technology describes a system to transmit electrical power, along with data,

to remote devices over standard twisted-pair cable in an Ethernet.

*PD: a device powered by a PSE and thus consumes energy. Examples include

powering IP telephones, wireless LAN access points, network cameras, network hubs,

embedded computers etc.

1.2 Appearance

■Front Panel

The front panel of TL-SG2216 is shown as the following figure.

Reset

10/100/1000Mbps RJ45 Port

SFP Port

LEDs

Figure 1-1 Front Panel of TL-SG2216

Gigabit Smart Switch

The front panel of TL-SG2424 is shown as the following figure.

LEDs

10/100/1000Mbps RJ45 Port

SFP Port

Reset

Figure 1-2 Front Panel of TL-SG2424

Reset

Press this button for five seconds or above to reset the software setting back to

factory default settings.

LEDs

LED Status Indication

Power On The switch is powered on

Off The switch is powered off or power supply is abnormal

System

On The switch is working abnormally

Flashing The switch is working normally

Off The switch is working abnormally

Link/Act

On There is a device linked to the corresponding port but no

activity

Flashing The corresponding port is transmitting or receiving data

Off There is no device linked to the corresponding port

1000Mbps

On A 1000Mbps device is connected to the corresponding port

Off A 10/100Mbps device or no device is connected to the

corresponding port

10/100/1000Mbps RJ45 Port

Designed to connect to the device with a bandwidth of 10Mbps, 100Mbps or

1000Mbps. Each has a corresponding Link/Act LED and a 1000Mbps LED.

SFP Port

Designed to install the SFP module. TL-SG2216/TL-SG2424 switch features 2/4 SFP

transceiver slots that are shared with the associated RJ45 ports. The associated

two ports are referred as a “Combo”port, which means they cannot be used

simultaneously, otherwise only SFP port works.

Introduction

Gigabit Smart Switch

Introduction

The front panel of TL-SG2424P is shown as the following figure.

Reset

LEDs

10/100/1000Mbps RJ45 Port

SFP Port

LED Mode Switch Button

Figure 1-3 Front Panel of TL-SG2424P

LEDs

TL-SG2424P has an LED mode switch button which is for switching the LED

status indication. When the Speed LED is on, the port LED is indicating the data

transmission rate. When the PoE LED is on, the port LED is indicating the power

supply status. By default the Speed LED is on. Pressing the mode switch button, the

Speed LED will turn off and the PoE LED will light up. Then the PoE LED will turn off

after being on for 60 seconds and the Speed LED will light up again.

When the Speed LED is on, the port LED is indicating the data transmission rate.

LED Status Indication

Power

On The switch is powered on

Off The switch is powered off or power supply is abnormal

Flashing Power supply is abnormal

System Flashing The switch works properly

On/Off The switch works improperly

10/100/

1000Mbps

Green On A 1000Mbps device is connected to the corresponding

port, but no activity

Flashing Data is being transmitted or received

Yellow On A 10/100Mbps device is connected to the corresponding

port, but no activity

Flashing Data is being transmitted or received

Off No device is connected to the corresponding port

When the PoE LED is on, the port LED is indicating the power supply status.

LED Status Indication

Power

On The switch is powered on

Off The switch is powered off or power supply is abnormal

Flashing Power supply is abnormal

System Flashing The switch works properly

On/Off The switch works improperly

Gigabit Smart Switch

Introduction

LED Status Indication

PoE Max

On The remaining PoE power≤7W

Flashing The remaining PoE power keeps ≤7W after this LED is

on for 2 minutes

Off The remaining PoE power≥7W

10/100/

1000Mbps

Green

On The port is supplying power normally

Flashing The supply power exceeds the correponding port's

maximum power

Yellow On Overload or short circuit is detected

Flashing Power-on self-test has failed

Off No PoE power supply is provided on the port

LED Mode Switch Button

Press this button to switch the LED status indication between Speed and PoE.

Reset

Press this button for five seconds or above to reset the software setting back to

factory default settings.

10/100/1000Mbps RJ45 Port

Designed to connect to the device with a bandwidth of 10Mbps, 100Mbps or

1000Mbps. Each has a corresponding 1000Mbps LED.

SFP Port

Designed to install the SFP module. TL-SG2424P switch features 4 SFP transceiver

slots that are shared with the associated RJ45 ports. The associated two ports are

referred as a “Combo”port, which means they cannot be used simultaneously,

otherwise only SFP port works.

The front panel of TL-SG2452 is shown as the following figure.

SFP Port

Reset

10/100/1000Mbps RJ45 Port

30 32 34 36 38 40 42 44 46 48

246810 12 14 16 18 20 22 24 26 28 29 31 33 35 37 39 41 43 45 47

25 271 3579

11 13 15 17 19 21 23 50 51 52

1000Mbps

10/100Mbps 1000Base-X

LEDs

Figure 1-4 Front Panel of TL-SG2452

LEDs

LED Status Indication

PWR

On The switch is powered on

Off The switch is powered off or power supply is abnormal

Flashing Power supply is abnormal

SYS Flashing The switch works properly

On/Off The switch works improperly

Gigabit Smart Switch

LED Status Indication

10/100/

1000Mbps

Green On A 1000Mbps device is connected to the corresponding

port, but no activity

Flashing Data is being transmitted or received

Yellow On A 10/100Mbps device is connected to the corresponding

port, but no activity

Flashing Data is being transmitted or received

Off No device is connected to the corresponding port

10/100/1000Mbps RJ45 Port

Designed to connect to the device with a bandwidth of 10Mbps, 100Mbps or

1000Mbps. Each has a corresponding 1000Mbps LED.

SFP Port

Designed to install the SFP module. TL-SG2452 features 4 individual SFP ports.

Reset

Press this button for five seconds or above to reset the software setting back to

factory default settings.

Port Feature

Model 10/100/1000Mbps RJ45 Port SFP Port

TL-S G2216 16 2

TL-SG2424 24 4

TL-SG2424P 24 4

TL-S G2452 48 4

Note: For TL-SG2216/TL-SG2424/TL-SG2424P, when using the SFP port with a

100M module or a gigabit module, you need to log on to the GUI (Graphical User

Interface) of the switch and congure its corresponding Speed and Duplex mode on

Switching→Port→Port Config page. For 100M module, please select 100MFD

while select 1000MFD for gigabit module. By default, the Speed and Duplex mode of

SFP port is 1000MFD. TL-SG2452 supports 1000M SFP module connection only.

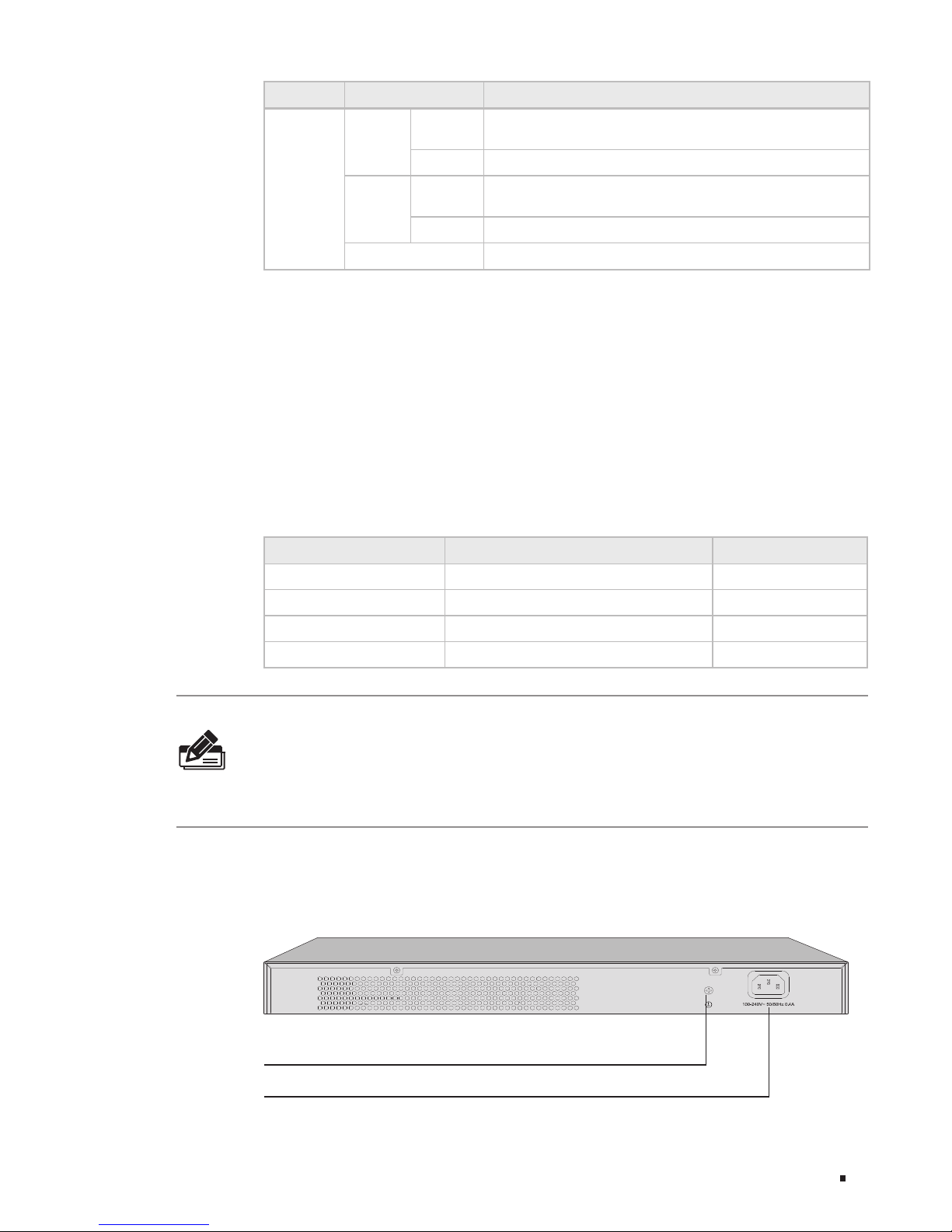

Rear Panel

The rear panel of TL-SG2216/TL-SG2424/TLSG2424P/TL-SG2452 is shown as the

following figure. Please note that the input current differs with models.

Grounding Terminal

Power Socket

Figure 1-5 Rear Panel

Introduction

Gigabit Smart Switch

Grounding Terminal

The switch already comes with lightning protection mechanism. You can also ground

the switch through the PE (Protecting Earth) cable of AC cord or with Ground Cable.

For detailed information, please refer to Chapter 3 Lightning Protection.

Power Socket

Connect the female connector of the power cord here, and the male connector to

the AC (Alternating Current) power outlet. Please make sure the voltage of the

power supply meets the requirement of the input voltage.

Caution: Please use the provided power cord.

Introduction

Autres manuels pour TL-SG2216

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels TP-Link Changer

TP-Link

TP-Link TL-SG108PE Manuel utilisateur

TP-Link

TP-Link TL-WPA8630P Manuel utilisateur

TP-Link

TP-Link TL-SX3008F Manuel utilisateur

TP-Link

TP-Link T2500-28TC Manuel utilisateur

TP-Link

TP-Link JetStream TL-SL3452 Manuel utilisateur

TP-Link

TP-Link JetStream TL-SG2008 Manuel utilisateur

TP-Link

TP-Link TL-SG2200 Manuel utilisateur

TP-Link

TP-Link JetStream TL-SG3452X Manuel utilisateur

TP-Link

TP-Link JetStream TL-SG2210P Manuel utilisateur

TP-Link

TP-Link JetStream T3700G-52TQ Manuel utilisateur

TP-Link

TP-Link TL-SG1008D - Switch Manuel utilisateur

TP-Link

TP-Link TL-SG3452XP Manuel utilisateur

TP-Link

TP-Link TL-SF1024M Manuel utilisateur

TP-Link

TP-Link TL-SG1016DE Manuel utilisateur

TP-Link

TP-Link TL-SG1005P Manuel utilisateur

TP-Link

TP-Link JetStream T1500-28PCT Manuel utilisateur

TP-Link

TP-Link TL-SG2452 Manuel utilisateur

TP-Link

TP-Link TL-SG1016PE Manuel utilisateur

TP-Link

TP-Link TL-SL1117 Manuel utilisateur

TP-Link

TP-Link TL-SL1218P Manuel utilisateur

TP-Link

TP-Link Omada SG3210X-M2 Manuel utilisateur

TP-Link

TP-Link T1700G-28TQ Manuel utilisateur

TP-Link

TP-Link JetStream T1600G-28TS Manuel utilisateur

TP-Link

TP-Link TL-SG3109 Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
