English

Installation

■

Desktop Installation

To install the device on the desktop, please follow the steps

below:

1. Set the device on a flat surface strong enough to support

the entire weight of the device with all fittings.

2. Remove the adhesive backing papers from the rubber

feet.

3. Turnover the device and attach the supplied rubber feet

to the recessed areas on the bottom at each corner of

the device.

Feet

Bottom of the Device

Notch

English

■

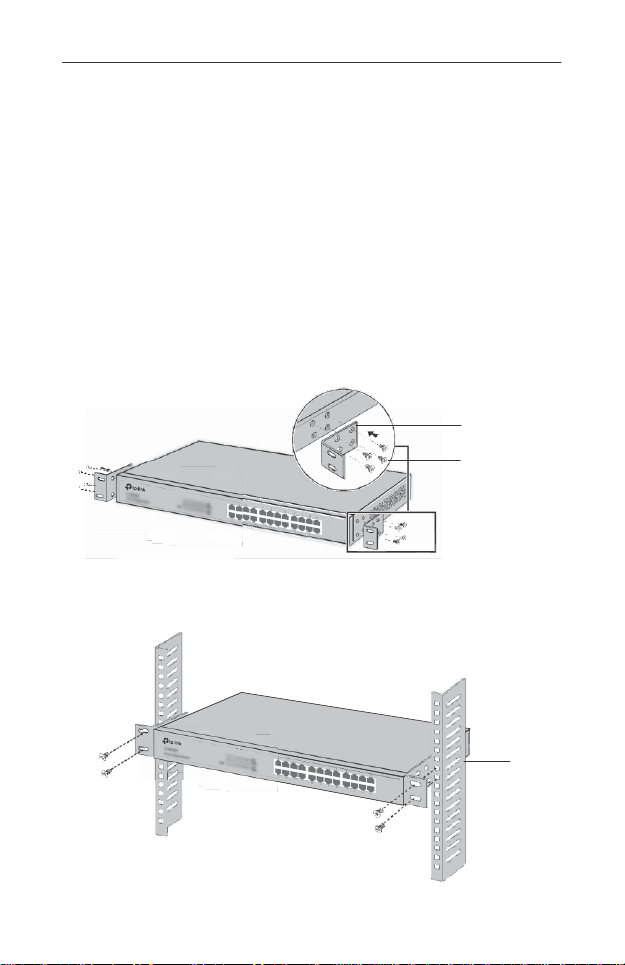

Rack Installation

To install the device in a rack, follow the instructions

described below:

1. Check the grounding and stability of the rack.

2. Secure the supplied rack-mounting brackets to each side

of the device with supplied screws.

Rackmounting

Bracket

Screw

3. After the brackets are attached to the device, use

suitable screws (not provided) to secure the brackets to

the rack.

Rack

English

Connection

■

Ethernet Port

Connect an Ethernet port of the switch to the computer by

RJ45 cable as the following figure shown.

RJ45 Cable

■

SFP Port

For switches with SFP ports, you can connect a SFP port

to a SFP module. If an SFP transceiver is installed in a slot

and has a valid link on the port, the associated RJ45 port

will be disabled and cannot be used.

SFP Port

SFP Module

English

■

Console Port

For switches with the console port, you can connect the

console port with your computer by the console cable. Then

you can load the CLI to manage the switch.

■

Power On

Plug the female connector of the provided power cord into

the power socket of the device, and the male connector into

a power outlet.

English

Configuration

■

Configure the Switch Using the GUI

1. Set the IP address of your PC in the same subnet of the

switch. The IP address is 192.168.0.x("x" is any number

from 2 to 254); the Subnet Mask is 255.255.255.0.

2. Open a web browser and type the default management

address http://192.168.0.1 in the address field of the

browser, then press the Enter key.

3. Enter admin for the default User Name and Password,

both in lower case letters. Then click the Login button or

press the Enter key.

4. After a successful login, you can configure the switch on

the management page.

■

Configure the Switch Using the CLI

(Only for Smart Switches and Managed Switches)

You can log on to the switch and access the CLI to manage

the switch. For the detailed instructions as to how to do this,

please refer to the CLI Guide.

■

Configure the Switch Using the Utility

(Only for Easy Smart Switches)

You can use the Easy Smart Configuration Utility to

centrally manage entire networks of the Easy Smart

English

Switches. For the detailed instructions as to how to do this,

please refer to the Utility User Guide.

Български

Инсталация

■

Настолен монтаж

Задаинсталиратеустройствотонабюро, моля,

следвайте стъпките, описани по-долу:

1. Поставетеустройствотонаплоска повърхност,

достатъчно здрава да издържи тежестта му заедно с

крепежните елементи.

2. Махнете лепенките от гумените крачета.

3. Обърнетеустр ойствотоизакрепетегумените

крачета към вдлъбнатите места надъното, във

всеки ъгъл на корпуса на устройството.

Крачета

Дъно на устройството

Вдлъбнатина

Български

■

Инсталация в шкаф / стелаж

За да инсталиратеустройствотовсъответнияшкаф

или стелаж, следвайте инструкциите, описани по-долу:

1. Проверете заземяването и стабилността на шкафа.

2. Завинтете доставените крепежни елементи / скоби

навсякастранаот устройството сдоставените

винтове.

Скоба за монтаж

в шкаф

Винтове

3. Следкатоскобите са закрепеникъм устройството,

използвайте подходящи винтове (не са доставени с

комплекта), за да завинтите скобите към шкафа.

Шкаф
