Installation Guide

10/100Mbps Unmanaged Switch

TL-SF1016DS/TL-SF1016

Enterprise Networking Solution

TL-SF1024D/TL-SF1024

TL-SF1048



Specifications are subject to change without notice. is a registered trademark

of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks of their

respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make

any derivative such as translation, transformation, or adaptation without permission from TP-LINK

http://www.tp-link.com



This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated in a commercial environment. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference in which case

the user will be required to correct the interference at his own expense.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions:

This device may not cause harmful interference.1)

This device must accept any interference received, including interference that may cause2)

undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could

void the user’s authority to operate the equipment.



This is a Class A product. In a domestic environment, this product may cause radio interference, in

which case the user may be required to take adequate measures.



This Installation Guide is also available in PDF on our website. To obtain the latest

documentation and prodcut information, please visit our official website:

http://www.tp-link.com



This Installation Guide describes the hardware characteristics, installation methods

and the points that should be attended to during installation. This Installation

Guide is structured as follows:

Chapter 1 Introduction. This chapter describes the external components of

the switch.

Chapter 2 Installation. This chapter illustrates how to install the switch.

Chapter 3 Lightning Protection. This chapter illustrates how to prevent

lightning damage.

Chapter 4 Connection. This chapter illustrates how to do the physical connec-

tion of the switch.

Appendix A Troubleshooting.

Appendix B Hardware Specifications.

Appendix C Technical Support.



This Installation Guide is for:

Network Engineer Network Administrator



Due to the similarity in structure of TL-SF1016DS/TL-SF1016/TL-SF1024D/

TL-SF1024/TL-SF1048 10/100Mbps Unmanaged Switch series, in this Installation

Guide we take TL-SF1016 as an example to illustrate Chapter 2 Installation,

Chapter 3 Lighting Protection and Chapter 4 Connection.

This Guide uses the specific formats to highlight special messages. The following

table lists the notice icons that are used throughout this guide.

Remind to be careful. A caution indicates a potential which may result in

device damage.

Remind to take notice. The note contains the helpful information for a

better use of the product.

Related Document

III



Contents

Chapter 1 Introduction ——————————— 01

1.1 Product Overview...................................................................01

1.2 Features......................................................................................01

1.3 Appearance...............................................................................01

Chapter 2 Installation ———————————— 04

2.1 Package Contents ...................................................................04

2.2 Safety Precautions ..................................................................04

2.3 Installation Tools......................................................................06

2.4 Product Installation................................................................07

Chapter 3 Lightning Protection ———————— 09

3.1 Cabling Reasonably................................................................09

3.2 Connect to Ground.................................................................11

3.3 Equipotential Bonding..........................................................12

3.4 Use Lightning Arrester..........................................................13

Chapter 4 Connection ——————————— 15

4.1 Ethernet Port ............................................................................15

4.2 Verify Installation ....................................................................15

4.3 Power On....................................................................................15

4.4 Initialization ..............................................................................16

Appendix A Troubleshooting ————————— 16

Appendix B Hardware Specications —————— 17

Appendix C Technical Support ————————— 18

10/100Mbps Fast Ethernet Switch





TL-SF1016/TL-SF1016DS/TL-SF1024/TL-SF1024D/TL-SF1048 switch provides 16/24/48

10/100Mbps Auto-Negotiation RJ45 ports. Each port of the TL-SF1016/TL-SF1016DS/

TL-SF1024/TL-SF1024D/TL-SF1048 supports auto MDI/MDI-X function, eliminating the

need for crossover cables or Uplink ports. The switch is Plug-and-Play and any port can be

simply plugged into a server, a hub or a switch, using straight cable or crossover cable.

The TL-SF1016/TL-SF1016DS/TL-SF1024/TL-SF1024D/TL-SF1048 16/24/48-port

10/100Mbps Fast Ethernet Switch provides you with a low-cost, easy-to-use, high-

performance, seamless and standard upgrade to improve your old network to a

100Mbps network. It will boost your network performance up to full duplex data

transfer.



Complies with IEEE802.3, IEEE802.3u standards

16/24/48 10/100Mbps Auto-Negotiation RJ45 ports supporting Auto- MDI/MDIX

Supports IEEE802.3X flow control for full-duplex mode and backpressure for half-

duplex mode

LED indicators for monitoring power, link, activity, speed

Rack-mountable steel case

Internal power supply



Front Panel



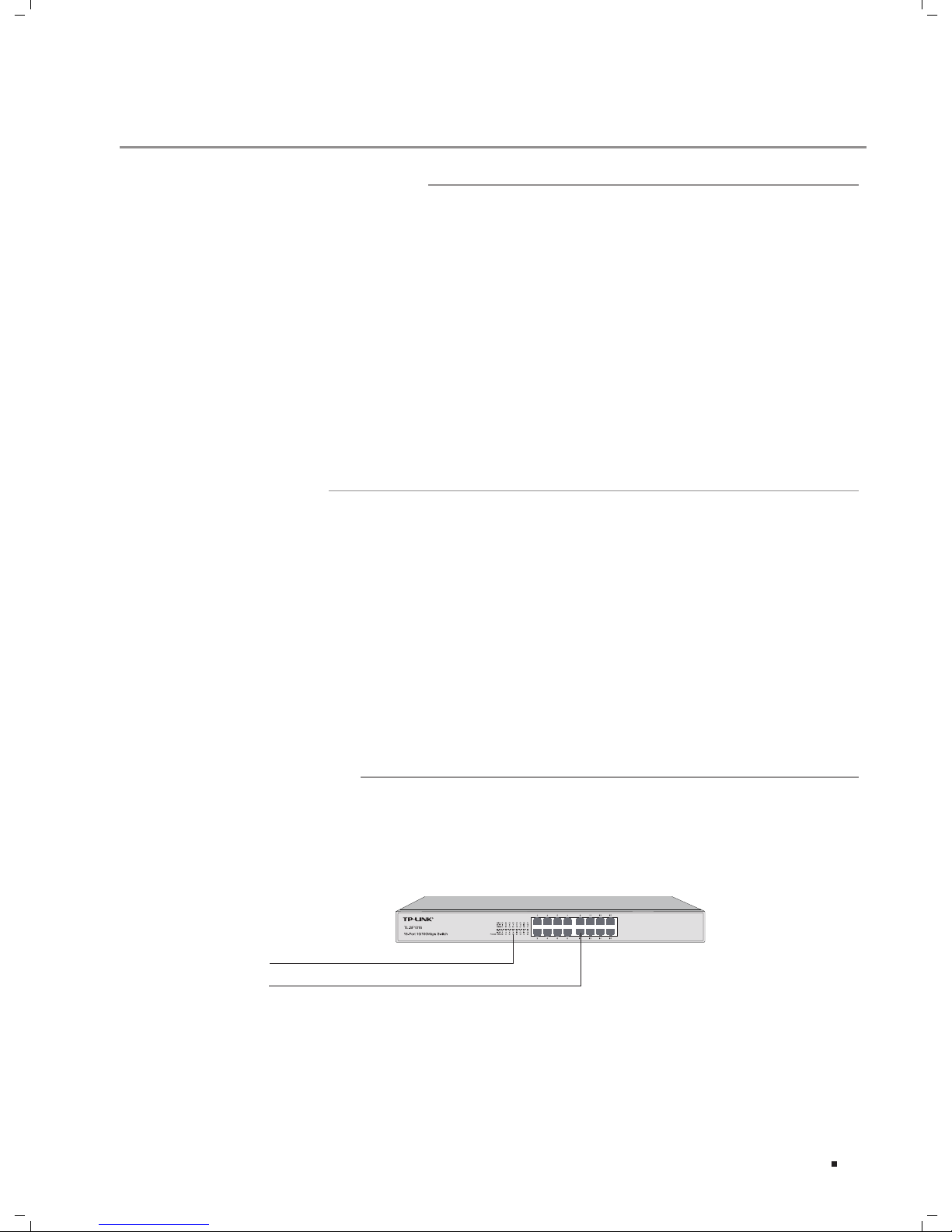

The front panel of The TL-SF1016 is shown as the following figure.

LEDs

10/100Mbps RJ45 Port

Front Panel of TL-SF1016Figure 1-1

The front panel of The TL-SF1016DS is shown as the following figure.

Introduction

10/100Mbps Fast Ethernet Switch

LEDs

10/100Mbps RJ45 Port

Front Panel of TL-SF1016DSFigure 1-2

The front panel of The TL-SF1024 is shown as the following figure.

LEDs

10/100Mbps RJ45 Port

Front Panel of TL-SF1024Figure 1-3

The front panel of The TL-SF1024D is shown as the following figure.

LEDs

10/100Mbps RJ45 Port

Front Panel of TL-SF1024DFigure 1-4

The front panel of The TL-SF1048 is shown as the following figure.

LEDs

10/100Mbps RJ45 Port

Front Panel of TL-SF1048Figure 1-5

LEDs

LED Status Indication

Power

On The switch is powered on

Off The switch is powered off or power supply is abnormal

Flashing Power supply is abnormal

Link/Act

On A device is linked to the corresponding port

Flashing Data is being transmitted or received

Off There is no device linked to the corresponding port

100Mbps

On The corresponding port is running at 100Mbps

Off There is no device linked to the corresponding port or

the port is running at 10Mbps

Note: Because of the difference among the switch models, some switches don’t have

the 100Mbps indicator, such as TL-SF1048, TL-SF1016DS and TL-SF1024D switch.

Introduction

10/100Mbps Fast Ethernet Switch

10/100Mbps Port

Designed to connect to the device with a bandwidth of 10Mbps or 100Mbps. Each

has a corresponding 10/100Mbps LED.

Rear Panel



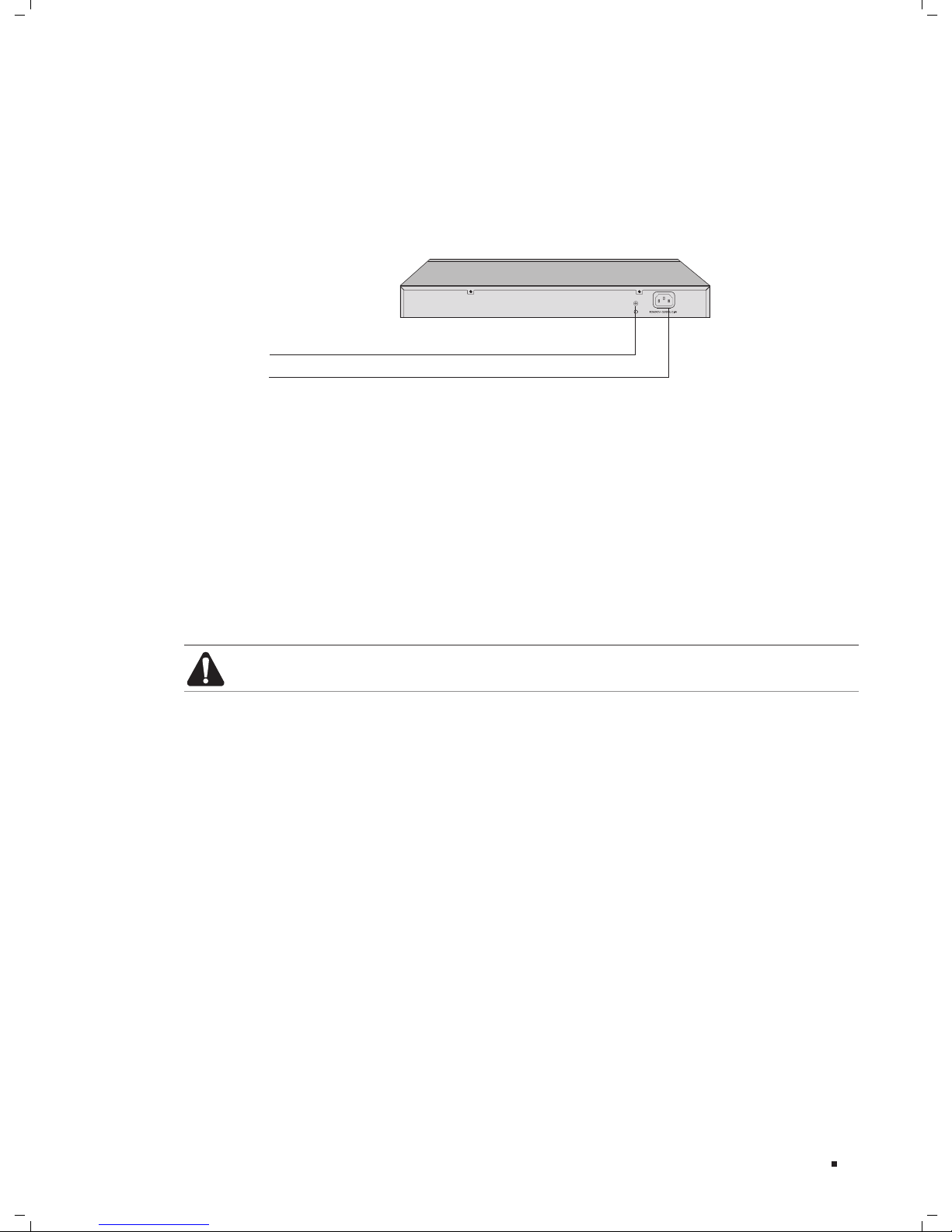

The rear panel of the switch is shown as the following figure.

Grounding Terminal

Power Socket

Rear PanelFigure 1-6

Grounding Terminal

The switch already comes with lightning protection mechanism. You can also ground

the switch through the PE (Protecting Earth) cable of AC cord or with Ground Cable.

For detailed information, please refer to Chapter 3 Lightning Protection.

Power Socket

Connect the female connector of the power cord here, and the male connector to

the AC power outlet. Please make sure the voltage of the power supply meets the

requirement of the input voltage.

Caution: Please use the provided power cord.

Introduction

10/100Mbps Fast Ethernet Switch





Make sure that the package contains the following items. If any of the listed items is

damaged or missing, please contact your distributor.

One Switch One Power Cord This Installation Guide



To avoid any device damage and bodily injury caused by improper use, please observe

the following rules.

Safety Precautions



Keep the power off during the installation.



Wear an ESD-preventive wrist strap, and make sure that the wrist strap has a good



skin contact and is well grounded.

Use only the power cord provided with the device.



Make sure that the supply voltage matches the specifications indicated on the rear



panel of the device.

Ensure the vent hole is well ventilated and unblocked.



Do not open or remove the cover of the device.



Before cleaning the device, cut off the power supply. Do not clean it by the waterish



cloth, and never use any other liquid cleaning method.

Introduction

Two mounting brackets and the

ttings

10/100Mbps Fast Ethernet Switch

Site Requirements



Temperature/Humidity

ȭ

ȭ

Please keep a proper temperature and humidity in the equipment room. Too high/low

humidity may lead to bad insulation, electricity leakage, mechanical property changes

and corrosions. Too high temperature may accelerate aging of the insulation materials

and can thus significantly shorten the service life of the device. For normal temperature

and humidity of the device, please check the following table.

Environment Temperature Humidity

Operating 0℃~ 40℃10% ~ 90%RH Non-condensing

Storage -40℃~ 70℃5% ~ 90%RH Non-condensing

Clearness

The dust accumulated on the device can be absorbed by static electricity and result

in poor contact of metal contact points. Some measures have been taken for the

device to prevent static electricity, but too strong static electricity can cause deadly

damage to the electronic elements on the internal circuit board. To avoid the effect of

static electricity on the operation of the device, please attach much importance to the

following items:

Dust the device regularly, and keep the indoor air clean.



Keep the device well grounded and ensure static electricity has been transferred.



Electromagnetic Interference

Electronic elements including capacitance and inductance on the device can be affected

by external interferences, such as conducted emission by capacitance coupling,

inductance coupling, and impedance coupling. To decrease the interferences, please

make sure to take the following measures:

Use the power supply that can effectively filter interference from the power grid.



Keep the device far from high-frequency, strong-current devices, such as radio



transmitting station.

Use electromagnetic shielding when necessary.



Installation

10/100Mbps Fast Ethernet Switch

Lightening Protection

Extremely high voltage currents can be produced instantly when lightning occurs and the air

in the electric discharge path can be instantly heated up to 20,000℃. As this instant current

is strong enough to damage electronic devices, more effective lightning protection measures

should be taken.

Ensure the rack and device are well earthed.



Make sure the power socket has a good contact with the ground.



Keep a reasonable cabling system and avoid induced lightning.



Use the signal SPD (Surge Protective Device) when wiring outdoor.



Note: For detailed lightning protection measures, please refer to Chapter 3

Lightning Protection.

Installation Site

S

When installing the device on a rack or a flat workbench, please note the following

items:

The rack or workbench is flat and stable, and sturdy enough to support the weight



of 5.5kg at least.

The rack or workbench has a good ventilation system. The equipment room is well



ventilated.

The rack is well grounded. Keep the power socket less than 1.5 meters away from



the device.



Phillips screwdriver



ESD-preventive wrist wrap



Cables



Installation

Autres manuels pour TL-SF1016DS

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels TP-Link Changer

TP-Link

TP-Link T2600G Series Manuel utilisateur

TP-Link

TP-Link JetStream TL-SL5428E Manuel utilisateur

TP-Link

TP-Link Easy Smart Switch Manuel utilisateur

TP-Link

TP-Link HS200 Manuel utilisateur

TP-Link

TP-Link TL-SF1005D Manuel utilisateur

TP-Link

TP-Link TL-SG1024 Manuel utilisateur

TP-Link

TP-Link TL-SG3210 Manuel utilisateur

TP-Link

TP-Link TL-SF1016D Manuel d'instructions d'installation

TP-Link

TP-Link TL-SL2428 Manuel utilisateur

TP-Link

TP-Link tapo S505D Manuel utilisateur

TP-Link

TP-Link JetStream T3700G-52TQ Manuel utilisateur

TP-Link

TP-Link TL-SF1005LP Manuel utilisateur

TP-Link

TP-Link TL-SG1024DE Manuel utilisateur

TP-Link

TP-Link JetStream L2 Lite TL-SG3210 Mode d’emploi

TP-Link

TP-Link TL-SF1008D - 10/100M FAST ETHERNET SWITCH Manuel utilisateur

TP-Link

TP-Link TL-SL5428E Manuel utilisateur

TP-Link

TP-Link TL-SL2218 Manuel utilisateur

TP-Link

TP-Link TL-SG108 Manuel utilisateur

TP-Link

TP-Link TL-SG108PE Manuel utilisateur

TP-Link

TP-Link TL-SG1048 Manuel utilisateur

TP-Link

TP-Link TL-SG1008P Manuel utilisateur

TP-Link

TP-Link JetStream TL-SG5412F Mode d’emploi

TP-Link

TP-Link TL-SG1008PE Manuel utilisateur

TP-Link

TP-Link Tapo S210 Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
