User Guide
Smart Wi-Fi Light Switch
Tapo S500
©2023 TP-Link 1910013327 REV1.0.0
1
About This Guide
This guide provides a brief introduction to the Smart Wi-Fi Light Switch and the Tapo app, as well as regulatory information.
Please note that features available in Tapo may vary by model and software version. Tapo availability may also vary by region. All images, steps, and
descriptions in this guide are only examples and may not reect your actual Tapo experience.
Conventions
In this guide, the following convention is used:
Convention Description
Blue Key information appears in blue, including management page text such as menus, items, buttons and so on.
Underline Hyperlinks are in blue and underlined. You can click to redirect to a website.
Note: Ignoring this type of note might result in a malfunction or damage to the device.
More Info
• Specications can be found on the product page at https://www.tapo.com.
• Our Technical Support and troubleshooting information can be found at https://www.tapo.com/support/.
2
Introduction
Make your traditional lighting smart with the Tapo Smart Wi-Fi Light Switch. Turn your lights on and o with your voice, or control them from your phone.
Smarter with Sensor
• Voice Control – Manage your smart switch with simple voice commands via Amazon Alexa, Google Assistant, or Samsung Bixby.
• Remote Control – Instantly turn connected devices on/o from wherever you are through the Tapo app.
• Schedule – Preset a schedule to automatically manage devices.
• Auto-O – Automatically turns o a connected device after the device is left on for a set time.
• Away Mode – Randomly turns devices on and o at dierent times to give the appearance that someone is home.
• Easy Installation – Interchangeable Load and Line terminals guarantee hassle-free installation
• Smarter with Sensors – Create Smart Actions triggered by Tapo smart sensors for greater automation.
3
Appearance
On/O
Button
Restart
LED
Reset
Button Explanations
Restart
Reset
Press and hold for about 5s to reset
Wi-Fi while keeping other settings.
Press to restart your switch.
Press and hold for about 10s to restore
your switch to factory default settings.
LED Status
Starting up; disconnected
from cloud.
Solid amber
Blinking amber
Blinking green
White
Solid red
Stay green for 30s
Blinking amber & green
Connecting to Wi-Fi.
Ready for setup.
Device resetting.
Light fixture is off.
Disconnected from Wi-Fi.
Connected to Wi-Fi.
Blinking green slowly Firmware upgrading.
4
Wire Your Switch
Follow the steps below to wire your Smart Wi-Fi Light Switch. If you are not familiar with basic electronical wiring, please consult an electrician.
Before You Start
1. Prepare Baisc knowledge of Wiring
• Ground: Usually green or copper.
• Neutral: Usually white, not connected to the dumb switch.
• Line: Usually black and coming from the circuit breaker.
• Load: Usually black. One end is connected to the light.
Note: If you are unsure, consult a qualied electrician.
2. Prepare Your Tools
Prepare a philips and slotted screwdriver, pliers, wire strippers and a voltage detector.
3. Check Wi-Fi Strength
Make sure your switch is in a area with strong Wi-Fi signal.
5
Step 1. Turn O Power and Remove the Wallplate
Turn o the circuit breaker. Then remove the old wallplate of the wall
switch and label the wires.
Step 3. Label and Connect the Wires
Label the wires. Use the wire nuts to connect your smart switch to the
wall box as shown below.
Wire Your Switch
Step 2. Expose Your Switch Wiring
Remove the screws securing your old switch to the wall box. Gently
pull the switch out and disconnect wires from the old switch.
Note: No need to distinguish between Line and Load wires.
MISE EN GARDE
Risque d'électrocution - Haute tension. Débrancher l'alimentation électrique avant d'utiliser.
CAUTION
Risk of Electric Shocks - High Voltage - Disconnect power supply before servicing.
6
Step 4. Install Smart Light Switch
Gently fold all of the wires back into the wall box. Line up the switch
with the mounting holes. Secure it with screws.

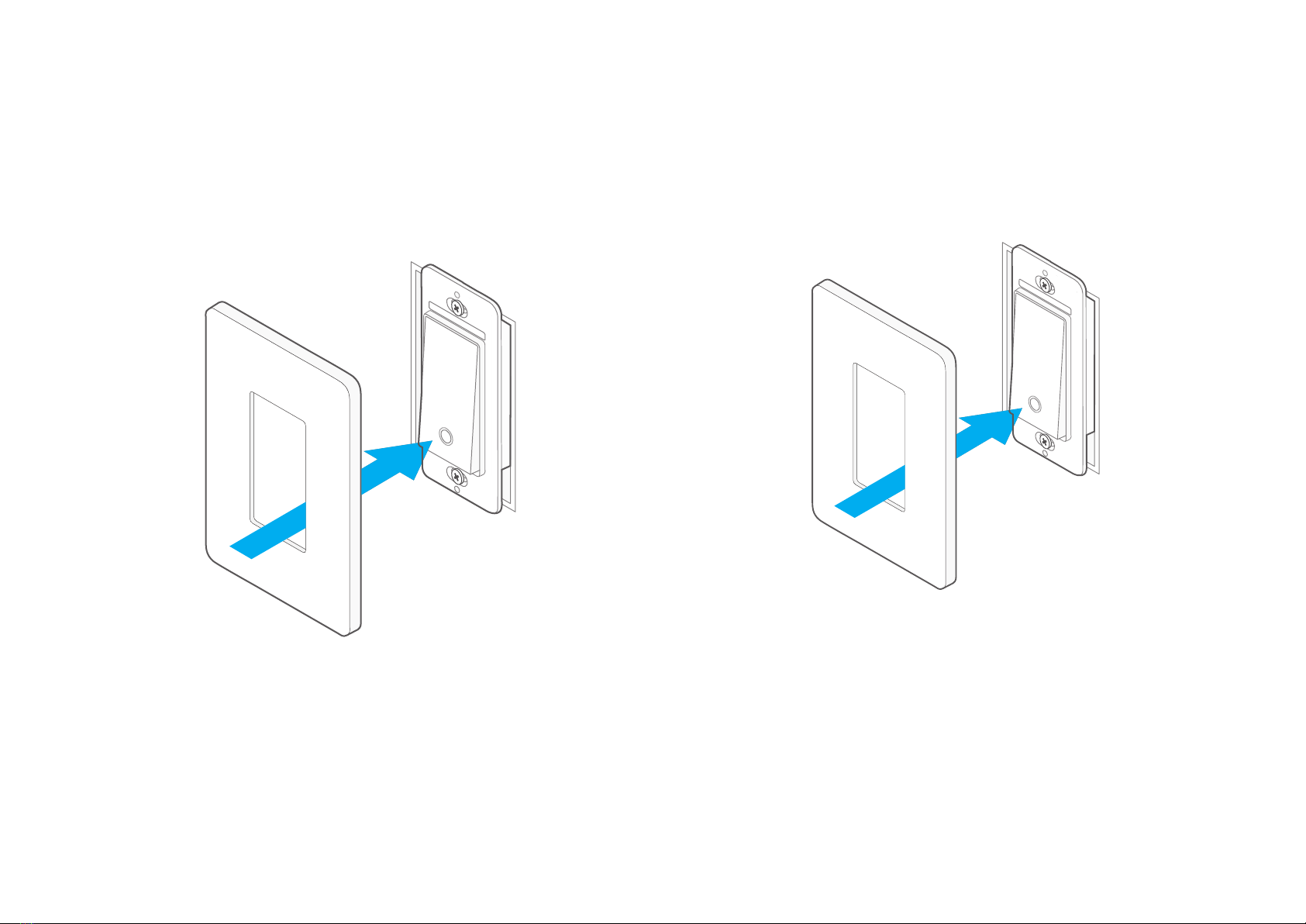

Step 5. Attach the Wallplate and Turn on Power
Attach the wallplate and turn on the circuit breaker. Then the wiring is
nished.
7
Set Up Your Switch
Follow the steps below to set up your switch.
Step 1. Download Tapo App
Get the Tapo app from the App Store or
Google Play, or by scanning the QR code
below.
OR
Step 2. Log In
Open the app, and log in with your TP-Link ID.
If you don't have an account, create one rst.
Step 3. Add Your Switch
Tap the button in the app and select your
switch. Then follow app instructions to set up
your switch.
8
Home Page
This page lists all your devices you've added and you can view them
directly and manage them easily. Tap your switch to enter the Status
page.
Main Device Controls
After setting up your device successful, you will see your switch listed on the home page. You can manage it from anywhere at any time with the Tapo
app.
Status Page
You can turn on or o your device in this page. You can also congure
advanced features like Schedule, Away Mode, Timer to control your device
according to your daily rountine.
9
Switch Settings
On Status page, tap to enter the Device Settings page. You can
change your device name and icon, set Delayed Shut O, etc.
