TP-Link JetStream L2+ Manuel utilisateur

Business Networking Solution

Installation Guide

JetStream L2/L2+ Managed Switch

About this Installation Guide

This Installation Guide describes the hardware characteristics, installation methods and the

points that should be attended to during the installation. This Installation Guide is structured as

follows:

Chapter 1 Introduction

This chapter describes the external components of the switch.

Chapter 2 Installation

This chapter illustrates how to install the switch.

Chapter 3 Connection

This chapter illustrates how to do the physical connection of the switch.

Chapter 4 Configuration

This chapter illustrates how to configure the switch.

Appendix A Troubleshooting

Appendix B Hardware Specifications

Audience

This Installation Guide is for:

Network Engineer Network Administrator

Conventions

• Some models featured in this guide may be unavailable in your country or region. For local sales

information, visit https://www.tp-link.com.

• The figures in Chapter 2, Chapter 3, and Chapter 4 are for demonstration purposes only. Your

switch may differ in appearance from that depicted.

• PoE budget calculations are based on laboratory testing. Actual PoE power budget is not

guaranteed and will vary as a result of client limitations and environmental factors.

• This guide uses the specific formats to highlight special messages. The following table lists the

notice icons that are used throughout this guide.

Remind to be careful. A caution indicates a potential which may result in device damage.

Remind to take notice. The note contains the helpful information for a better use of the

product.

Related Document

The User Guide and CLI Reference Guide of the product are provided on Download Center. To

obtain the latest product information, visit the official website: https://www.tp-link.com.

Contents

Chapter 1 Introduction ——————————— 01

1.1 Product Overview ...........................................................01

1.2 Appearance.......................................................................01

Chapter 2 Installation ——————————— 09

2.1 Package Contents ..........................................................09

2.2 Safety Precautions .........................................................09

2.3 Installation Tools..............................................................11

2.4 Product Installation ........................................................11

Chapter 3 Connection ——————————— 13

3.1 Ethernet Port ....................................................................13

3.2 SFP/SFP+ Slot ..................................................................13

3.3 Console Port.....................................................................13

3.4 Verify Installation.............................................................14

3.5 Power On............................................................................15

3.6 Initialization........................................................................15

Chapter 4 Conguration —————————— 16

4.1 Conguration Overview................................................16

4.2 Standalone Mode............................................................16

4.3 Controller Mode...............................................................17

Appendix A Troubleshooting ———————— 20

Appendix B Specications ————————— 21

JetStream L2/L2+ Managed Switch

01Introduction

Chapter 1 Introduction

1.1 Product Overview

Designed for workgroups and departments, TP-Link JetStream L2/L2+ Managed Switch provides

wire-speed performance and abundant L2 management features. It provides a variety of service

features and multiple powerful functions with high security.

The EIA-standardized framework and smart configuration capacity can provide flexible solutions

for a variable scale of networks. ACL, 802.1x and Dynamic ARP Inspection provide robust security

strategies. QoS and IGMP snooping/filtering optimize voice and video application. Link aggregation

(LACP) increases aggregated bandwidth, optimizing the transport of business critical data. SNMP,

RMON, WEB and CLI Log-in bring abundant management policies. TP-Link JetStream L2/L2+

Managed Switch integrates multiple functions with excellent performance, and is friendly to manage,

which can fully meet the need of the users demanding higher networking performance.

TL-SG3210XHP-M2/TL-SG3428MP V2.0/TL-SG3428XMP/TL-SG3452P is also a Power Sourcing

Equipment (PSE*). All the RJ45 ports on the switch support Power over Ethernet (PoE*) function,

which can automatically detect and supply power to those powered devices (PDs*) complying with

IEEE 802.3af and IEEE 802.3at.

*PSE: a device (switch or hub for instance) that provides power through an Ethernet cable.

*PoE: This technology describes a system to transmit electrical power, along with data, to remote

devices over standard twisted-pair cable in an Ethernet.

*PD: a device powered by a PSE and thus consumes energy. Examples include powering network

cameras, wireless LAN access points, IP telephones, network hubs, embedded computers etc.

1.2 Appearance

■Front Panel

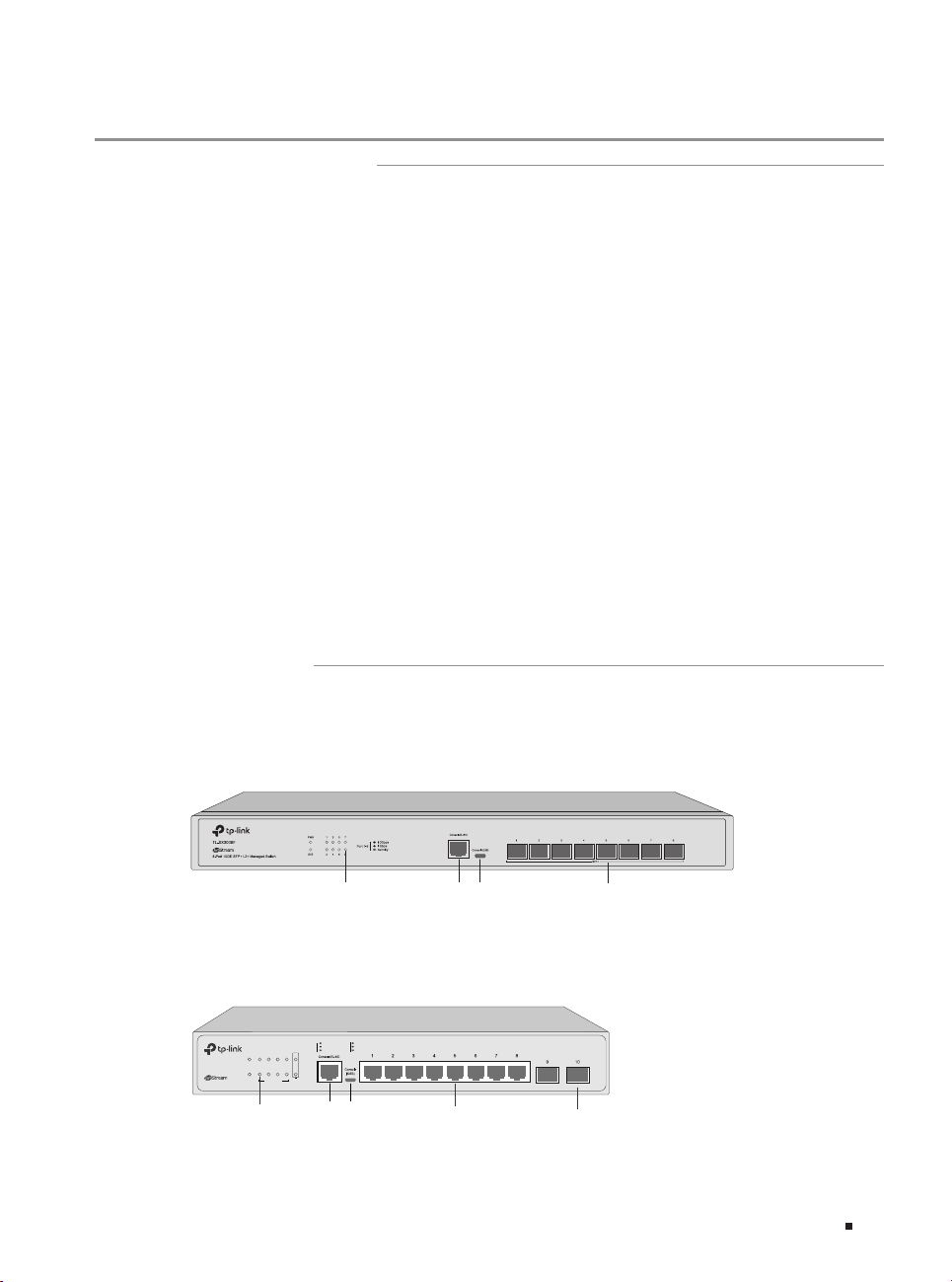

The front panel of TL-SX30 0 8 F is shown as the following figure.

Figure 1-1 Front Panel of TL-SX3008F

LED Console Port

(RJ45/USB)

SFP+ Slot

The front panel of TL-SG3210 is shown as the following figure.

Figure 1-2 Front Panel of TL-SG3210

1000Mbps

10/100Mbps

Activity

10/100/1000M

1000Mbps

100Mbps

Activity

SFP

PWR

SYS

10/100/1000M

TL-SG3210

L2+ Managed Switch

SFP

Console Port

(RJ45/USB)

LED 1G RJ45 Port SFP Slot

JetStream L2/L2+ Managed Switch

02 Introduction

The front panel of TL-SG3210XHP-M2 is shown as the following figure.

Figure 1-3 Front Panel of TL-SG3210XHP-M2

LED Console Port

(RJ45/USB)

2.5G

RJ45 Port

SFP+ Slot

The front panel of TL-SG3428 V2.0 is shown as the following figure.

Figure 1-4 Front Panel of TL-SG3428 V2.0

LED Console Port

(USB/RJ45)

RJ45 Port

SFP Slot

24-Port Gigabit L2+ Managed Switch

with 4 SFP Slots

The front panel of TL-SG3428MP V2.0 is shown as the following figure.

Figure 1-5 Front Panel of TL-SG3428MP V2.0

LED Console Port

(RJ45/USB)

RJ45 Port

SFP Slot

The front panel of TL-SG3428X is shown as the following figure.

Figure 1-6 Front Panel of TL-SG3428X

LED Console Port

(USB/RJ45)

RJ45 Port

SFP+ Slot

24-Port Gigabit L2+ Managed Switch

with 4 10GE SFP+ Slots

JetStream L2/L2+ Managed Switch

03Introduction

The front panel of TL-SG3428XMP is shown as the following figure.

Figure 1-7 Front Panel of TL-SG3428XMP

LED Console Port

(RJ45/USB)

RJ45 Port

SFP+ Slot

The front panel of TL-SG3452 is shown as the following figure.

Figure 1-8 Front Panel of TL-SG3452

LED

1G RJ45 Port

SFP Slot

Console Port

(USB/RJ45)

The front panel of TL-SG3452P is shown as the following figure.

Figure 1-9 Front Panel of TL-SG3452P

LED

1G RJ45 Port

SFP Slot

Console Port

(RJ45/USB)

Speed

PWR

SYS

PoEMax

FAN

PoE

Console(USB)Console(RJ45)

TL-SG3452P

ManagedPoE+ Switch

PoE

DeliveringPower OverBudget Fault

Speed

activity1000Mbps 10/100Mbps

JetStream L2/L2+ Managed Switch

04 Introduction

LEDs

For TL-SX3008F

LED Indication

PWR

On: The switch is powered on.

Off: The switch is powered off or power supply is abnormal.

Flashing: Power supply is abnormal.

SYS Flashing: The switch works properly.

On or Off: The switch works improperly.

Port 1–8

Green On: Running at 10 Gbps, but no activity.

Green Flashing: Running at 10 Gbps and transmitting or receiving data.

Yellow On: Running at 1 Gbps, but no activity.

Yellow Flashing: Running at 1 Gbps and transmitting or receiving data.

Off: No device is linked to the corresponding port.

For TL-SG3210XHP-M2

LED Indication

PWR

On: The switch is powered on.

Off: The switch is powered off or power supply is abnormal.

Flashing: Power supply is abnormal.

SYS Flashing: The switch works properly.

On or Off: The switch works improperly.

PoE Max

On: The remaining PoE power is ≤ 7 W.

Flashing: The remaining PoE power keeps ≤ 7 W after this LED is on for 2 minutes.

Off: The remaining PoE power is > 7 W.

FAN Green: All the fans work properly.

Yellow: Not all the fans work properly.

Speed

Green On: Running at 2.5 Gbps, but no activity.

Green Flashing: Running at 2.5 Gbps and transmitting or receiving data.

Yellow On: Running at 100/1000 Mbps, but no activity.

Yellow Flashing: Running at 100/1000 Mbps and transmitting or receiving data.

Off: No device is linked to the corresponding port.

PoE

Green On: The port is supplying power normally.

Green Flashing: The supply power exceeds the correponding port's maximum power.

Yellow On: Overload or short circuit is detected.

Yellow Flashing: Power-on self-test failed.

Off: Not providing PoE power on the port.

JetStream L2/L2+ Managed Switch

05Introduction

LED Indication

Port 9–10

Green On: Running at 10 Gbps, but no activity.

Green Flashing: Running at 10 Gbps and transmitting or receiving data.

Yellow On: Running at 1 Gbps, but no activity.

Yellow Flashing: Running at 1 Gbps and transmitting or receiving data.

Off: No device is linked to the corresponding port.

For TL-SG3210 and TL-SG3452

LED Indication

PWR

On: The switch is powered on.

Off: The switch is powered off or power supply is abnormal.

Flashing: Power supply is abnormal.

SYS Flashing: The switch works properly.

On or Off: The switch works improperly.

10/100/1000M

Green On: Running at 1000 Mbps, but no activity.

Green Flashing: Running at 1000 Mbps and transmitting or receiving data.

Yellow On: Running at 10/100 Mbps, but no activity.

Yellow Flashing: Running at 10/100 Mbps and transmitting or receiving data.

Off: No device is linked to the corresponding port.

Port 49–52/

SFP

Green On: Running at 1000 Mbps, but no activity.

Green Flashing: Running at 1000 Mbps and transmitting or receiving data.

Yellow On: Running at 100 Mbps, but no activity.

Yellow Flashing: Running at 100 Mbps and transmitting or receiving data.

Off: No device is linked to the corresponding port.

Note: Port 49–52 for TL-SG3452, SFP for TL-SG3210.

For TL-SG3428 V2.0

LED Indication

PWR

On: The switch is powered on.

Off: The switch is powered off or power supply is abnormal.

Flashing: Power supply is abnormal.

SYS Flashing: The switch works properly.

On or Off: The switch works improperly.

Link/Act

On: A device is linked to the port but no activity.

Off: No device is linked to the corresponding port.

Flashing: Transmitting or receiving data.

1000Mbps On: Running at 1000 Mbps.

Off: Running at 10/100 Mbps or no device is linked to the port.

JetStream L2/L2+ Managed Switch

06 Introduction

LED Indication

Port 25–28

On: Running at 1 Gbps, but no activity.

Flashing: Running at 1 Gbps and transmitting or receiving data.

Off: No device is linked to the corresponding port.

For TL-SG3428X

LED Indication

PWR

On: The switch is powered on.

Off: The switch is powered off or power supply is abnormal.

Flashing: Power supply is abnormal.

SYS Flashing: The switch works properly.

On or Off: The switch works improperly.

Link/Act

On: A device is linked to the port but no activity.

Off: No device is linked to the corresponding port.

Flashing: Transmitting or receiving data.

1000Mbps On: Running at 1000 Mbps.

Off: Running at 10/100 Mbps or no device is linked to the port.

Port 25–28

Green On: Running at 10 Gbps, but no activity.

Green Flashing: Running at 10 Gbps and transmitting or receiving data.

Yellow On: Running at 1 Gbps, but no activity.

Yellow Flashing: Running at 1 Gbps and transmitting or receiving data.

Off: No device is linked to the corresponding port.

For TL-SG3428MP V2.0, TL-SG3428XMP and TL-SG3452P

LED Indication

PWR

On: The switch is powered on.

Off: The switch is powered off or power supply is abnormal.

Flashing: Power supply is abnormal.

SYS Flashing: The switch works properly.

On or Off: The switch works improperly.

PoE Max

On: The remaining PoE power is ≤ 7 W.

Flashing: The remaining PoE power keeps ≤ 7 W after this LED is on for 2 minutes.

Off: The remaining PoE power is > 7 W.

FAN Green: All the fans work properly.

Yellow: Not all the fans work properly.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels TP-Link Changer

TP-Link

TP-Link T3700G-28TQ Manuel utilisateur

TP-Link

TP-Link TL-POE150S Manuel utilisateur

TP-Link

TP-Link TL-WPA8630P Manuel utilisateur

TP-Link

TP-Link Omada SG3210X-M2 Manuel utilisateur

TP-Link

TP-Link TL-SG1008PE Manuel utilisateur

TP-Link

TP-Link JetStream T1600G-52TS Manuel utilisateur

TP-Link

TP-Link TL-SG2452 Manuel utilisateur

TP-Link

TP-Link TL-SF1008P Manuel utilisateur

TP-Link

TP-Link HS210 KIT Manuel utilisateur

TP-Link

TP-Link KS205 Manuel utilisateur

TP-Link

TP-Link JetStream T1500G-8T Manuel utilisateur

TP-Link

TP-Link TL-SG3428XPP-M2 Manuel utilisateur

TP-Link

TP-Link TL-SF1008P Manuel d'instructions d'installation

TP-Link

TP-Link JetStream T2600G-18TS Manuel utilisateur

TP-Link

TP-Link TL-SL5428 Manuel utilisateur

TP-Link

TP-Link JetStream TL-SG3216 Manuel utilisateur

TP-Link

TP-Link TL-SG1008 Manuel utilisateur

TP-Link

TP-Link Tapo S200D Manuel utilisateur

TP-Link

TP-Link TL-SG105 Manuel utilisateur

TP-Link

TP-Link T3700G-28TQ Manuel utilisateur

TP-Link

TP-Link JetStream T3700G-52TQ Manuel utilisateur

TP-Link

TP-Link TL-SF1005D Manuel utilisateur

TP-Link

TP-Link JetStream TL-SL3428 Manuel utilisateur

TP-Link

TP-Link HS100 Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
