QRS Music Wifi Adapters Guide

Table of Contents

Page 2 ……………………….. TP-Link TL-WR702N

Page 6 ……………………….. EnGenuis ETR9330

Page 8 ……………………….. ASUS WL330N3G

Page 10……………………….. ASUS WL330GE

Page 12……………………….. TrendNet TEW-654TR

1

How to congure the TP-Link TL-WR702N from “Stand Alone” Mode to “Network Mode” Page 2

How to Congure the TP-Link TL-WR702N from Network to “Stand Alone” Mode Page 3

How to Congure the TP-Link TL-WR702N to Stand Alone Mode after a TP-Link Reset Page 4

Please update PMII to the latest Driver version before switching modes.

Connect to PMII and click on the QRSPWR icon at upper right of display to see the current version..

Download the current Driver from the QRS website.

http://qrsmusic.com/support_pmii.asp

Copy update to a USB memory drive and plug drive into USB port on piano.

TP-Link TL-WR702N - Congurations for QRS PNOmation II

The TP-Link AND the PM II unit must be programmed to switch modes.

Stand Alone

ThereisnoconnecontotheInternet.TheuserwirelesslyconnectstotheTP‐Link(SSID=QRSPNO)andPMII

deliverscontrolonGoogleChrome,orSafari,attheIPAddressof192.168.1.1.PMIIandtheusersWi‐Fidevice

communicateonlywitheachother.

#3 Light = Green

Network

TheTP‐Linkisprogrammedtoconnecttotheusershomenetwork.PMIIisprogrammedtogetanIPAddress

fromthelocalrouter.TheadvantageisthattheWi‐FicontroldevicecanbeconnectedtotheInternetandsll

controlPMII.

TheTP‐LinkwillNOTconnecttoa5GHzhomerouter.

#3 Light = Yellow

Set a Static IP on your device

A Go to Settings then Wi-Fi

B Connect to the “QRSPNO”

C Touch the blue circle to the right of “QRSPNO”.

D Select “Static”

E-G Enter the following:

IP address: 192.168.0.5

Subnet mask: 255.255.255.0

Router: 192.168.0.254

DNS: 192.168.0.254

H Repeat above and at “E” select “DHCP”.

Apple Products: iPad; iPhone and iTouch

If you’re using an Apple device, use these steps in place of those on the following pages.

Android Device

Sengs/WirelessNetworks/Wi‐FiSengs/Connectto“QRSPNO”

PressthemorebuonandselectAdvanced.

Select“UseStacIP”andenterthesamenumbersasforAppleproductsabove.

2

On the QRS PNOmation II remote control:

Press the following buttons in sequence…

SHIFT FUNC 9 9 1

Third light ashes red/green and then yellow.

[Windows 7 & Google Chrome Example] 

Set a Static IP on your device

A Left-Click on the network signal strength indicator.

B Connect to the “QRSPNO”

C After you’re connected go back and select “Open Network and Sharing Center”

D Select “Change Adapter Settings”

E Right-Click over your active “Wireless Network Connection

Select “Properties”.

F Select “Internet Protocol Version 4 (TCP/IPv4)”

Select “Properties”.

Select “Use the following IP address” and enter:

IP address: 192.168.0.5

Subnet mask: 255.255.255.0

Gateway: 192.168.0.1

Press the OK button, wait a few seconds.

Close all windows.

Open your browser and navigate to 192.168.0.254

Enter “admin” as the User Name and Password.

Press the “Log In” button.

Click “Quick Setup”

Click “Next”

Select “Bridge Mode”

Click “Next”

Click the “Survey” button.

Click “Connect” for the SSID of the network you wish to join

Change the SSID to “QRSPNO Network”

Under “Security Options” choose the type of security (WEP or WPA)

Enter your network password in the “PassWord” box

Click “Next”

If prompted, change the channel setting displayed.

Press “OK” and then do so and click “Next”

Select “Disable Security” (Unless you want to secure the network)

Click “Next”

Click “Reboot”

Click “OK” to conrm.

Restarting

Close browser

Re-do steps A-G above.

At step “G” select “Obtain an IP address automatically”

Press “OK” and close all windows.

Connect to your home network

The TP-Link is now linked to your home network and ready for “Network Mode” on the PMII.

If you did not hear the IP address press SHIFT and then INFO on the QRS remote control.

Open Safari or Google Chrome and enter the IP address heard from the speaker.

PLx light # 3 should be YELLOW.

Lighted button on the PMII processor should be FLASHING.

How to congure the TP-Link TL-WR702N from “Stand Alone” Mode to “Network Mode”:

3

How to Congure the TP-Link TL-WR702N from Network to “Stand Alone” Mode:

[Windows 7 & Google Chrome Example]

Set a Static IP on your device

A Left-Click on the network signal strength indicator.

B Connect to the “QRSPNO Network”

C After you’re connected go back and select “Open Network and Sharing Center”

D Select “Change Adapter Settings”

E Right-Click over your active “Wireless Network Connection

Select “Properties”.

F Select “Internet Protocol Version 4 (TCP/IPv4)”

Select “Properties”.

Select “Use the following IP address” and enter:

IP address: 192.168.0.5

Subnet mask: 255.255.255.0

Gateway: 192.168.0.1

Press the OK button, wait a few seconds.

Close all windows.

Open your browser and navigate to 192.168.0.254

Enter “admin” as the User Name and Password.

Press the “Log In” button.

Click “Quick Setup”

Click “Next”

Select “Router Mode”

Click “Next”

Change the SSID to QRSPNO

Set Channel to “Auto”

Under “Security Options:” select “Disable Security”

Click “Next”

Under “WAN Connection Type” select “Dynamic IP”

Click “Next”

Under “MAC Clone” select “No”

Click “Next”

Click “Reboot”

Click “OK”

Restarting

Wait for the TP-Link conguration to nish and restart.

Close browser when 100% complete.

The device is now ready for “Stand-Alone Mode” on the PMII.

Connect to the QRSPNO

Open Safari or Google Chrome and navigate to 192.168.1.1

On the QRS PNOmation II remote control:

Press the following buttons in sequence…

SHIFT FUNC 9 9 0

The third light should be green.

Press SHIT INFO to conrm the 192.168.1.1 address.

Lighted button #3 on the PMII processor should be SOLID green.

Re-do steps A-G above.

At step “G” select “Obtain an IP address automatically”

Press the OK button, wait a few seconds.

Close all windows.

4

[Windows 7 & Google Chrome Example]

The TP-Link has been pre-programmed from QRS so it’s not necessary to reset it. But, if the SSID name shown on the back of the TP-Link

appears in your wireless network connection list, it’s been reset.

To reset the WR702N, press and hold the “Reset” button on the side of the TP-Link for 8 seconds, or until the light blinks at lease 3 times.

Set a Static IP on your device

A Left-Click on the network signal strength indicator.

B Connect to the WiFi SSID listed on the back of the TL-WR702N. 

TP-Link_50B880 in our example.



C After you’re connected go back and select “Open Network and Sharing Center”

D Select “Change Adapter Settings”

E Right-Click over your active “Wireless Network Connection

Select “Properties”.

F Select “Internet Protocol Version 4 (TCP/IPv4)”

Select “Properties”.

Select “Use the following IP address” and enter:

IP address: 192.168.0.5

Subnet mask: 255.255.255.0

Gateway: 192.168.0.1

Press the OK button, wait a few seconds.

Close all windows.

Click “Quick Setup”

Click “Next”

Select “Router: Router Mode”

Click “Next”

Change the SSID to QRSPNO

Under “Security Options:” select “Disable Security”

Click “Next”

Under “WAN Connection Type” select “Dynamic IP”

Click “Next”

Under “MAC Clone” select “No”

Click “Next”

Connect to the QRSPNO, step “A” above.

Open your browser and navigate to 192.168.0.254

If necessary, enter “admin” as the ID and Password

Under “Advanced Settings” click DHCP

Under DHCP Server” select “Enable”

Press “Save” and “OK” and close Google Chrome.

Re-do steps A-G above.

At step “G” select “Obtain an IP address automatically”

Press “OK”

Close all windows.

On the QRS PNOmation II remote control:

Press the following buttons in sequence…

SHIFT FUNC 9 9 0

The third light should be green.

Press SHIT INFO to conrm the 192.168.1.1 address.

Open Google Chrome and navigate to 192.168.0.254

Enter “admin” as the User Name and Password.

Press the “Log In” button. You may have to wait for the TP-Link below to appear.

Click “Reboot”

Click “OK” to conrm.

The TP-Link will congure and restart.

How to Congure the TP-Link TL-WR702N to Stand Alone Mode after a TP-Link Reset:

How to Reset the EnGenius ETR9330 for QRS’ “Default” Stand Alone Mode:

[Windows 7 & Google Chrome Example]

Press and hold the WPS button for about 10 seconds. Release after the power button ashes a few times.

Connect to the EnGenius xxxx Wi-Fi device.

Open Google Chrome, Android browser, or Safari, and navigate to 192.168.0.1

Enter “admin” as the User Name and Password.

Press the “Log In” button.

Select Wireless

Enter “QRSPNO” for SSID1.

Press the “Apply” button.

Wait for the EnGenius to reload.

Connect to QRSPNO.

Select System / LAN.

Select “User-Dened” option from the Secondary DNS drop down box.

[Can’t get to this setting using an iPad]

Enter “192.168.1.1” as the Secondary DNS address.

Press the “Apply” button and wait for EnGenius to reload.

Close browser.

On the QRS PNOmation II remote control:

Press the following buttons in sequence…

SHIFT FUNC 9 9 0

The third light should be green.

Press SHIT INFO to conrm the 192.168.1.1 address.

Open Google Chrome, Android browser, or Safari, and navigate to 192.168.0.1

Enter “admin” as the User Name and Password.

Press the “Log In” button.

Verify that you are still connected to QRSPNO

Open your browser to 192.168.1.1 to connect to PMII.

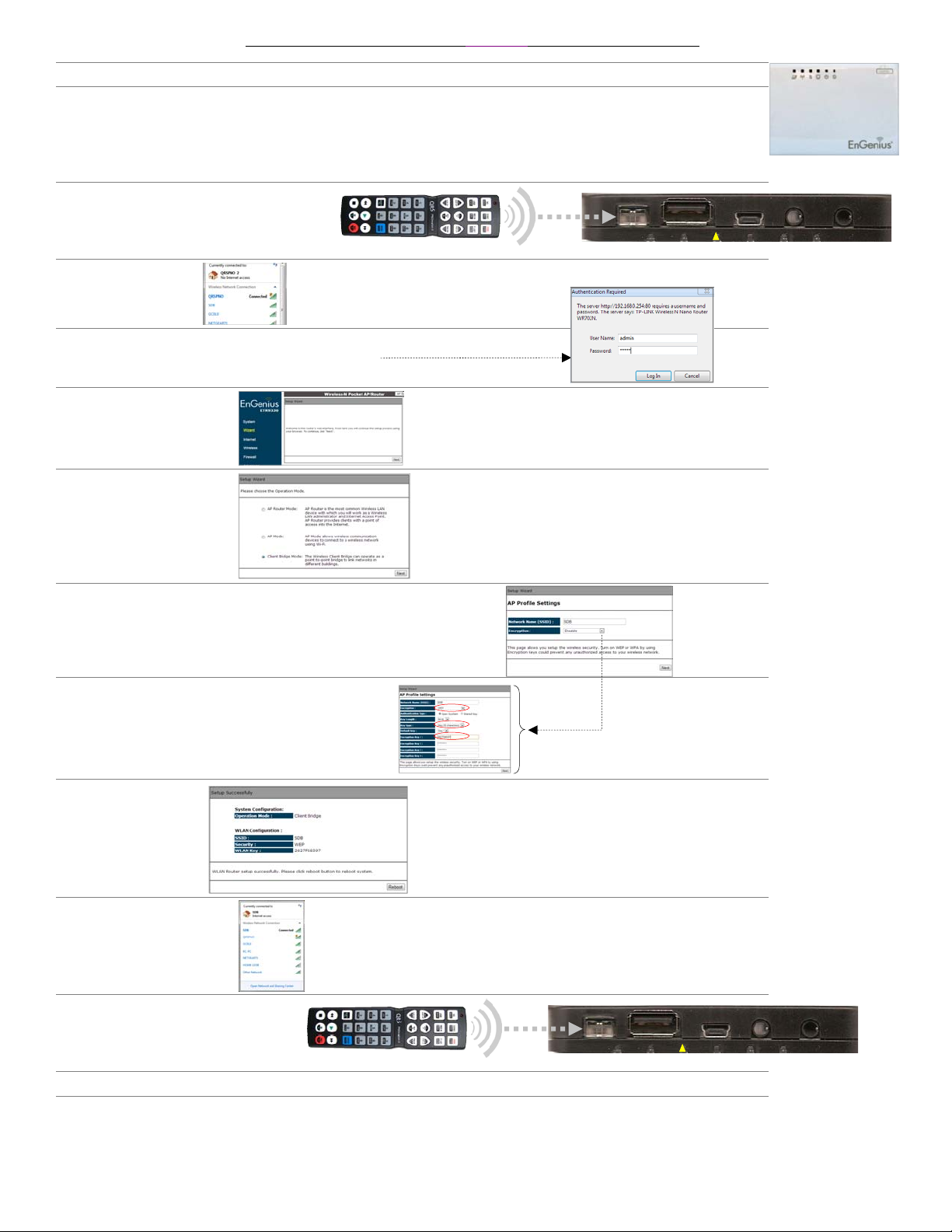

How to Congure the EnGenius ETR9330 for QRS “Network” Mode:

You will need the information about your home network:

Network Name (SSID)

Encryption Type

Key Type

Encryption Key

On the QRS PNOmation II remote control:

Press the following buttons in sequence…

SHIFT FUNC 9 9 1

Third light ashes red/green and then solid yellow.

Connect to QRSPNO.

Open Google Chrome, Android browser, or Safari, and navigate to 192.168.0.1

Enter “admin” as the User Name and Password.

Select “Wizard”.

Press the “Next” button.

Select “Client Bridge Mode”

Press the “Next” button.

Enter the Network Name (SSID) to match your home Wi-Fi device.

Click on the Encryption drop-down box and select mode to match your home Wi-Fi.

Select/Enter the following to match your home’s Wi-Fi device:

Encryption Type

Key Type

Encryption Key

Press the “Next” button.

[Windows 7 & Google Chrome Example]

Open Safari or Google Chrome and enter the IP address heard from the speaker.

Verify “Setup Successful”

Press the “Reboot” button.

Wait for system reboot.

Close browser.

Connect to your home network.

On the QRS PNOmation II remote control:

Press the following buttons in sequence…

SHIFT INFO

Note the IP address heard from the speaker.

All systems are shipped in Stand-Alone mode: [1] The PLx Network light is green and [2] you should see “QRSPNO ####” when viewing your local Wi-Fi devices .

These instructions are used to reset the PMII and the ASUS wireless to the default conguration.

For best results, go to qrsmusic.com. to download and install the latest PMII driver update. Instructions using Driver V3.66.

If the “Power” light is yellow, tap the PLx button once so that the light turns green.

Point the remote at the button on the PLx box. The “System” light will ash, w/ voice prompts, on remote control commands.

Using a QRS Remote: Press SHIFT then FUNC then 9 9 0.

If you have one of the smaller QRS remotes: press F1/Source then 9 9 0..

The PLx Network light should now be green.

Press and Hold the “Restore’ button,

on the back of the ASUS

, until the “power” light ashes at least 3 times.

DISCONNECT the Ethernet cable from PMII or the ASUS device.

View the available wireless devices using your iPad, iTouch, Android device or Wireless Computer.

If the ASUS was “restored” correctly you should see “ASUS” in your available Wi-Fi devices list.

Connect to the “ASUS” from the list and wait until a connection is established.

Apple devices may automatically open the Authentication screen when connection.

Enter admin in the User Name and Password elds.

If you are using an Android or a Computer and Google Chrome:

In your web browser, enter 192.168.1.1 in the URL address window.

Enter admin in the User Name and Password elds.

Click the Log In button.

The ASUS programming window opens.

Select Access Point.

Enter the “QRSPNO” in the Wireless name (SSID) eld.

Our example uses QRSPNO Test

Click the APPLY button.

The ASUS will apply, save and restart with the new settings.

Close the browser window when 100% complete.

Wait for the voice prompt to report: “Standby”...“Connected”...”IP Address is...192.168.1.1”. [Press FUNC INFO to repeat IP address]

You can now wirelessly connect to PNOmation II via the ASUS wireless access point..

Enter [192.168.1.1] in your Internet web browser, Google Chrome or Safari..

Reconnect the Ethernet cable.

ASUS 330N3G Wireless

set as an Access Point (AP)

PNOmation II Wireless Computer

Android Device

Apple iPad/iTouch

Default Conguration

Set by QRS

No access from home Network

IP Address 192.168.1.1is assigned by PMII

Power Cable

Apple

GoogleAndroid

How to Setup the ASUS WL 330N3G Wireless for PMII in Stand-Alone Mode

PowerSystemNetwork

PLx

ASUS 330N3G set as an Ethernet Adapter

PNOmation II Your wireless network router

Internet Modem

Wireless or Cable

connection to

your Home Network

DISCONNECT the Ethernet cable from PMII or the ASUS device.

For best results, go to qrsmusic.com. to download and install the latest PMII driver update. Instructions using Driver V3.66.

If the “Power” light is yellow, tap the PLx button once so that the light turns green.

Point the remote at the button on the PLx box. The “System” light will ash, w/ voice prompts, on remote control commands.

Using a QRS Remote: Press SHIFT then FUNC then 9 9 1.

If you have one of the smaller QRS remotes: press F1/Source then 9 9 1.

The PLx Network light should now be yellow.

Press and Hold the “Restore’ button,

on the back of the ASUS

, until the “power” light ashes at least 3 times.

View the available wireless devices using your iPad, iTouch, Android device or Wireless Computer.

Connect to the “ASUS” from the list and wait until a connection is established.

Apple devices may automatically open the Authentication screen when connection.

Enter admin in the User Name and Password elds.

If you are using an Android or a Computer and Google Chrome:

In your web browser, enter 192.168.1.1 in the URL address window.

Enter admin in the User Name and Password elds.

Click Log In (Apple) or click the OK (Android/Chrome) button.

Programming window opens.

Select Network Adapter.

Close Help

Select your local wireless Network device from the Site Survey list.

Click the Connect button.

Enter your Network Key if requires and press Connect.

The ASUS will connect, save and restart with the new settings.

Close the browser window when 100% complete.

Connect your wireless device to your home network.

Reconnect the Ethernet cable

Wait for the voice prompt to report: “Network”...“Connected”...”IP Address is...192.168.1.xxx”.

[FUNC INFO to repeat the IP Address]

Open your web browser and enter the IP address and connect to PNOmation II through your home Network.

Computer

Android Device

Apple iPad/iTouch

Apple

GoogleAndroid

How To Setup ASUS WL 330N3G Wireless for PMII in Network Mode

PMII gets its IP address

from your home network

PowerSystemNetwork

How To Setup the ASUS WL 330gE Wireless for PMII in Stand-Alone Mode

ASUS 330gE Wireless

set as Access Point (AP)

PNOmation II Wireless Computer

Android Device

Apple iPad/iTouch

Default ConﬁguraƟon

Set by QRS

No access from home Network

IP Address 192.168.1.1is assigned by PMII

Reset

All systems are shipped in Stand-Alone mode: [1] The PLx Network light is green and [2] you should see “QRSPNO ####” when viewing your local Wi-Fi devices .

These instructions are used to reset the PMII and the ASUS wireless to the default conguration.

For best results, go to qrsmusic.com. to download and install the latest PMII driver update. Instructions using Driver V3.66.

If the “Power” light is yellow, tap the PLx button once so that the light turns green.

Point the remote at the button on the PLx box. The “System” light will ash, w/ voice prompts, on remote control commands.

Using a QRS Remote: Press SHIFT then FUNC then 9 9 0.

If you have one of the smaller QRS remotes: press F1/Source then 9 9 0.

The PLx Network light should now be green.

View the available wireless devices using your iPad, iTouch, Android device or Wireless Computer.

If the ASUS was “reset” correctly you should see “ASUS” in your available Wi-Fi devices list.

Connect to the “ASUS” from the list and wait until a connection is established.

Open Apple Safari, Android Web Browser or Google Chrome on a Computer:

In your web browser, enter 192.168.1.220 in the URL address window.

The “Authentication Required” dialog box will appear.

Enter admin in the User Name and Password elds.

Click Log In.

The ASUS programming window opens.

Select the AP Tab

Enter “QRSPNO for the SSID name.

Click the FINISHED button.

Click OK

The ASUS will save and restart with the new settings

Wait for the progress to complete, 100%.

At this point you will loose connection to the ASUS...

Close the browser window when the progress is 100% complete.

Wait for the voice prompt to report: “Standby”...“Connected”...”IP Address is 192.168.1.1”

[FUNC INFO to repeat the IP Address.]

Connect your wireless device to “QRSPNO”.

Open Google Chrome, Safari or your Android browser and enter 92.168.1.1 to connect to PMII.

Press and hold the Reset button on the edge of the ASUS until the power light ashes at least three times.

AppleGoogleChromeAndroid

PowerSystemNetwork

PLx

Autres manuels pour TL-WR702N

Table des matières

Autres manuels TP-Link Routeur réseau

TP-Link

TP-Link TD-W8901N Manuel utilisateur

TP-Link

TP-Link Archer C54 Manuel utilisateur

TP-Link

TP-Link JetStream TL-SL3428 Manuel utilisateur

TP-Link

TP-Link TL-R470T Manuel utilisateur

TP-Link

TP-Link TD-W8951ND Manuel utilisateur

TP-Link

TP-Link TD-W8151N Manuel utilisateur

TP-Link

TP-Link Archer AX10 Manuel utilisateur

TP-Link

TP-Link Archer AXE200 Omni V1 Manuel utilisateur

TP-Link

TP-Link Archer BE800 Manuel utilisateur

TP-Link

TP-Link Archer C7 AC1750 Manuel utilisateur

TP-Link

TP-Link TD-W8950ND Manuel utilisateur

TP-Link

TP-Link Archer AX75 Manuel utilisateur

TP-Link

TP-Link ARCHER C1200 Manuel utilisateur

TP-Link

TP-Link TL-WA850RE Manuel utilisateur

TP-Link

TP-Link TL-SG2424 Manuel utilisateur

TP-Link

TP-Link Archer-C80 Manuel utilisateur

TP-Link

TP-Link TL-WR840N Manuel utilisateur

TP-Link

TP-Link Archer AX11000 Manuel utilisateur

TP-Link

TP-Link TL-WR902AC Manuel utilisateur

TP-Link

TP-Link TD851W Manuel utilisateur

TP-Link

TP-Link TD-8840 Manuel utilisateur

TP-Link

TP-Link AC2300 Manuel utilisateur

TP-Link

TP-Link Archer AX3000 Manuel utilisateur

TP-Link

TP-Link TL-R470T+ Manuel utilisateur

Manuels Routeur réseau populaires d'autres marques

Allnet

Allnet ALL0333AU Manuel utilisateur

HomeSeer

HomeSeer HT-SEL Manuel utilisateur

Sercomm

Sercomm Genesis OC3505D Manuel utilisateur

Billion

Billion BIPAC 5102 Series Manuel utilisateur

Motorola

Motorola MR1900 Manuel utilisateur

Digi

Digi IX14 Manuel utilisateur

Cisco

Cisco NCS 540 Manuel

XAVi

XAVi X8821e Manuel utilisateur

BEC

BEC 6200WZL Manuel utilisateur

MikroTik

MikroTik hAP ac3 Series Manuel utilisateur

Korenix

Korenix JetNet 5428G Series Manuel utilisateur

NETGEAR

NETGEAR FS526T - Switch Manuel utilisateur

Korenix

Korenix JetNet 5710G Series Manuel utilisateur

Automated Logic

Automated Logic ZN551 Manuel du propriétaire

Cisco

Cisco ASR 1000 Series Manuel de l'opérateur

EnGenius

EnGenius ESR-9710 Manuel utilisateur

Cisco

Cisco 805 Series Instructions d'utilisation et de sécurité

LevelOne

LevelOne FBR-1416 Manuel utilisateur
