This Installation Guide describes the hardware characteristics, installation methods

and the points that should be attended to during installation. This Installation

Guide is structured as follows:

Chapter 1 Introduction. This chapter describes the External Components of

the Router.

Chapter 2 Installation. This chapter illustrates how to install the Router.

Chapter 3 Lightning Protection. This chapter illustrates how to prevent

lightning damage.

Chapter 4 Connection. This chapter illustrates how to do the physical connec-

tion of the Router.

Chapter 5 Configuration. This chapter illustrates how to login and set up the

Router.

Appendix A Troubleshooting.

Appendix B Hardware Specifications.

Appendix C Technical Support.



This Installation Guide is for:

Network Engineer

Network Administrator



This Guide uses the specific formats to highlight special messages. The following

table lists the notice icons that are used throughout this guide.

Remind to be careful. A caution indicates a potential which may result in

device damage.

Remind to take notice. The note contains the helpful information for a

better use of the product.

Related Document

III



Contents

Chapter 1 Introduction ——————————— 01

1.1 Product Overview...................................................................01

1.2 Appearance...............................................................................01

Chapter 2 Installation ———————————— 03

2.1 Package Contents ...................................................................03

2.2 Safety Precautions ..................................................................03

2.3 Installation Tools......................................................................05

2.4 Product Installation................................................................06

Chapter 3 Lightning Protection ———————— 08

3.1 Cabling Reasonably................................................................08

3.2 Connect to Ground.................................................................10

3.3 Equipotential Bonding..........................................................11

3.4 Use Lightning Arrester..........................................................12

Chapter 4 Connection ——————————— 14

4.1 WAN Port....................................................................................14

4.2 LAN Port .....................................................................................14

4.3 Console Port..............................................................................14

4.4 Verify Installation ....................................................................15

4.5 Power On....................................................................................15

4.6 Initialization ..............................................................................15

Chapter 5 Conguration

——————————— 16

5.1 Preparations..............................................................................16

5.2 Login............................................................................................16

Appendix A Troubleshooting ————————— 20

Appendix B Hardware Specications —————— 21

Appendix C Technical Support ————————— 22

Load Balance Broadband Router





TL-R480T+ is a product designed for small business. It features three free changeable

ports that can be set to either LAN or WAN, allowing the router to support up to four

WAN ports to satisfy various Internet access requirements through one device. At the

same time, network traffic is managed to ensure that data is properly distributed to

each port. TP-LINK TL-R480T+ will provide you consistent network uptime and reliable

Ethernet connectivity.



Front Panel



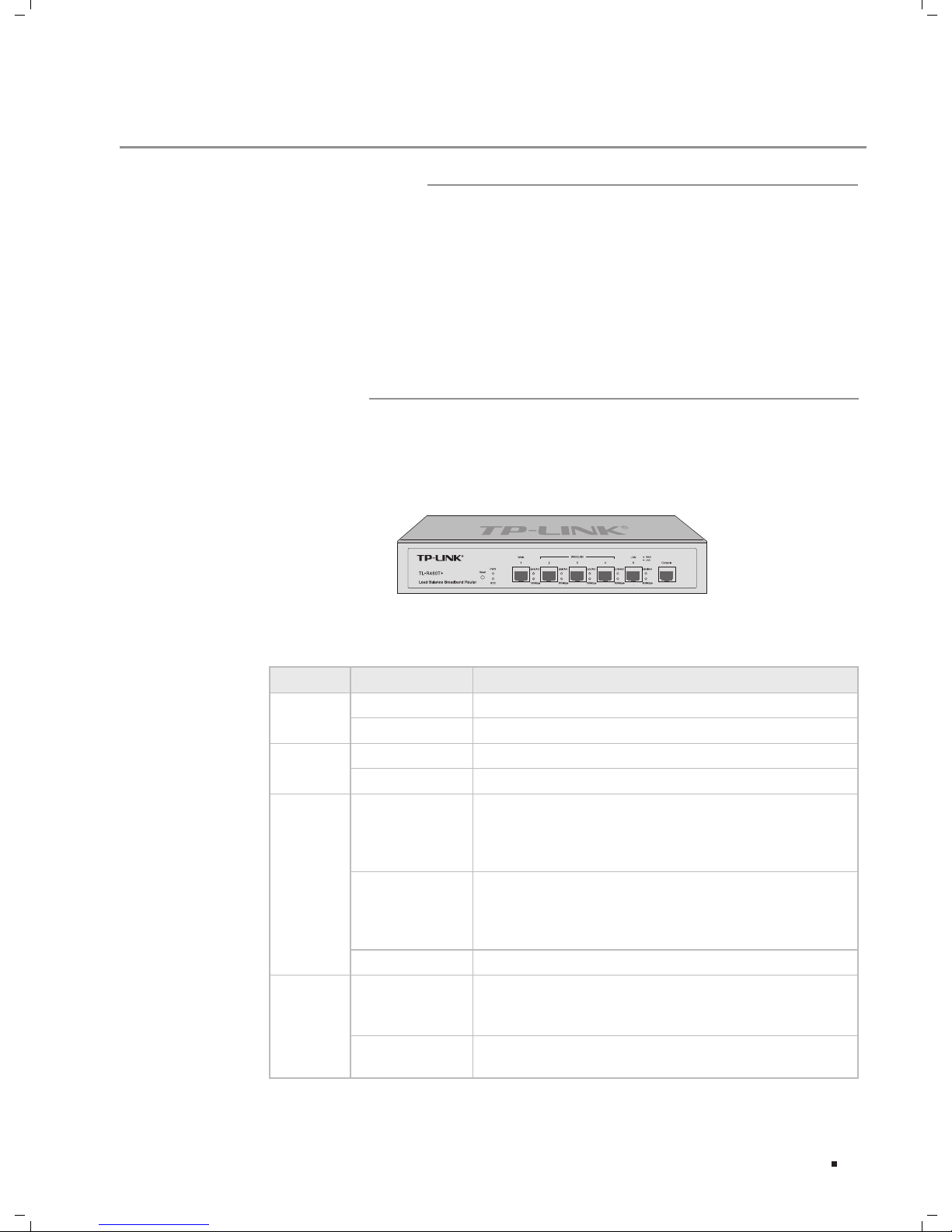

The front panel of TL-R480T+ is shown as the following figure.

Front PanelFigure 1-1

LEDs

LED Status Indication

PWR On The Router is powered on

Off The Router is powered off or power supply is abnormal

SYS Flashing The Router works properly

On/Off The Router works improperly

Link/Act

(Green/Yellow)

There is a device linked to the corresponding port but

not active

(Green indicates the corresponding port is working as

a LAN port, and yellow indicates WAN port)

Flashing

(Green/Yellow)

The corresponding port is transmitting or receiving

data

(Green indicates the corresponding port is working as

a LAN port, and yellow indicates WAN port)

Off There is no device linked to the corresponding port

100Mbps

(Green/Yellow)

The linked device is running at 100Mbps

(Green indicates the corresponding port is working as

a LAN port, and yellow indicates WAN port)

Off There is no device linked to the corresponding port or

the port is running at 10Mbps

Introduction

Load Balance Broadband Router

Interface Description

WAN The WAN port is designed to connect the Router to the interface provided

by ISP via the RJ45 cable

LAN The LAN port is designed to connect the Router to the local PCs or

switches by the RJ45 cable

Console

The Console port is designed to connect with the serial port of a computer

or terminal to check and monitor some simple system information of the

Router

Reset

With the Router powered on, use a pin to press and hold the Reset button (about 5

seconds) until the SYS LED ashes quickly. Then release the button and wait for the

Router rebooting to its factory default settings.

Rear Panel



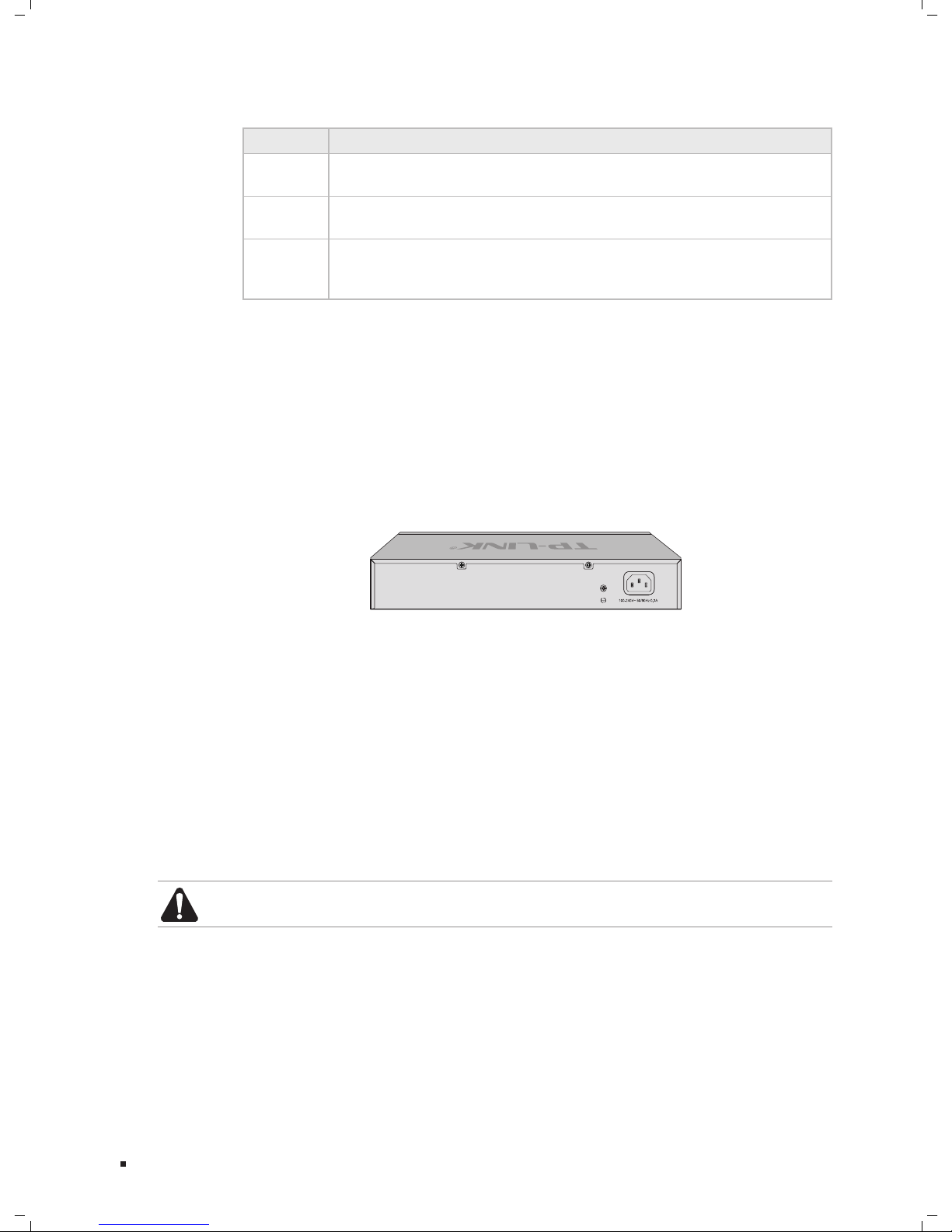

The rear panel of TL-R480T+ is shown as the following figure.

Rear PanelFigure 1-2

Power Socket

Connect the female connector of the power cord here, and the male connector to

the AC power outlet. Please make sure the voltage of the power supply meets the

requirement of the input voltage.

Grounding Terminal

The Router already comes with lightning protection mechanism. You can also ground

the Router through the PE (Protecting Earth) cable of AC cord or with Ground Cable.

For detailed information, please refer to Chapter 3 Lightning Protection.

Caution: Please use the provided power cord.

Introduction

Load Balance Broadband Router





Make sure that the package contains the following items. If any of the listed items is

damaged or missing, please contact your distributor.

One Resource CD

One Router One Power Cord, One Console

Cable and One Ethernet Cable

This Installation Guide

Two mounting brackets and the

ttings



To avoid any device damage and bodily injury caused by improper use, please observe

the following rules.

Safety Precautions



Keep the power off during the installation.



Wear an ESD-preventive wrist strap, and make sure that the wrist strap has a good



skin contact and is well grounded.

Use only the power cord provided with the Router.



Make sure that the supply voltage matches the specifications indicated on the rear



panel of the Router.

Ensure the vent hole is well ventilated and unblocked.



Do not open or remove the cover of the Router.



Before cleaning the device, cut off the power supply. Do not clean it by the waterish



cloth, and never use any other liquid cleaning method.

Installation

Load Balance Broadband Router

Site Requirements



Temperature/Humidity

ȭ

ȭ

Please keep a proper temperature and humidity in the equipment room. Too high/low

humidity may lead to bad insulation, electricity leakage, mechanical property changes

and corrosions. Too high temperature may accelerate aging of the insulation materials

and can thus significantly shorten the service life of the device. For normal temperature

and humidity of the device, please check the following table.

Environment Temperature Humidity

Operating 0℃~ 40℃10% ~ 90%RH Non-condensing

Storage -40℃~ 70℃5% ~ 90%RH Non-condensing

Clearness

The dust accumulated on the Router can be absorbed by static electricity and result

in poor contact of metal contact points. Some measures have been taken for the

device to prevent static electricity, but too strong static electricity can cause deadly

damage to the electronic elements on the internal circuit board. To avoid the effect of

static electricity on the operation of the Router, please attach much importance to the

following items:

Dust the device regularly, and keep the indoor air clean.



Keep the device well grounded and ensure static electricity has been transferred.



Electromagnetic Interference

Electronic elements including capacitance and inductance on the device can be affected

by external interferences, such as conducted emission by capacitance coupling,

inductance coupling, and impedance coupling. To decrease the interferences, please

make sure to take the following measures:

Use the power supply that can effectively filter interference from the power grid.



Keep the device far from high-frequency, strong-current devices, such as radio



transmitting station.

Use electromagnetic shielding when necessary.



Installation

Load Balance Broadband Router

Lightening Protection

Extremely high voltage currents can be produced instantly when lightning occurs and the air

in the electric discharge path can be instantly heated up to 20,000℃. As this instant current

is strong enough to damage electronic devices, more effective lightning protection measures

should be taken.

Ensure the rack and device are well earthed.



Make sure the power socket has a good contact with the ground.



Keep a reasonable cabling system and avoid induced lightning.



Use the signal SPD (Surge Protective Device) when wiring outdoor.



Note: For detailed lightning protection measures, please refer to Chapter 3

Lightning Protection.

Installation Site

S

When installing the device on a rack or a flat workbench, please note the following

items:

The rack or workbench is flat and stable, and sturdy enough to support the weight



of 5.5kg at least.

The rack or workbench has a good ventilation system. The equipment room is well



ventilated.

The rack is well grounded. Keep the power socket less than 1.5 meters away from



the device.



Phillips screwdriver



ESD-preventive wrist wrap



Cables



Installation

Load Balance Broadband Router

Note: These tools are not provided with our product. If needed, please self purchase

them.



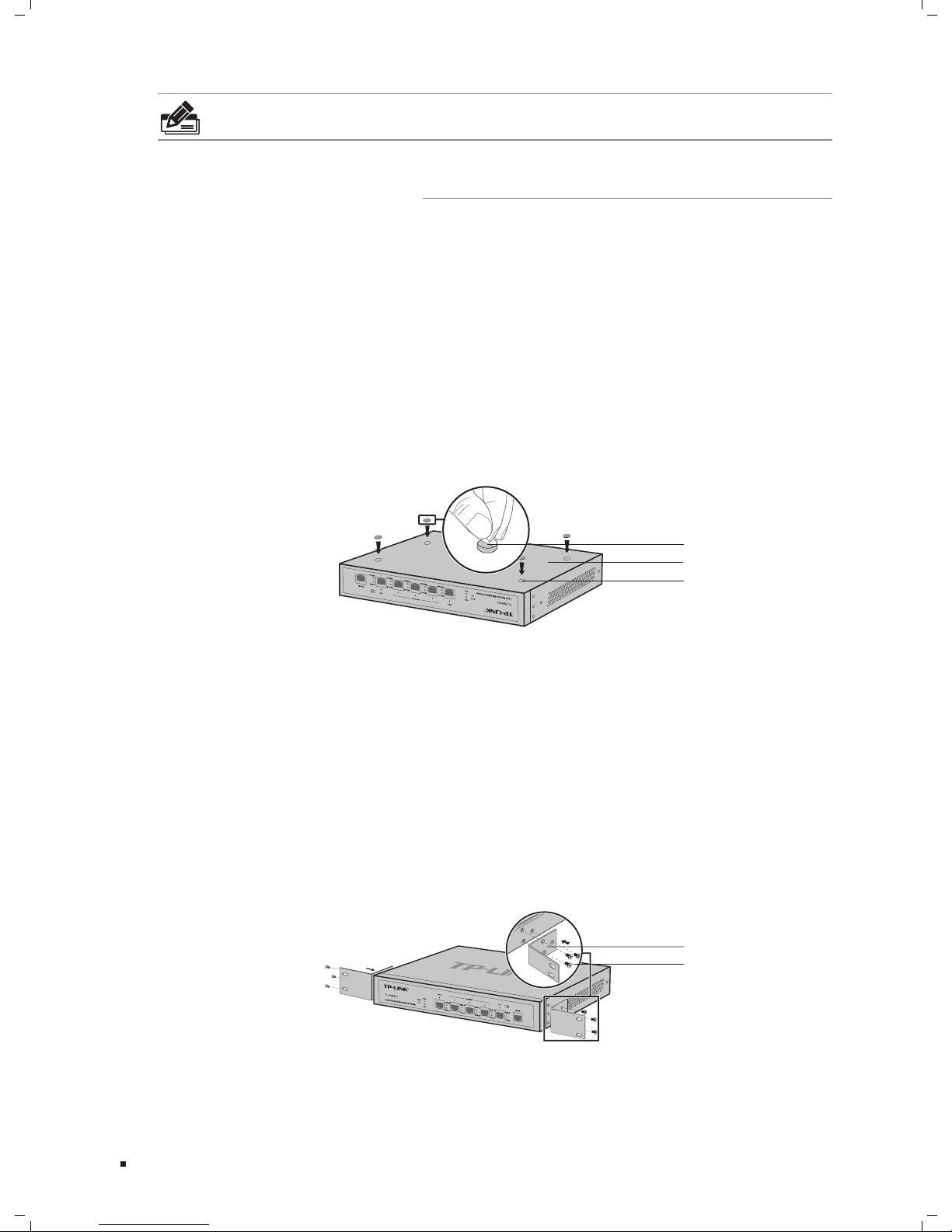

Desktop Installation



To install the device on the desktop, please follow the steps:

Set the device on a flat surface strong enough to support the entire weight of the1.

device with all fittings.

Remove the adhesive backing papers from the rubber feet.2.

Turnover the device and attach the supplied rubber feet to the recessed areas on3.

the bottom at each corner of the device.

Feet

Bottom of the Device

Notch

Desktop InstallationFigure 2-1

Rack Installation



To install the device in an EIA standard-sized, 19-inch rack, follow the instructions

described below:

Check the grounding and stability of the rack.1.

Secure the supplied rack-mounting brackets to each side of the device with supplied2.

screws, as illustrated in the following figure.

Rackmounting Bracket

Screw

Bracket InstallationFigure 2-2

Installation

Autres manuels pour TL-R480T

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels TP-Link Routeur réseau

TP-Link

TP-Link TL-WR1043ND - Ultimate Wireless N Gigabit... Manuel utilisateur

TP-Link

TP-Link TL-WR702N Manuel utilisateur

TP-Link

TP-Link Archer C20 Manuel utilisateur

TP-Link

TP-Link Archer VR600v Manuel utilisateur

TP-Link

TP-Link TL-WA850RE Manuel utilisateur

TP-Link

TP-Link SafeStream TL-R480T+ Manuel utilisateur

TP-Link

TP-Link Archer C5400X Manuel utilisateur

TP-Link

TP-Link CR1900 Manuel utilisateur

TP-Link

TP-Link Archer C7 Guide de configuration

TP-Link

TP-Link ARCHER C3150 Manuel utilisateur

TP-Link

TP-Link TPL-WR941HP Manuel utilisateur

TP-Link

TP-Link Archer AX11000 Manuel utilisateur

TP-Link

TP-Link Archer C5400 Manuel utilisateur

TP-Link

TP-Link TD-W8101G Manuel utilisateur

TP-Link

TP-Link SafeStream TL-R480T+ Manuel utilisateur

TP-Link

TP-Link L-R480T+ Manuel utilisateur

TP-Link

TP-Link Archer C5 Manuel utilisateur

TP-Link

TP-Link TD-W8961ND Manuel utilisateur

TP-Link

TP-Link TD-8816 Manuel utilisateur

TP-Link

TP-Link TL-WR850N Manuel utilisateur

TP-Link

TP-Link TL-ER7206 Manuel utilisateur

TP-Link

TP-Link TD-8840 Manuel utilisateur

TP-Link

TP-Link Archer AX10 Manuel utilisateur

TP-Link

TP-Link TL-R4000+ Manuel utilisateur

Manuels Routeur réseau populaires d'autres marques

Allnet

Allnet ALL0333AU Manuel utilisateur

HomeSeer

HomeSeer HT-SEL Manuel utilisateur

Sercomm

Sercomm Genesis OC3505D Manuel utilisateur

Billion

Billion BIPAC 5102 Series Manuel utilisateur

Motorola

Motorola MR1900 Manuel utilisateur

Digi

Digi IX14 Manuel utilisateur

Cisco

Cisco NCS 540 Manuel

XAVi

XAVi X8821e Manuel utilisateur

BEC

BEC 6200WZL Manuel utilisateur

MikroTik

MikroTik hAP ac3 Series Manuel utilisateur

Korenix

Korenix JetNet 5428G Series Manuel utilisateur

NETGEAR

NETGEAR FS526T - Switch Manuel utilisateur

Korenix

Korenix JetNet 5710G Series Manuel utilisateur

Automated Logic

Automated Logic ZN551 Manuel du propriétaire

Cisco

Cisco ASR 1000 Series Manuel de l'opérateur

EnGenius

EnGenius ESR-9710 Manuel utilisateur

Cisco

Cisco 805 Series Instructions d'utilisation et de sécurité

LevelOne

LevelOne FBR-1416 Manuel utilisateur
