TP-Link TD-W8980 Guide de l'utilisateur



Storage Sharing Application Guide

TD-W8968 TD-W8970 / TD-W8970B TD-W8980 / TD-W8980B

Rev: 1.0.1

1910010769

 

Contents

Overview ......................................................................................... 1

How to access shared folders.......................................................... 2

Extended Application ....................................................................... 5

How to create a user account ................................................................................... 5

How to add a shared folder ....................................................................................... 7

¾Set Access Authorization...............................................................................11

¾Anonymous Access...................................................................................... 13

Troubleshooting ..............................................................................14





Overview

The storage sharing feature allows you to share a USB storage device that’s connected to the modem router, to

other wired or wireless users in the same network.

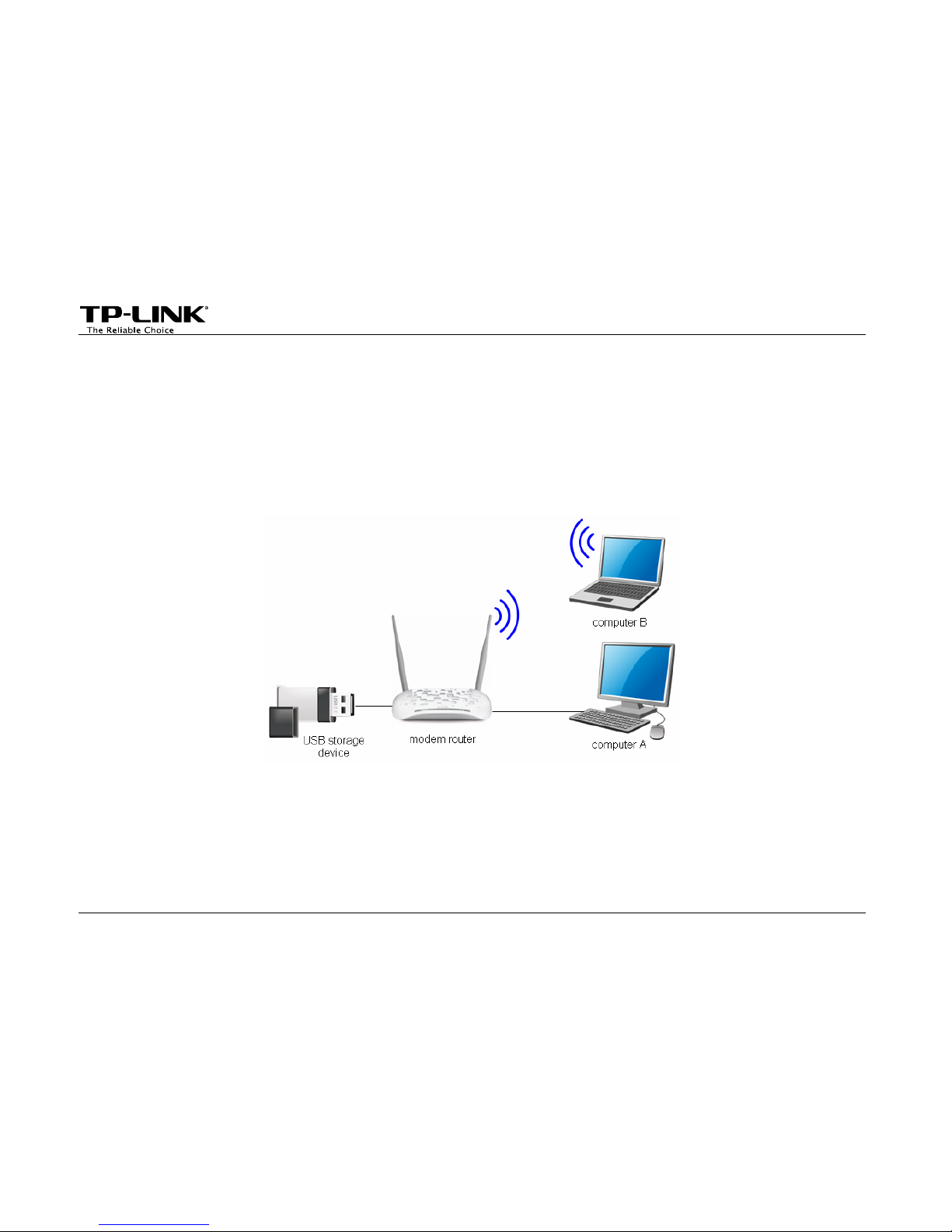

Typical Topology

Here in this guide, we take the configuration procedures of TD-W8968 for example.

Before setting up the Storage Sharing function, make sure you have the following devices:

9Computer with Windows 2000/ XP/ Vista/ 7/ 8/ Mac OS X/ Linux

9USB storage devices with USB 2.0/3.0 port

-1-



How to access shared folders

The modem router’s Storage Sharing function is enabled by default, when the storage device is plugged into its

USB port.

Please follow the steps to access the storage device.

•For Windows Users:

Windows XP:

•Go to Start -> Run

•Input \\192.168.1.1 in the dialog box

•Click OK

Windows Vista/7:

•Go to Start

•Type “run” in the search box

•Open the run application

•Input \\192.168.1.1 in the dialog box

•Click OK

Windows 8:

•Move your mouse to the lower right corner and you

will see Search icon in the Popups.Click it and

search run

•Open the run application

•Input \\192.168.1.1 in the dialog box

•Click OK

-2-

•For Mac OS X Users:

•On the top tray, go to Go -> Connect to Server

•Input Server Address smb://192.168.1.1

•Click Connect



•For Linux Users:

•On the top tray, go to Places -> Connect to

Server

•Choose Service type Windows share

•Input Server 192.168.1.1

•Click Connect

-3-

-4-

)Note:

U(1) Some SB storage devices may require using the external power.

(2) To set up different accounts with their own access rights, please log

and set it on USB Settings -> Storage Sharing and USB Settings -> User

into to the web-based management page

Accounts.

Now you have accessed the storage device, and you can read, edit, copy and delete the files in the storage

device.

Extended Application

How to create a user account

Log onto the web-based management page, go to USB Settings ->User Accounts and follow the steps in the

figure below.

-5-

)Note:

(1) The status of the new user is disabled by default. You need to click Enable in the Action column of user

account table to enable folders access.

(2) User name “admin*” is a “Super User” with full-access permission. Its action that could access all active

volumes and shared folders is enabled by default.

(3) The default user name/password of the Super User is admin/admin.

-6-

How to add a shared folder

Log onto the web-based management page, go to USB Settings -> Storage Sharing and follow the steps in the

figures below.

-7-



-8-
