2010 Toyota Prius Repair Manual

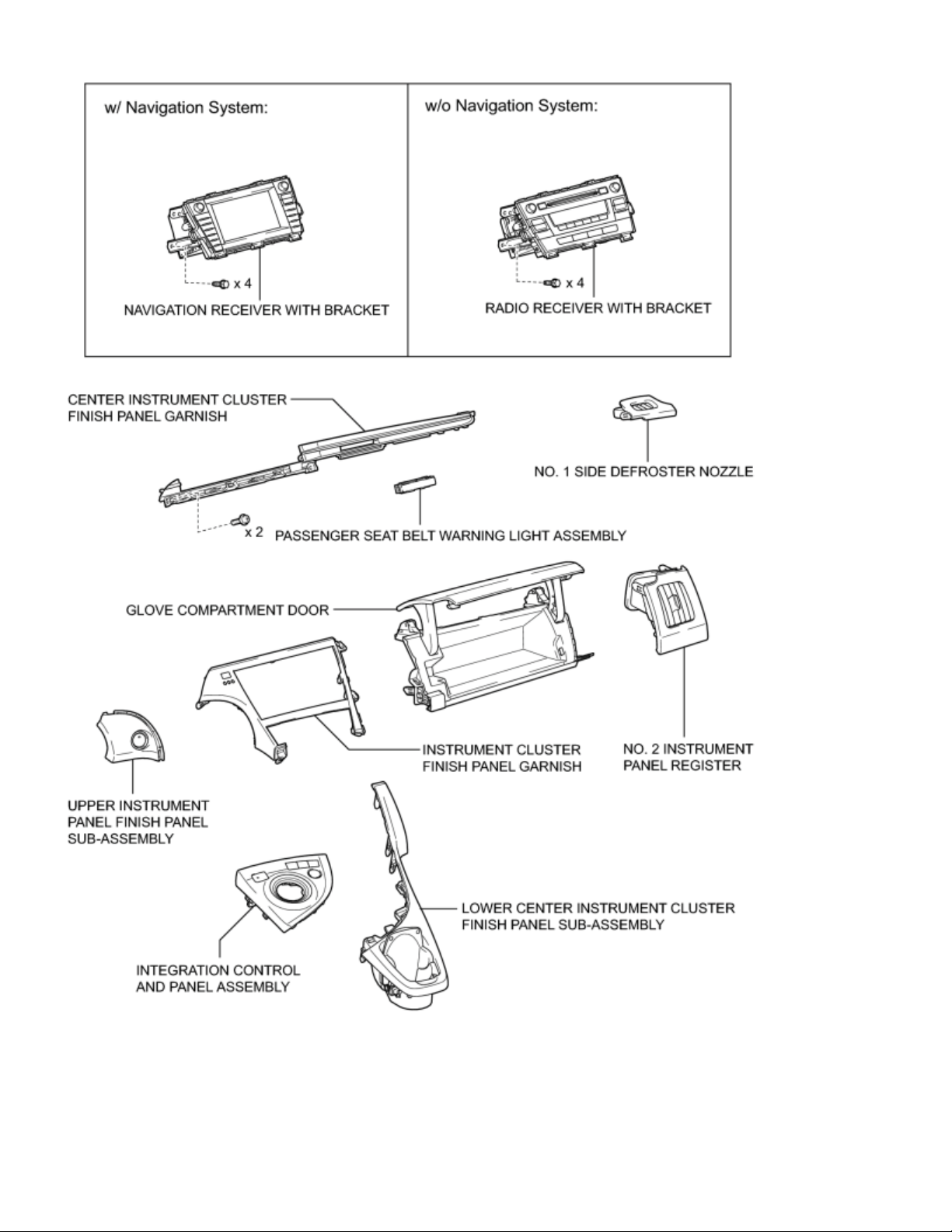

COMPONENTS

ILLUSTRATION

ILLUSTRATION

2010 Toyota Prius Repair Manual

2010 Toyota Prius Repair Manual

REMOVAL

1. PRECAUTION

CAUTION:

Be sure to read Precaution thoroughly before servicing .

2. REMOVE REAR NO. 2 FLOOR BOARD (for Separate Type)

3. REMOVE REAR DECK FLOOR BOX

4. REMOVE REAR NO. 3 FLOOR BOARD

5. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS

system.

NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected .

6. REMOVE INTEGRATION CONTROL AND PANEL ASSEMBLY

7. REMOVE LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

8. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH

9. REMOVE UPPER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

10. REMOVE RADIO RECEIVER WITH BRACKET (w/o Navigation System)

11. REMOVE NAVIGATION RECEIVER WITH BRACKET (w/ Navigation System)

12. REMOVE NO. 1 SIDE DEFROSTER NOZZLE

13. REMOVE NO. 2 INSTRUMENT PANEL REGISTER

14. REMOVE GLOVE COMPARTMENT DOOR

15. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL GARNISH

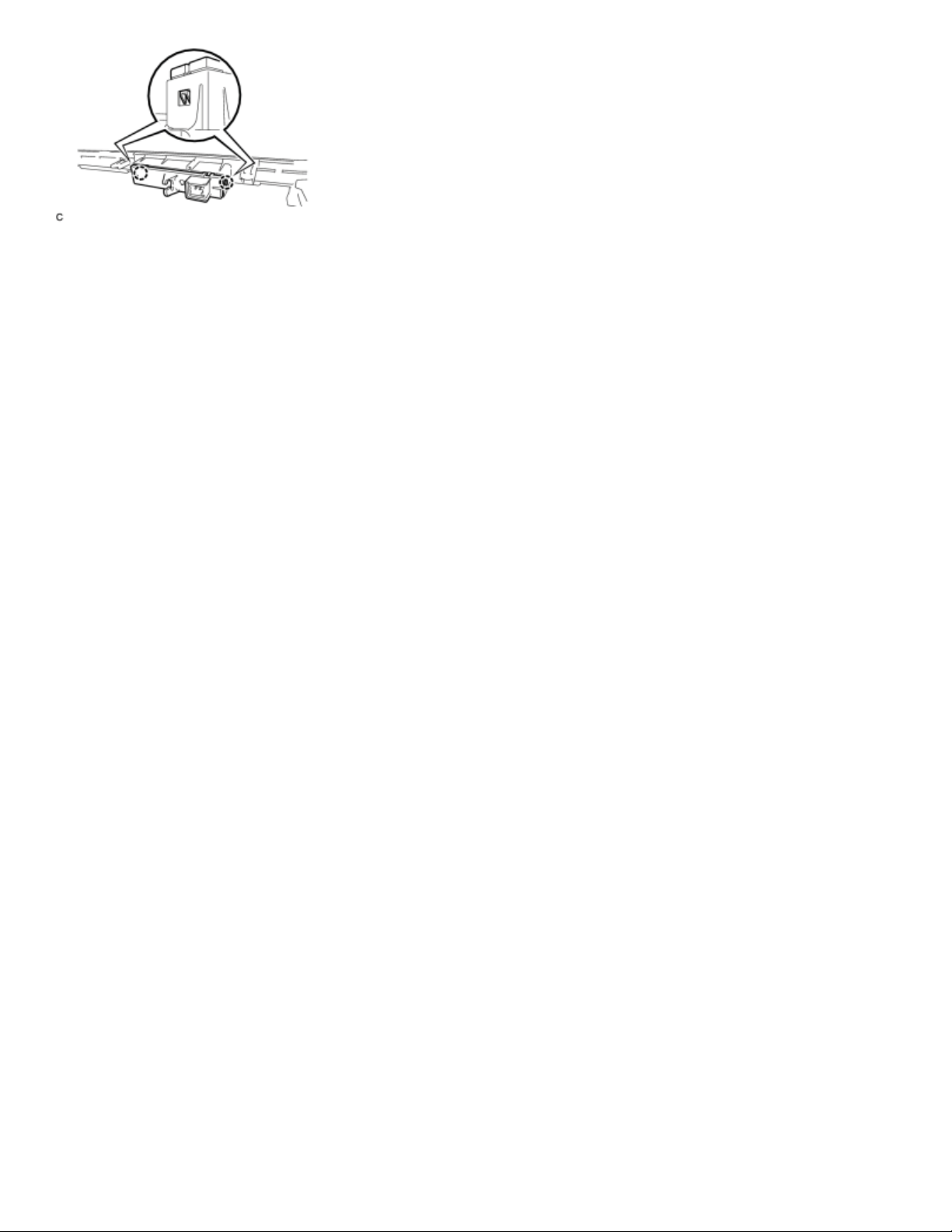

16. REMOVE PASSENGER SEAT BELT WARNING LIGHT ASSEMBLY

(a) Disengage the 2 claws to remove the passenger seat belt warning light

assembly.

2010 Toyota Prius Repair Manual

2010 Toyota Prius Repair Manual

INSPECTION

1. INSPECT PASSENGER SEAT BELT WARNING LIGHT ASSEMBLY

(a) Apply battery voltage to the connector and check the passenger airbag

ON/OFF indicator condition.

Result:

Connection

Result

Battery positive (+) →M2-6 (IG+)

Battery negative (-) →M2-1 (PAON)

"ON" comes on

Battery positive (+) →M2-6 (IG+)

Battery negative (-) →M2-5 (P-AB)

"OFF" comes on

Text in Illustration

*1

Component without harness connected

(Passenger Seat Belt Warning Light Assembly)

If the result is not as specified, replace the passenger seat belt warning

light assembly.

2010 Toyota Prius Repair Manual

INSTALLATION

1. INSTALL PASSENGER SEAT BELT WARNING LIGHT ASSEMBLY

(a) Engage the 2 claws to install the passenger seat belt warning light

assembly.

2. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL GARNISH

3. INSTALL GLOVE COMPARTMENT DOOR

4. INSTALL NO. 2 INSTRUMENT PANEL REGISTER

5. INSTALL NO. 1 SIDE DEFROSTER NOZZLE

6. INSTALL RADIO RECEIVER WITH BRACKET (w/o Navigation System)

7. INSTALL NAVIGATION RECEIVER WITH BRACKET (w/ Navigation System)

8. INSTALL UPPER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

9. INSTALL INSTRUMENT CLUSTER FINISH PANEL GARNISH

10. INSTALL LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

11. INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY

12. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected .

13. INSTALL REAR NO. 3 FLOOR BOARD

14. INSTALL REAR DECK FLOOR BOX

15. INSTALL REAR NO. 2 FLOOR BOARD

16. PERFORM DIAGNOSTIC SYSTEM CHECK

2010 Toyota Prius Repair Manual

(a) Perform a diagnostic system check .

17. INSPECT SRS WARNING LIGHT

(a) Inspect the SRS warning light .

PARTS LOCATION

ILLUSTRATION

ILLUSTRATION

SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: PARTS LOCATION (2009 Prius)

2004-2009 Toyota Prius Service Manual

ILLUSTRATION

SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: PARTS LOCATION (2009 Prius)

2004-2009 Toyota Prius Service Manual

SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: PARTS LOCATION (2009 Prius)

2004-2009 Toyota Prius Service Manual
