2006

Highlander

!Aword about safe vehicle operations

This Pocket Reference Guide is a summary of

basic vehicle operations. It contains brief

descriptions of fundamental operations so you

can locate and use the vehicle’s main

equipment quickly and easily.

The Pocket Reference Guide is not intended

as a substitute for the Owner’s Manual

located in the vehicle’s glove box. We

strongly encourage you to review the Owner’s

Manual and supplementary manuals so you

will have a better understanding of the

vehicle’s capabilities and limitations.

Your dealership and the entire staff of Toyota

Motor Sales, U.S.A., Inc., wish you many

years of satisfied driving in your new

Highlander.

This Pocket Reference Guide is not a full

description of Highlander operations.

Every Highlander owner should review the

Owner’sManual that accompanies this

vehicle.

Pay special attention to the boxed

“ ” information highlighted in

this reference guide and throughout the

Owner’s Manual.Each box contains safe

operating instructions to help you avoid

injury or equipment malfunction.

All information in this Pocket Reference

Guide is current at the time of printing.

Toyota reserves the right to make changes

at any time without notice.

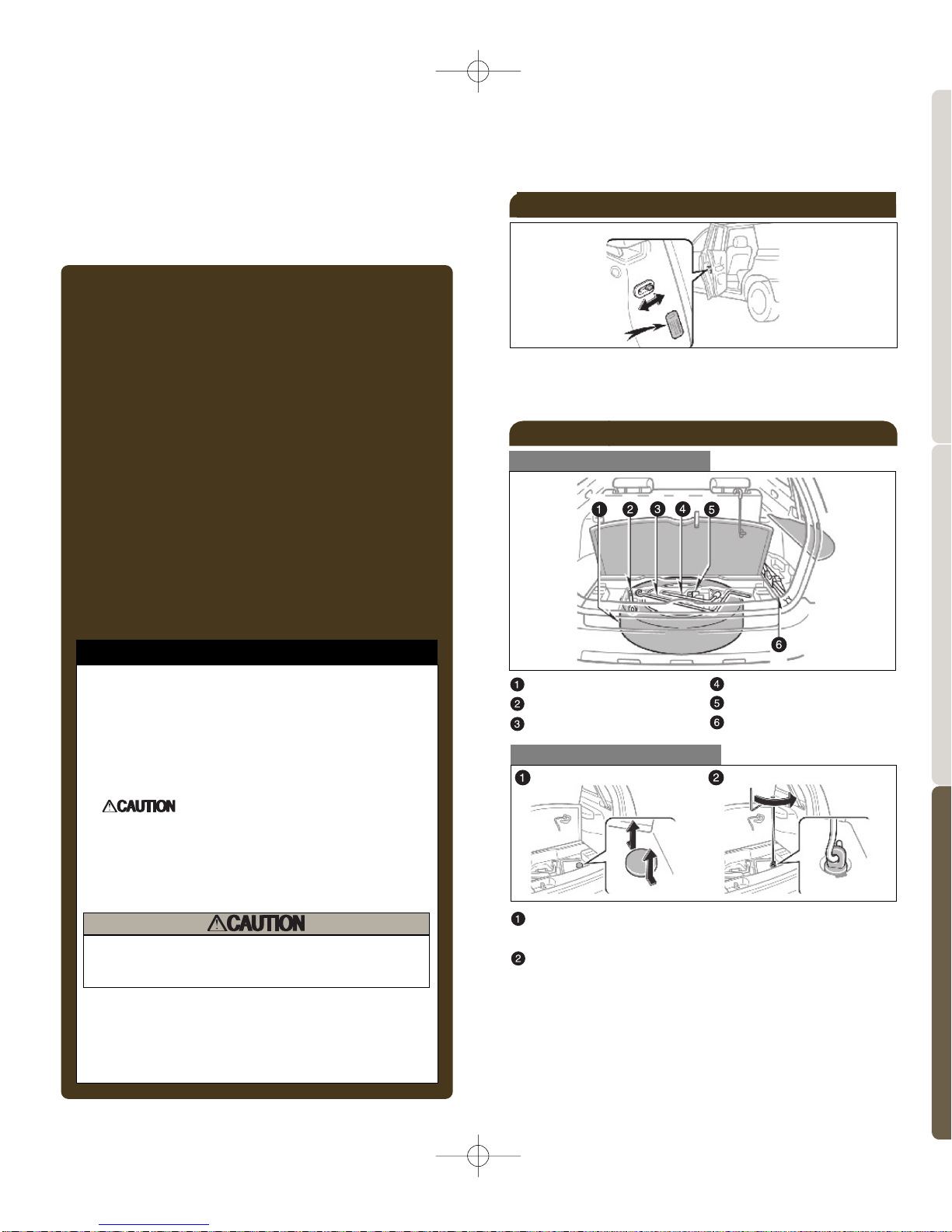

Spare tire & tools

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Tool location

Removing the spare tire

Spare tire

Front towing eyelet

Jack handle

Remove the cover under the center deck board

to find the spare tire clamp bolt.

Put the adapter socket on the spare tire clamp

bolt. Loosen the bolt by turning it

counterclockwise with the jack handle.

Refer to the Owner’s Manual for jack positioning and

tire changing procedures.

This utility vehicle has a significantly higher rollover

rate than other types of vehicles. Refer to the

Owner’s Manual for important rollover information.

Doors-Child safety locks

Move the lever to “LOCK,” allowing the door to be

opened only from the outside.

Wheel nut wrench

Adapter socket

Jack

06 High Cvr.qxd 7/29/05 4:19 PM Page 2

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

INDEX

Item Page no.

OVERVIEW

Engine maintenance 7

Fuel tank door release and cap 6

Hood release 7

Indicator symbols 4-5

Instrument cluster 4

Instrument panel 2-3

Keyless entry1,2 6

FEATURES/OPERATIONS

Air conditioning/Heating 16-17

Audio 14-15

Automatic transmission 8

Bottle holder 11

Clock 18

Cruise control 18

Cup holders 11

Door locks211

Garage door opener (HomeLink®)319

Light control-Instrument panel 11

Lights2&turn signals 12

Moonroof 18

Parking brake 13

Power outlets 19

Rear seat entertainment system 16

Seat adjustments-Front 9

Seat adjustments-Rear 9

Seat heaters 10

Seats-Head restraints 10

Tilt steering wheel 10

Windows 13

Windshield wiper & washer 13

SAFETY AND EMERGENCY FEATURES

Doors-Child safety locks 21

Seat belts 20

Seat belts-Shoulder belt anchor 20

Spare tire & tools 21

Tire Pressure Warning System 20

1Programmable by customer. Refer the the Owner’s

Manual for instructions and more information.

2Visit your Toyota dealer for information on this and

other customizable options.

3HomeLink®is a registered trademark of Johnson Controls, Inc.

06 High Ins.qxd 7/29/05 4:17 PM Page 1

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

OVERVIEW

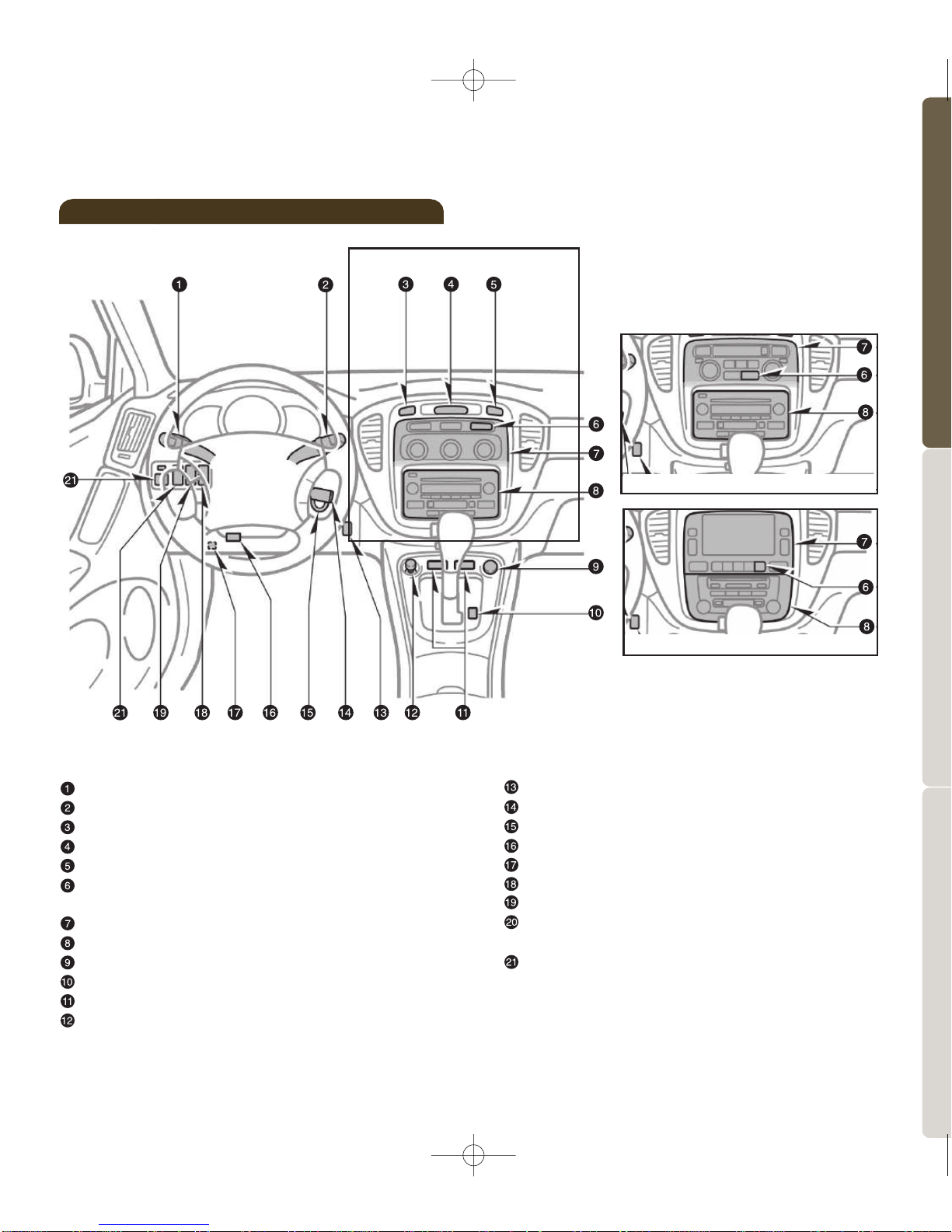

Instrument panel

-Manual air conditioning system

Automatic air conditioning system

With navigation system

“TRAC OFF” (Traction Control “OFF”) switch1

Cruise control lever

Ignition

Tilt steering lock release lever

Tire Pressure Warning System reset

115V Power outlet ON/OFF switch1

Rear heater main switch

Theft deterrent system/Engine immobilizer

indicator light1

Power rear view mirror controls

1If equipped

2For vehicles equipped with Navigation system,

refer to the Navigation system Owner’s Manual

Headlight, turn signal and front fog light1controls

Wiper and washer controls

Emergency flasher switch

Clock2

Front passenger’s seat belt reminder light

Rear window and outside rearview mirror defogger1

and windshield wiper de-icer1switch

Air conditioning controls2and/or Navigation system2

Audio2

“AIRBAG ON” and “AIRBAG OFF” indicator lights

Snow mode button

Seat heater switches1

12V DC Power outlet/Cigarette lighter

Manual air conditioning system

06 High Ins.qxd 7/29/05 4:17 PM Page 2

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

OVERVIEW

1For details, refer to “Service reminder indicators and warning

buzzers,” Section 1-6, 2006 Owner’s Manual.

2If this light flashes, refer to “Cruise control,” Section 1-7, 2006

Owner’sManual.

Tachometer

Service indicator and reminder

Speedometer

Fuel gauge

Low fuel level warning

Engine coolant temperature

Trip meter reset knob

Odometer and two trip meters

Instrument panel light control

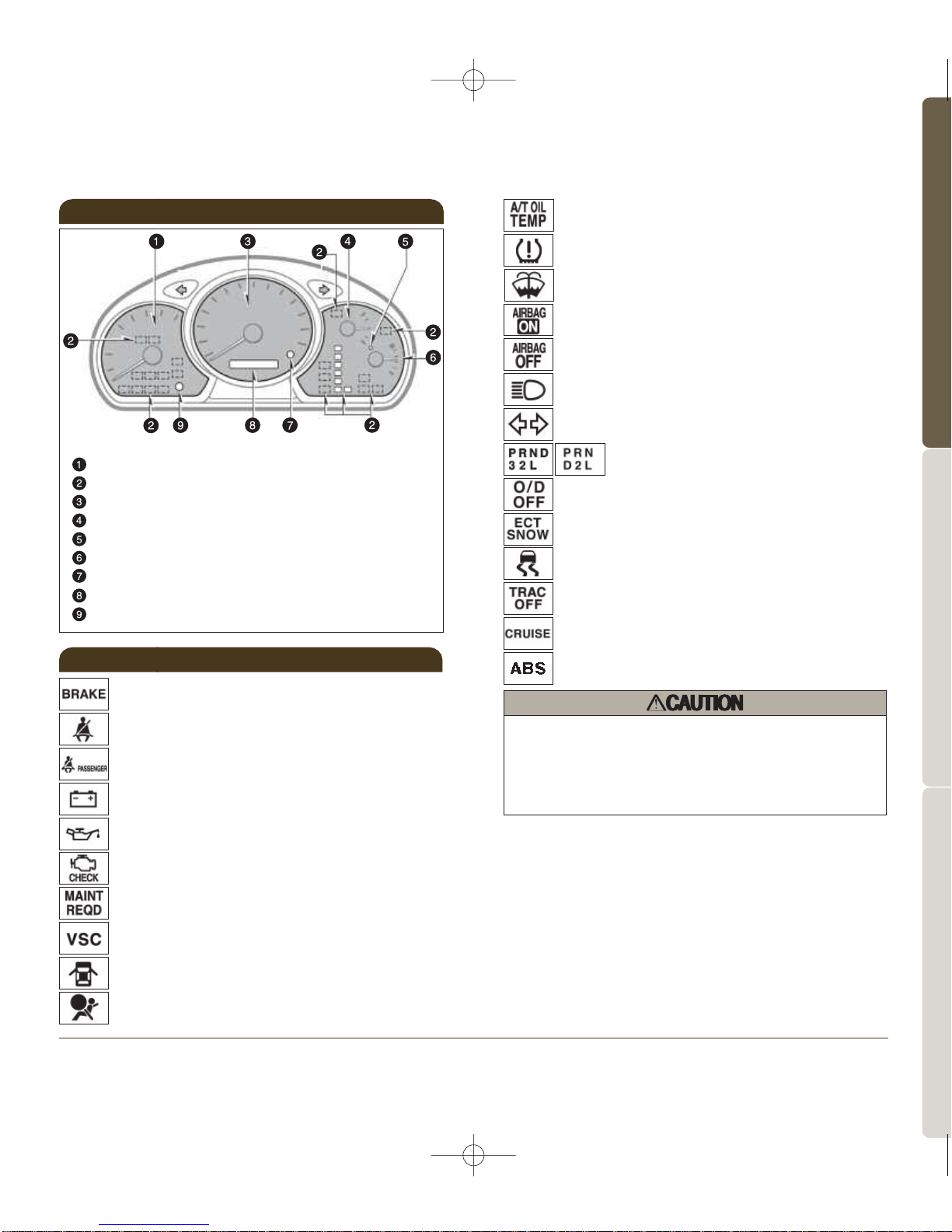

Instrument cluster

Anti-lock Brake System warning1

When the Anti-lock Brake System (ABS) function is in

action, you may feel the brake pedal pulsating and

hear a noise. In this situation, to let the Anti-lock

Brake System work for you, just hold the brake pedal

down more firmly. Do not pump the brake as this will

result in reduced braking performance.

Driver’s seat belt reminder1

Front passenger’s seat belt reminder1

Battery warning1

Low engine oil pressure warning1

Brake system warning1

Malfunction/Check Engine indicator1

Engine oil replacement reminder1

Indicator symbols

Vehicle Stability Control warning1

Headlight high beam indicator

Turn signal indicator

Automatic transmission fluid temperature

warning1

Low Tire Pressure Warning1

“AIRBAG ON” indicator

“AIRBAG OFF” indicator

Open door warning1

Airbag SRS warning1

Low windshield washer fluid level warning1

Automatic transmission indicators

(5-speed)/(4-speed)

Overdrive “OFF” indicator

Snow mode indicator

Slip indicator

Traction Control “OFF” indicator

Cruise control indicator2

06 High Ins.qxd 7/29/05 4:17 PM Page 4

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

OVERVIEW

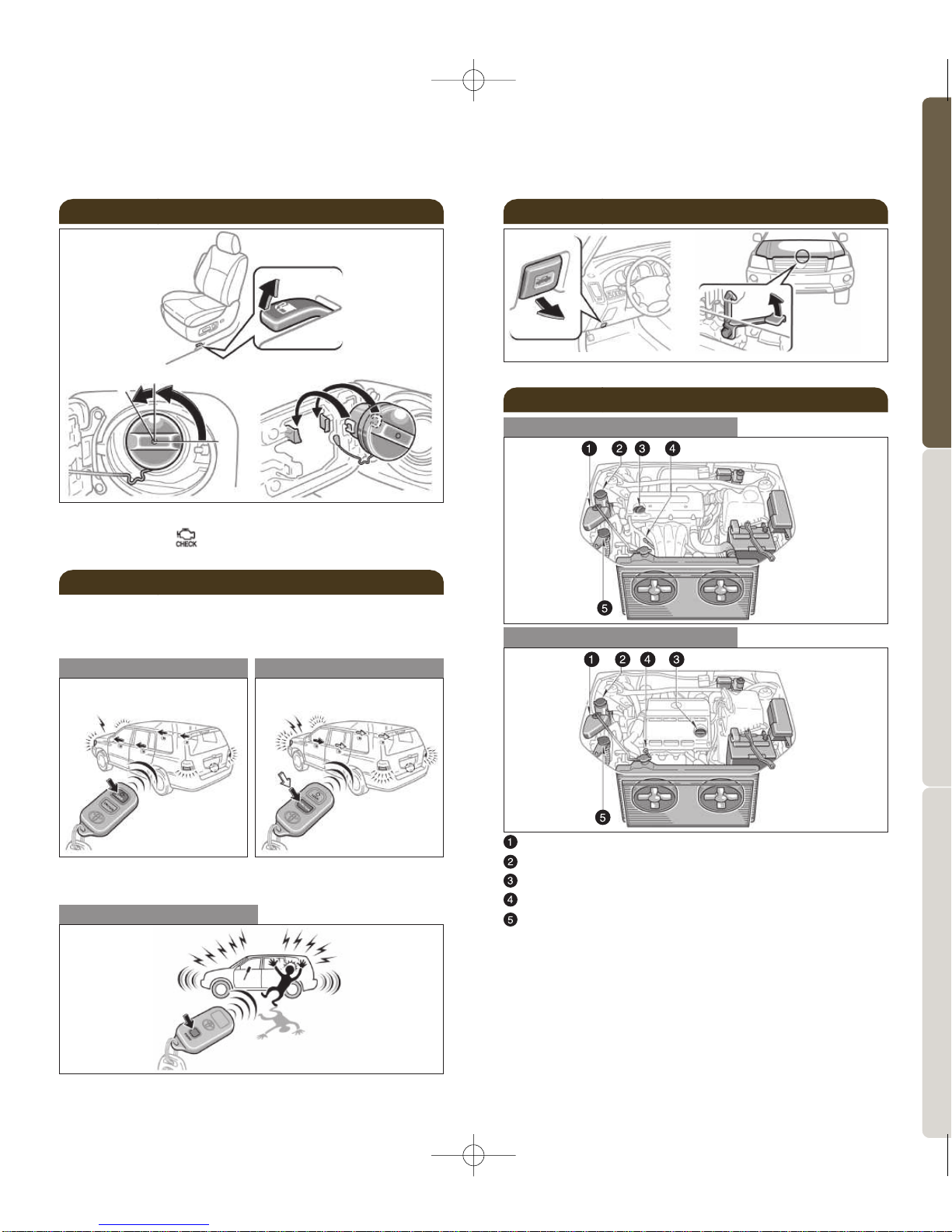

Fuel tank door release and cap Hood release

Turn Store

Pull up

NOTE: If the cap is not tightened enough, Check

Engine “ ” indicator may illuminate.

Pull Pull up to

release,

then raise

Keyless entry (if equipped)

Locking operation Unlocking operation

Alarm operation

Beep sound can be switched “ON” or “OFF” by

customer. Refer to the Owner’s Manual for more

details.

Push Push ONCE: Driver door

TWICE: All doors

Push

NOTE:

After unlocking, if a door is not opened within

thirty (30) seconds, all doors will relock for safety.

Engine maintenance

Engine coolant reservoir

Power steering fluid reservoir

Engine oil filler cap

Engine oil level dipstick

Windshield and rear window washer fluid tank

Note: Regularly scheduled maintenance, including

oil changes, will help extend the life of

your vehicle and maintain performance.

Please refer to the “Owner’s Warranty

Information Booklet,” “Scheduled

Maintenance Guide” or “Owner’sManual

Supplement.”

4cylinder (2AZ-FE) engine

6 cylinder (3MZ-FE) engine

06 High Ins.qxd 7/29/05 4:17 PM Page 6

FEATURES/OPERATIONS

Automatic Transmission

Park1

Reverse

Neutral

Drive

Third gear

Second gear

First gear

1The ignition must be ON, and the brake pedal

depressed.

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Overdrive switch

5-speed models

Park1

Reverse

Neutral

Drive

Second gear

First gear Overdrive switch

4-speed models

Overdrive switch

5-speed models ··· “OFF”

“ON”

4-speed models ··· “OFF”

“ON”

During normal driving conditions, always drive with

overdrive “ON;” this allows the transmission to shift

automatically, increasing fuel economy. If the “O/D

OFF” indicator light on the instrument cluster is

illuminated, overdrive is “OFF.”

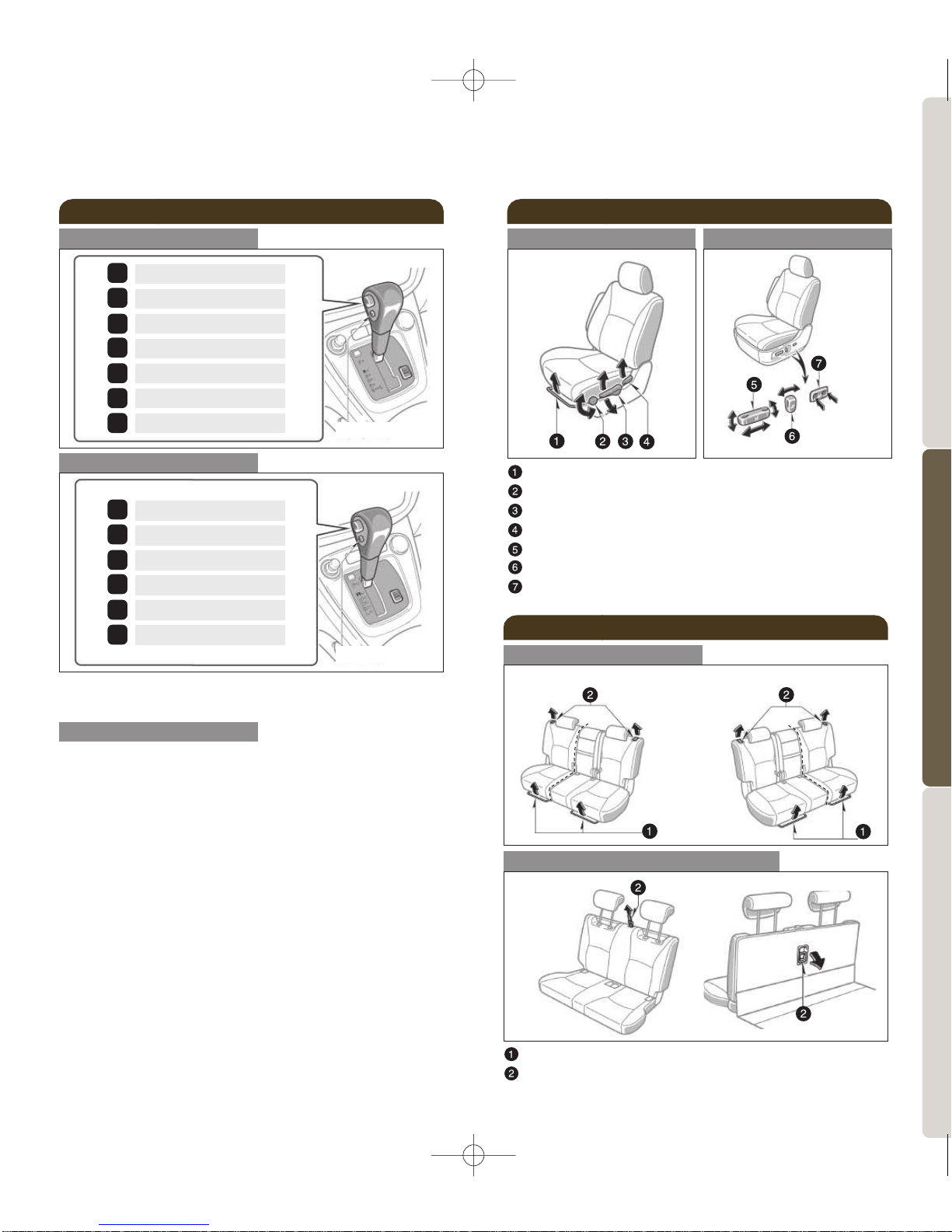

Seat adjustments-Front

Manual Seat Power Seat

Position

Cushion angle

Height crank (driver side only)

Seatback angle

Position/cushion angle/height selector

Seatback angle

Lumbar support

Second row seats

with third seat

Position

Seatback angle

Seat adjustments-Rear

Third row seats (if equipped)

without third seat

From front From rear

:Fourth gear

: Fifth gear

: Third gear

: Fourth gear

06 High Ins.qxd 7/29/05 4:17 PM Page 8

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

FEATURES/OPERATIONS

Light control-Instrument panel

Brightness

control

Bottle holders

Lock release button Lock release

button

Tilt steering wheel

Note: Do not attempt to adjust while the vehicle

is in motion.

Lock release lever

Angle

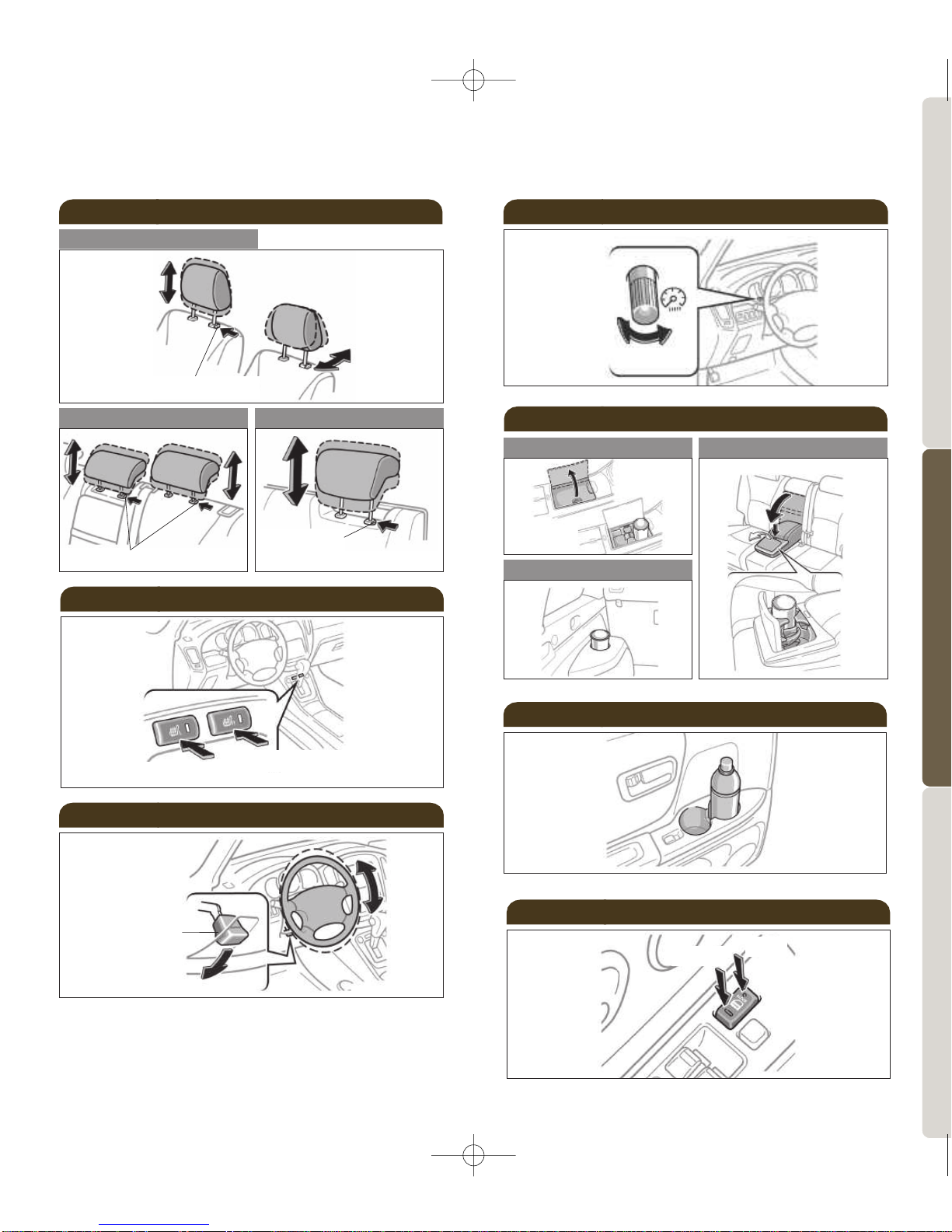

Seats-Head restraints

Angle (If equipped)

Lock release button

Height

Second row seats

Front seats

Seat heaters (if equipped)

Left front seat Right front seat

Third row seats

Hold wheel, push lever down, set angle then return

lever.

Cup holders

Second row seat

Front seat

Third row seat

Door locks

Lock

Unlock

06 High Ins.qxd 7/29/05 4:17 PM Page 10

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

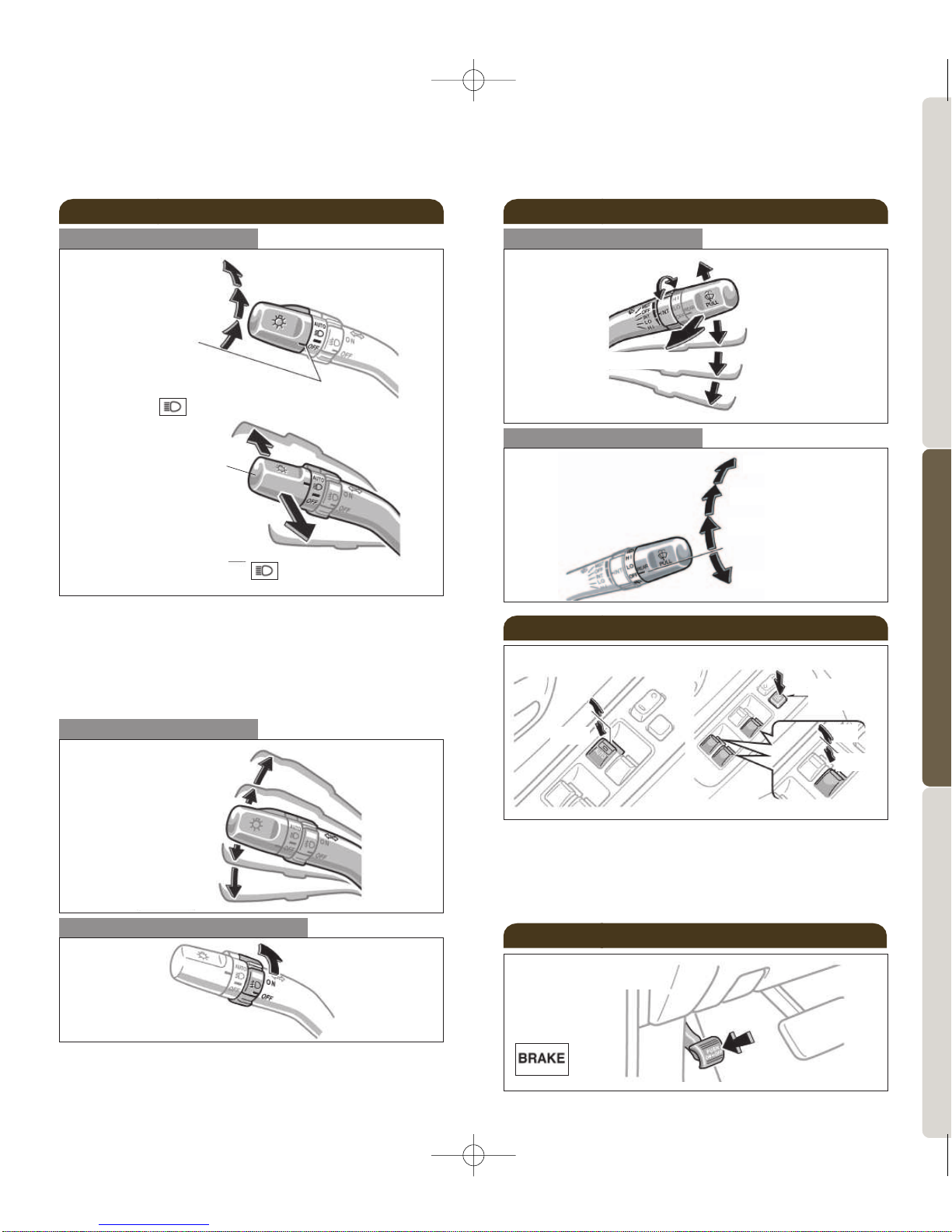

Windshield wiper & washer

Interval wipe

Slow

Fast

Pull to wash and wipe

Single wipe

Adjust interval

Windows

Window

lock switch

Driver side

Automatic operation (Driver side window) Push

the switch completely down or pull it completely up

and release to fully open or close. To stop window

mid-way, lightly push the switch in the opposite

direction.

Down Up

Down

Front

Rear

Wash and wipe

Wipe

Interval wipe

Wash and wipe

Parking brake

Set: Depress

Release: Depress again

FEATURES/OPERATIONS

Lights & turn signals

Headlights

Turn signals

AUTO*

Parking lights

High beam flasher

*If equipped

High beams

Low beams

Headlights

-Automatic light cutoff system Automatically turns

off the lights when the driver’s door is opened and

the ignition is in the “ACC” or “LOCK” position.

-Daytime Running Light system (If equipped)

Automatically turns on the headlights at a reduced

intensity.

Front fog lights turn on only when the headlights are

on low beam.

Front fog lights (if equipped)

Right turn

Left turn

Turn

Lane change

06 High Ins.qxd 7/29/05 4:17 PM Page 12

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

CASSETTE TAPE PLAYER

CD PLAYER

To fast forward Push “ .”

To rewind Push “ .”

To change a direction Push “ .”

To scan tracks on a disc Push either side of “SCAN.”

Push again to hold selection.

CD Changer (Type 2 only)

-To load one disc Push “LOAD” and insert 1 disc.

-Toload multiple discs Push and hold “LOAD” until

you hear a beep. Insert one disc. Shutter will close

and then re-open for next disc.

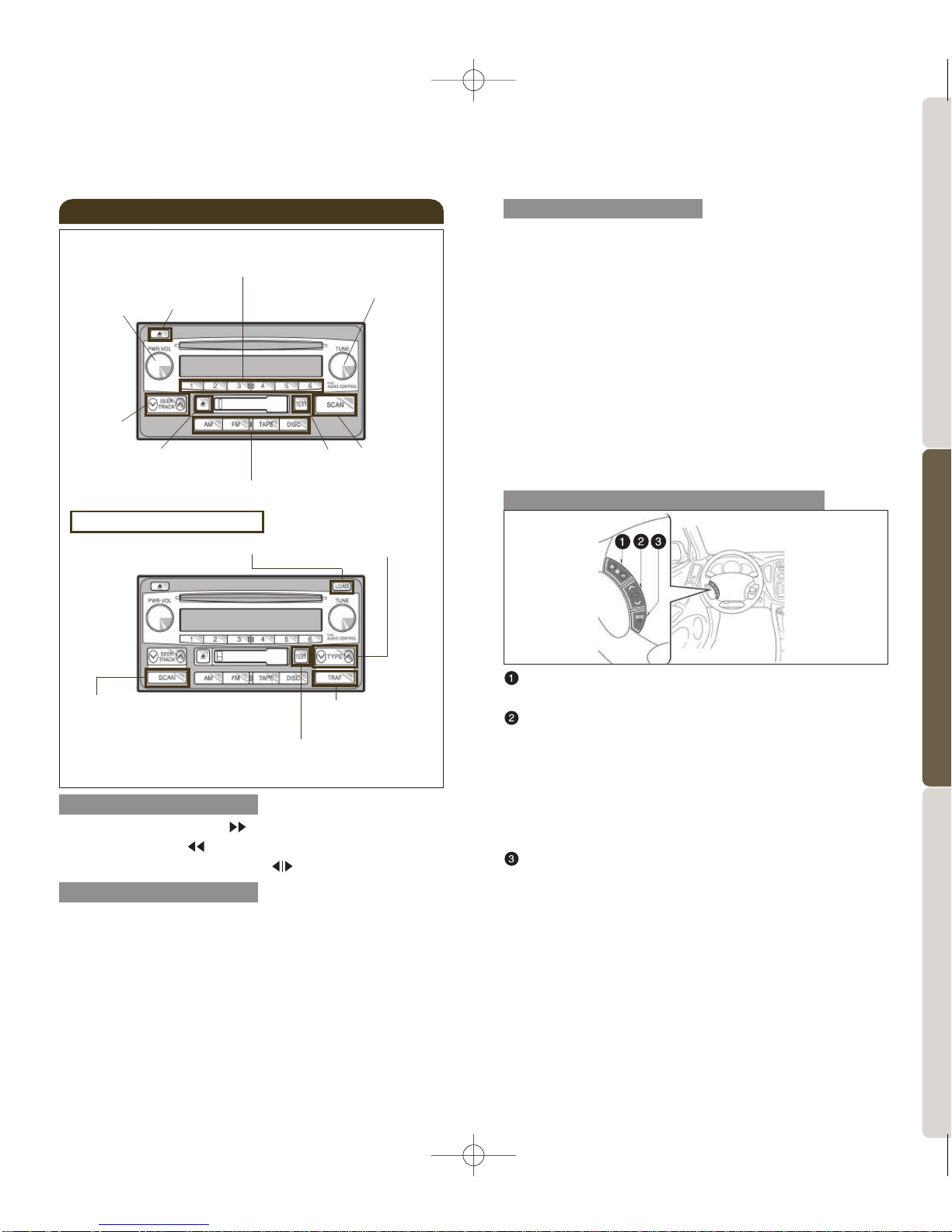

Audio

View CD

information

Eject CD

Push to turn

ON/OFF Push to

adjust

tone &

balance

Seek

station/

CD track

select Station or

CD track

scan

Mode

Load CD(s)

Type 2 functions include:

Eject

cassette tape

Traffic

information

View genre with

RDS system

View radio and

CD information

Preset buttons - Functions in

CD/Cassette modes indicated above

number on display.

Station or

CD track

scan

FEATURES/OPERATIONS

RADIO

“SCAN” Push and hold to scan preset stations. Push

again to hold selection.

Preset buttons Tune in the desired station and press

a preset button (1-6) until you hear a beep. Push

desired preset button (1-6) to select.

RDS (Radio Data System-FM, Type 2 only)

-Push TYPE “ ” or “ ” to view current program

genre. Push again within 6 seconds to select new

genre.

-Push “SEEK/TRACK” or “SCAN” to find same genre

programs.

-Push “TEXT” to receive information transmitted

from radio stations.

“- +”

Volume control

“ ”

-In radio mode Push to select a preset station,

push and hold to seek the next strong station.

-In tape mode Push to skip up or down to the

next/previous track, push and hold to fast

forward or reverse.

-In CD mode Push to skip up or down to the

next/previous track.

“MODE”

Push to turn audio on and select an audio mode.

Push and hold to turn the audio system “OFF.”

Steering wheel switches (if equipped)

06 High Ins.qxd 7/29/05 4:17 PM Page 14

Autres manuels pour Highlander guide

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Toyota Automobile

Toyota

Toyota SIENNA - 2011 Manuel utilisateur

Toyota

Toyota Avalon 2004 Manuel utilisateur

Toyota

Toyota Land Cruiser 200 2015 Manuel utilisateur

Toyota

Toyota Land Cruiser Prado 2013 Manuel utilisateur

Toyota

Toyota 2014 RAV4 Limited Manuel utilisateur

Toyota

Toyota 2006 HIGHLANDER HYBRID Manuel utilisateur

Toyota

Toyota 2013 Prius PHV Manuel utilisateur

Toyota

Toyota COROLLA CROSS HYBRID 2020 Manuel utilisateur

Toyota

Toyota Prius 2007 Manuel utilisateur

Toyota

Toyota RAV4 2007 Manuel utilisateur

Toyota

Toyota Celica 1997 Manuel utilisateur

Toyota

Toyota Land Cruiser 2001 Manuel utilisateur

Toyota

Toyota Prius 2007 Manuel utilisateur

Toyota

Toyota 2003 HIGHLANDER Manuel utilisateur

Toyota

Toyota 2006 RAV4 Manuel utilisateur

Toyota

Toyota 2006 Solara U Manuel utilisateur

Toyota

Toyota Camry Hybrid 2013 Manuel d'utilisation

Toyota

Toyota SIENNA U Manuel d'installation et d'exploitation

Toyota

Toyota RAV4 (RHD) - MMC Manuel utilisateur

Toyota

Toyota prius plug-in hybrid 2013 Manuel utilisateur

Toyota

Toyota Prius 2024 Manuel utilisateur

Toyota

Toyota 2003 HIGHLANDER Manuel utilisateur

Toyota

Toyota 2005 HIGHLANDER Manuel utilisateur

Toyota

Toyota HIGLANDER - CONDENSED BROCHURE 2011 Manuel utilisateur

Manuels Automobile populaires d'autres marques

CITROËN

CITROËN DS4 DSign Manuel utilisateur

Lexus

Lexus 2015 CT 200h Manuel utilisateur

Cadillac

Cadillac CTS 2008 Manuel utilisateur

Mercedes-Benz

Mercedes-Benz M-class ML 55 AMG Manuel utilisateur

Porsche

Porsche Boxster S Manuel utilisateur

GMC

GMC 2010 Savana 1500 Cargo Manuel utilisateur

KIAM

KIAM SPORTAGE 2014 Manuel de la liste des pièces

GMC

GMC 2013 Terrain Instructions de montage

GMC

GMC T-Series 1999 Manuel utilisateur

Mercury

Mercury 1998 Mystique Manuel utilisateur

Mercury

Mercury 2007 Mariner Manuel utilisateur

Mazda

Mazda 2007 Mazdaspeed 3 Mode d’emploi

Mazda

Mazda 2014 CX-5 Manuel utilisateur

GMC

GMC Chevrolet Express 2022 Manuel utilisateur

GMC

GMC 1997 Jimmy Manuel utilisateur

Chevrolet

Chevrolet 2012 Malibu Manuel utilisateur

Cadillac

Cadillac 2010 Escalade Manuel utilisateur

Skoda

Skoda FABIA RS - ANNEXE 118 Manuel utilisateur
