Toyota AVALON 2008 Manuel utilisateur

’08 MATRIX_U (L/O 0706)

2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)

OPERATION OF INSTRUMENTS AND

CONTROLS

Overview of instruments and controls

Instrument panel overview 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Instrument cluster overview 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Indicator symbols on the instrument panel 6. . . . . . . . . . . . . . . . . . . . . . .

SECTION

−

’08 MATRIX_U (L/O 0706)

2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)

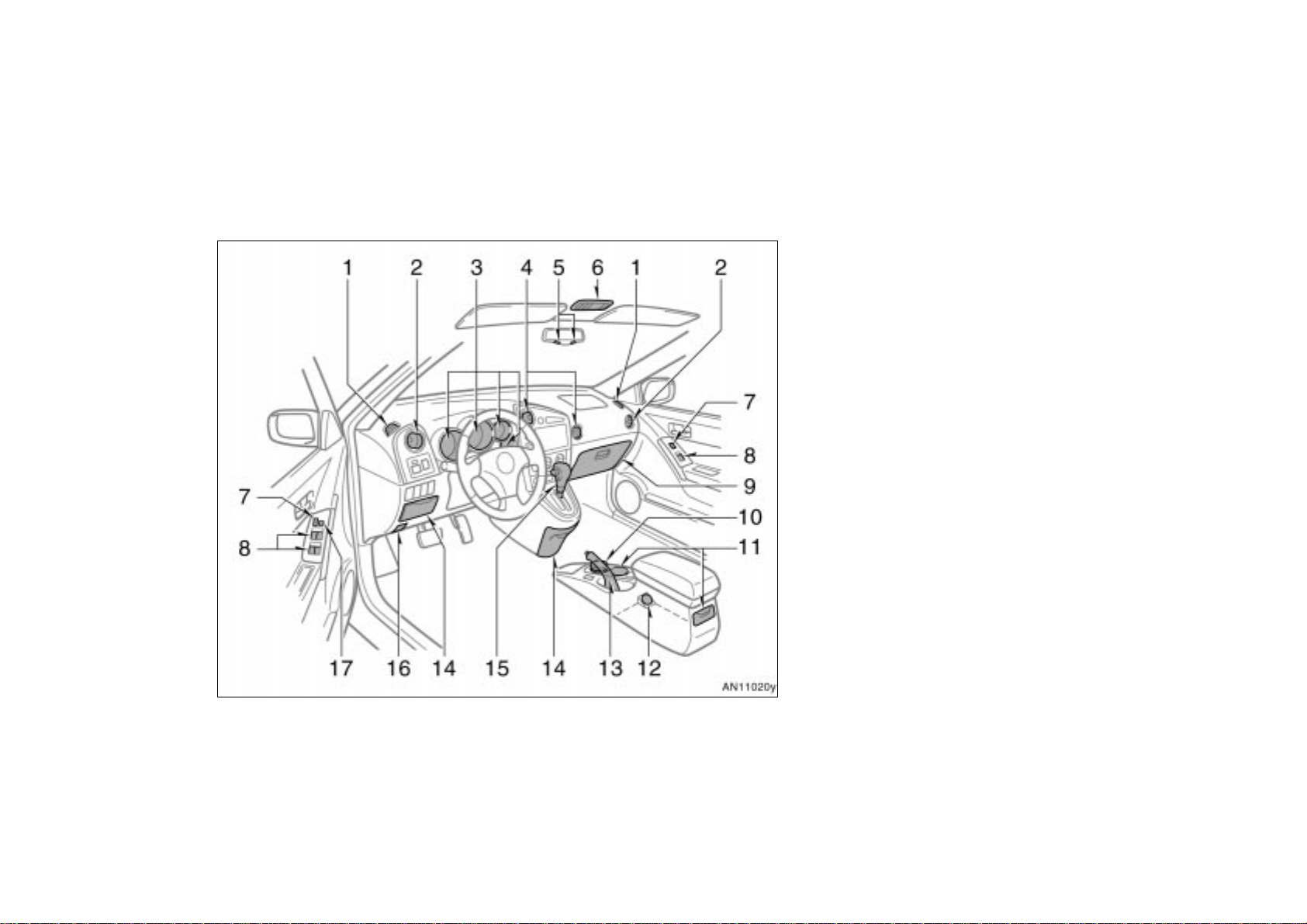

1. Side defroster outlets

2. Side vents

3. Instrument cluster

4. Center vents

5. Personal lights

6. Electric moon roof switches and

personal light

7. Power door lock switches

8. Power window switches

9. Glove box

10. Portable ashtray

11. Cup holders

12. Power outlet (12 VDC)

13. Parking brake lever

14. Auxiliary boxes

15. Automatic transmission selector lever

or manual transmission gear shift lever

16. Hood lock release lever

17. Window lock switch

Instrument panel overview

View A

’08 MATRIX_U (L/O 0706)

2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)

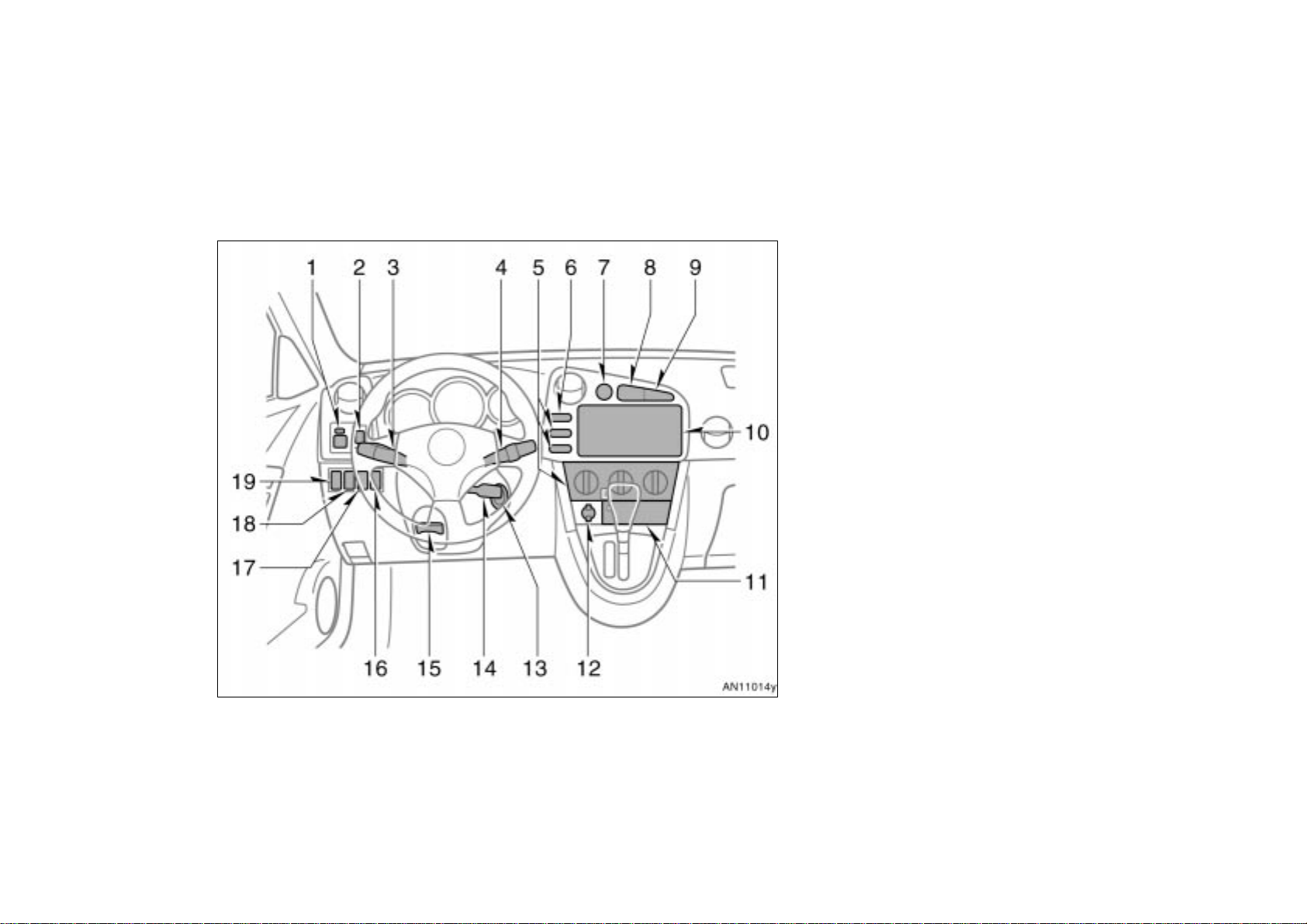

1. Power rear view mirror control switches

2. Instrument panel light control dial

3. Headlight, turn signal and front fog

light switches

4. Wiper and washer switches

5. Air conditioning controls

6. Rear window defogger switch

7. Emergency flasher switch

8. Clock

9. Front passenger’s seat belt reminder

light/front passenger occupant

classification indicator light

10. Audio system

11. Auxiliary box or power outlet (115 VAC)

12. Power outlet (12 VDC) or cigarette

lighter

13. Ignition switch

14. Cruise control switch

15. Tilt steering lock release lever

16. “TRAC OFF” (traction control system

off) switch

17. Engine immobilizer system/Toyota

vehicle intrusion protection system

indicator light

View B

’08 MATRIX_U (L/O 0706)

2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)

18. Tire pressure warning system reset

switch

19. Glass hatch opener switch

’08 MATRIX_U (L/O 0706)

2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)

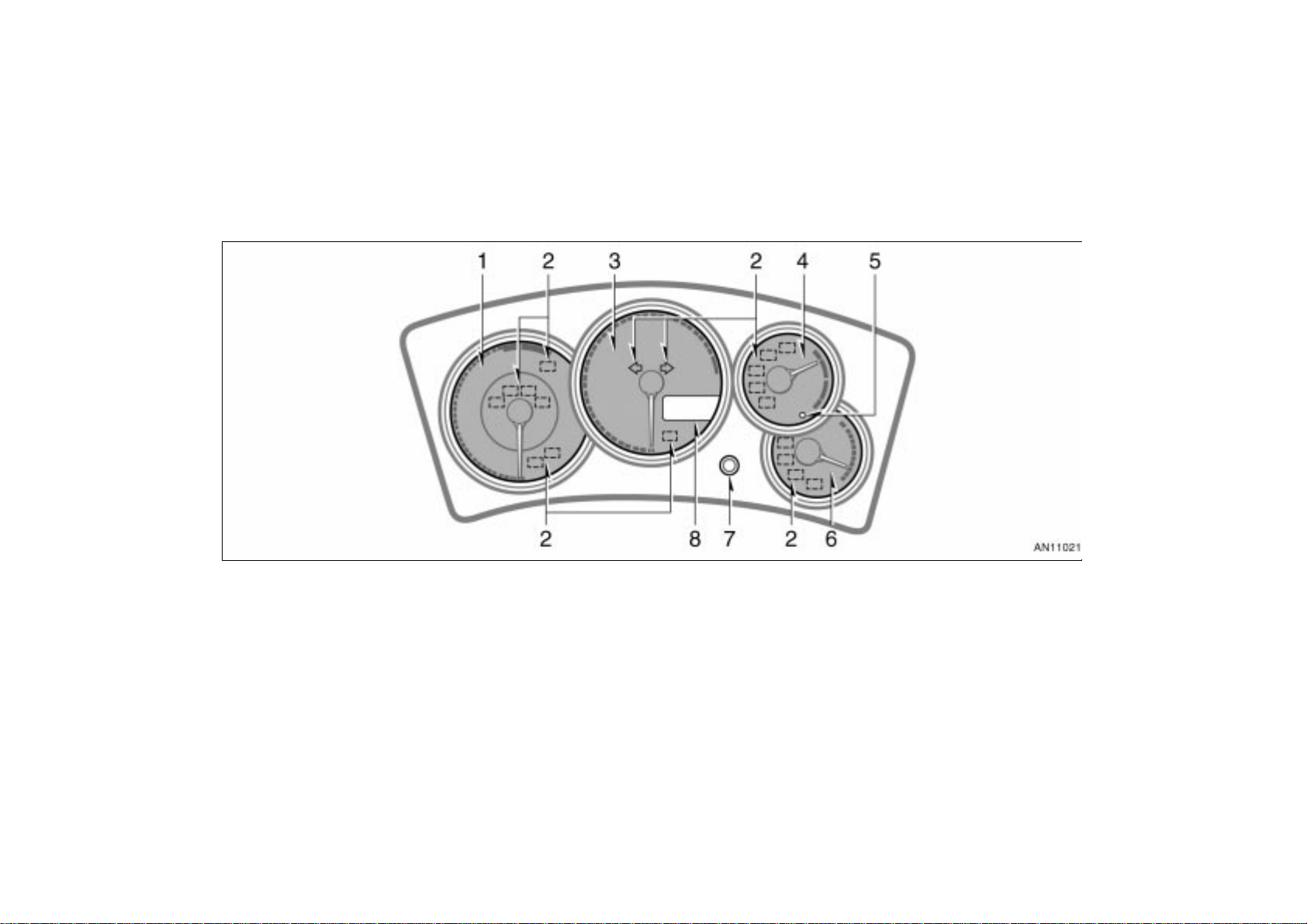

1. Tachometer

2. Service reminder indicators and

indicator lights

3. Speedometer

4. Fuel gauge

5. Low fuel level warning light

6. Engine coolant temperature gauge

7. Trip meter reset knob

8. Odometer, two trip meters and outside

temperature display

Instrument cluster overview

’08 MATRIX_U (L/O 0706)

2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)

Brake system warning light∗1

Charging system warning light∗1

Low engine oil pressure warning light∗1

Malfunction indicator lamp∗1

SRS warning light∗1

Driver’s seat belt reminder light∗1Open door warning light∗1

Anti−lock brake system warning light∗1

Low windshield washer fluid level warning light∗1

Front passenger’s seat belt reminder light∗1

Vehicle stability control system/traction control

system warning light∗1

Low tire pressure warning light∗1

Engine oil replacement reminder light∗1

Front passenger occupant classification indicator

light

Indicator symbols on the instrument panel

’08 MATRIX_U (L/O 0706)

2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)

∗1: For details, see “Service reminder indicators and warning

buzzers” on page 105 in Section 1−6.

∗2: If this light flashes, see “Cruise control” on page 133 in

Section 1−7.

Cruise control indicator light∗2

Overdrive−off indicator light

Turn signal indicator lights

Headlight high beam indicator light

Headlight indicator light

Tail light indicator light

Slip indicator light/traction control system off

indicator light

’08 MATRIX_U (L/O 0706)

2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)

’08 MATRIX_U (L/O 0706)

2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)

OPERATION OF INSTRUMENTS AND

CONTROLS

Keys and Doors

Keys 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Engine immobilizer system 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Wireless remote control 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Side doors 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Power windows 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Back door 24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Glass hatch 25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Toyota vehicle intrusion protection system(TVIP) 26. . . . . . . . . . . . . . .

Hood 28. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fuel tank cap 29. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Electric moon roof 30. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION

−

’08 MATRIX_U (L/O 0706)

2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)

Your vehicle is supplied with two kinds

of keys.

1. Master keys (black)—

These keys work in every lock. Your

Toyota dealer will need one of them to

make a new key with a built−in trans-

ponder chip.

Since the side doors and back door

can be locked without a key, you

should always carry a spare master

key in case you accidentally lock your

keys inside the vehicle.

2. Sub key (gray)—

This key also works in every lock.

When using valet parking, leave the

sub key with the attendant.

A transponder chip for engine immobilizer

system has been placed in the head of

the master and sub keys. These chips are

needed to enable the system to function

correctly, so be careful not to lose these

keys. If you make your own duplicate key,

you will not be able to cancel the system

or start the engine.

NOTICE

When using a key containing a trans-

ponder chip, observe the following

precautions:



When starting the engine, do not

use the key with a key ring resting

on the key grip and do not press

the key ring against the key grip.

Otherwise the engine may not start,

or may stop soon after it starts.

Keys
