OPERATION OF INSTRUMENTS AND

CONTROLS

Overview of instruments and controls

Instrument panel overview 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Instrument cluster overview 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Indicator symbols on the instrument panel 8. . . . . . . . . . . . . . . . . . . . . . .

SECTION 1−1

carownersmanual.net

’05 MATRIX_U (L/O 0409)

2005 MATRIX from Sep. ’04 Prod. (OM12892U)

1. Side defroster outlets

2. Side vents

3. Instrument cluster

4. Center vents

5. Personal lights

6. Electric moon roof switches and

personal light

7. Power door lock switches

8. Power window switches

9. Glove box

10. Portable ashtray

11. Cup holders

12. Power outlet (12 VDC)

13. Parking brake lever

14. Auxiliary boxes

15. Automatic transmission selector lever

or manual transmission gear shift lever

16. Hood lock release lever

17. Window lock switch

Instrument panel overview

"View A

carownersmanual.net

’05 MATRIX_U (L/O 0409)

2005 MATRIX from Sep. ’04 Prod. (OM12892U)

1. Power rear view mirror control switches

2. Interior/instrument panel light control

dial

3. Headlight, turn signal and front fog

light switches

4. Wiper and washer switches

5. Air conditioning controls

6. Rear window defogger switch

7. Emergency flasher switch

8. Clock

9. Front passenger’s seat belt reminder

light/front passenger occupant

classification indicator light

10. Car audio

11. Auxiliary box or power outlet (115 VAC)

12. Power outlet (12 VDC) or cigarette

lighter

13. Ignition switch

14. Cruise control switch

15. Tilt steering lock release lever

16. “TRAC OFF” (traction control system

off) switch

17. Engine immobilizer system/Toyota

vehicle intrusion protection system

indicator light

"View B (vehicles without navigation system)

carownersmanual.net

’05 MATRIX_U (L/O 0409)

2005 MATRIX from Sep. ’04 Prod. (OM12892U)

18. Tire pressure warning system reset

switch

19. Glass hatch opener switch

carownersmanual.net

’05 MATRIX_U (L/O 0409)

2005 MATRIX from Sep. ’04 Prod. (OM12892U)

1. Power rear view mirror control switches

2. Interior/instrument panel light control

dial

3. Headlight, turn signal and front fog

light switches

4. Wiper and washer switches

5. Air conditioning controls

6. Emergency flasher switch

7. Rear window defogger switch

8. Front passenger’s seat belt reminder

light/front passenger occupant

classification indicator light

9. Navigation system

10. Auxiliary box or power outlet (115 VAC)

11. Power outlet (12 VDC) or cigarette

lighter

12. Ignition switch

13. Cruise control switch

14. Tilt steering lock release lever

15. “TRAC OFF” (traction control system

off) switch

16. Engine immobilizer system/Toyota

vehicle intrusion protection system

indicator light

"View B (vehicles with navigation system)

carownersmanual.net

’05 MATRIX_U (L/O 0409)

2005 MATRIX from Sep. ’04 Prod. (OM12892U)

17. Tire pressure warning system reset

switch

18. Glass hatch opener switch

carownersmanual.net

’05 MATRIX_U (L/O 0409)

2005 MATRIX from Sep. ’04 Prod. (OM12892U)

1. Tachometer

2. Service reminder indicators and

indicator lights

3. Speedometer

4. Fuel gauge

5. Low fuel level warning light

6. Engine coolant temperature gauge

7. Trip meter reset knob

8. Odometer, two trip meters and outside

temperature display

Instrument cluster overview

carownersmanual.net

’05 MATRIX_U (L/O 0409)

2005 MATRIX from Sep. ’04 Prod. (OM12892U)

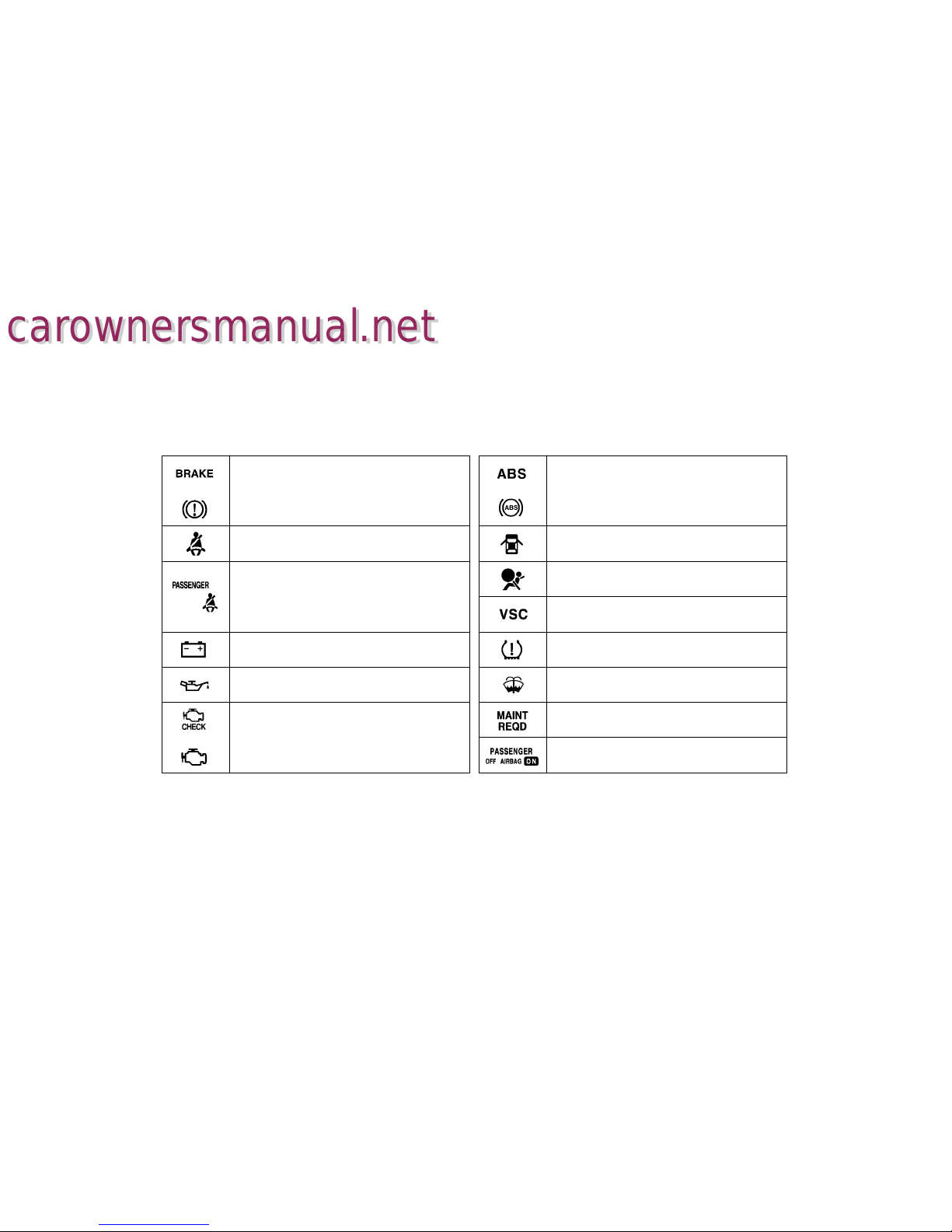

Brake system warning light∗1

Discharge warning light∗1

Low engine oil pressure warning light∗1

Malfunction indicator lamp∗1

SRS warning light∗1

Driver’s seat belt reminder light∗1Open door warning light∗1

Anti−lock brake system warning light∗1

Low windshield washer fluid level warning light

∗1, ∗3

Front passenger’s seat belt reminder light∗1

Vehicle stability control system/traction control

system warning light∗1

Low tire pressure warning light∗1

Engine oil replacement reminder light∗1

Front passenger occupant classification indicator

light

Indicator symbols on the instrument panel

carownersmanual.net

’05 MATRIX_U (L/O 0409)

2005 MATRIX from Sep. ’04 Prod. (OM12892U)

∗1: For details, see “Service reminder indicators and warning

buzzers” on page 107 in Section 1−6.

∗2: If this light flashes, see “Cruise control” on page 132 in

Section 1−7.

∗3: This symbol equipped only on vehicles sold in Canada.

Cruise control indicator light∗2

Overdrive−off indicator light

Turn signal indicator lights

Headlight high beam indicator light

Headlight low beam indicator light

Tail light indicator light

Slip indicator light/traction control system off

indicator light

carownersmanual.net

’05 MATRIX_U (L/O 0409)

2005 MATRIX from Sep. ’04 Prod. (OM12892U)

carownersmanual.net
