OPERATION OF INSTRUMENTS AND

CONTROLS

Overview of instruments and controls

Instrument panel overview 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Instrument cluster overview 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Indicator symbols on the instrument panel 7. . . . . . . . . . . . . . . . . . . . . . .

SECTION

WWW.MANUALS.WS

’04 4Runner_U (L/O 0409)

2004 4RUNNER from Sep. ’04 Prod. (OM35847U)

1. Side vents

2. Side defroster outlets

3. Instrument cluster

4. Center vents

5. Personal lights

6. Electric moon roof switch

7. Garage door opener

8. Auxiliary boxes

9. Glove box

10. Automatic transmission selector lever

11. Power door lock switches

12. Power window switches

13. Seat heater switches

14. “HEIGHT CONTROL OFF” switch

15. Rear vents

16. Trash holder

17. Height select switch

18. “DAC” switch

19. Front cup holders

20. Tilt steering lock release lever

Instrument panel overview

WWW.MANUALS.WS

’04 4Runner_U (L/O 0409)

2004 4RUNNER from Sep. ’04 Prod. (OM35847U)

21. Telescopic steering lock release lever

22. Parking brake pedal

23. Window lock switch

24. Power rear view mirror control switches

WWW.MANUALS.WS

’04 4Runner_U (L/O 0409)

2004 4RUNNER from Sep. ’04 Prod. (OM35847U)

1. Instrument panel light control dial

2. Headlight, turn signal and front fog

light switches

3. Audio remote control switches

4. Wiper and washer switches

5. Power back window switch

6. Car audio

7. Front passenger’s seat belt reminder

light

8. Engine immobilizer/theft deterrent

system indicator light

9. Multi-information display

10. Emergency flasher switch

11. Air conditioning controls

12. Auxiliary box

13. Back window and rear view mirror

defogger switch

14. Four- wheel drive control switch knob

(full- time four- wheel drive models) or

multi- mode control switch knob

(multi- mode four- wheel drive models)

15. Ignition switch

16. Cruise control switch

17. Hood lock release lever

WWW.MANUALS.WS

’04 4Runner_U (L/O 0409)

2004 4RUNNER from Sep. ’04 Prod. (OM35847U)

18. Fuel filler door opener

19. Roll sensing of curtain shield airbags

off switch

20. “TRAC OFF” switch

21. Center differential lock switch

22. Power outlet main switch

WWW.MANUALS.WS

’04 4Runner_U (L/O 0409)

2004 4RUNNER from Sep. ’04 Prod. (OM35847U)

1. Trip meter reset button

2. Tachometer

3. Service reminder indicators and

indicator lights

4. Speedometer

5. Fuel gauge

6. Low fuel level warning light

7. Engine coolant temperature gauge

8. Odometer and two trip meters

9. Odometer/two trip meter changeover

button

Instrument cluster overview

WWW.MANUALS.WS

’04 4Runner_U (L/O 0409)

2004 4RUNNER from Sep. ’04 Prod. (OM35847U)

Driver’s seat belt reminder light∗1

Low engine oil pressure warning light∗1

Engine oil replacement reminder light∗1

(for vehicles sold in U.S.A.)

Brake system warning light∗1

Malfunction indicator lamp∗1

Discharge warning light∗1

Anti- lock brake system warning light∗1

SRS warning light∗1

Open door warning light∗1

Front passenger’s seat belt reminder light∗1

Vehicle stability control system warning

light∗1

Traction control system warning light∗1

(two- wheel drive models)

Active traction control system warning light∗1

(four- wheel drive models)

Downhill assist control system warning

light∗1(four- wheel drive models)

Hill-start assist control system warning

light∗1

Automatic transmission fluid temperature

warning light∗1

Low windshield washer fluid level warning

light∗1(for vehicles sold in Canada)

Low tire pressure warning light∗1

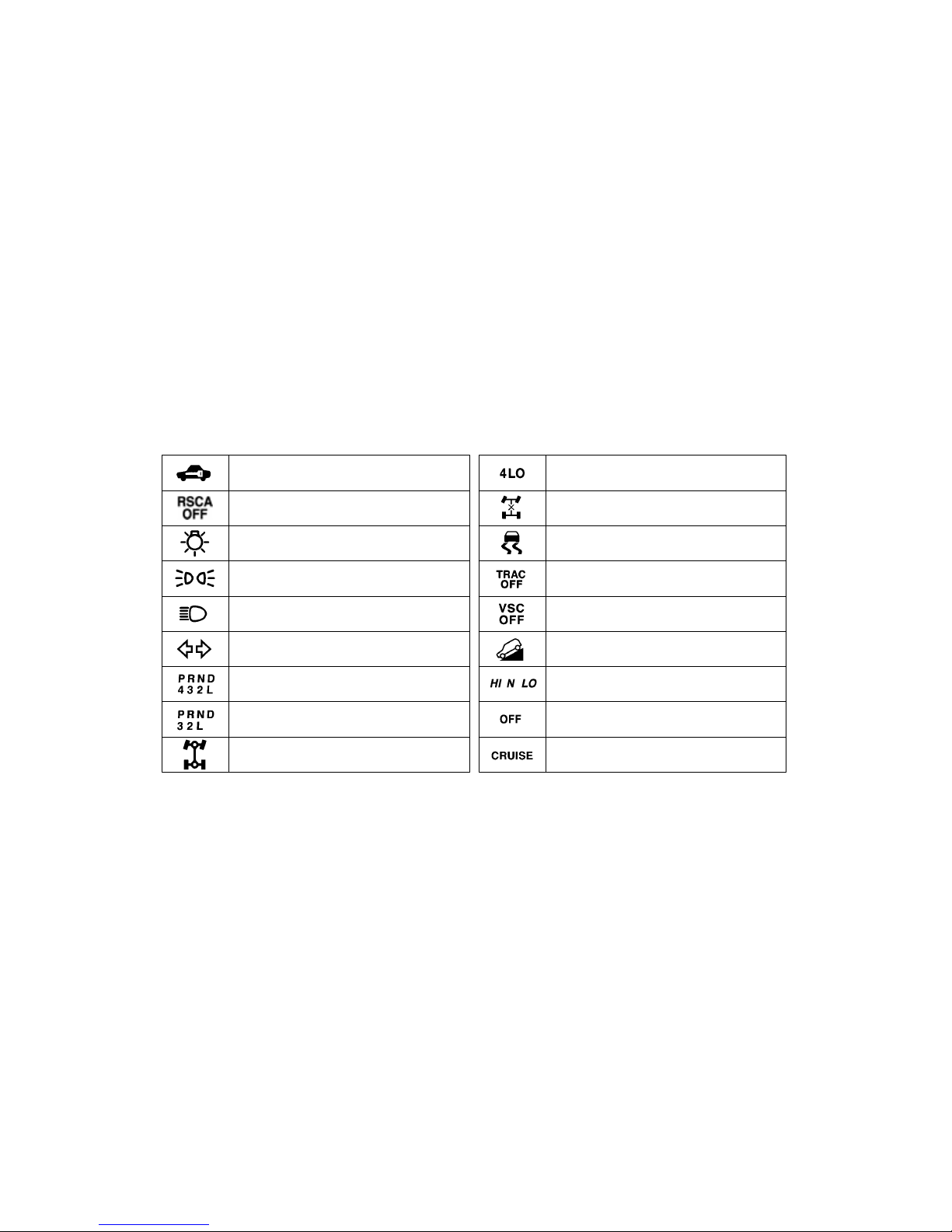

Indicator symbols on the instrument panel

WWW.MANUALS.WS

’04 4Runner_U (L/O 0409)

2004 4RUNNER from Sep. ’04 Prod. (OM35847U)

Cruise control indicator light∗5

Center differential lock indicator light∗3

(four- wheel drive models)

Automatic transmission indicator lights

(5- speed)

Traction control system off indicator light

(two- wheel drive models)

Vehicle stability control system off indicator light

(four- wheel drive models)

Slip indicator light

Turn signal indicator lights

Low speed four- wheel drive indicator light∗3

(four- wheel drive models)

Downhill assist control system indicator light

(four- wheel drive models)

Height control “OFF” indicator light∗4

Height control indicator lights

Headlight high beam indicator light

Automatic transmission indicator lights

(4- speed)

Four- wheel drive indicator light∗3

(multi- mode four- wheel drive models)

Engine immobilizer/theft deterrent system

indicator light

Roll sensing of curtain shield airbags off

indicator light∗2

Headlight low beam indicator light

Tail light indicator light

WWW.MANUALS.WS

’04 4Runner_U (L/O 0409)

2004 4RUNNER from Sep. ’04 Prod. (OM35847U)

∗1: For details, see “Service reminder indicators and warning

buzzers” on page 139 in Section 1- 6.

∗2: For details, see “Roll sensing of curtain shield airbags off

switch” on page 87 in Section 1-3.

∗3: If this light flashes, see “Four- wheel drive system” on page

160 in Section 1-7.

∗4: If this light flashes, see “Rear height control air suspension”

on page 180 in Section 1- 7.

∗5: If this light flashes, see “Cruise control” on page 190 in

Section 1- 7.
