Toyota 2006 RAV4 Manuel utilisateur

MN 00452-PRG06-RAV

Printed in USA 10/05

2006

Pocket Reference Guide

Customer Experience Center

1-800-331-4331

www.toyotaownersonline.com

06 Rav4-Cover.qxd 11/10/05 6:06 PM Page 1

To remove the spare tire, turn the wheel nuts

counterclockwise with the wheel nut wrench and

remove.

*If installed

Spare tire & tools

Tool location

Removing the spare tire

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

To remove the spare tire cover,* open the back

door. Unhook the latch on the bottom of the

cover. After closing the back door, remove the

cover.

!Aword about safe vehicle operations

This Pocket Reference Guide is a summary of

basic vehicle operations. It contains brief

descriptions of fundamental operations so you

can locate and use the vehicle’s main

equipment quickly and easily.

The Pocket Reference Guide is not intended

as a substitute for the Owner’s Manual

located in the vehicle’s glove box. We

strongly encourage you to review the Owner’s

Manual and supplementary manuals so you

will have a better understanding of the

vehicle’s capabilities and limitations.

Your dealership and the entire staff of Toyota

Motor Sales, U.S.A., Inc. wish you many years

of satisfied driving in your new RAV4.

This Pocket Reference Guide is not a full

description of RAV4 operations. Every

RAV4 owner should review the Owner’s

Manual that accompanies this vehicle.

Pay special attention to the boxed

“ ” information highlighted in

this reference guide and throughout the

Owner’s Manual.Each box contains safe

operating instructions to help you avoid

injury or equipment malfunction.

All information in this Pocket Reference

Guide is current at the time of printing.

Toyota reserves the right to make changes

at any time without notice.

This utility vehicle has a significantly higher

rollover rate than other types of vehicles. Refer to

the Owner’s Manual for important rollover

information.

2006

RAV4 Luggage compartment

Inside left side box

Refer to the Owner’s Manual for jack positioning and

tire changing procedures.

NOTE:To prevent theft, the latch can only be

released when the back door is opened

Luggage compartment

Inside right side box

Jack

Tool bag

06 Rav4-Cover.qxd 11/10/05 6:06 PM Page 2

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

INDEX

Item Page no.

OVERVIEW

Engine maintenance 7

Fuel tank door release and cap 6

Hood release 7

Indicator symbols 4-5

Instrument cluster 4

Instrument panel 2-3

Keyless entry16

FEATURES/OPERATIONS

Active torque control 4WD 8

Air Conditioning/Heating 14-15

Audio 16-17

Auto LSD (Limited Slip Differential) 19

Automatic transmission 8

Bottle holders 19

Clock 13

Cruise control 14

Cup holders 19

Door locks 18

Light control-Instrument panel 13

Lights & turn signals 12

Moonroof 18

Parking brake 12

Power outlets 18

Seat adjustments-Front 9

Seat adjustments-Second row seats 10

Seat heaters 15

Seats-Head restraints 9

Seats-Fold down second row seats 10

Seats-stowing third row seats 11

Tilt and telescopic steering wheel 13

Windows 13

Windshield wiper & washer 11

SAFETY AND EMERGENCY FEATURES

Doors-Child safety locks 20

Seat belts 20

Seat belts-Shoulder belt anchor 20

Spare tire & tools 21

Tire Pressure Warning System 20

1Visit your Toyota dealer for information on this and

other customizable options.

06 Rav4-Inside.qxd 11/10/05 6:03 PM Page 1

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

12V DC Power outlet

Seat heater switch

Downhill Assist Control (DAC) switch

Front passenger seat belt reminder light

Engine immobilizer indicator light1

Ignition

Cruise control

Tilt and telescopic steering release

1If equipped

OVERVIEW

Instrument panel

Instrument panel light control

Headlight, turn signal and front fog light1control

Audio steering wheel switches1

Wiper and washer controls

Four-wheel drive lock switch (4WD models) or

“AUTO LSD” switch (2WD models)

Audio

Emergency flasher switch

Front passenger occupant classification indicator

lights

Air Conditioning controls

Clock

Rear window and outside rearview mirror defogger1

switch

Automatic Air

Conditioning system

06 Rav4-Inside.qxd 11/10/05 6:03 PM Page 2

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

3If this light flashes, refer to “Cruise control,” Section 1-7, 2006

Owner’s Manual.

Automatic transmission indicator

Front passenger occupant classification indicator

Turn signal indicator

Front fog light indicator

Four-wheel drive lock indicator2

Slip indicator

Downhill Assist Control indicator

“AUTO LSD” indicator

Cruise control indicator3

Low windshield washer fluid level warning

light1

Open door warning1

Airbag SRS warning1

•Vehicle Stability Control warning1

•“AUTO LSD” warning1

•Traction Control warning1

•Downhill Assist Control warning1

•Hill-start Assist Control warning1

Headlight low/high beam indicator

OVERVIEW

1For details, refer to “Service reminder indicators and warning

buzzers,” Section 1-6, 2006 Owner’s Manual.

2For details, refer to “Active torque control 4WD system,”

Section 1-7, 2006 Owner’s Manual.

Tachometer

Service indicators and reminder

Speedometer

Engine coolant temperature

Fuel gauge

Odometer, two trip meters and outside

temperature display

Trip meter reset knob

Instrument cluster

Battery warning1

Low engine oil pressure warning1

Brake system warning1

Malfunction/Check Engine indicator1

Engine oil replacement reminder1

Anti-lock Brake System warning1

When the Anti-lock Brake System (ABS) function is in

action, you may feel the brake pedal pulsating and

hear a noise. In this situation, to let the Anti-lock

Brake System work for you, just hold the brake pedal

down more firmly. Do not pump the brake as this will

result in reduced braking performance.

Indicator symbols

Driver’s/Front passenger’s seat belt

reminder1

Low fuel level warning1

Automatic transmission fluid temperature

warning1

Low Tire Pressure Warning1

“4WD” warning2

Electric power steering system warning1

06 Rav4-Inside.qxd 11/10/05 6:03 PM Page 4

NOTE: If the cap is not tightened enough, the Check

Engine “ ” indicator may illuminate.

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Engine coolant reservoir

Engine oil filler cap

Engine oil level dipstick

Windshield and back window washer fluid tank

Note: Regularly scheduled maintenance, including

oil changes, will help extend the life of

your vehicle and maintain performance.

Please refer to the “Owner’s Warranty

Information Booklet,” “Scheduled

Maintenance Guide” or “Owner’s Manual

Supplement.”

Engine maintenance

OVERVIEW

Fuel tank door release and cap Hood release

Pull up

Turn

Store Pull Pull up to

release then

raise hood

NOTE: After unlocking, if a door is not opened within

thirty (30) seconds, all doors will relock for safety.

Alarm operation

Keyless entry (if equipped)

Locking operation Unlocking operation

Push

Push ONCE: Driver door

TWICE: All doors

06 Rav4-Inside.qxd 11/10/05 6:03 PM Page 6

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Auto lock functions

Automatic transmission

1The key must be in the “ON” or “ACC” position and

the brake pedal depressed.

Downshifting increases power going uphill, or

provides engine braking downhill. For best fuel

economy during normal driving conditions, always

drive with the shift lever in the “D” position.

FEATURES/OPERATIONS

Park1

Reverse

Neutral

Drive

Third gear

Second gear

First gear

Active torque control 4WD (4WD models)

Four-wheel drive lock switch

Push the switch to ensure that the engine torque is

applied to the 4 wheels.

NOTE: It should ONLY be used when wheel spinning

occurs on loose or unpaved surfaces.

Refer to the Owner’s Manual for complete details.

Position

Height crank (driver side only)

Seatback angle

Driver’s seat: position and cushion angle/height

Passenger’s seat: position only

Seatback angle

Lumbar support

Seat adjustments-Front

Manual Seat Power Seat

Seats-Head restraints

Front seats Second row seats

Third row seats

Lock release button

06 Rav4-Inside.qxd 11/10/05 6:03 PM Page 8

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

FEATURES/OPERATIONS

(1) Push

(2) Lower (3) Pull down

Seat adjustments-second row seats

Seats-fold down second row seats

Position

Seatback angle

Seatback lock release

Right side

remote seat release

Left side

remote seat release

Vehicles with third row seats

Vehicles without third row seats

NOTE: Do not attempt to adjust while the vehicle is

in motion.

Windshield wiper & washer

Rear

Front

Pull to wash and wipe

Adjust interval

Interval wipe

Slow

Fast

Wash and wipe

Wipe

Interval wipe

Wash and wipe

Seats-stowing third row seats (if equipped)

(2) Lower

(1) Push

(5) Pull up

(6) Push

down

(7) Push to lock in

(4) Fold down

(3) Pull

(8) Push to lock in

Vehicles with

third row seats

06 Rav4-Inside.qxd 11/10/05 6:04 PM Page 10

FEATURES/OPERATIONS

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Tilt and telescopic steering wheel

Hold wheel, push lever down, set angle and length,

then return lever.

Lock

release

lever

Length

Angle

Lights & turn signals

Turn signals

Headlights

High beam flasher

Low beam

Front fog lights (if equipped)

Headlights

-Automatic light cutoff system Automatically turns

lights off after 30 seconds when the driver’s door is

opened and closed with the key in “ACC” or “LOCK.”

Lights may also be turned off by pushing lock button

on remote.

-Daytime Running Light system (if equipped)

Automatically turns on the headlights at a reduced

intensity.

Front fog lights come on only when the headlights

are on low beam.

Parking lights

Right turn

Turn

Lane change

Left turn Windows

Driver side

Automatic operation (Driver side only) Push the

switch completely down or pull it completely up and

release to fully open or close. To stop window

midway, lightly push the switch in the opposite

direction.

Down

Passenger

windows

lock button

Down

Clock

NOTE: If the battery is disconnected, windows need

to be reinitialized. Refer to the Owner’s

Manual for more details.

Parking brake

Pull

(2) Push

(1) Pull slightly

(3) Lower

Set Release

High beam

Manual

Air Conditioning system

H- Hour set

M- Minutes set

:00- Round off minutes

Automatic

Air Conditioning system

Light control-Instrument panel

Brightness

control

06 Rav4-Inside.qxd 11/10/05 6:04 PM Page 12

1514

FEATURES/OPERATIONS

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Air Conditioning/Heating

Manual air conditioning

Air flow vent selector

Fan speed

Temperature

Air Conditioning ON/OFF

NOTE: Use fresh air to quickly cool interior,

then change to recirculate for cooler air

Rear defogger

Fresh or recirculated cabin air

Temperature (Driver side)

Temperature (Front passenger side)

Fresh or recirculated cabin air

Air flow vent selector

Air Conditioning ON/OFF

“DUAL” button

Micro dust and pollen filter ON/OFF

Rear defogger

Fan speed

Climate control OFF

Automatic climate control ON/OFF

Automatic air conditioning

In “ ” or “ ” mode, use fresh air

(“ ” indicator OFF) to reduce window fogging.

Cruise control

1The set speed may be cancelled by depressing the

brake pedal.

2Unless vehicle drops below 10 mph, the set speed

may be resumed once vehicle exceeds 25 mph.

Turning system ON/OFF

Functions

System ON/OFF

Resume2/Increase speed

Set/Decrease speed

Cancel1

Seat heaters

(if equipped)

Left front seat

Right front seat

In “ ” or “ ” mode, use fresh air

(“ ” indicator OFF) to reduce window fogging

06 Rav4-Inside.qxd 11/10/05 6:04 PM Page 14

Autres manuels pour 2006 RAV4

Table des matières

Autres manuels Toyota Automobile

Toyota

Toyota Supra 1997 Manuel utilisateur

Toyota

Toyota Sienna 2003 Manuel utilisateur

Toyota

Toyota Verso-S Manuel utilisateur

Toyota

Toyota COROLLA 2010 - Manuel utilisateur

Toyota

Toyota 2005 ECHO Manuel utilisateur

Toyota

Toyota 4Runner 2019 Manuel utilisateur

Toyota

Toyota Lexus IS300 Manuel utilisateur

Toyota

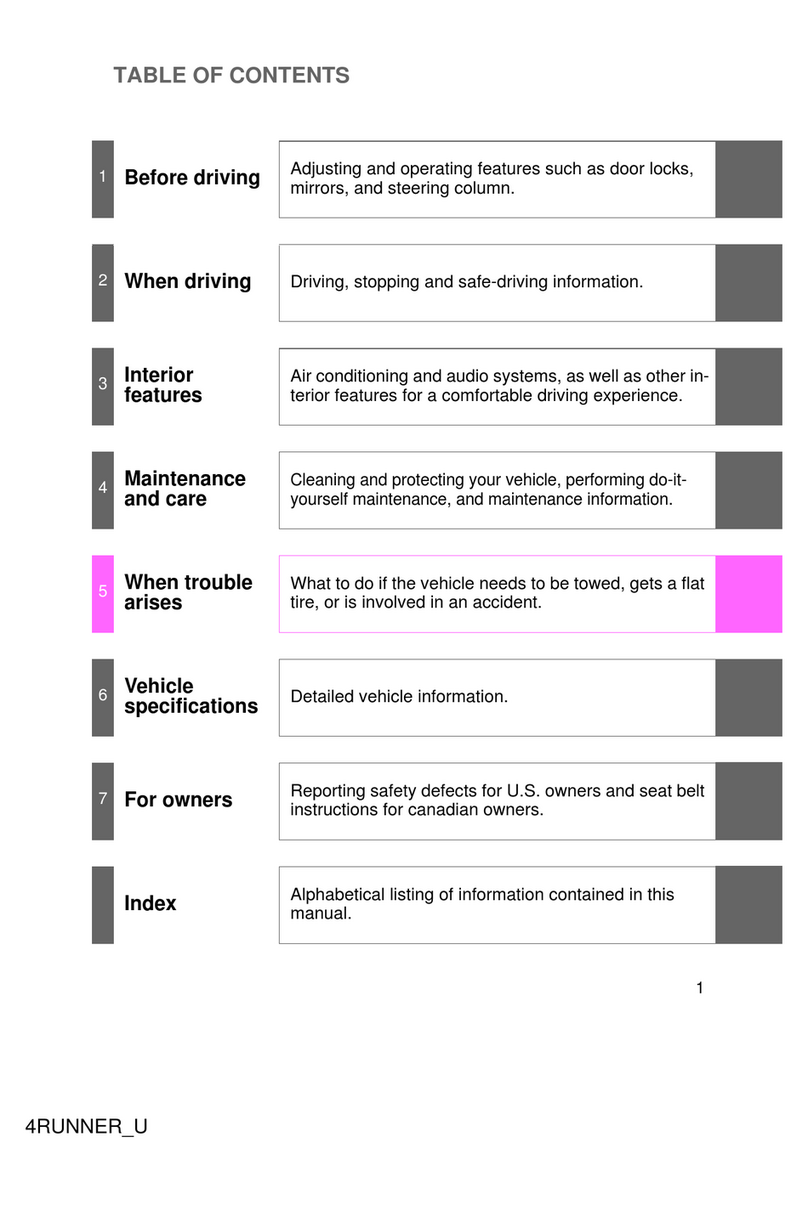

Toyota 4RUNNER BROCHURE 2011 Manuel utilisateur

Toyota

Toyota CAMRY 2006 Manuel utilisateur

Toyota

Toyota Camry Hybrid 2013 Manuel utilisateur

Toyota

Toyota CAMRY SOLARA 00452-PRG07-SOL Manuel utilisateur

Toyota

Toyota Prius 2010 Manuel utilisateur

Toyota

Toyota 2012 corolla Manuel utilisateur

Toyota

Toyota Avalon 2014 Manuel utilisateur

Toyota

Toyota TUNDRA 2004 Manuel utilisateur

Toyota

Toyota Corolla 2007 Manuel utilisateur

Toyota

Toyota Prius C 2018 Manuel utilisateur

Toyota

Toyota AVALON HYBRID Manuel utilisateur

Toyota

Toyota COROLLA SEDAN Manuel utilisateur

Toyota

Toyota Prius Prime 2021 Manuel utilisateur

Toyota

Toyota Sienna 2004 Manuel utilisateur

Toyota

Toyota 2000 4Runner Manuel utilisateur

Toyota

Toyota 1996 Celica Manuel utilisateur

Toyota

Toyota 2012 Yaris Hatchback Manuel utilisateur

Manuels Automobile populaires d'autres marques

CITROËN

CITROËN DS4 DSign Manuel utilisateur

Lexus

Lexus 2015 CT 200h Manuel utilisateur

Cadillac

Cadillac CTS 2008 Manuel utilisateur

Mercedes-Benz

Mercedes-Benz M-class ML 55 AMG Manuel utilisateur

Porsche

Porsche Boxster S Manuel utilisateur

GMC

GMC 2010 Savana 1500 Cargo Manuel utilisateur

KIAM

KIAM SPORTAGE 2014 Manuel de la liste des pièces

GMC

GMC 2013 Terrain Instructions de montage

GMC

GMC T-Series 1999 Manuel utilisateur

Mercury

Mercury 1998 Mystique Manuel utilisateur

Mercury

Mercury 2007 Mariner Manuel utilisateur

Mazda

Mazda 2007 Mazdaspeed 3 Mode d’emploi

Mazda

Mazda 2014 CX-5 Manuel utilisateur

GMC

GMC Chevrolet Express 2022 Manuel utilisateur

GMC

GMC 1997 Jimmy Manuel utilisateur

Chevrolet

Chevrolet 2012 Malibu Manuel utilisateur

Cadillac

Cadillac 2010 Escalade Manuel utilisateur

Skoda

Skoda FABIA RS - ANNEXE 118 Manuel utilisateur
