!A word about safe vehicle operations

This Pocket Reference Guide is a summary

guide for basic vehicle operations. It contains

brief descriptions of fundamental operations

so you can locate and use the vehicle’s main

equipment quickly and easily.

The Pocket Reference Guide is not intended

as a substitute for the Owner’s Manual

located in the vehicle’s glove box. We

strongly encourage you to review the Owner’s

Manual and supplementary manuals so you

will have a better understanding of the

vehicle’s capabilities and limitations.

Your dealership and the entire staff of Toyota

Motor Sales, U.S.A., Inc., wish you many

years of satisfied driving in your new ECHO.

This Pocket Reference Guide is not a full

guide to ECHO operations. Every ECHO

owner should review the Owner’s Manual

that accompanies this vehicle.

Pay special attention to the boxed

information highlighted in yellow

throughout the Owner’s Manual. Each box

contains safe operating instructions to

help you avoid injury or equipment

malfunction.

All information in this Pocket Reference

Guide is current at the time of printing.

Toyota reserves the right to make changes

at any time without notice.

Spare tire & tools

Tool location

Removing the spare tire

Jack handle

Wheel nut wrench

Jack

Spare tire

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Remove the spare tire cover.

Loosen the bolt and remove.

Refer to the Owner’s Manual for jack positioning and

tire changing procedures.

To open the trunk from inside Pull down the

phosphorescent handle on the inside of the trunk.

Trunk-Internal release handle

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

TABLE OF CONTENTS

Item Page no.

OVERVIEW

Engine compartment 8

Fuel tank door opener and cap 6

Hood release lever 7

Indicator symbols 4-5

Instrument cluster 4-5

Instrument panel 2-3

Light control-Instrument panel 7

Trunk release lever 6

FEATURES/OPERATIONS

Air conditioning/Heating 15

Audio 16-17

Automatic transmission 9

Clock 13

Cup holders 11

Door locks-Power 12

Keyless entry 18

Lights & turn signals 12

Parking brake 13

Power outlet 18

Seat adjustments-Front 10

Seat adjustments-Rear 11

Seats-Head restraints 10

Tilt steering wheel 10

Windows-Power 14

Windshield wiper & washer 13

SAFETY AND EMERGENCY FEATURES

Airbag-Supplemental Restraint System 20

Doors-Child safety locks 19

Seat belts 19

Seat belts-Shoulder belt anchor 19

Spare tire & tools 21

Trunk-Internal release handle 21

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

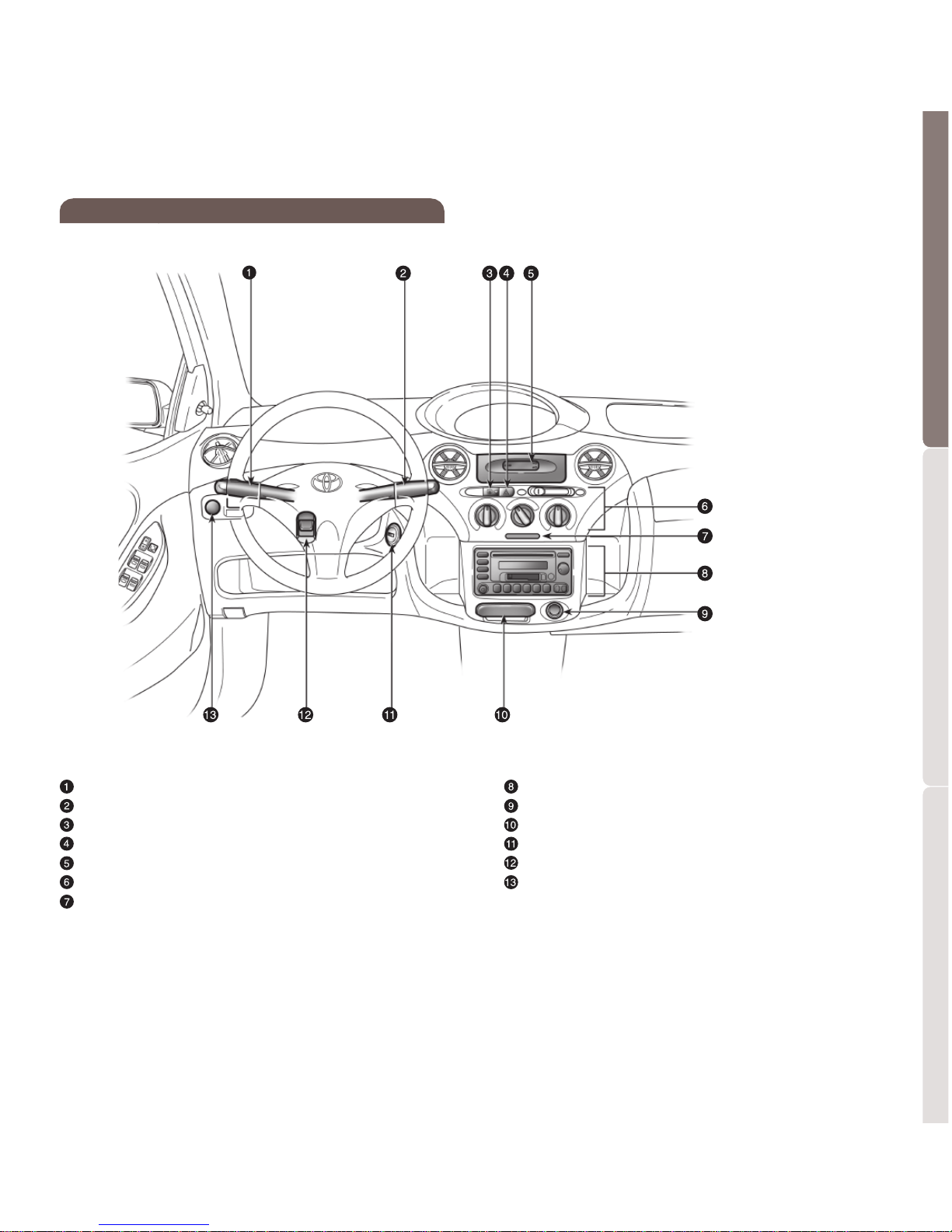

Audio

12V Power outlet or cigarette lighter*

Ashtray* or coin box

Ignition switch

Tilt steering lock release lever

Instrument panel light control

*If installed

OVERVIEW

Headlight, turn signal and front fog light* controls

Wiper and washer controls

Rear window defogger switch*

Emergency flasher switch

Clock*

Air conditioning*/Heater controls

Security indicator light*/Front passenger’s seat belt

reminder light

Instrument panel

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Low fuel level warning light1

2For details, refer to “Engine coolant temperature indicator and

warning light” Section 1-6, 2005 Owner’s Manual.

Open door warning light1

Low windshield washer fluid level warning

light1

.Low engine coolant temperature indicator

light (blue)2

.High engine coolant temperature warning

light (in red)1

Turn signal indicator light

Headlight high beam indicator light

Overdrive-off indicator light

Airbag SRS warning light1

Low fuel level indicator light1

(with tachometer)

Service reminder indicators and indicator lights

Speedometer

Fuel gauge

Odometer and two trip meters

Trip meter reset knob/button

Dimmer button*

Tachometer

*Push to dim or brighten meter light with

headlights on.

OVERVIEW

Driver’s seat belt reminder light1

Front passenger’s seat belt reminder light1

Brake system warning light1

Battery warning light1

Low engine oil pressure warning light1

Anti-lock Brake System warning light1

Malfunction indicator light1

1For details, refer to “Service reminder indicators and warning

buzzers,” Section 1-6, 2005 Owner’s Manual.

When the Anti-lock Brake System (ABS) function is in

action, you may feel the brake pedal pulsating and

hear a noise. In this situation, to let the Anti-lock

Brake System work for you, just hold the brake pedal

down more firmly. Do not pump the brake as this will

result in reduced braking performance.

*if installed

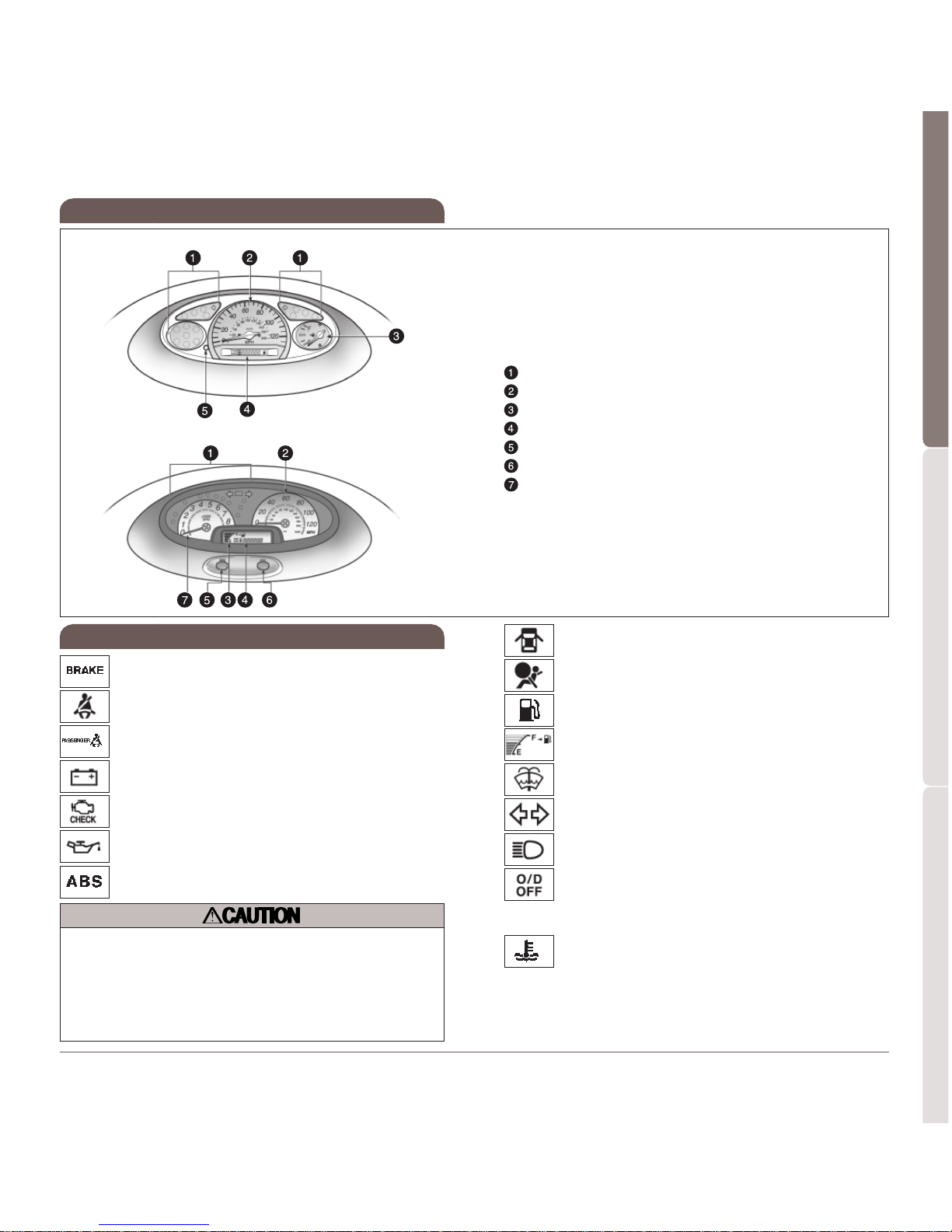

Indicator symbols

Instrument cluster

With tachometer

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Light control-Instrument panel

To release the hood Pull the lever inside the

vehicle.

To open the hood Insert finger through the

opening between the hood and grill. Pull up on

the catch lever inside the compartment and lift

the hood.

Hood release lever

To adjust the brightness of the instrument panel

lights Turn the dial right to increase, or left to

decrease the brightness of the instrument panel

lights.

OVERVIEW

To open the trunk from driver side seat Pull up on

the trunk release lever.

To deactivate the release lever Close the trunk lid,

insert the master key into the trunk lock, and turn it

counterclockwise.

Note: Sub key will not work on the trunk. Refer to

the Owner’s Manual for more details.

To open the fuel tank door from driver side

seat Pull up on the opener.

To remove the fuel tank cap Turn the cap slowly

counterclockwise. Pause slightly before removing

it. After removing the cap, hang it on the cap

hanger.

To replace the fuel tank cap Turn clockwise until

a click is heard. If not tightened enough, Check

Engine “ ” indicator may illuminate.

Fuel tank door opener and cap

Trunk release lever

Trunk lock

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

FEATURES/OPERATIONS

Automatic transmission (if installed)

When shifting from “P” (Park), the ignition

switch must be “ON,” the brake pedal

depressed, and shift while holding the lock

release button in.

Shift while holding the lock release button in.

Shift normally.

Lock release button

Overdrive

switch

“O/D OFF”

indicator light

Overdrive switch

To turn “ON” or “OFF” Depress the overdrive switch

to choose either three-speed (“OFF”) or four-speed

(“ON”) operation. During normal driving conditions,

always drive with overdrive “ON,” this allows the

transmission to shift automatically into four-speed

operation at higher speeds, improving fuel economy.

If the indicator light on the instrument cluster is

illuminated, overdrive is “OFF.”

Park Engine starting and key removal

Reverse

Neutral

Drive (see “Overdrive switch” below)

Second gear Increased engine braking

First gear Maximum engine braking

OVERVIEW

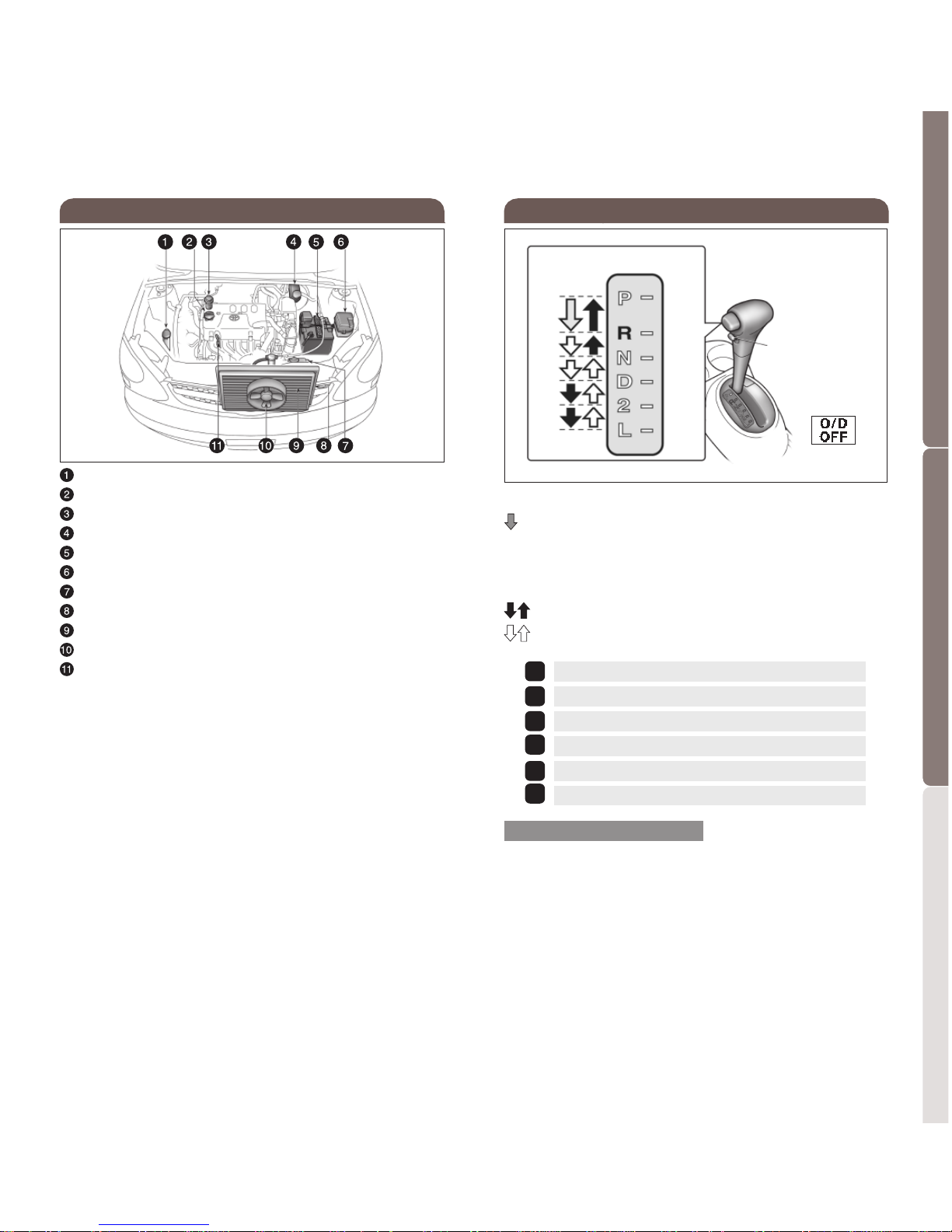

Engine compartment

Windshield washer fluid tank

Engine oil filler cap

Power steering fluid reservoir

Brake fluid reservoir

Battery

Fuse block

Engine coolant reservoir

Radiator

A/C condenser*

Electric cooling fan

Engine oil level dipstick

Note: Regularly scheduled maintenance, including

oil changes, will help extend the life of

your vehicle and maintain performance.

Please refer to the “Owner’s Warranty

Information Booklet,” “Scheduled

Maintenance Guide” or “Owner’s Manual

Supplement.”

*If installed

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

To lock the rear seatbacks

Slide the security locks to the right from the

trunk room.

To fold down the rear seatbacks

Slide the seatback security lock to the left,

unlock position from the trunk room.

Pull the lock release knob up.

Fold the seatback down.

Refer to the Owner’s Manual for more details.

Seat adjustments-Rear (fold down type)

Cup holders

Front

Rear

Center Side, 2-door models

Seats-Head restraints

Lock release button Lock release button

Front Rear

FEATURES/OPERATIONS

Tilt steering wheel

To change the steering wheel angle Push the lock

release lever down, set the desired angle, then

return the lever to its locked position.

Note: Do not attempt to adjust while the vehicle

is in motion.

Seat adjustments-Front

Position lever

Seatback angle lever

Lock release lever

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Slow speed Push the lever down to position 1.

Fast speed Push the lever down to position 2.

Wash and wipe Pull the lever toward you.

Intermittent speed* Push the lever down to

position 4.

Single wipe Push the lever up to position 5.

*If installed

Windshield wiper & washer

Parking brake

To set Pull the lever up.

To release (1) Pull the lever up slightly, (2) press the

lock release button, and (3) lower.

Indicator light

With intermittent wiper

To reset the hour Push “H.”

To reset the minutes Push “M.”

To zero out minutes Push “:00.”

Clock (if installed)

Turn signals

Right or left turn Push the lever up or down.

Lane change Move the lever up or down to

position 7 and hold.

FEATURES/OPERATIONS

Lights & turn signals

Headlights

Parking, tail, license plate, side marker and

instrument panel lights Twist the lever knob to

position 1.

Headlights and all of the above Twist the lever

knob to position 2.

High beams Push the lever forward.

Low beams

High beam flasher Pull the lever toward you.

Note: Daytime running light system* Automatically

turns on the headlights at a reduced intensity.

*If installed

To lock Push down on the front of the switch.

To unlock Push down on the back of the switch.

Door locks-Power (if installed)

High beam indicator light

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Air conditioning (if installed)/Heating

“A/C” switch* Air conditioning on/off switch.

Use with “ ” for best cooling performance.

Air intake selector Select fresh or recirculate

cabin air.

Air flow selector (See “To select air flow vents”

below)

Fan speed selector

Temperature selector

*if installed

Instrument panel

Floor and panel

Floor

Floor and windshield

Windshield Use fresh air “ ” to reduce window

fogging.

Refer to the Owner’s Manual for more details.

To select air flow vents

Turn the air flow selector to select the following:

FEATURES/OPERATIONS

Windows-Power (if installed)

Window operation

To open or close Push down or pull up on the switch.

Automatic down operation (Driver side only)

Push the switch completely down and release to fully

open. To stop window mid-way, pull up on the switch.

Window lock switch

Push the switch to deactivate the passenger

windows.

Window

lock switch

Driver side

Autres manuels pour 2004 ECHO

Table des matières

Autres manuels Toyota Automobile

Toyota

Toyota CAMRY HYBRID 2019 Manuel utilisateur

Toyota

Toyota COROLLA CROSS HYBRID 2020 Manuel utilisateur

Toyota

Toyota Prius 2010 Manuel utilisateur

Toyota

Toyota YARIS LIFTBACK 2016 Manuel utilisateur

Toyota

Toyota Celica Supra 1986 Manuel d'installation et d'exploitation

Toyota

Toyota Land Cruiser 100 Manuel utilisateur

Toyota

Toyota RAV4 PRIME 2021 Manuel utilisateur

Toyota

Toyota RAV4 2003 Manuel utilisateur

Toyota

Toyota 2002 Sequoia Manuel utilisateur

Toyota

Toyota 2011 HILUX VSS 3 Manuel utilisateur

Toyota

Toyota AVALON HYBRID 2013 Manuel utilisateur

Toyota

Toyota 2011 Camry Hybrid Manuel utilisateur

Toyota

Toyota LAND CRUISER - BROCHURE 2011 Manuel utilisateur

Toyota

Toyota Lexus IS300 Manuel utilisateur

Toyota

Toyota 4RunneR 2014 Manuel d'utilisation

Toyota

Toyota Verso 2011 Manuel utilisateur

Toyota

Toyota 86 2017 Manuel utilisateur

Toyota

Toyota 2009 Avalon Manuel utilisateur

Toyota

Toyota 2009 FJ Cruiser Manuel utilisateur

Toyota

Toyota Prius 2007 Manuel utilisateur

Toyota

Toyota Corolla 2008 Manuel utilisateur

Toyota

Toyota 2022 RAV4 Manuel utilisateur

Toyota

Toyota 2016 SEQUOIA Manuel utilisateur

Toyota

Toyota 4RUNNER BROCHURE 2011 Manuel utilisateur

Manuels Automobile populaires d'autres marques

CITROËN

CITROËN DS4 DSign Manuel utilisateur

Lexus

Lexus 2015 CT 200h Manuel utilisateur

Cadillac

Cadillac CTS 2008 Manuel utilisateur

Mercedes-Benz

Mercedes-Benz M-class ML 55 AMG Manuel utilisateur

Porsche

Porsche Boxster S Manuel utilisateur

GMC

GMC 2010 Savana 1500 Cargo Manuel utilisateur

KIAM

KIAM SPORTAGE 2014 Manuel de la liste des pièces

GMC

GMC 2013 Terrain Instructions de montage

GMC

GMC T-Series 1999 Manuel utilisateur

Mercury

Mercury 1998 Mystique Manuel utilisateur

Mercury

Mercury 2007 Mariner Manuel utilisateur

Mazda

Mazda 2007 Mazdaspeed 3 Mode d’emploi

Mazda

Mazda 2014 CX-5 Manuel utilisateur

GMC

GMC Chevrolet Express 2022 Manuel utilisateur

GMC

GMC 1997 Jimmy Manuel utilisateur

Chevrolet

Chevrolet 2012 Malibu Manuel utilisateur

Cadillac

Cadillac 2010 Escalade Manuel utilisateur

Skoda

Skoda FABIA RS - ANNEXE 118 Manuel utilisateur
