’01 4Runner_U (L/O 0008)

2001 4RUNNER (OM35768U)

OPERATION OF INSTRUMENTS AND

CONTROLS

Overview of instruments and controls

Instrument panel overview 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Instrument cluster overview 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Indicator symbols on the instrument panel 6. . . . . . . . . . . . . . . . . . . . . . .

SECTION

–

WWW.MANUALS.WS

’01 4Runner_U (L/O 0008)

22001 4RUNNER (OM35768U)

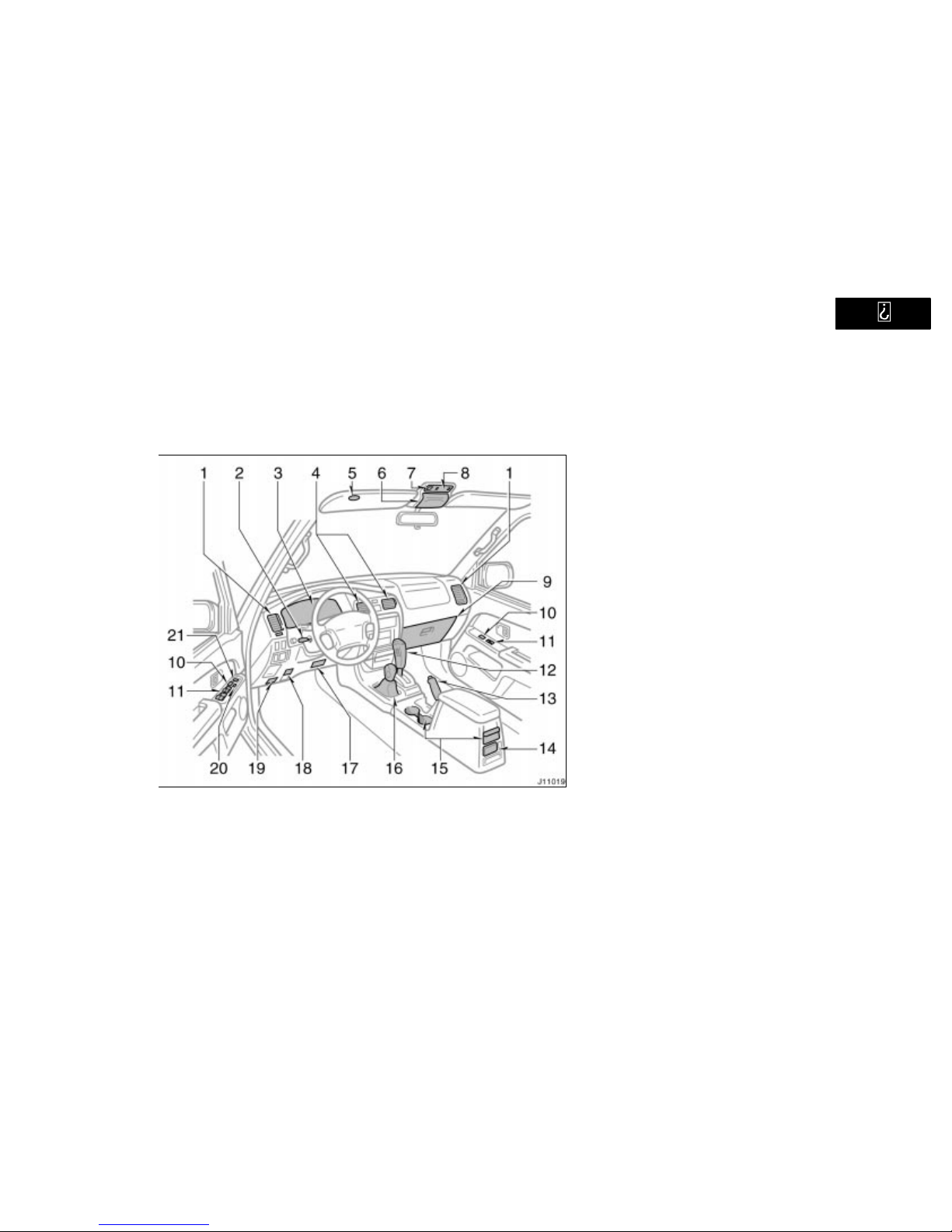

Instrument panel overview 1. Side vents

2. Tilt steering lock release lever

3. Instrument cluster

4. Center vents

5. Garage door opener

6. Garage door opener box or auxiliary

box

7. Electric moon roof switch

8. Personal lights

9. Glove box

10. Power door lock switches

11. Power window switches

12. Automatic transmission selector lever

13. Parking brake lever

14. Ashtray

15. Cup holders

16. Front drive control lever

17. Lower vent

18. Hood lock release lever

19. Fuel filler door opener

20. Window lock switch

21. Power rear view mirror control switches

(with power windows)

WWW.MANUALS.WS

’01 4Runner_U (L/O 0008)

2001 4RUNNER (OM35768U)

1. Seat heater switch (for passenger)

2. Headlight and turn signal switch, and

front fog light switch

3. Wiper and washer switches

4. Back window and rear view mirror

defoggers switch

5. Driving pattern selector button

6. Clock

7. Emergency flasher switch

8. Power back window switch

9. Theft deterrent system/Engine

immobiliser system indicator light

10. Front passenger’s seat belt reminder

light

11. Air conditioning controls

12. Car audio

13. Ashtray

14. Power outlets

15. Cigarette lighter

16. “OUT/T” (outside temperature) button

17. Ignition switch

18. Cruise control switch

19. Center differential lock switch

20. Instrument panel light control knob

21. Power rear view mirror control switch

(without power windows)

WWW.MANUALS.WS

’01 4Runner_U (L/O 0008)

42001 4RUNNER (OM35768U)

22. Traction control off switch

23. Seat heater switch (for driver) or

Power back window lock switch

WWW.MANUALS.WS

’01 4Runner_U (L/O 0008)

2001 4RUNNER (OM35768U)

Instrument cluster overview

1. Service reminder indicators and

indicator lights

2. Engine coolant temperature gauge

3. Tachometer

4. Speedometer

5. Odometer and two trip meters

6. Fuel gauge

7. Trip meter reset knob

WWW.MANUALS.WS

’01 4Runner_U (L/O 0008)

62001 4RUNNER (OM35768U)

Indicator symbols on the instrument panel

Driver’s seat belt reminder light∗1

Low oil pressure warning light∗1

Low fuel level warning light∗1

Brake system warning light∗1

Malfunction indicator lamp∗1

Discharge warning light∗1

Anti–lock brake system warning light∗1

Automatic transmission fluid temperature

warning light∗1

SRS warning light∗1

Unengaged “Park” warning light∗1

Open door warning light∗1

Low windshield washer fluid level warning

light∗1

Headlight high beam indicator light

Turn signal indicator lights

Front passenger’s seat belt reminder light∗1

Vehicle skid control system and traction control

system (two–wheel drive models) or active

traction control system (four–wheel drive models)

warning light∗1

WWW.MANUALS.WS

’01 4Runner_U (L/O 0008)

2001 4RUNNER (OM35768U)

Cruise control indicator light∗2

Driving pattern (“PWR” mode) indicator light

∗1: For details, see “Service reminder indicators and warning

buzzers” in Section 1–5.

∗2: If this light flashes, see “Cruise control” in Section 1–6.

Four–wheel drive and center differential lock

indicator lights

Automatic transmission indicator lights

Traction control system off indicator light∗1

(two–wheel drive models)

Vehicle skid control system off indicator light∗1

(four–wheel drive models)

Slip indicator light

Overdrive–off indicator light

WWW.MANUALS.WS

’01 4Runner_U (L/O 0008)

82001 4RUNNER (OM35768U)

WWW.MANUALS.WS

’01 4Runner_U (L/O 0008)

2001 4RUNNER (OM35768U)

OPERATION OF INSTRUMENTS AND

CONTROLS

Keys and Doors

Keys 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Engine immobiliser system 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Side doors 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Power windows 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Power back window 24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Back door 26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Hood 28. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Theft deterrent system 29. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fuel tank cap 31. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Electric moon roof 32. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION

–

WWW.MANUALS.WS

’01 4Runner_U (L/O 0008)

10 2001 4RUNNER (OM35768U)

Your vehicle is supplied with two kinds

of keys.

1. Master key—This key works in every

lock.

2. Sub key—This key will not work in the

glove box.

To protect things locked in the glove box

when you have your vehicle parked, leave

the sub key with the attendant.

Since the doors can be locked without a

key, you should always carry a spare

master key in case you accidentally lock

your keys inside the vehicle.

KEY NUMBER PLATE

Your key number is shown on the plate.

Keep the plate in a safe place such as

your wallet, not in the vehicle.

If you should lose your keys or if you

need additional keys, duplicates can be

made by a Toyota dealer using the key

number.

We recommend you to write down the key

number and keep it in safe place.

Your vehicle is supplied with the two

kinds of keys.

1. Master key (black)—This key works in

every lock. Your Toyota dealer will

need it to make you a new key with

built–in transponder chip.

2. Sub key (gray)—This key does not

work in the glove box.

A transponder chip for engine immobiliser

system has been filled in the head of the

master and sub keys. These chips are

needed to enable the system to function

correctly, so be careful not to lose these

keys. If you make your own duplicate key,

you will not be able to cancel the system

or start the engine.

Keys

(without engine immobiliser

system)

Keys

(with engine immobiliser

system)
