Touch Revolution M21A Series Manuel utilisateur
Rev.A
M21A Series
Touch Screen LCD Monitors
USER’s GUIDE
Important Recycle Instructions:
Lamp(s) inside this product contains mercury. This product may contain other
electronic waste that can be hazardous if not disposed of properly. Recycle or
dispose in accordance with local, state, or federal Laws. For more information,
contact the Electronic Industries Alliance at WWW.EIAE.ORG. For lamp specic
disposal information check WWW.LAMPRECYCLE.ORG.
The information contained in this document is subject to change without notice.
This document contains proprietary information that is protected by copyright. All rights
are reserved. No part of this document may be reproduced,translated to another language
or stored in a retrieval system, or transmitted by any means, electronic, mechanical,
photocopying, recording, or otherwise, without prior written permission. Windows is a registered
trademark of Microsoft, Inc. Other brand or product names are trademarks of their respective
holders.
The test results show that this device meets the FCC rules. Those limits are set to protect
residential areas from the devices with harmful emission. This device will produce, use and
radiate radio frequency energy. In addition, failure to follow the user’s manual to install or use
this device might produce harmful interference with radio communication. Not withstanding
the foregoing, it does not guarantee that this type of harmful interference does not occur in
some special installations. The interference caused by this device to the reception of radio
or television signals may be veried by turning it on and off. Any changes or modications to
this TFT LCD would void the user’s authority to operate this device.
Table of Contents
Usage Notice
Precautions............................................................................................................................. 1
Introduction
About M21A Series................................................................................................................. 2
Touch Screen for M21A-0101 ................................................................................................ 3
Package Overview ...................................................................................................... 4
Installation
Product Overview ........................................................................................................ 5
Front View .............................................................................................................. 5
Bottom View (Without Stand) .................................................................................. 5
Kensington Security Slot.............................................................................................. 6
VESA Mount for your Monitor....................................................................................... 7
Start Your Installation .................................................................................................. 8
Connecting the Display (Figure 10.1)..........................................................................10
(Figure 10.1)...........................................................................................................11
User Controls
Side Panel Controls....................................................................................................12
How to Use the OSD Menus .......................................................................................13
On-Screen Display Menus ..........................................................................................14
Appendix
Troubleshooting..........................................................................................................15
Warning Signal ...........................................................................................................16
No Signal ....................................................................................................................16
Going to Sleep............................................................................................................16
Out of Range..............................................................................................................16
Product Dimensions ...................................................................................................17
Compatibility Modes ...................................................................................................19
Touch Screen Driver Installation .................................................................................20
M21A-0101 Install Instructions: ..............................................................................20

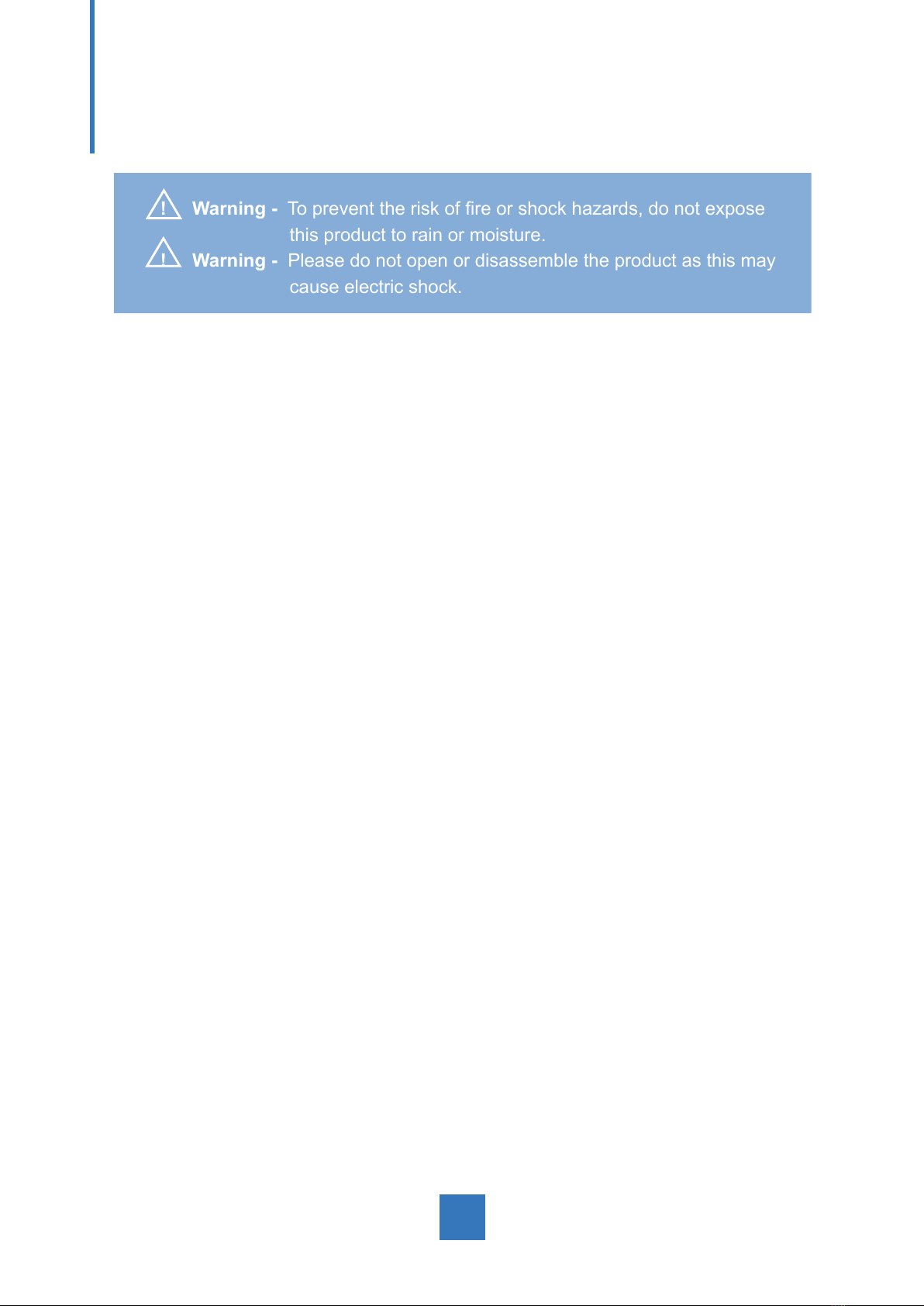

Usage Notice
! Warning - To prevent the risk of re or shock hazards, do not expose
this product to rain or moisture.
! Warning - Please do not open or disassemble the product as this may
cause electric shock.
Precautions
Follow all warnings, precautions and maintenance as recommended in this user’s manual to
maximize the life of your unit.
Do:
• Turn off the product before cleaning.
• Touch screen surface may be cleaned using a soft clean cloth moistened with
mild window glass commercial cleaners or 50/50 mixture of water and isopropyl
alcohol.
• Use a soft cloth moistened with mild detergent to clean the display housing.
Don’t:
• Do not touch the LCD Display screen surface with sharp or hard objects.
• Do not use abrasive cleaners.
• Do not operate the product under the following conditions:
- Extremely hot, cold or humid environment.
- Areas susceptible to excessive dust and dirt.
- Near any appliance generating a strong magnetic eld.
- In direct sunlight.
1
Introduction
About M21A Series
The M21A Series is a 22" at panel screen with an active matrix, thin-lm
transistor (TFT) liquid crystal display (LCD).
Features include:
•Direct Analog signal input
• Direct Digital signal input
•Active matrix TFT LCD technology
•1920 x 1080 resolution
•22" viewable display area - 16:9 aspect ratio
•31.47 ~ 82.3 KHz horizontal scan
•56 ~ 75 Hz high refresh rate
•0.24825mm x 0.24825mm pixel pitch
•Auto adjustment function
•Multilingual OSD user control
•Kensington security slot
•100 mm VESA mount
• Removable base for exible mounting solutions.
•M21A-0101 - Projected Capactive touch screen with USB controller
•Audio - 2W x 2
2
Touch Screen for M21A-0101
• Project Capacitive touch screen for nger input only
•Surface: Clear glass
•Interface: USB controller
• HID: Windows®7,VISTA, XP, 2000, ME, 98
• Driver: Linux kernel 2.6.x (32 bit & 64 bit)
3
4
Package Overview
LCD Display Power Cord VGA Signal Cable
USB Cable ( A to B) Audio-in Cable
Quick Start Guide
DVI-D Cable
Cable Cover Screw
Installation
Product Overview
• Front View
• Bottom View (Without Stand)
VGA IN
AC IN
Audio DVI IN
USB
5
Kensington Security Slot
The monitor can be secured to your desk or any other xed object with Kensington lock
security products. The Kensington lock is not included.
6
VESA Mount for your monitor
This monitor conforms to the VESA Flat Panel Mounting Physical Mounting Interface standard which
denes a physical mounting interface for at panel monitors, and corresponding with the standards
of at panel monitor mounting devices, such as wall and table arms. The VESA mounting interface is
located on the back of your monitor.
To mount the monitor on a UL certied swing arm or other mounting xture, follow the instructions
included with the mounting xture to be used.
*A: The distance between the shielding surface and the bottom of the screw hole is 8 mm.
! Warning!
Please select the proper screws!
Please use four M4 screws of adequate length for mounting your monitor.
Please note: the mounting stand must be able to support at least 17.6 lbs (8Kg).
7
100mm
100mm
Slots (x 4)
A
A
A
A
