SERVICE MANUAL

FILE NO. 333-200206

SUPPLEMENT

3LCD PROJECTOR

TLP-560/561

TLP-260/261

This service manual covers only different portions from service manual (File No. 330-200103)

for TLP55/25 series.

—SUMMARY —

Document Created in Japan May.,2002

1/2

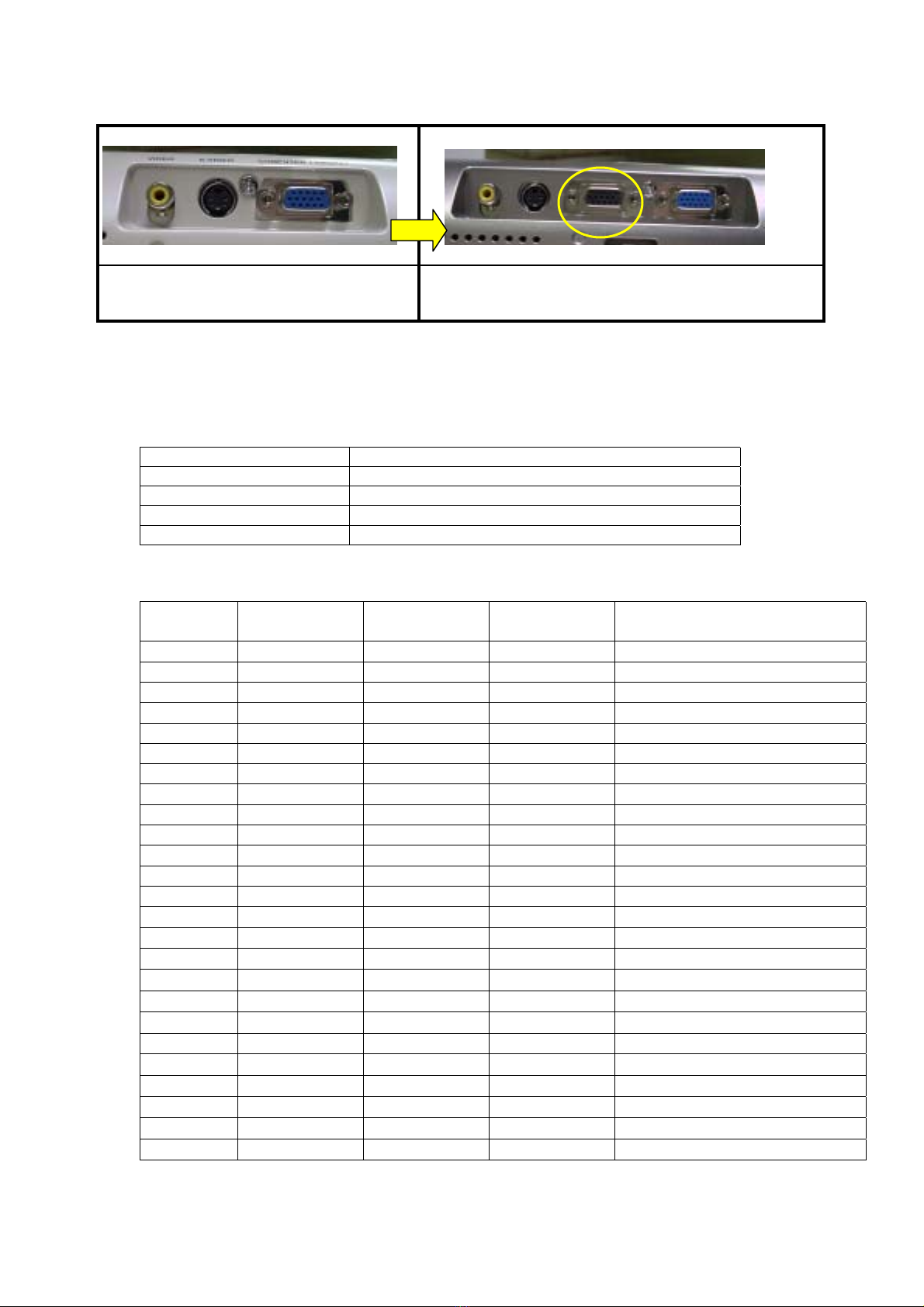

As for TLP56/26, a RGB Out terminal is addition to TLP55/25.

TLP55/25 signal input terminal TLP56/26 signal input terminal (RGB Out addition)

The following parts list covers only the different parts from the base models,

For the other parts, please refer to the service manual(File No, 330-200103) of the base models,

The base models of each model are shown below,

Model Base Model

TLP560 TLP550

TLP561 TLP551 (with document imaging camera)

TLP260 TLP250

TLP261 TLP251 (with document imaging camera)

Difference parts list (TLP56 Series)

Location

No. Part No.

(US) Part No.

(EU) Part No.

(UK)

Description

E200 23405130 23405130 23405130 Optical Engine

E260S 23405132 23405132 23405132 Optical Main Frame

E261S 23405071 23405071 23405071 Optical Sub Frame

U001 23787665 23787665 23787665 PC Board MAIN

U002 23787666 23787666 23787666 PC Board SENSOR

U003 23787667 23787667 23787667 PC Board DOOR

A100 23530337 23530337 23530337 Top Cover

A300 23553722 23553722 23553722 Front Tag TLP560

A303 23553859 23553859 23553859 Label Rating TLP560

A320 23553726 23553726 23553726 Label Carton Box TLP560

A300 23553721 23553721 23553721 Front Tag TLP561

A303 23553858 23553858 23553858 Label Rating TLP561

A320 23553725 23553725 23553725 Label Carton Box TLP561

Y200 23565648 23565648 23565648 Owner’s Manual CD-ROM

Y201 23565649 --------- ---------

Owner’s Manual E/F

Y202 23565650 --------- ---------

Owner’s Manual SPA

Y204 --------- 23565651 --------- Owner’s Manual E/G

Y205 --------- 23565652 --------- Owner’s Manual F/S

Y206 --------- ---------

23565653 Owner’s Manual ENG

Y221 23589364 23589364 23589364 Sheet Quick ENG

Y222 23589365 23589365 --------- Sheet Quick FRA

Y223 23589366 23589366 --------- Sheet Quick SPA

Y225 --------- 23589368 --------- Sheet Quick GER

Y226 --------- 23589369 --------- Sheet Quick POR

Y227 --------- 23589370 --------- Sheet Quick ITA

2/2

Difference parts list (TLP26 Series)

Location

No. Part No.

(US) Part No.

(EU) Part No.

(UK)

Description

E200 23405140 23405140 23405140 Optical Engine

E260S 23405111 23405111 23405111 Optical Main Frame

E261S 23405071 23405071 23405071 Optical Sub Frame

U001 23787668 23787668 23787668 PC Board MAIN

U002 23787669 23787669 23787669 PC Board SENSOR

U003 23787670 23787670 23787670 PC Board DOOR

A100 23530337 23530337 23530337 Top Cover

A300 23553863 23553863 23553863 Front Tag TLP260

A303 23553861 23553861 23553861 Label Rating TLP260

A320 23553865 23553865 23553865 Label Carton Box TLP260

A300 23553862 23553862 23553862 Front Tag TLP261

A303 23553860 23553860 23553860 Label Rating TLP261

A320 23553864 23553864 23553864 Label Carton Box TLP261

Y200 23565648 23565648 23565648 Owner’s Manual CD-ROM

Y201 23565649 --------- ---------

Owner’s Manual E/F

Y202 23565650 --------- ---------

Owner’s Manual SPA

Y204 --------- 23565651 --------- Owner’s Manual E/G

Y205 --------- 23565652 --------- Owner’s Manual F/S

Y206 --------- ---------

23565653 Owner’s Manual ENG

Y221 23589364 23589364 23589364 Sheet Quick ENG

Y222 23589365 23589365 --------- Sheet Quick FRA

Y223 23589366 23589366 --------- Sheet Quick SPA

Y225 --------- 23589368 --------- Sheet Quick GER

Y226 --------- 23589369 --------- Sheet Quick POR

Y227 --------- 23589370 --------- Sheet Quick ITA

TOS

IBA CORPORATION

1--1, SHIBAURA 1-- CHOME, MINATO -- KU, TOKYO 105 -- 8001, JAPAN

SERVICE MANUAL

FILE NO. 330-200103

SUPPLEMENT

3LCD DATA PROJECTOR

TLP-250/251/250C/251C

TLP-550/551/550C/551C

SECTION 1

PART REPLACEMENT AND

ADJUSTMENT PROCEDURES

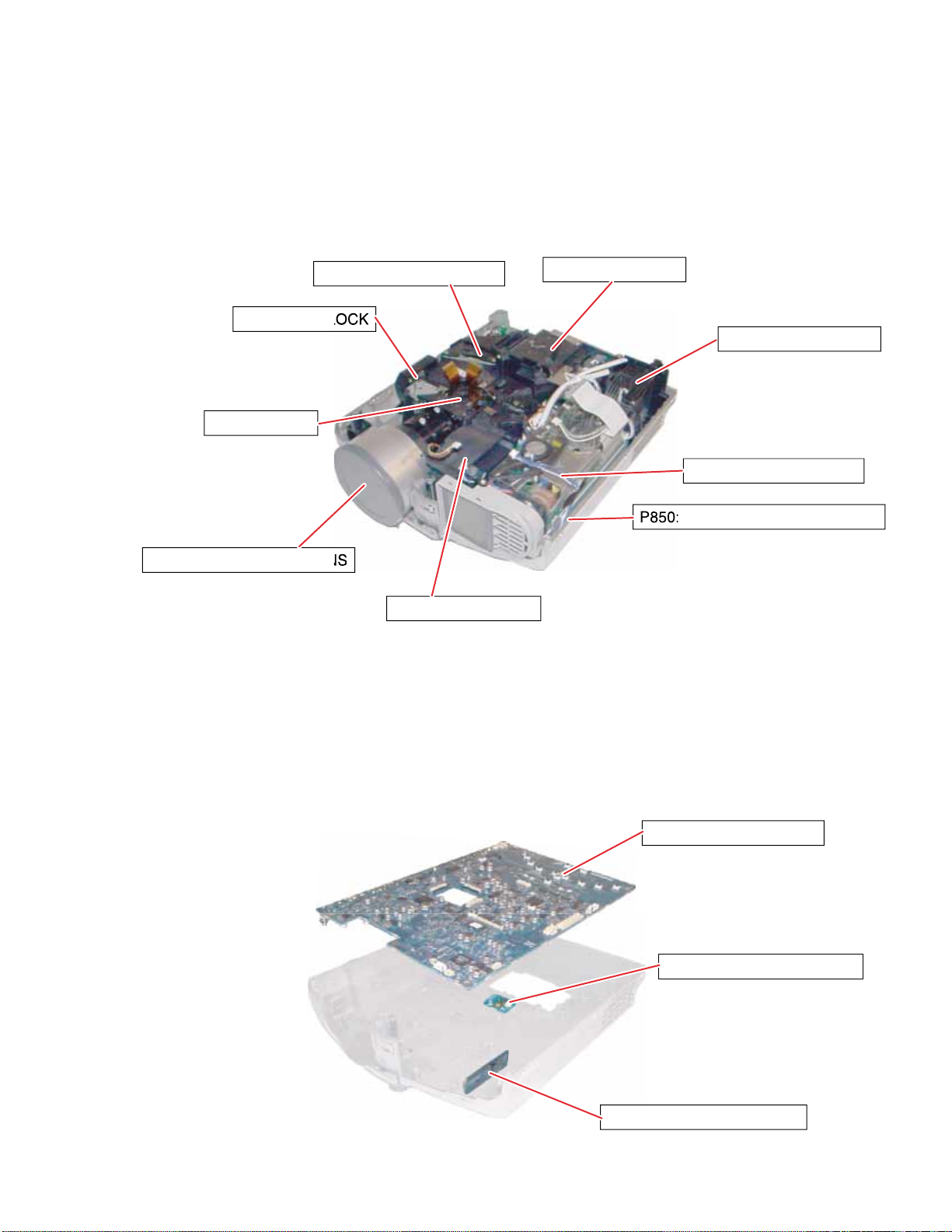

1. LOCATION OF MAIN PARTS

D BL

: INTAKE FA

800

: P

WER

PPL

PTI

AL EN

1A: PR

N LE

LAMP H

OUS

PEAKER B

1: EXHA

T FA

BALLA

T P

WER

PPL

2. LOCATION OF PC BOARD

U00

1: MAIN P

U002: SENSOR PC BOARD

U002:

1-1

U003: SWITCH PC BOARD

3. REPLACEMENT OF MECHANICAL PARTS

3-1. Lamp Assembly

1-2

CAUTIONS BEFORE SERVICING

Electronic parts are susceptible to static electricity and may easily be damaged, so do not forget to take

proper grounding treatment as required.

Many screws are used inside the unit. To prevent missing, dropping, etc. of the screws, always use a

magnetized screwdriver in servicing. Several kinds of screws are used and some of them need special

cautions. That is, take care of the tapping screws securing molded parts and fine pitch screws used to

secure metal parts. If they are used improperly, the screw holes will be easily damaged and the parts can

not be fixed.

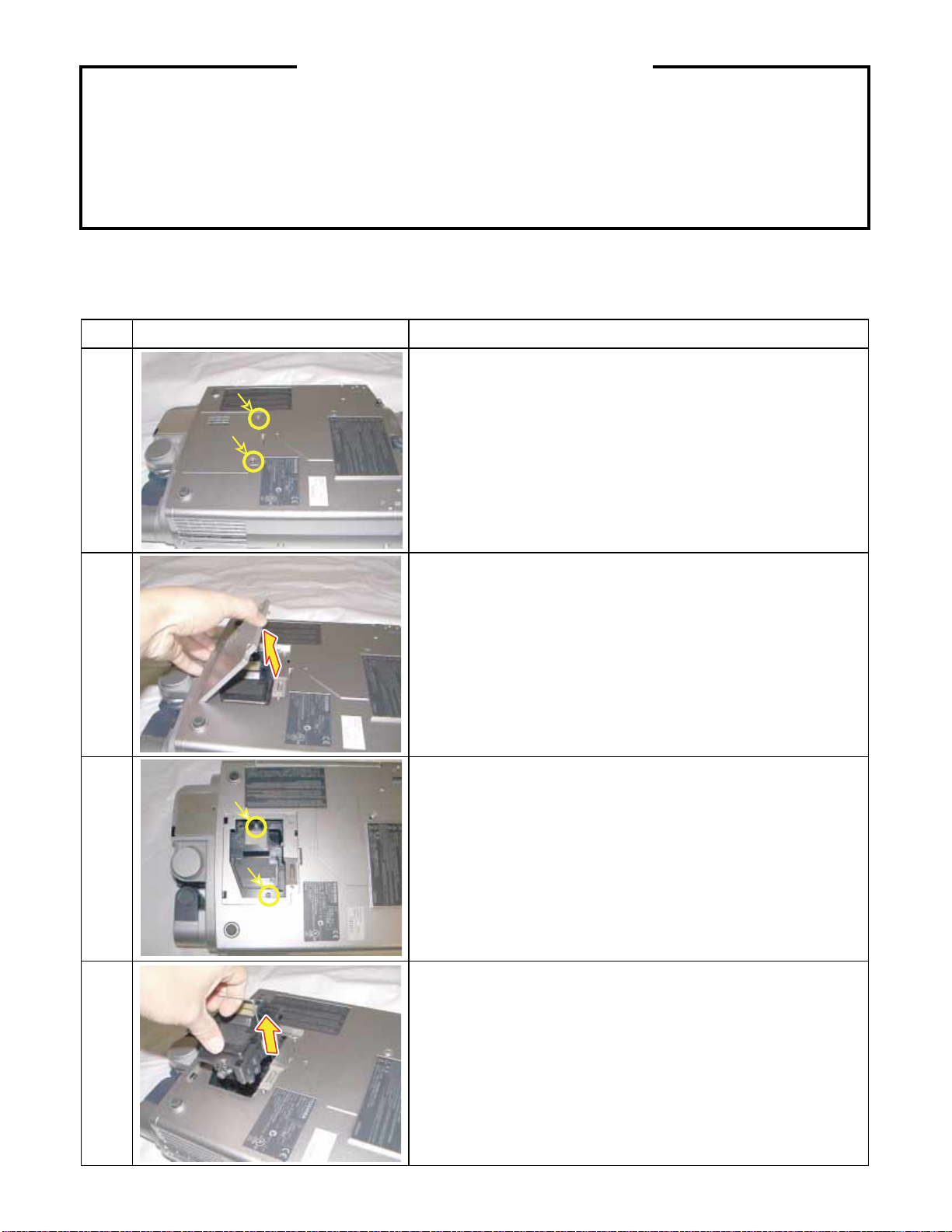

Step Figure Explanation

Loosen 2 screws (M3 x 8).

These screws are retained with split washers.

Remove the lamp cover.

Loosen 2 screws that secure the lamp module (M3 x 8).

These screws are retained with split washers.

Lift the lamp module and slide out from the projector.

3-2.Top Cover

1-3

Step Figure Explanation

[Left Side]

Remove 3 screws (M3 x 6).

[Right Side]

Remove 6 screws (M3 x 6).

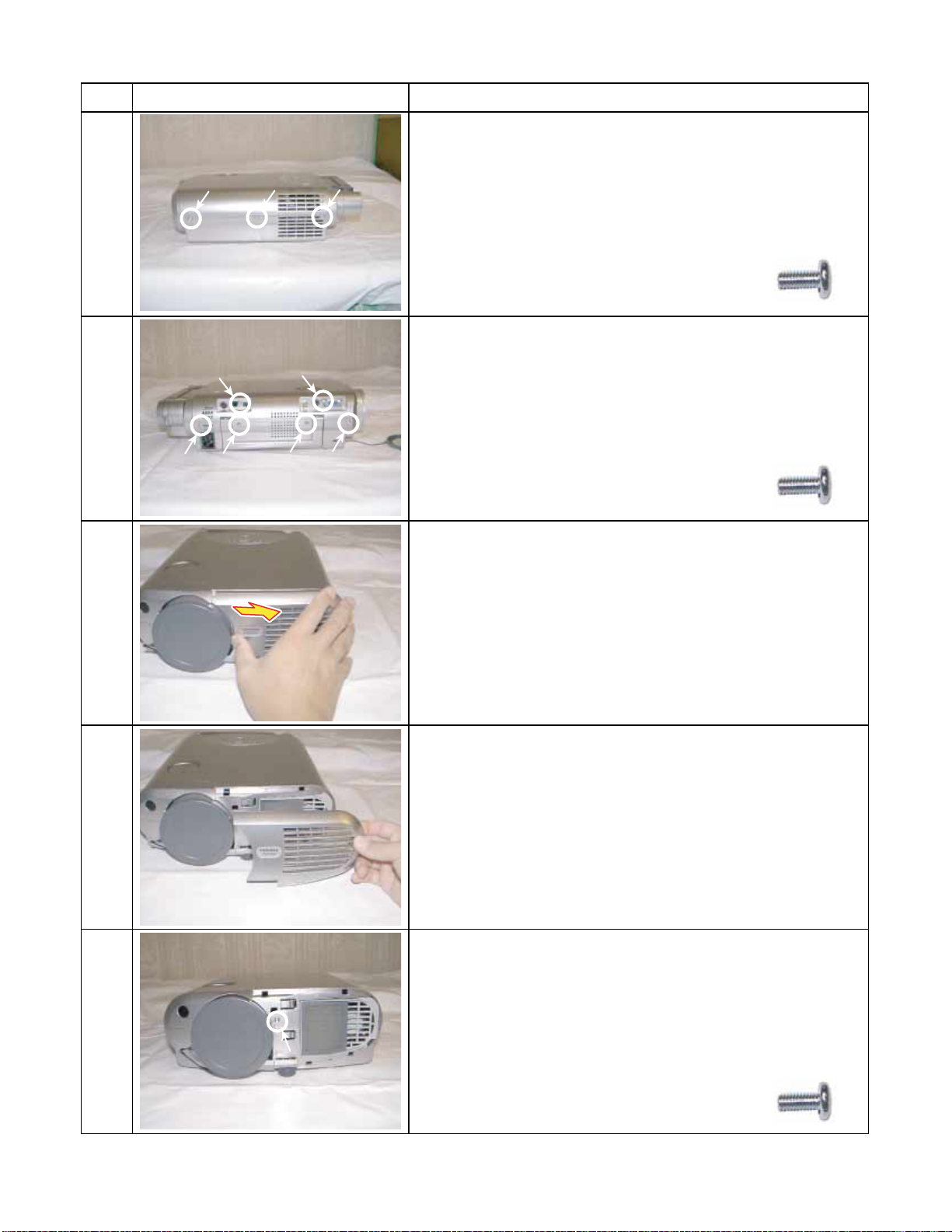

[Front]

Remove front cover.

Screw : type [M-1]

Remove 1 screw (M3 x 6).

Screw : type [M-1]

Slide front cover to the right.

3-2.Top Cover (Continued)

1-4

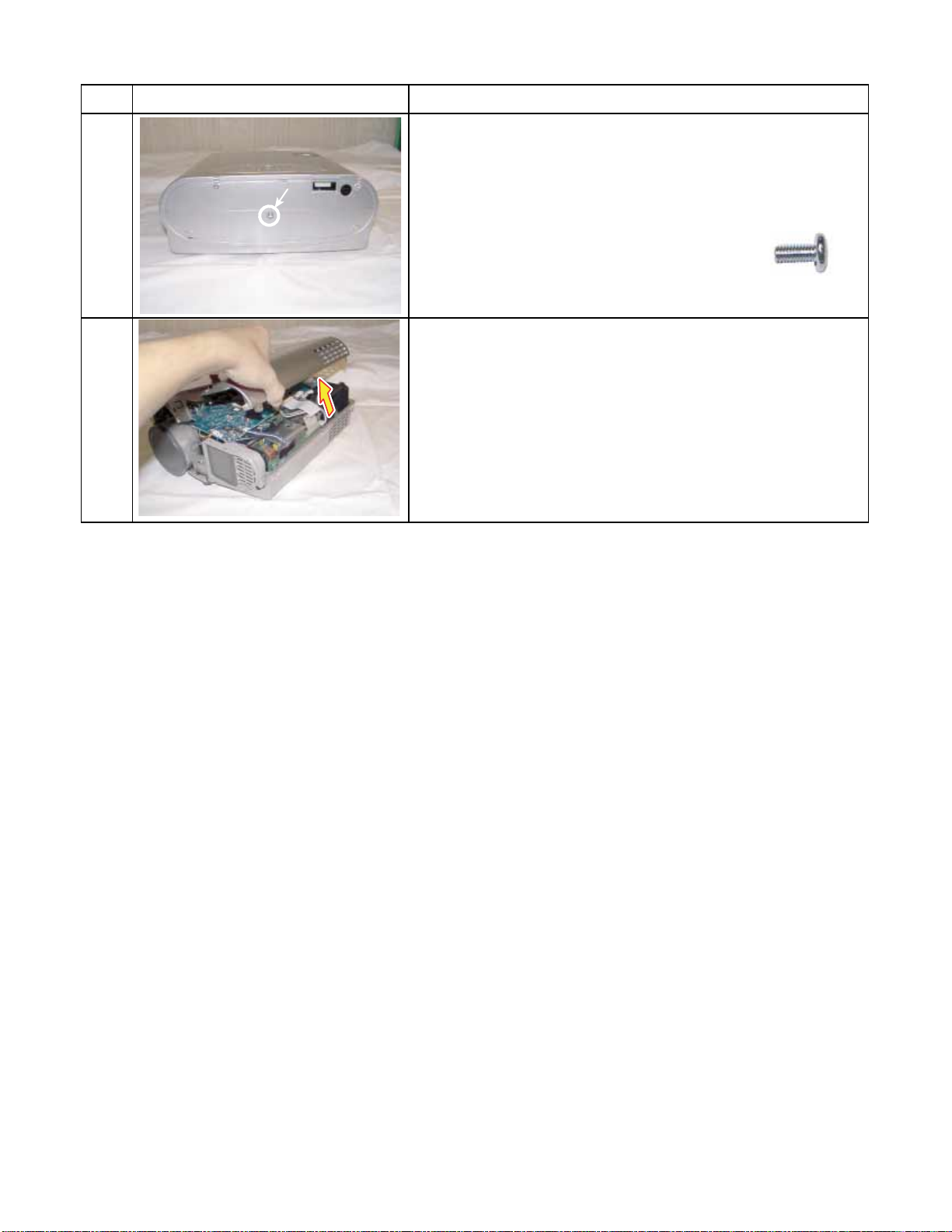

Step Figure Explanation

[Rear]

Remove 1 screws (M2 x 6). Screw : type [M-1]

Top cover can be removed by lifting left edge.

3-3. Main PC Board

1-5

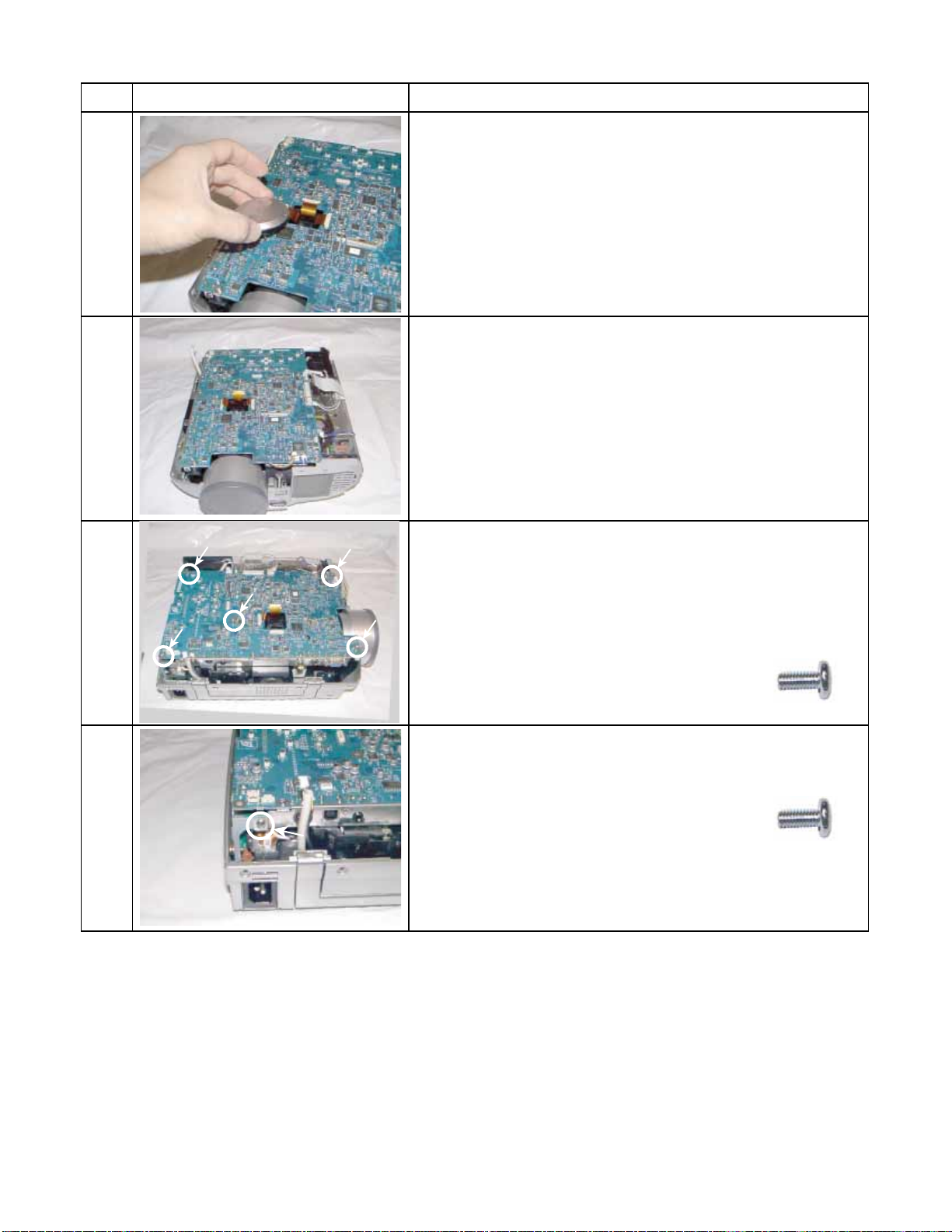

Step Figure Explanation

Remove all cables and connectors.

Remove 5 screws (M3 x 6).

Remove 1 screws (M3 x 6).

[Note]

The screw here is also fixing the grand wire.

Screw : type [M-1]

Remove lens shift dial.
