Click the Navigation Pane button to open the overview area and

display bookmarks and thumbnails palettes.

Click the Bookmarks to open the Contents and display Bookmarks

created for the document. Click a bookmark's name to go to the

Page marked by that bookmark.

Click the Thumbnails to open the overview area and display

thumbnail images of each document page. Click a thumbnail to go

to the Page marked by that thumbnail.

SERVICE MANUAL

FACSIMILE (FOR DP1600/2000/2500)

GD-1060

January 2001 © TOSHIBA TEC GD-1060 GENERAL PRECAUTIONS

GENERAL PRECAUTIONS REGARDINGTHE INSTALLATION AND

SERVICE FOR DP1600/2000/2500 AND GD-1060

The installation and service should be done by a qualified service technician.

1. Transportation

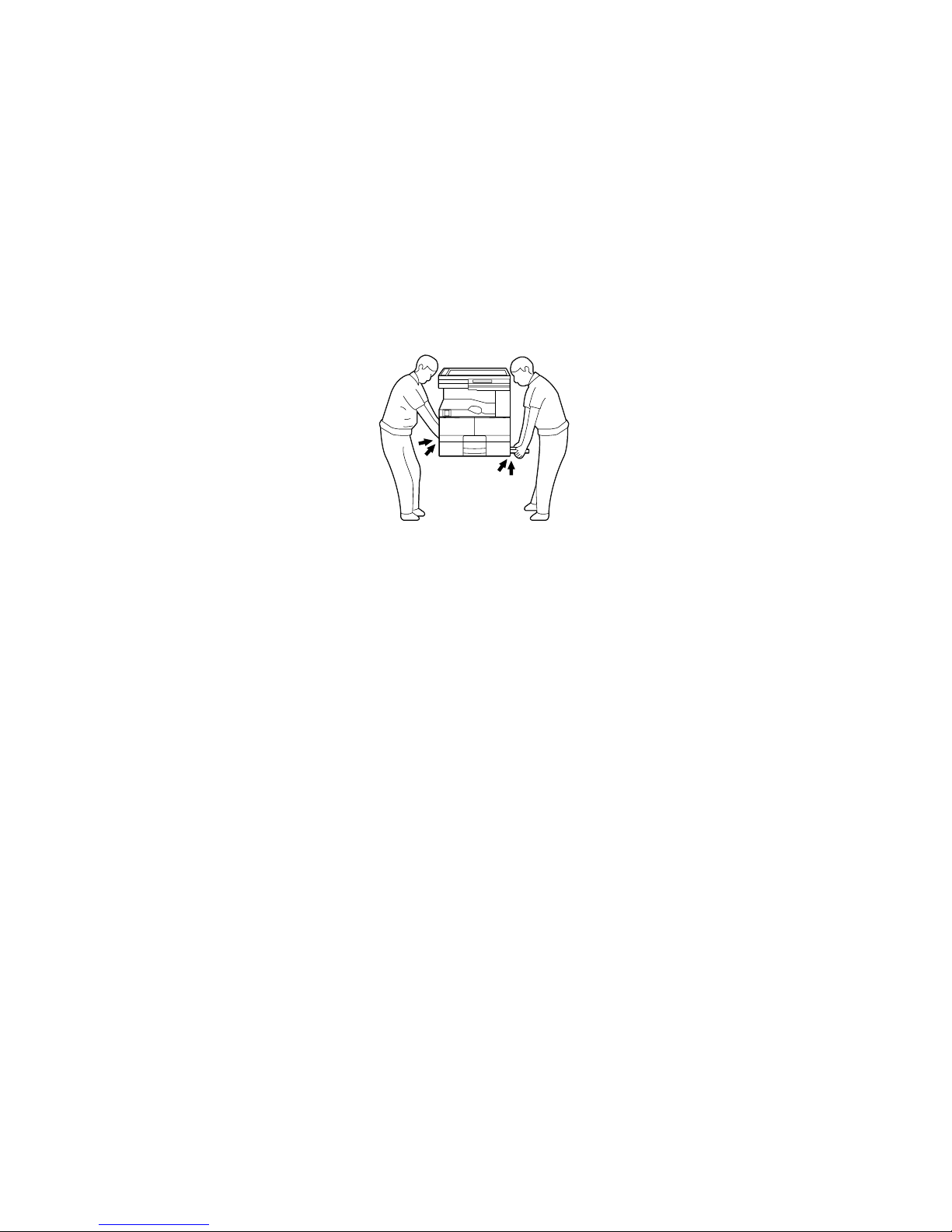

• When transporting/installing the copier, employ two persons and be sure to use the positions as

indicatedbelow.

The copier is fairly heavy and weighs approximately 50 kg (110 lb), therefore pay full attention

whenhandlingit.

2. Installation

• Be sure to use a dedicated outlet with AC 115 or 120V/15A (220V, 230V, 240V/10A) or more for its

power source.

• The copier must be grounded for safety.

Never ground it to a gas pipe or a water pipe.

• Select a suitable place for installation.

Avoid excessive heat, high humidity, dust, vibration and direct sunlight.

• Also provide proper ventilation as the copier emits a slight amount of ozone.

• To insure adequate working space for the copying operation, keep a minimum clearance of 80

cm (32") on the left, 80 cm (32") on the right and 10 cm (4") in the rear.

• After having installed the copier, be sure to push the carrying handles into the copier.

3. Service of Machines

• Basically, be sure to turn the main switch off and unplug the power cord during service.

• Be sure not to touch high-temperature sections such as the exposure lamp, the fuser unit, the

damp heater and their periphery.

• Be sure not to touch high-voltage sections such as the chargers and the high-voltage transformer.

• Be sure not to touch rotating/operating sections such as gears, belts, pulleys, fans, etc.

• When servicing the machines with the main switch turned on, be sure not to touch live sections

and rotating/operating sections.Avoid exposure to laser radiation.

• Use suitable measuring instruments and tools.

4 portions

GD-1060 GENERAL PRECAUTIONS January 2001 © TOSHIBA TEC

• Avoid exposure to laser radiation during servicing.

– Avoid direct exposure to beam.

– Do not insert tools, parts, etc.that are reflective into the path of the laser beam.

– Remove all watches, rings, bracelets, etc.that are reflective.

4. Main Service Parts for Safety

• The breaker, door switch, fuse, thermostat, thermofuse, thermistor, etc.are particularly important

for safety.Be sure to handle/install them properly.

5. Cautionary Labels

• During servicing, be sure to check the rating plate and the cautionary labels such as “Unplug the

power cord during service”, “Hot area”,“Laser warning label” etc.to see if there is any dirt on their

surface and whether they are properly stuck to the copier.

6. Disposition of Consumable Parts/Packing Materials

• Regarding the recovery and disposal of the copier, supplies, consumable parts and packingm a -

terials, it is recommended to follow the relevant local regulations or rules.

7. When parts are disassembled, reassembly is basically the reverse of disas-

sembly unless otherwise noted in this manual or other related documents.Be

careful not to reassemble small parts such as screws, washers, pins, E-rings,

toothed washers in the wrong places.

8. Basically, the machine should not be operated with any parts removed or dis-

assembled.

9. Precautions Against Static Electricity

• The PC board must be stored in an anti-electrostatic bag and handled carefully using a wristband,

because the ICs on it may become damaged due to static electricity.

Caution: Before using the wrist band, pull out the power cord plug of the copier and make

sure that there is no uninsulated charged objects in the vicinity.

Caution: Dispose of used batteries and RAM-ICs including lithium batteries according to the

manufacturer's instructions.

Attention: Se débarrasser de batteries et RAM-ICs usés y compris les batteries en lithium

selon les instructions du fabricant.

Vorsicht: Entsorgungdes gebrauchtenBatterien undRAM-ICs(inklusiveder Lithium-Batterie)

nach Angaben des Herstellers.

January 2001 © TOSHIBA TEC 1 - 1 GD-1060 FROMOFFAXOPTIONS OF DP1600/2000/2500

1. FORM OF FAX OPTIONS OF DP1600/2000/2500

1.1 Fax Options (Necessary options to install the fax unit)

Several options can be supplied, which are necessary for extension, to extend the box function when you

install the fax unit.(Refer to 2.4 in detail)

January 2001 © TOSHIBA TEC 2 - 1 GD-1060 SPECIFICATIONS•ACCESSORIES•OPTIONS

2. SPECIFICATIONS •ACCESSORIES •OPTIONS

2.1 Specifications

2.1.1 Scanning system

• Scanning method CCD line sensor (Movable mirror type, Optical minification reading

method)

• Light source Xenon lamp

• Effective scanning area Standard mode

For NAD model

Horizontal scanning: Max. 280 mm (Ledger width)

Vertical scanning: Max. 432 mm (Ledger length)

For MJD, AUD, ASD, SAD, TWD, and CND models

Horizontal scanning: Max. 297 mm (A3 width)

Vertical scanning: Max. 420 mm (A3 length)

Long original mode

For NAD model

Horizontal scanning: Max. 280 mm (Ledger width)

Vertical scanning: Max. 1000 mm

For MJD, AUD, ASD, SAD, TWD, and CND models

Horizontal scanning: Max. 297 mm (A3 width)

Vertical scanning: Max. 1000 mm

Note: Themaximumvertical scanning length is 700 mm when transmissionisperformedsatisfyingallof

the following conditions.

• The copier is in the long original mode.

• Direct transmission is performed.

• The original has the same width as of A3 or ledger.

• The receiving facsimile machine is capable of receiving originals with A4 only.

• Scanning density STANDARD: 8 dots/mm x 3.85 lines/mm

(Horizontal xVertical) FINE: 8 dots/mm x 7.7 lines/mm

U-FINE: 16 dots/mm x 15.4 lines/mm

• Density control Automatic density mode and manual density selectable in 7 steps

GD-1060 SPECIFICATIONS•ACCESSORIES•OPTIONS 2 - 2 January 2001 © TOSHIBA TEC

• Speed of reading into memory For DP1600 series

(TTEC ITU-T#1 original, A4R 2.3 seconds (with platen)

STANDARDresolution) A4R 1.3 seconds (with ADF)

A4 1.8 seconds (with platen)

For DP2000/2500 series

A4R 1.8 seconds (with platen)

A4R 1.8 seconds (with ADF)

A4 1.4 seconds (with platen)

• Acceptableoriginals Type:sheet, book, and 3-dimensional object.

However, the automatic document feeder (option) only accepts

sheets of paper (Multi-sheet: 50 - 105 g/m2, or 13 - 29 lb/Single-

sheet:105 -127g/m2,or29- 34 lb.),excludingcarbon paper, pasted

sheets and stapled sheets.

Max size:A3/LD

• Capacity of originals For NAD model

LT, LT-R, ST-R, LG, Comp, LD : 50 sheets (with ADF)

LT, LT-R, ST-R, LG, Comp, LD : 100 sheets (with RADF)

For MJD, AUD, ASD, SAD, TWD, and CND models

A4, A4-R, B5, B5-R, A5-R, B4, Folio, A3: 50 sheets (with ADF)

A4, A4-R, B5, B5-R, A5-R, B4, Folio, A3: 100sheets(withRADF)

2.1.2 Transmission system

• Line used Telephone line

• Communication mode Exclusive mode (CRP connection)

G3 mode

ECM (Error Correction Mode)

•Transmission time Less than 3 seconds (in the case of the memory transmission of a

TTEC ITU-T#1 original at 33.6 Kbps, STANDARD resolution, no

TTI, and JBIG (ECM))

• Numbers of files / jobs Transmission reservation jobs:

Max. 100 jobs (MemoryTx, GroupTx, Polling Rx, RelayTx, Send-

ing to Mail Box)

Numbers of page at 1 memory transmission: Max. 999 sheets

January 2001 © TOSHIBA TEC 2 - 3 GD-1060 SPECIFICATIONS•ACCESSORIES•OPTIONS

• Communication mode specifications

Horizontal scanning

density

Vertical scanning density

Datacompressionsystem

Transmission speed

(image signal)

Modulation system

(V.17/V.29/V.27ter/V.21)

Transmission speed

(image signal)

Modulationsystem(V.34)

Control signals FSK

Transmission control

sequence

Exclusive mode

(CRP call-out)

8 dots/mm,16 dots/mm

3.85 lines/mm

7.7 lines/mm

15.4 lines/mm

MH/MR/MMR/JBIG

14.4K/12.0K/9.6K

7.2K/4.8K/2.4K

—————

300 bps (V.21)

Exclusive sequence

G3 mode

8 dots/mm,

16 dots/mm

3.85 lines/mm

7.7 lines/mm

15.4 lines/mm

MH/MR

14.4K/12.0K/9.6K/

7.2K/4.8K/2.4K

—————

300 bps (V.21)

Conforming toT.30

ECM

8 dots/mm,

16 dots/mm

3.85 lines/mm

7.7 lines/mm

15.4 lines/mm

MH/MR/MMR/JBIG

14.4K/12.0K/9.6K/7.2K/

4.8K/2.4K

33.6K/31.2K/28.8K/

26.4K/24.0K/21.6K/

19.2K/16.8K/14.4K/

12.0K/9.6K/7.2K/4.8K/

2.4K

1200 bps (V.34)

300 bps (V.21)

Conforming toT.30

2.1.3 Telephone functions

• Dial-linefunction Pulse method - 10 pps

DTMF method

On/Off-hook dial function

Chain dial

• Keypad dial Max. 128 digits

• Re-dial Automatic / Manual

• Alphabetdial Max.425 stations (OT75 + Abb300 + G50)

• Abbreviated dial Max. 300 stations (001 - 999)

• One touch dial Max. 75 stations

• Multi-address group dial Max.50 groups, 375 stations / group

• Multi-address using [MULTI] key Max.475 stations (OT75 + Abb300 + Keypad100)

• Chain dial Max.128 digits (using Abb / OT / Keypad)

• Number of dialing Max. 100 jobs x 128 digits

GD-1060 SPECIFICATIONS•ACCESSORIES•OPTIONS 2 - 4 January 2001 © TOSHIBA TEC

2.1.4 Recording system

• Recording method Plain paper recording by laser beam printer

• Resolution Horizontal density: 16 dots/mm

Vertical density: 15.4 lines/mm

• Paper feeding Automatic feeding: Copier’scassette1 piece standard(expand-

able up to 4 pieces by installing optional cassettes)

PFU-optional(Stackheight 60.5 mm,Equivalentto 550 sheets;

64 to 90 g/m2(17 to 24 lb.))

PFP-optional(Stackheight 60.5 mm, Equivalentto550sheets;

64 to 90 g/m2(17 to 24 lb.))

LCF-optional (Stack height 137.5 mm, Equivalent to 1250 x 2

sheets;64 to 80 g/m2(17 to 22 lb.))

Bypassfeeding(Stackheight16mm,Equivalentto100sheets;

64 to 80 g/m2(17 to 21 lb.))

2.1.5 Software performanceTable

Item

Maximum

address

numbers of

diabl

Memory

capability

Maximum

numbers of

Sub. Item

Keypad dial

Abbreviated dial

Alphabetdial

One touch dial

Multi-address group

Multi-address using

[MULTI] key

ITU-T Mailbox/Relay box

Chain dial

Maximum number of

dialing

Transmission pix memory

Memory reception pix

memory

Tx reservation jobs

Numbers of page at 1

memory Tx

Limitation

128 digits

300 numbers (Maximum)

425 stations

75 numbers (Maximum)

50 groups (Maximum)

375 stations per 1 group

475 stations (Maximum)

100 boxes (Maximum)

Relay box: 50 end stations per

1 box (Maximum)

128 digits (Maximum)

100 jobs x 128 digits

5696 Kbyte : a)

5856 Kbyte : b) 160 Kbyte+a)

100 jobs (Maximum)

999 pages (Maximum)

Note

001-999

OT75+Abb300+G50

001-1999

OT75+Abb300+Keypad100

Using Abb. /OT / keypad

a)Approx. 490 pages *1

(*1 : ITU-T No.1/JBIG/STD)

b)Approx. 500 pages *1

(*1 : ITU-T No.1/JBIG/STD)

MemoryTx,GroupTx,Polling

Rx, Relay Tx, Sending to Mail

Box

January 2001 © TOSHIBA TEC 2 - 5 GD-1060 SPECIFICATIONS•ACCESSORIES•OPTIONS

2.2 Specifications of LSU-related Performances

2.2.1 Recording paper size

The following recording paper sizes can be used:

(For NAD model) : LD, LG, LT, LT-R, ST-R, COMP, A4, A4-R

(For MJD, AUD, ASD, SAD,TWD, CND models) : A3, A4, A4-R, A5-R, B4, FOLIO, LT, LT-R

2.2.2 Effective recording area

a) Head : 4 mm (0.16 inch)

b) Foot : 4 mm (0.16 inch)

c) Effective Recording Limits:

1) For NAD model [Unit: mm (inch)]

Paper size Size (Horizontal x Vertical) Effective recording area

LD 279 x 432 275 x 424

(11 x 17) (10.8 x 16.7)

LG 216 x 356 212 x 348

(8.5 x 14) (8.3 x 13.7)

LT 279 x 216 275 x 208

(11 x 8.5) (10.8 x 8.2)

LT-R 216 x 279 212 x 271

(8.5 x 11) (8.3 x 10.7)

ST-R 140 x 216 136 x 208

(5.5 x 8.5) (5.4 x 8.2)

COMP 257 x 356 253.2 x 348

(10.125 x 14) (9.97 x 13.7)

A4 297 x 210 293 x 202

A4-R 210 x 297 206 x 289

GD-1060 SPECIFICATIONS•ACCESSORIES•OPTIONS 2 - 6 January 2001 © TOSHIBA TEC

2) For MJD, AUD, ASD, SAD, TWD, and CND models [Unit: mm (inch)]

Paper size Size (Horizontal xVertical) Effective recording range

A3 297 x 420 293 x 412

A4 297 x 210 293 x 202

A4-R 210 x 297 206 x 289

A5-R 148 x 210 144 x 202

B4 257 x 364 253 x 356

FOLIO 210 x 330 206 x 322

LT 279 x 216 275 x 208

(11 x 8.5) (10.8 x 8.2)

LT-R 216 x 279 212 x 271

(8.5 x 11) (8.3 x 10.7)

Fig. 2-2-1

2 mm

(0.08 inch)

Effective recording area

Feed direction

4 mm (0.16 inch)

02-02-01

2 mm

(0.08 inch)

4 mm (0.16 inch)

Autres manuels pour GD-1060

Autres manuels Toshiba Photocopieuse

Toshiba

Toshiba 3560 Manuel utilisateur

Toshiba

Toshiba GA-1040 Manuel utilisateur

Toshiba

Toshiba 1550 Manuel utilisateur

Toshiba

Toshiba e-studio 12 Manuel utilisateur

Toshiba

Toshiba e-studio 16 Manuel utilisateur

Toshiba

Toshiba GA-1120 Manuel utilisateur

Toshiba

Toshiba e-studio2309a Manuel utilisateur

Toshiba

Toshiba e-studio650 Comment utiliser

Toshiba

Toshiba FC22 Manuel utilisateur

Toshiba

Toshiba 3560 Comment utiliser

Toshiba

Toshiba e-STUDIO 452 Manuel utilisateur

Toshiba

Toshiba e-studio 210c Manuel utilisateur

Toshiba

Toshiba e-studio 211c Manuel utilisateur

Toshiba

Toshiba 2460 Comment utiliser

Toshiba

Toshiba e-STUDIO 550 Manuel utilisateur

Toshiba

Toshiba e-studio 120 Manuel utilisateur

Toshiba

Toshiba KD1009 Manuel utilisateur

Toshiba

Toshiba e-STUDIO 55 Manuel utilisateur

Toshiba

Toshiba e-STUDIO 550 Instructions d'installation

Toshiba

Toshiba e-Studio 223CS Guide d'installation

Toshiba

Toshiba e-STUDIO28 Manuel utilisateur

Toshiba

Toshiba 3560 Manuel utilisateur

Toshiba

Toshiba SmartLink e-STUDIO16 Manuel d'utilisation et d'entretien

Toshiba

Toshiba e-studio 2006 Manuel utilisateur

Manuels Photocopieuse populaires d'autres marques

Canon

Canon iR1210 Manuel de référence

Ricoh

Ricoh FW740 Manuel utilisateur

Minolta

Minolta CF910 Manuel utilisateur

Ricoh

Ricoh B003 Manuel utilisateur

Xerox

Xerox EC70 Manuel utilisateur

Oce

Oce 9800 Manuel utilisateur

Olivetti

Olivetti d-Copia 1800 Manuel utilisateur

Minolta

Minolta Di181 Manuel utilisateur

Canon

Canon iR5000i Manuel utilisateur

Telecrane

Telecrane F25 Manuel utilisateur

Xerox

Xerox WorkCentre Pro 40 Manuel utilisateur

Canon

Canon NP6317 Comment utiliser

Sharp

Sharp AR-5015 N Manuel utilisateur

Ricoh

Ricoh Di-C1 Manuel utilisateur

Mita

Mita MIP-2400 Manuel

Sharp

Sharp AL-2061 Manuel utilisateur

Muratec

Muratec MFX-C2280 Manuel utilisateur

Ricoh

Ricoh FT5034C Manuel utilisateur
