Operator’s Manual

Trencher Drive

Maxi Sneaker 370 Vibratory Plow

Model

25531E

25531T

3462-332A Original Instructions (EN) *3462-332*A

Chapter 1

Safety

Safety and Instructional Decals

Safety decals and instructions are easily visible to the operator and are located near any area

of potential danger. Replace any decal that is damaged or missing.

Trencher Safety Decal Locations

G434864

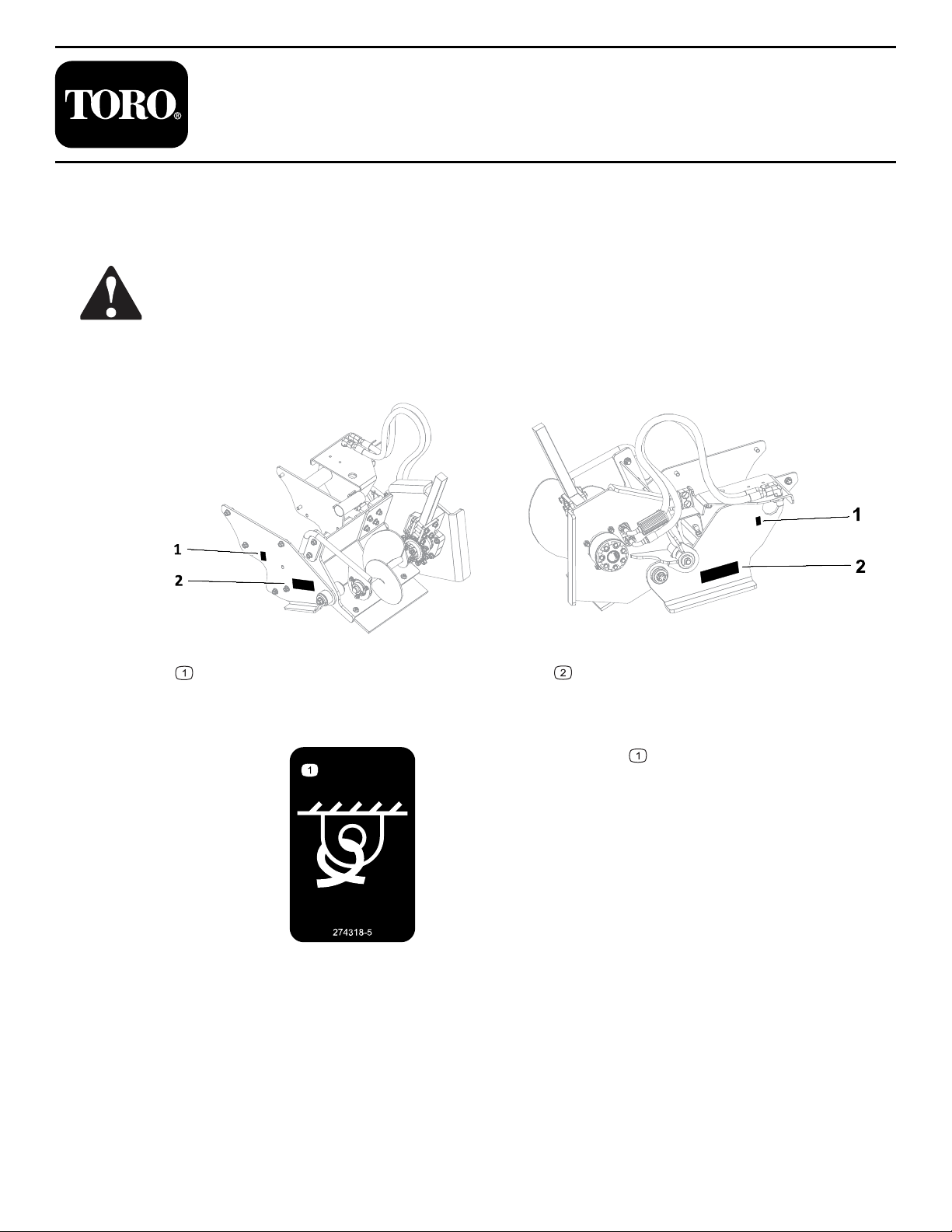

Decal 147-5641 Decal 147-5807

Decal Part: 147-5641

decal147-5641

Tie down

Safety Page 1–1 3462-332 A

Trencher Safety Decal Locations (continued)

Decal Part: 147-5654

decal147-5654

Attachment selector lever.

Decal Part: 147-5655

147-5655

Trencher chain direction selector

lever.

Decal Part: 147-5807

decal147-5807

Cutting/dismemberment hazard,

trencher—keep at least 2 m (6 ft) away.

3462-332A Page 1–2 Safety: Safety and Instructional Decals

Chapter 2

Installation

1Installing the Trencher Control Valve

Parts Required

1 Trencher control valve

2 90-degree connector

1 Straight connectors

1 45-degree connector

1 Large straight connector

1 Trencher handle

2 Nut (M10)

1 Knob

1 Trencher valve bracket

3 Bolt (M8)

3 Nut (M8)

IMPORTANT

Leave the nuts loose on connectors (1, 4, and 5) until the mating hose and hardlines

are installed.

G432647

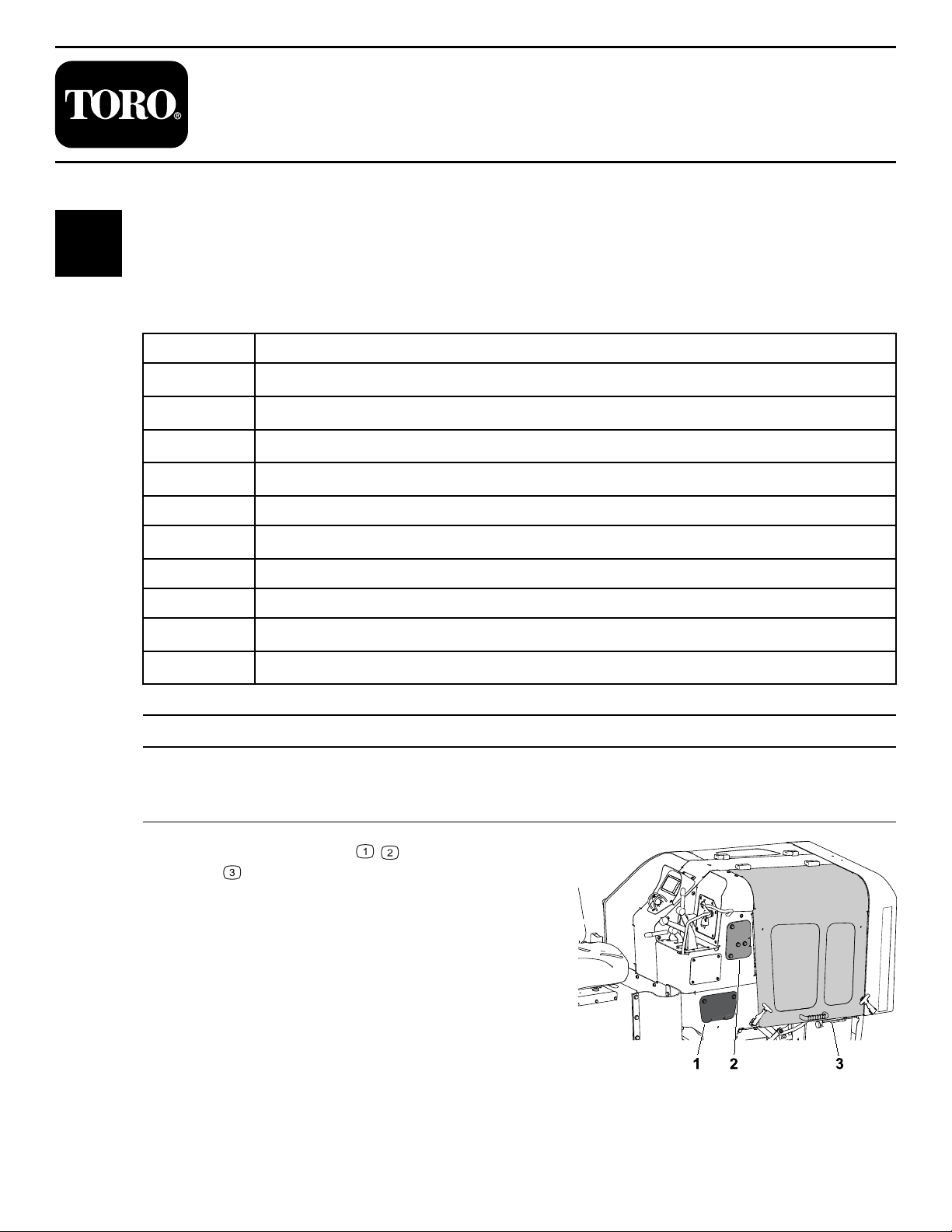

1. Remove the 2 covers and the engine

hood from the right side of machine, set

these aside.

Installation Page 2–1 3462-332 A

G432648

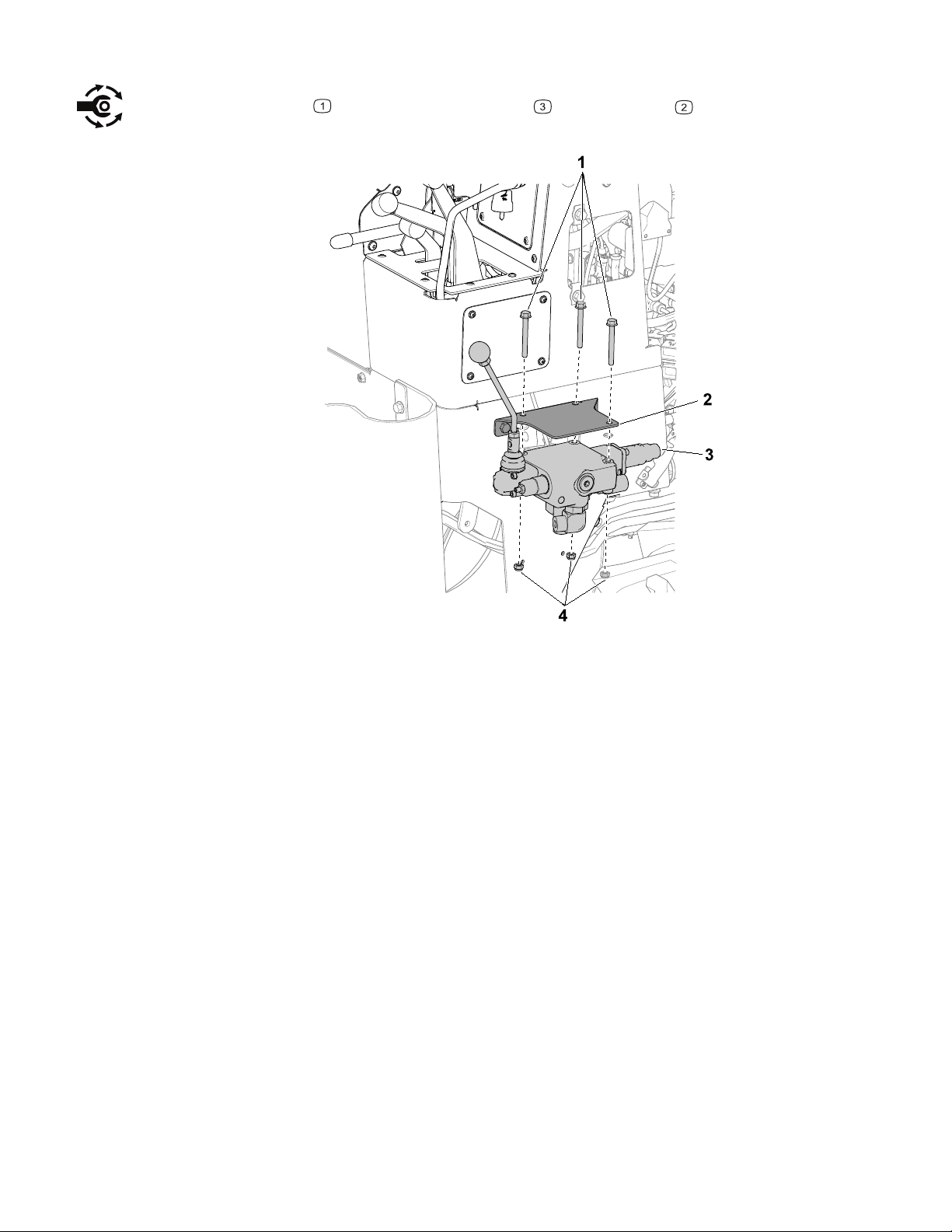

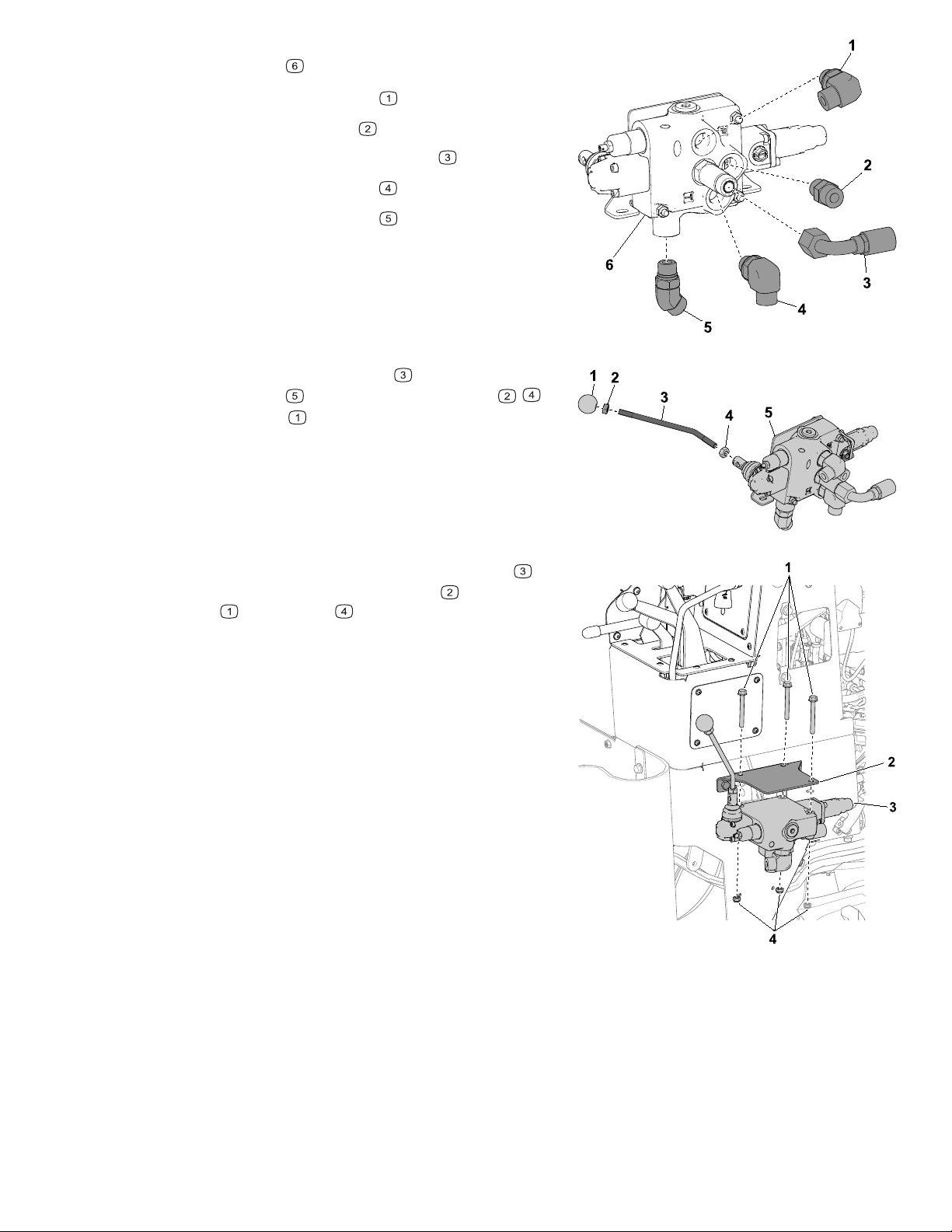

2. Install the 5 connectors onto the trencher

control valve .

• 90-degree connector

• Straight connector

• Extended straight connector

• 90-degree connector

• 45-degree connector

G432649

3. Install the trencher handle onto the trencher

control valve using the 2 nuts (M10) ,

and the knob .

G432650

4. Loosely mount the trencher control valve

onto the bracket–trencher valve with 3 bolts

(M8) and 3 nuts (M8).

5. Use the hardware from the cover to mount the

trencher control valve and bracket to the

machine.

3462-332A Page 2–2 Installation: Installing the Trencher Control Valve

2Installing the Hoses

Installing Hoses With or Without the Hydra Borer

Parts Required

1 88-inch hose

1 Hose mount bracket

1 83-inch hose

1 26-1/2 inch hose

1 Hardline (5/8 inch)

2 Abrasion sleeve (1 X 24 inches)

1 Abrasion sleeve (2 X 60 inches)

1 90 degree connector

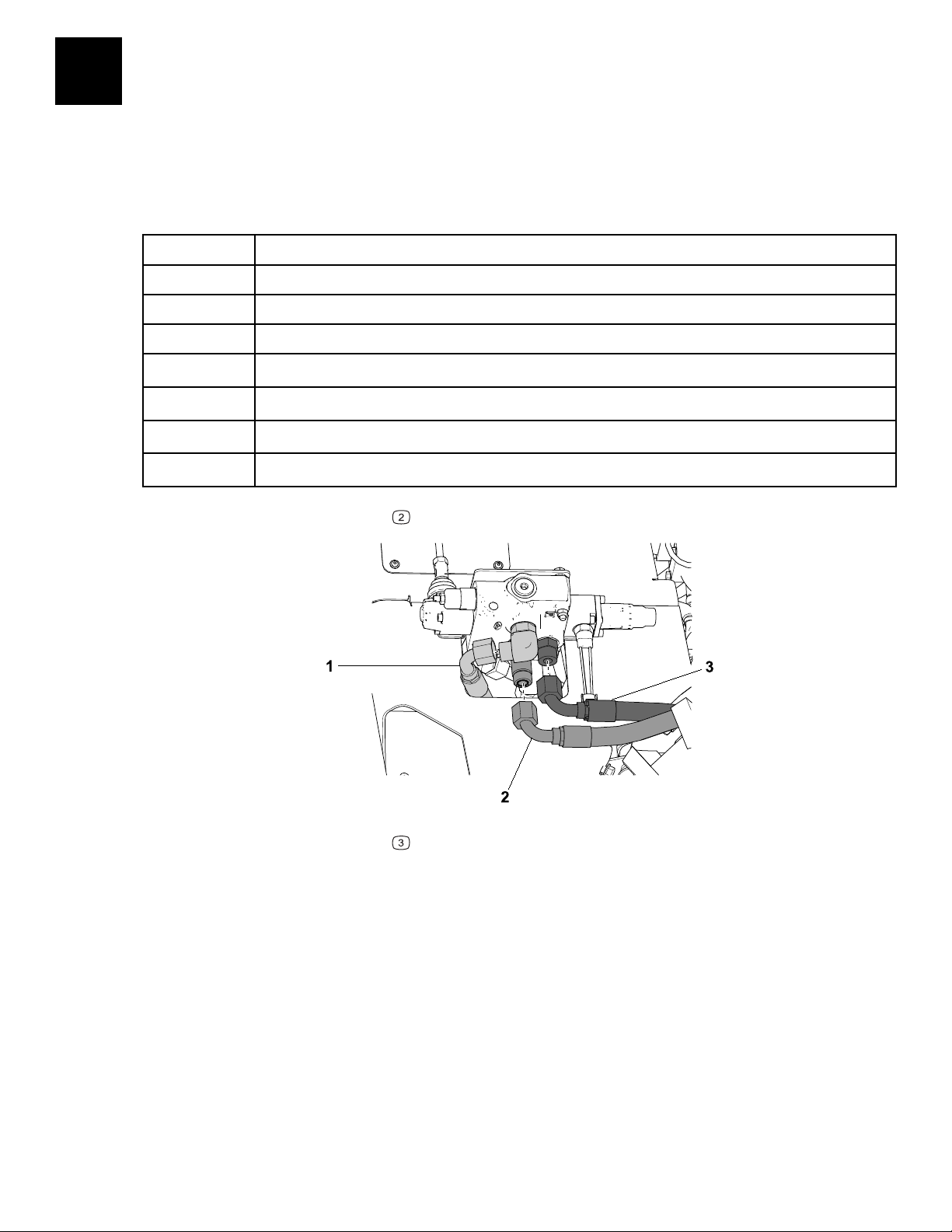

1. Connect the 88-inch hose to port T on the on the trencher control valve.

G432651

2. Connect the 83-inch hose to port P1 on the trencher control valve.

3. Place the 2 abrasion sleeves (1 X 24 inches) over the 83-inch hose and the 88-inch

hose, secure each end with zip ties.

4. Place the large abrasion sleeve (2 X 60 inches) over the 2 previous sleeves and secure

each end with zip ties.

5. Route the 88-inch and 83-inch hoses down and around the front of the machine.

Note: The hoses will be connected in a future step.

Installation: Installing the Hoses Page 2–3 3462-332 A

Installing Hoses With or Without the Hydra Borer

(continued)

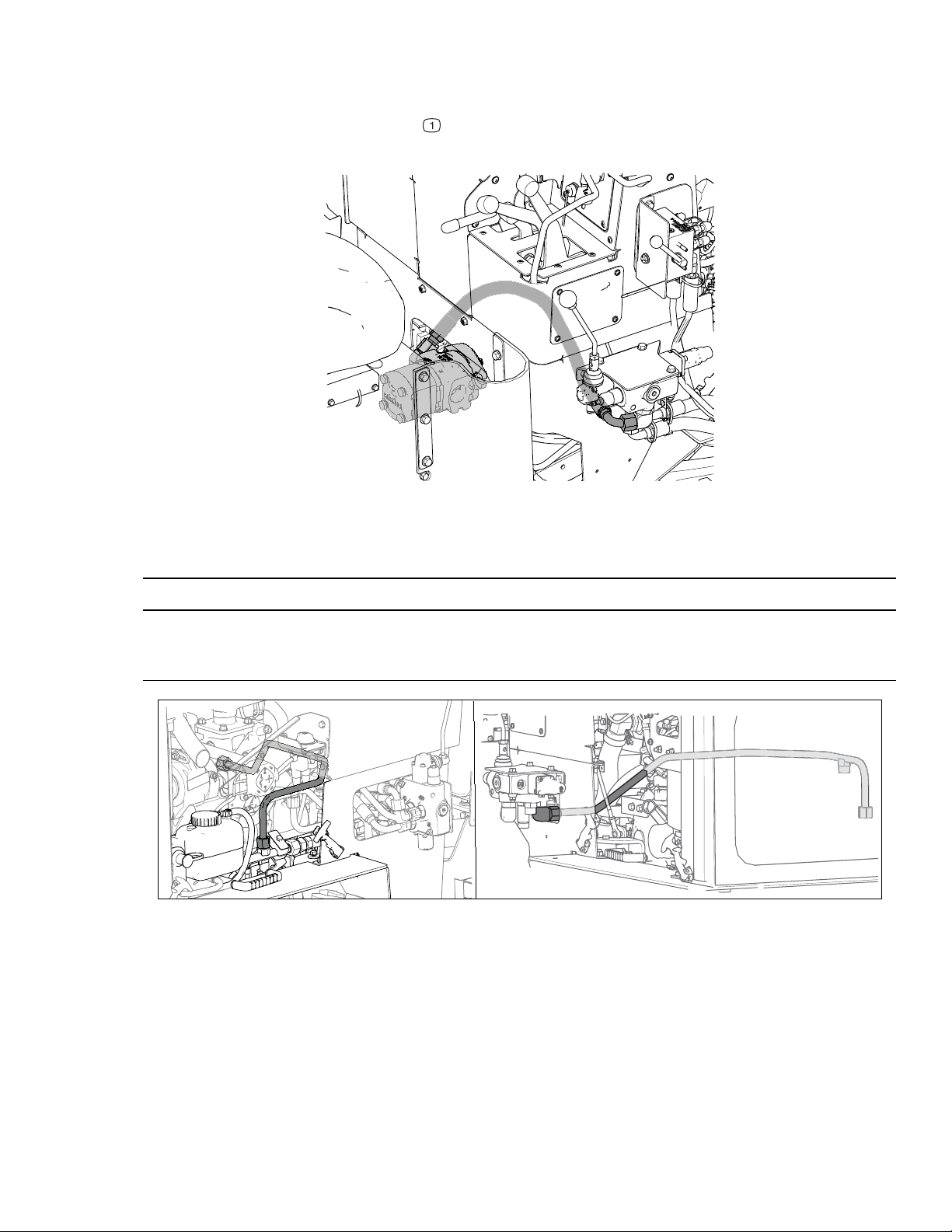

6. Connect the 26-1/2 inch hose from the pump tandem to the 90 degree connector on

port P on the trencher control valve.

G432654

7. Connect the hardline, from this kit, to the existing hardline, on the machine, and inner

connector on trencher control valve in port T.

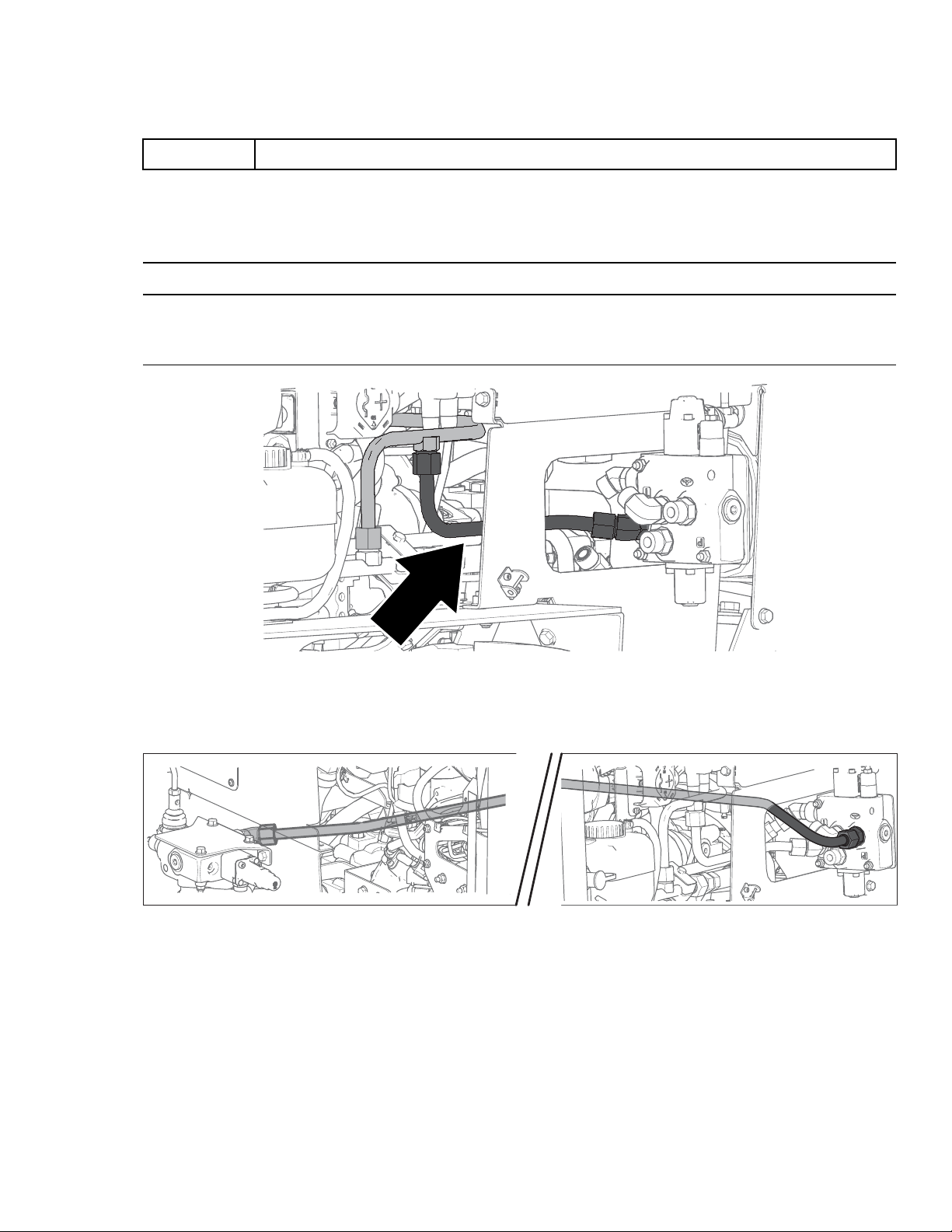

IMPORTANT

Ensure that the O-ring inserts into the hardline before connecting it to the hardline

routing under the coolant reservoir.

G434685

3462-332A Page 2–4 Installation: Installing the Hoses

Installing the Hoses Without the Hydra Borer

Parts Required

1 16-inch hose

1 45-degree connector

1 90-degree connector

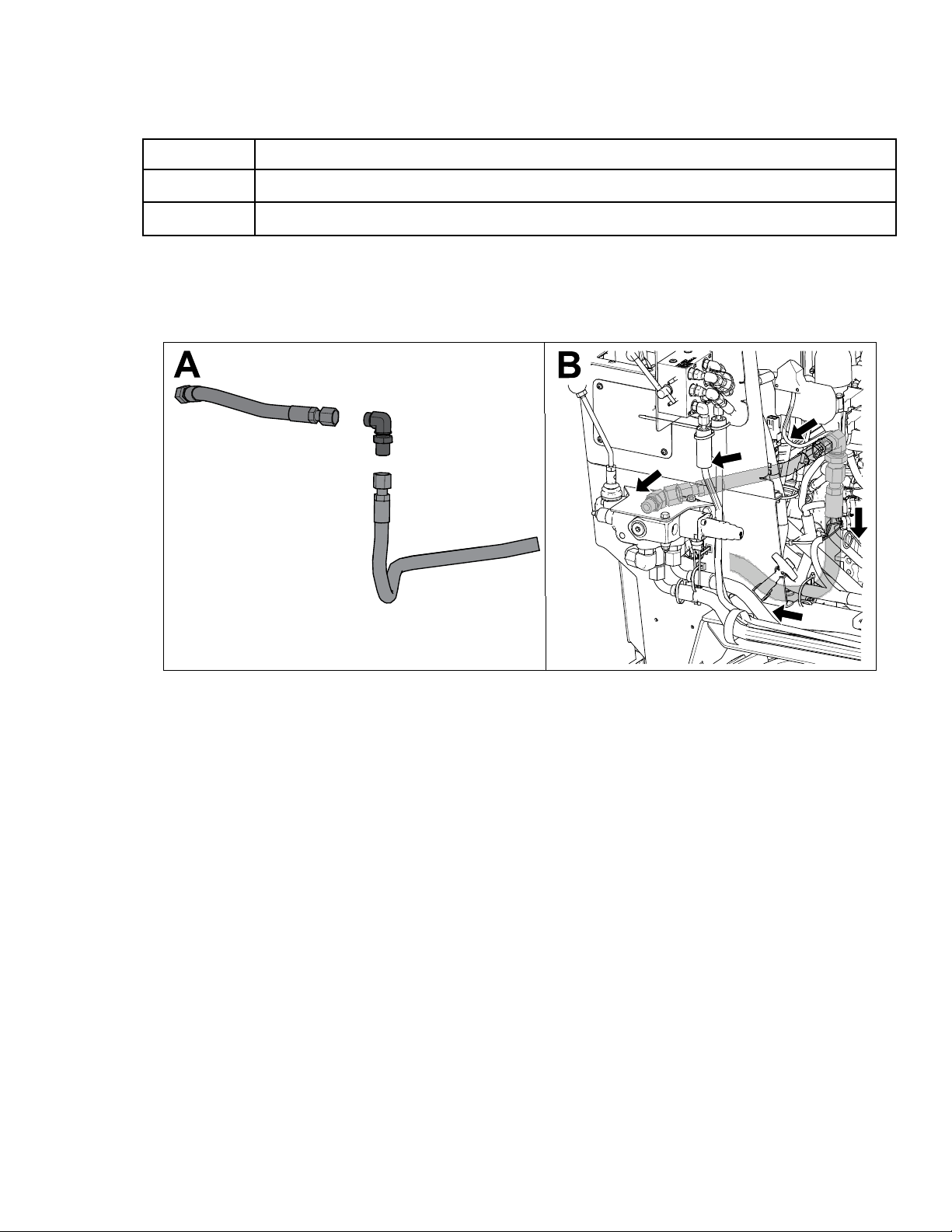

1. Connect the 16-inch hose to the short end of the 90-degree connector.

2. Connect the long end of the 90-degree connector to the existing hose attached to the

plow control valve.

G432656

3. Connect the 16-inch hose to the 45-degree connector on the trencher control valve.

Installation: Installing the Hoses Page 2–5 3462-332 A

Installing the Hoses Without the Hydra Borer (continued)

4. Torque the bolts securing trencher valve to the bracket and the machine to 23

to 29 N∙m (17 to 21 ft-lb).

G432650

3462-332A Page 2–6 Installation: Installing the Hoses

Installing Hoses With the Hydra Borer

Parts Required

1 Hardline

1. Connect the short hardline to the previously installed hardline and the 45-degree

connector, on the hydra borer valve, in port T.

IMPORTANT

Ensure that the O-ring inserts into the hardline before connecting it to the longer

hardline.

G434345

2. Connect the longer hardline, from the hydra borer kit, from the straight fitting in the P

port on the hydra borer valve to the 45-degree connector on the side of the trencher

valve.

G436604

Installation: Installing the Hoses Page 2–7 3462-332 A
