Tork Elevation T2 Mini JBT Series Instructions de construction

Washroom Dispenser Service and Parts Manual

Tork Elevation T2 Mini JBT Dispenser

555020A; 555028A

Revision Date: 3-12-18

1 of 7

Essity Internal

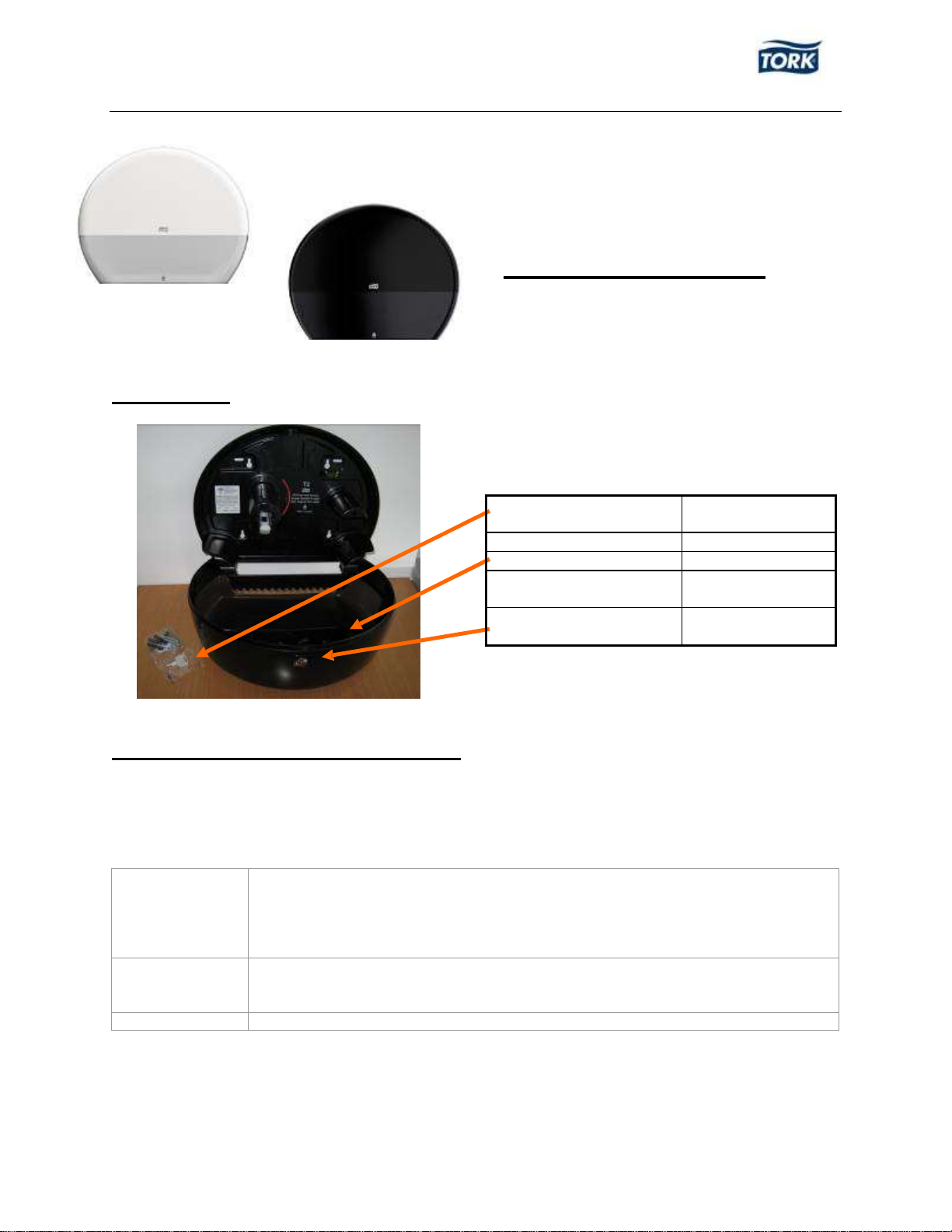

Dispenser Parts

Tork Elevation T2 Mini JBT Dispenser:

T2 System: 555020A (white); 555028A (black)

Dispenser Dimensions HxWxD Inches (cm):

10.8 x 13.6 x 5.2 (27.5 x 34.5 x 13.2 cm)

Refill Product Options (T2 System):

12024402 (Tork Advanced, 2 Ply)

12013903 (Tork Advanced, 1 Ply)

120246 (Tork Advanced, 2-Ply)

Part Description Replacement SKU

KEY FOR TORK

DISPENSER

200260 KEY

T2 HOOD WHITE

225550

T2 HOOD BLACK

225551

ELEVATION LOCK -

WHITE

205502

ELEVATION LOCK -

BLACK

205503

Part Description with Replacement Instructions

Parts with SKU numbers are available for order as of the revision date on the manual. Contact an

Essity Sales Rep or the Essity Quality Coordinator to order these parts.

Replacement SKU Description & Replacement Instructions

225550 White

225551 Black

T2 HOOD

The hood can be replaced. There is a tabbed pivot on the hood that should be

aligned with the notched hole on the back. The notch and tab will line up when the

cover is open approximately 45 degrees. Push out to release from back on one

side, then the other.

205502 White

205503 Black

ELEVATION LOCK (WHITE OR BLACK)

The lock can be replaced by pressing the plastic tabs on each side to free the lock

from the opening.

200260 KEY

METAL KEY FOR TORK DISPENSERS

Washroom Dispenser Service and Parts

Manual

Tork Elevation T2 Mini JBT

Dispenser

555020A;

555028A

Revision Date:

3-12-18

of?

Essity Internal

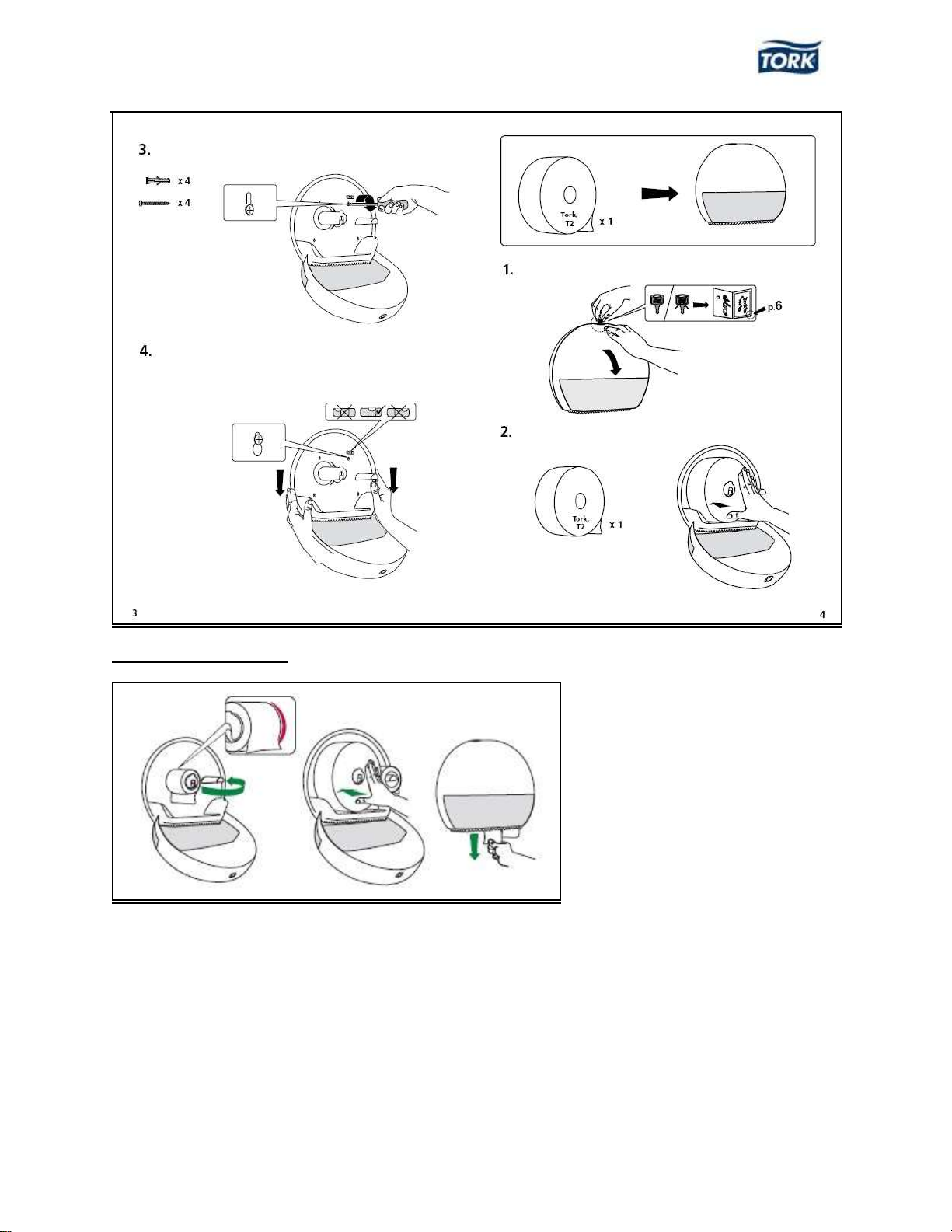

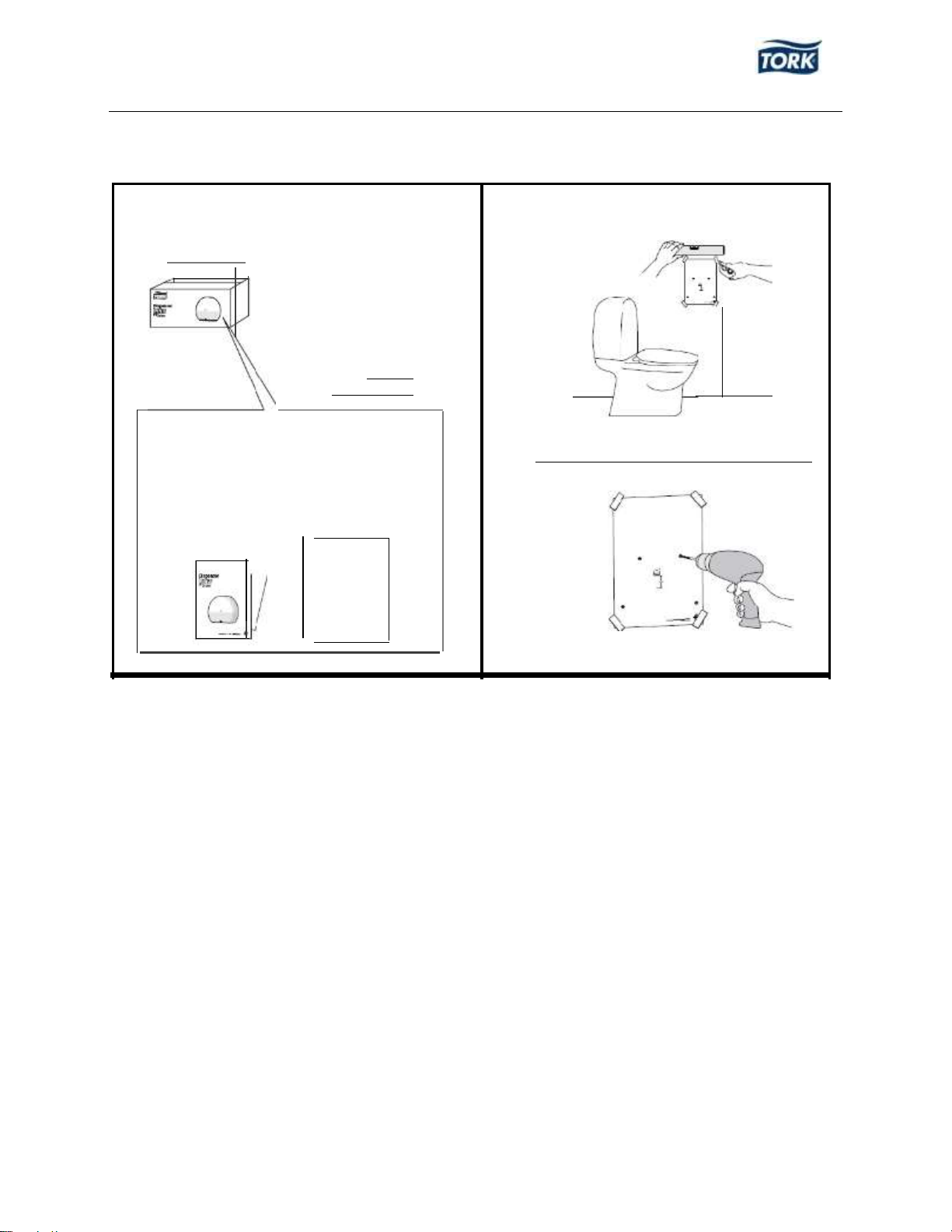

Mounting

and

Filling

Instructions

Installation instruction sheet and mounting template are provided inside each

carton.

@!r

r·

10:11

E:$=

C!:!:l

0<11

---·

3 of 7

Washroom Dispenser Service and Parts Manual

Tork Elevation T2 Mini JBT Dispenser

555020A; 555028A

Revision Date: 3-12-18

Essity Internal

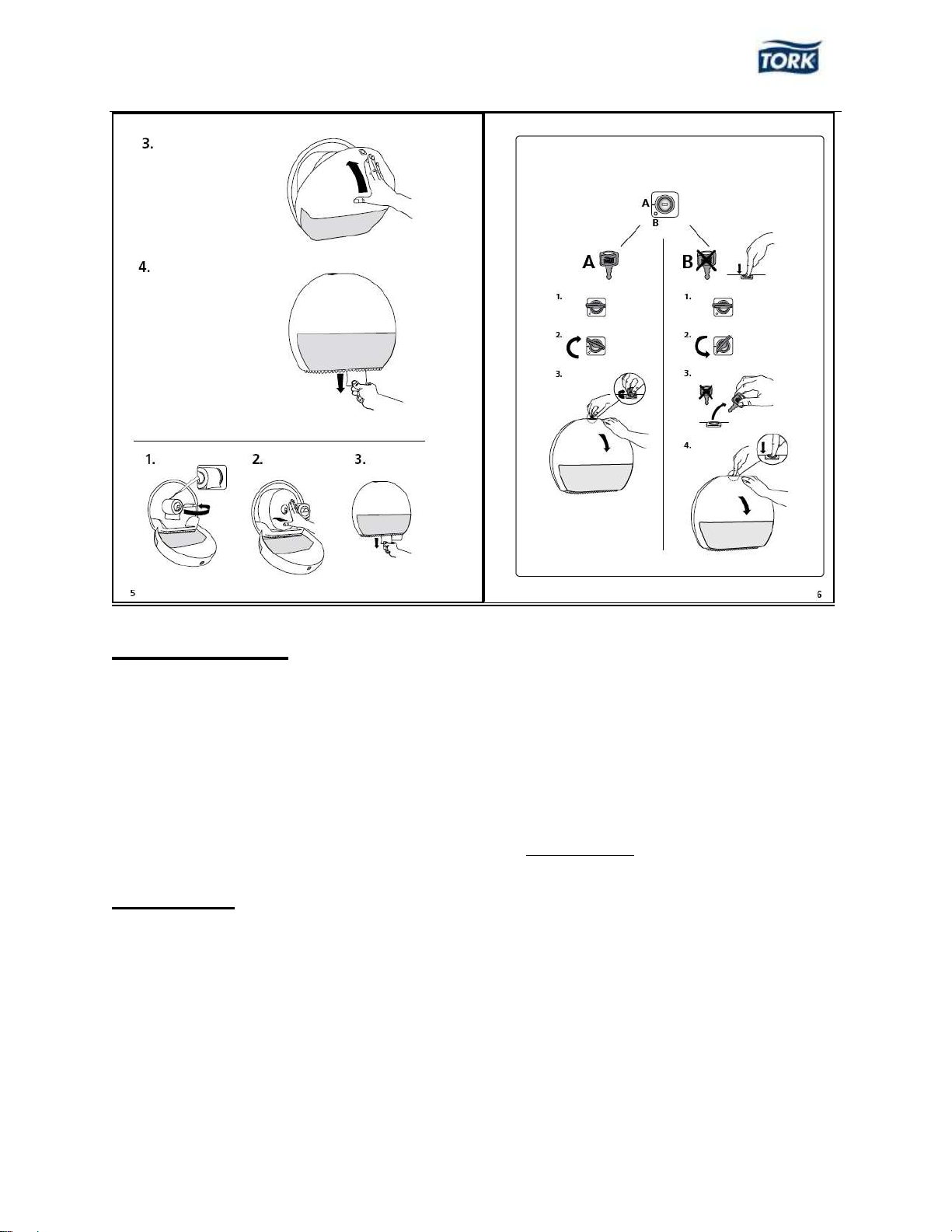

Using Stub Roll Feature

The dispenser has an indication of when the roll may be moved to the stub roll position.

When the red mark printed on the back of the dispenser is visible, the roll may be moved onto the stub

roll spindle and a new, full roll may be replaced on the main spindle.

Washroom Dispenser Service and Parts Manual

Tork Elevation T2 Mini JBT Dispenser

555020A; 555028A

Revision Date: 3-12-18

4 of 7

Essity Internal

Preventive Maintenance

The dispenser should be cleaned any time there is heavy paper dust build-up inside the dispenser. If

paper dust is not a problem, approximately every year is a good frequency for cleanings. The following is

the recommended procedure to cleaning:

1) Open the dispenser and remove the roll of paper.

2) Clean out any paper dust. This can be done is several ways, such as, vacuuming, blowing out with a

can of compressed air (wear safety glasses), wiping out with a damp cloth, etc.

3) Clean the cover with a general all-purpose cleaner that is safe for plastics.

Troubleshooting

Problem: Any paper-related problem.

•

Take note of the date code on the outside of the case of paper product. Then contact the

Essity Quality Coordinator and explain the problem.

Problem: Any other problem not stated above.

•

Contact the Essity Quality Coordinator.

Washroom Dispenser Service and Parts Manual

Tork Elevation T2 Mini JBT Dispenser

555020A; 555028A

Revision Date: 3-12-18

5 of 7

Essity Internal

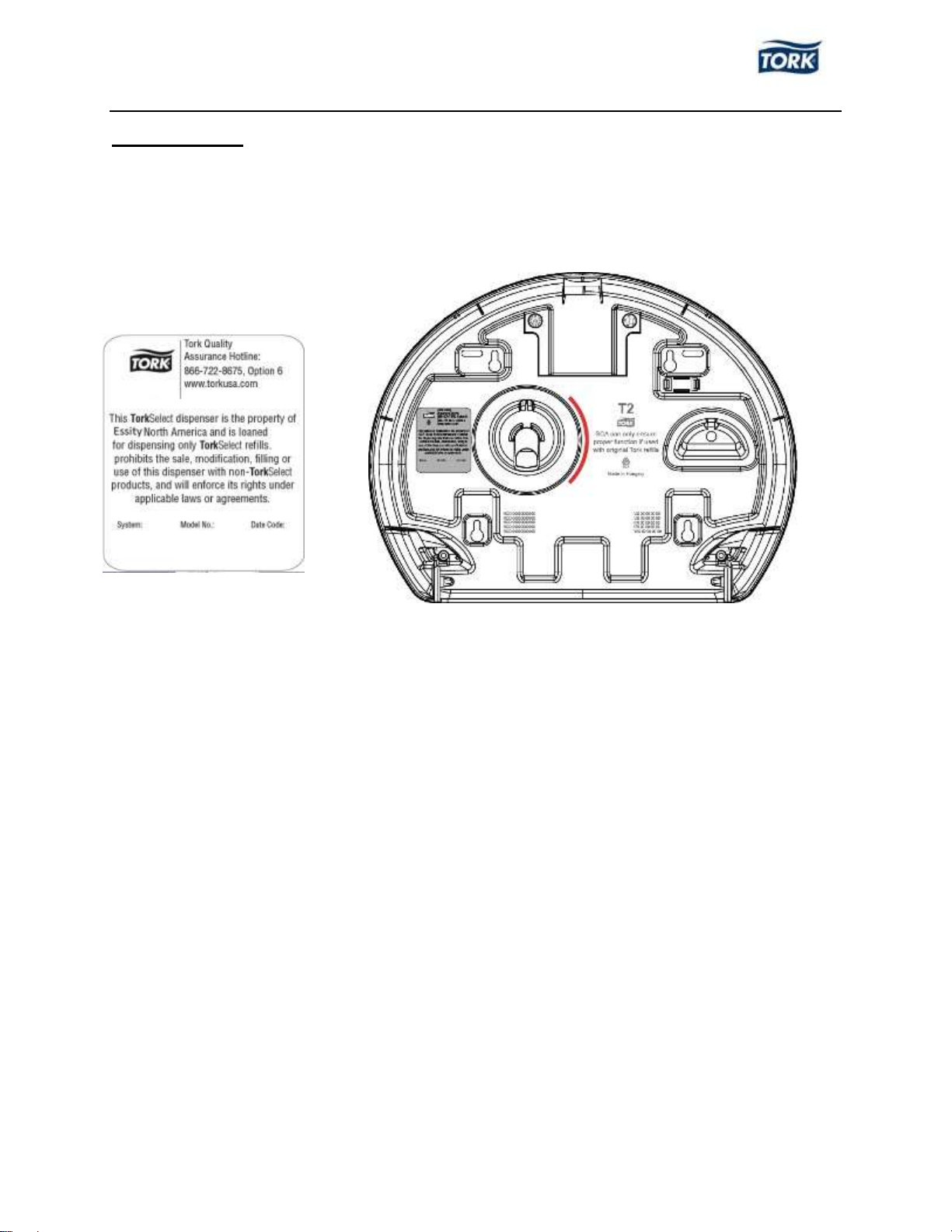

Contacting Essity

To contact the Essity Quality Coordinator, dial 1-866-722-6659 and press 6.

Product Date Code Location: The assembly date code for the product can be found on the TorkSelect

label affixed to the inside back of the dispenser.

6 of 7

Washroom Dispenser Service and Parts Manual

Tork Elevation T2 Mini JBT Dispenser

555020A; 555028A

Revision Date: 3-12-18

Essity Internal

555020A –555028A Tork Elevation T2 Mini JBT Dispenser

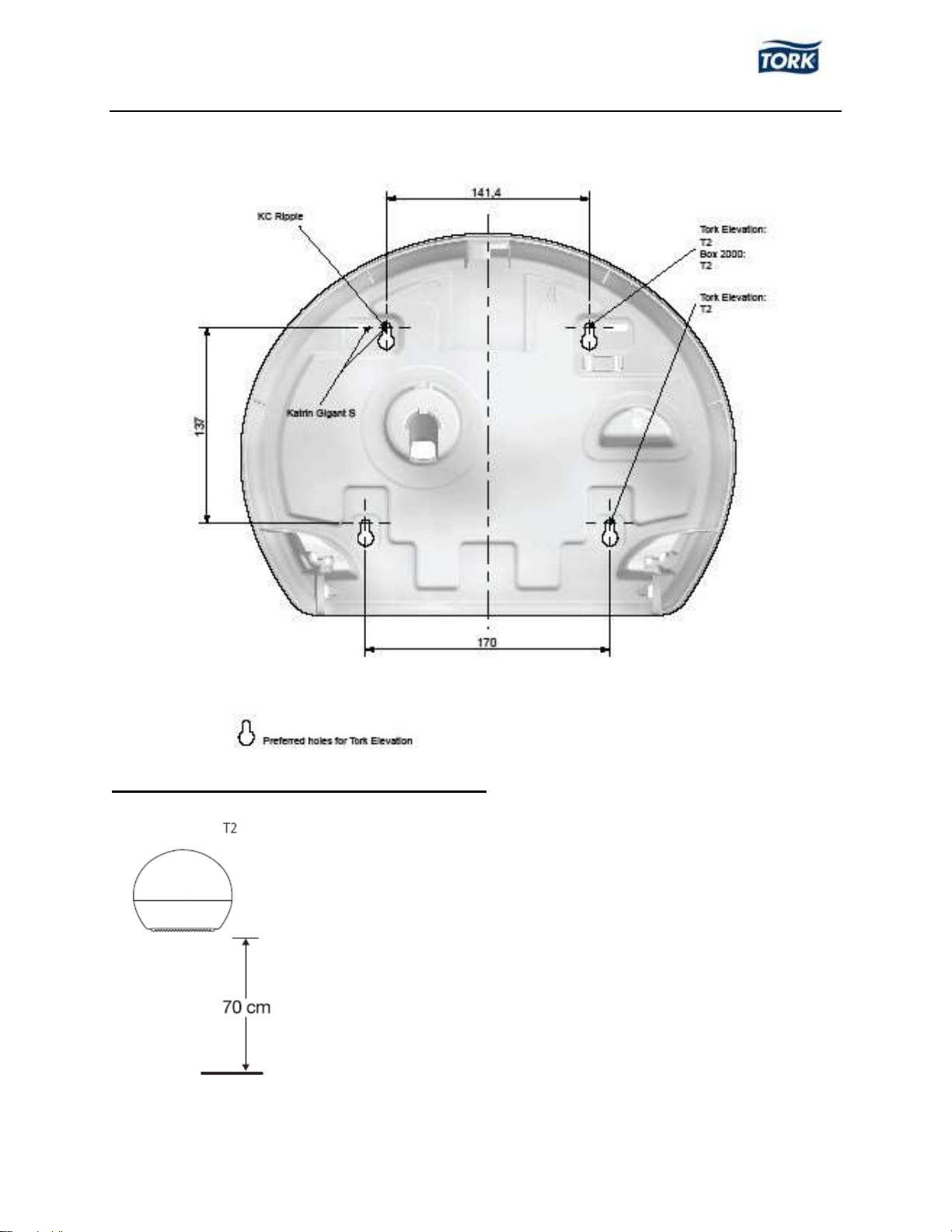

Mounting Hole Dimensions (mm)

Recommended Mounting Height (standard access)

Mount dispenser 27.5” (70cm) above finished floor.

7 of 7

Washroom Dispenser Service and Parts Manual

Tork Elevation T2 Mini JBT Dispenser

555020A; 555028A

Revision Date: 3-12-18

Essity Internal

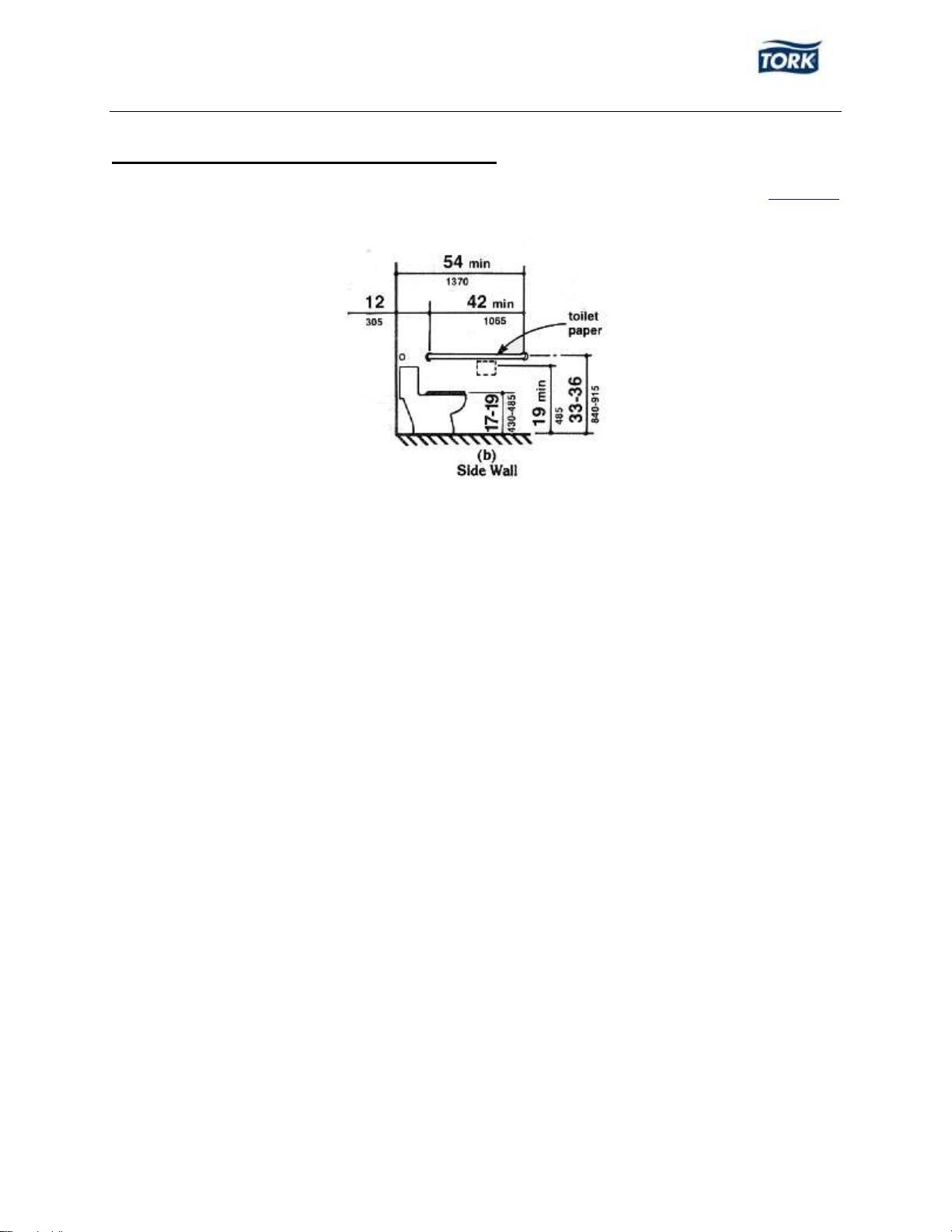

Recommended Mounting Height (ADAAG Guideline)

4.16.6 Dispensers. Toilet paper dispensers shall be installed within reach, as shown in Fig. 29(b).

Dispensers that control delivery, or that do not permit continuous paper flow, shall not be used.

Figure 29b

Grab Bars at Water Closets

Side Wall

A 42 inch (1065 mm) minimum length grab bar is required to the side of the water closet spaced 12

inches (305 mm) maximum from the back wall and extending a minimum of 54 inches (1370 mm) from

the back wall at a height between 33 and 36 inches (840-915 mm). The toilet paper dispenser shall be

mounted at a minimum height of 19 inches (485 mm). (4.16.3, 4.16.4, 4.16.6)

Note: Compliance with ADA guidelines is the responsibility of the installer and building owner. Local and

state requirements may differ from ADAAG guidelines.
