Topfield TF 5000 CIP Manuel utilisateur

TOPFIELD

TF 5000 CIP

User Guide

Digital Satellite Receiver

with Actuator Controller

iii

Contents

Contents iii

1 Introduction 1

1.1 Features ............................... 1

1.2 Controlling the digital receiver .................. 2

1.2.1 The front panel ....................... 2

1.2.2 The remote control ..................... 4

1.3 What is common interface? .................... 5

2 Setup 7

2.1 Unpacking .............................. 7

2.2 Safety precautions ......................... 7

2.3 Rear panel connections ....................... 9

2.4 Connecting up your digital receiver ............... 10

2.4.1 Connecting to the antenna ................ 10

2.4.2 Connecting to your television .............. 12

2.4.3 Connecting to your video cassette recorder ....... 15

2.4.4 Inserting batteries in the remote control ......... 15

3 Preference Settings 17

3.1 Language settings .......................... 17

3.2 Video and audio settings ...................... 18

iv CONTENTS

3.2.1 Television standard .................... 19

3.2.2 Color model ......................... 19

3.2.3 Video cassette recorder .................. 20

3.2.4 Television aspect ratio ................... 20

3.2.5 Sound mode ........................ 21

3.2.6 Radio frequency output .................. 21

3.3 Local time setting .......................... 22

3.4 Parental control ........................... 24

3.5 Adjusting the on-screen display .................. 25

4 Service Search 27

4.1 Searching broadcasting services .................. 27

4.1.1 Conﬁguring LNB settings ................. 27

4.1.2 Conﬁguring DiSEqC 1.2 settings ............. 29

4.1.3 Conﬁguring USALS settings ............... 31

4.1.4 Conﬁguring actuator settings ............... 32

4.1.5 Searching services ..................... 34

4.2 Editing the transponder list .................... 37

4.3 Resetting to factory settings .................... 38

4.4 Resetting to installer settings ................... 38

5 Daily Usage 40

5.1 Volume control ........................... 40

5.2 Watching television ......................... 40

5.2.1 Watching favorite services ................ 41

5.2.2 Viewing program information .............. 42

5.2.3 Selecting audio tracks ................... 43

5.2.4 Selecting subtitle tracks .................. 44

5.2.5 Viewing teletext ...................... 44

5.3 Viewing electronic program guide ................ 44

5.4 Watching multifeed program ................... 45

5.5 Making timer events ........................ 46

6 Listing Services 48

6.1 Editing the service list ....................... 48

6.2 Editing the favorite list ....................... 50

6.3 Transferring receiver data ..................... 52

7 Firmware Update 53

7.1 From your computer via RS-232 port ............... 54

7.2 From another digital receiver via RS-232 port .......... 54

Index 56

Chapter 1

Introduction

The TF 5000 CIP digital receiver is fully compliant with the in-

ternational Digital Video Broadcasting (DVB) standard, and

can receive digital broadcasts. For its operation, you need an

antenna, which must be installed appropriately.

NOTE

In general we equate a channel with a frequency. However,

unlike analog broadcasts, digital broadcasts are not all as-

signed to their own frequencies; instead, multiple television

and radio broadcasts are transmitted through a single fre-

quency. The frequency in digital broadcasting is usually called

transponder. To reduce confusion, the word service is prefer-

ably used than channel as service indicates one television or

radio broadcast in this manual.

1.1 Features

The TF 5000 CIP digital receiver has the following features:

• Supports DiSEqC 1.0, DiSEqC 1.1, DiSEqC 1.2 and US-

ALS.

2 Introduction

• Can store up to 5000 television and radio services.

• Has an electronic program guide that provides an over-

view of program schedules for next few hours.

• You can edit the service list.

• You can make a favorite list with your favorite channels.

• You can view the information of the current television or

radio program.

• You can update the ﬁrmware of the digital receiver to

the latest version, which will be provided by the manu-

facturer.

1.2 Controlling the digital receiver

The digital receiver can be operated with the remote control

and the buttons on the front panel.

NOTE

When the digital receiver is off but plugged to a wall outlet,

we say that it is in standby mode; on the other hand, when

it is on, it is in operation mode. You should keep the digital

receiver plugged to a wall outlet on standby mode so as it can

run timer events at any time.

1.2.1 The front panel

The front panel of the digital receiver has buttons to control

the digital receiver, and speciﬁc lamps and a display to indi-

cate its status. The following indicates what they mean.

STANDBY

CHANNEL

VOLUME

TV/STB

REMOTE

STANDBY

1.2 Controlling the digital receiver 3

STANDBY button switches the digital receiver between

standby mode and operation mode. (On/Off)

CHANNEL

buttons move to the next or previous ser-

vice. They are also used to navigate in the menus

and interactive screens.

VOLUME

buttons increase and decrease the volume.

They are also used to change options for a menu

item.

TV/STB lamp lights up while your video recorder operates

instead of the digital receiver. See § 3.2.3 for more

description.

REMOTE lamp lights up whenever you press a button of

the remote control.

STANDBY lamp lights up while the digital receiver is in

standby mode.

Front display displays the current time in standby mode,

and displays the current service and status of the

digital receiver in operation mode.

4 Introduction

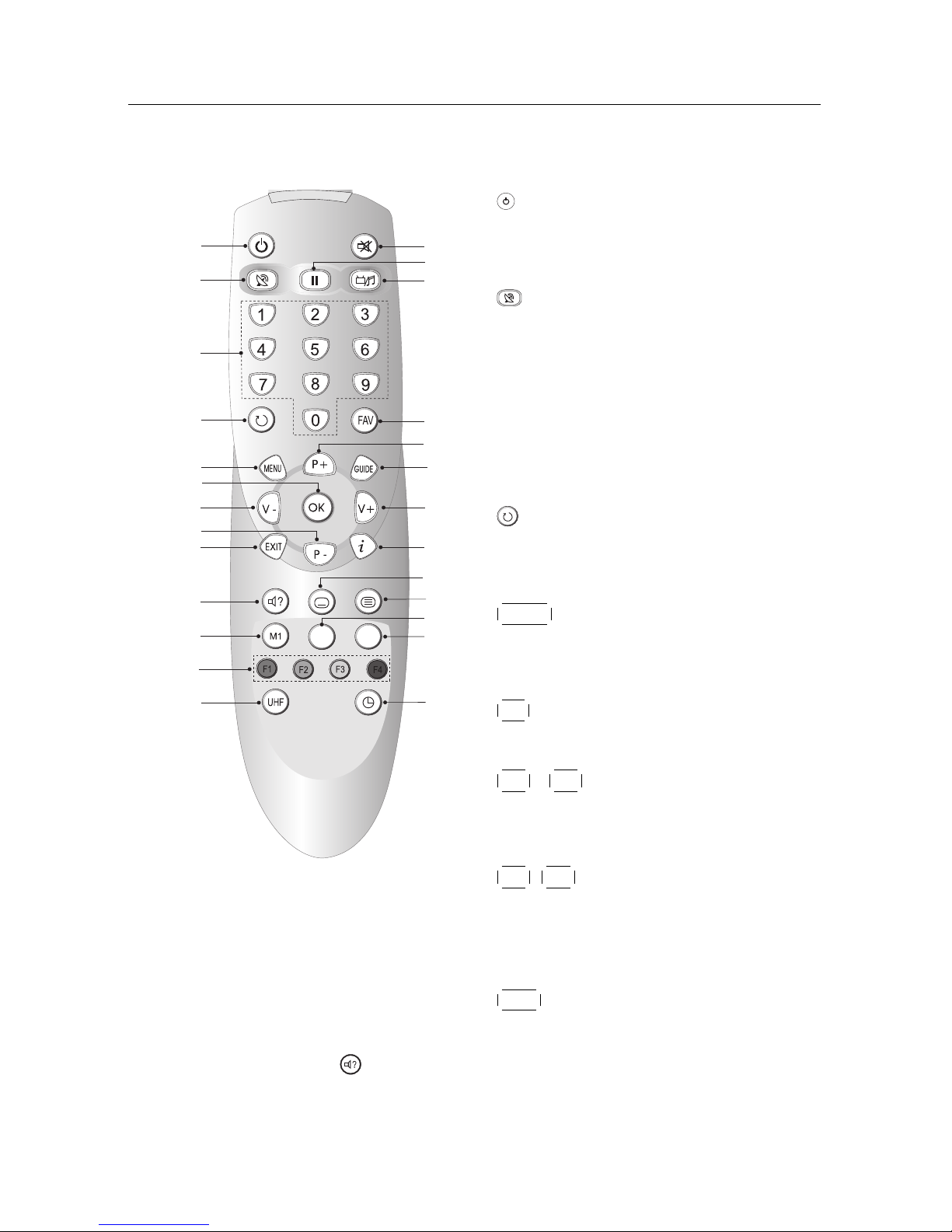

1.2.2 The remote control

SAT N/P

button switches the digital receiver

between standby mode and operation

mode. (On/Off)

button switches the output of the

TV SCART socket between the digital

receiver and the device connected to

the VCR SCART socket. See § 3.2.3 for

more description.

Numeric buttons are used to enter ser-

vice numbers and menu options.

button switches between the cur-

rent service and the previously viewed

one.









MENU button displays the main menu.

It is also used to return to the previous

menu from a submenu.









OK button displays the service list. It

is also used to select menu items.









V+,







V−buttons increase and de-

crease the volume. They are also used

to change options for a menu item.









P+,







P−buttons move to the next or

previous service. They are also used to

navigate in the menus and interactive

screens.









EXIT button is used to leave the cur-

rent screen.

button is used to select an audio track and sound

mode, or a video track of multifeed program.
