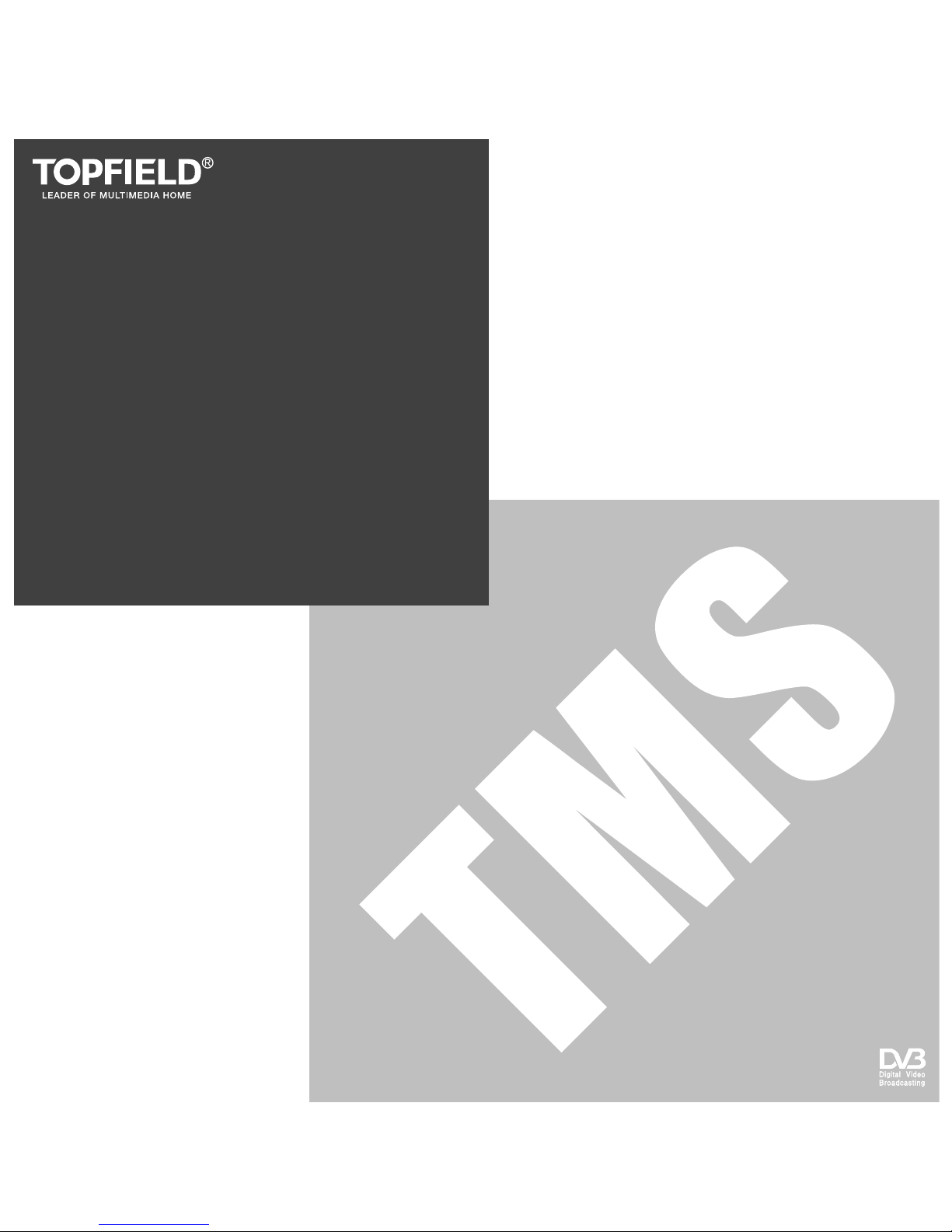

Topfield SRP-2100 Manuel utilisateur

l Media Solution

User Guide

Digital Satellite Receiver

Tota

SRP-2100

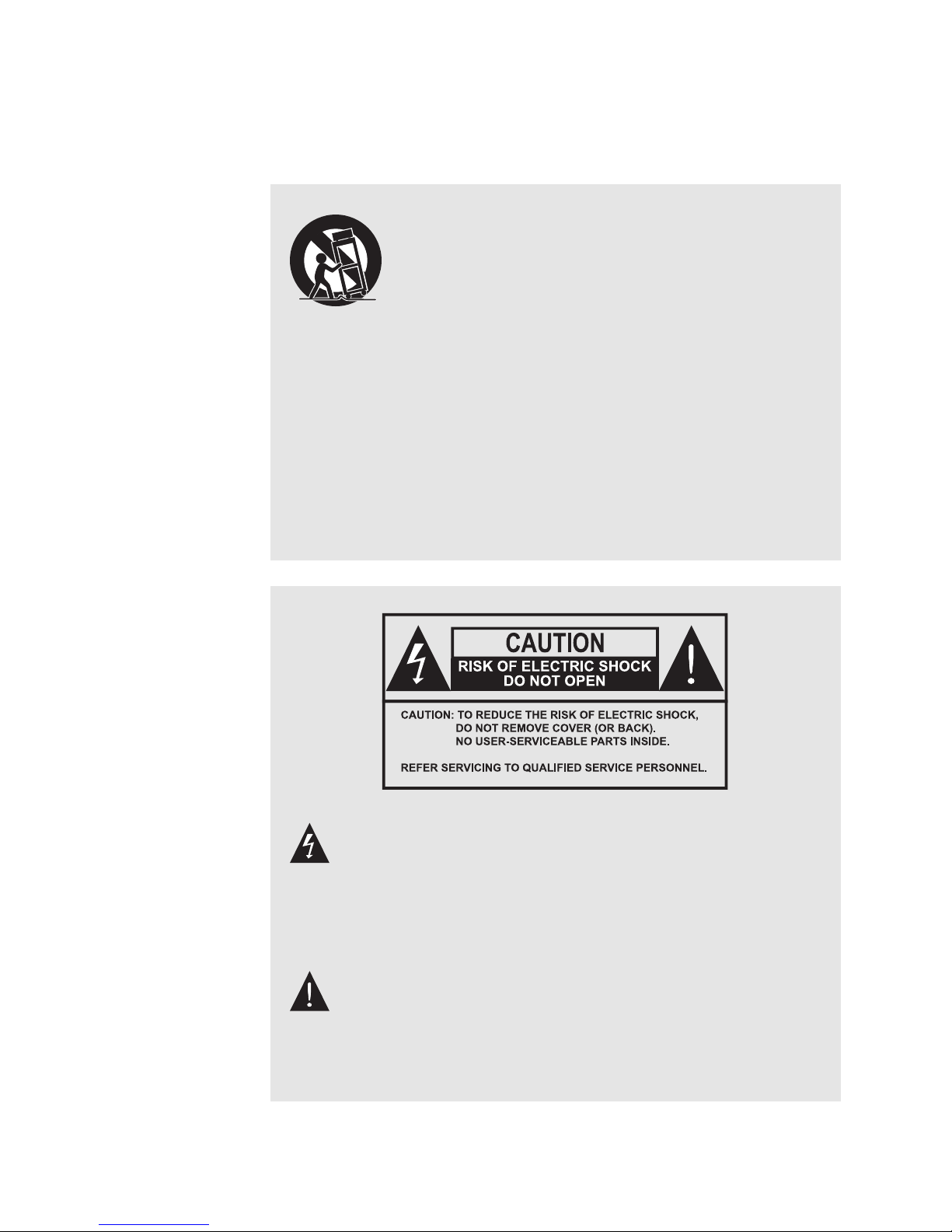

Use only with the cart, stand, tripod, bracket, or

table speciﬁed by the manufacturer or sold with

the apparatus. When a cart is used, use caution

when moving the cart/apparatus combination to

avoid injury from tip-over.

•

Changes or modiﬁcations not expressly approved by the

party responsible for compliance could void the user’s

authority to operate the equipment.

•

The mains plug, which is used as a disconnect device,

shall remain readily operable.

The lightning ﬂash with arrowhead symbol, within an

equilateral triangle, is intended to alert the user to the

presence of uninsulated “dangerous voltage” within the

product’s enclosure that may be of sufﬁcient magnitude

to constitute a risk of electric shock to a person.

The exclamation point, within an equilateral triangle, is

intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in

the literature accompanying the product.

iv CONTENTS

Contents

Contents iv

1 Introduction 1

1.1 Features ............................... 2

1.2 Controlling the digital receiver .................. 3

1.2.1 The front panel ....................... 4

1.2.2 The remote control ..................... 5

1.3 What is the common interface? .................. 8

2 Setup 10

2.1 Unpacking .............................. 10

2.2 Safety precautions ......................... 11

2.3 Rear panel connections ....................... 13

2.4 Connecting up your digital receiver ............... 15

2.4.1 Connecting the antenna .................. 15

2.4.2 Connecting to your television set ............ 16

2.4.3 Connecting to your video cassette recorder ....... 19

2.5 Inserting batteries in the remote control ............. 19

2.6 Switching on for the ﬁrst time ................... 20

3 Service Search 21

3.1 Searching broadcasting services .................. 21

3.1.1 Conﬁguring LNB settings ................. 22

3.1.2 Conﬁguring DiSEqC 1.2 settings ............. 24

3.1.3 Conﬁguring USALS settings ............... 25

CONTENTS v

3.1.4 Searching services ..................... 27

3.2 Copying services .......................... 30

3.3 Editing the transponder list .................... 31

3.4 Resetting to factory settings .................... 32

3.5 Resetting to user settings ...................... 32

3.6 Clearing the services list ...................... 33

4 Preference Settings 34

4.1 Language settings .......................... 34

4.1.1 Menu language ....................... 34

4.1.2 Subtitle language ...................... 35

4.1.3 Audio language ...................... 35

4.2 Video and audio settings ...................... 36

4.2.1 High deﬁnition television ................. 36

4.2.2 Colour model ........................ 37

4.2.3 Video cassette recorder .................. 37

4.2.4 Television aspect ratio ................... 38

4.2.5 Audio mode ........................ 39

4.3 Local time setting .......................... 39

4.4 Parental control ........................... 42

4.5 Recording Settings ......................... 43

4.6 Playback Settings .......................... 44

4.7 Adjusting the On-Screen Display ................. 45

4.8 Front Display Settings ....................... 46

4.9 To use MediaHighway programme guide ............ 47

4.10 Adjusting a size of picture in picture ............... 47

4.11 Slideshow Settings ......................... 47

4.12 Standby mode Setting ....................... 48

5 Daily Usage 49

5.1 Volume control ........................... 49

5.2 Watching television ......................... 49

5.2.1 The services list ....................... 49

5.2.2 The favourite services list ................. 52

5.2.3 Viewing programme information ............ 53

5.2.4 Selecting audio tracks ................... 54

vi CONTENTS

5.2.5 Selecting subtitle tracks .................. 54

5.2.6 Viewing teletext ...................... 54

5.3 Viewing electronic programme guide .............. 55

5.4 Watching multifeed programme ................. 55

5.5 Using time shift ........................... 56

5.6 Using picture in picture ...................... 57

6 Editing Services 59

6.1 Editing the services list ....................... 59

6.2 Editing the favourite list ...................... 61

6.3 How to use the on-screen keyboard ............... 63

7 Recording and Playing 64

7.1 Recording a programme ...................... 65

7.1.1 Instant recording ...................... 66

7.1.2 Recording Reservation .................. 67

7.1.3 Scheduling recordings using the programme guide . . 70

7.1.4 Recording a time-shifted programme .......... 70

7.1.5 Recording a pay service programme ........... 71

7.2 File archive ............................. 72

7.2.1 To delete a recording .................... 72

7.2.2 To sort recordings ..................... 73

7.2.3 To lock a recording ..................... 73

7.2.4 To rename a recording ................... 73

7.2.5 To make a new folder ................... 74

7.2.6 To move a recording to another folder .......... 74

7.3 Playing back a recording ...................... 74

7.3.1 To navigate using the progress bar ............ 75

7.3.2 To play in slow motion .................. 76

7.3.3 To play in fast motion ................... 76

7.3.4 To make a bookmark .................... 76

7.3.5 To play back a recording repeatedly ........... 77

7.3.6 To play back recordings in sequence ........... 77

7.3.7 To play back a scrambled recording ........... 78

7.4 Editing a recording ......................... 78

7.5 Copying a recording ........................ 79

CONTENTS vii

7.6 Formatting the hard disk ...................... 80

8 Special Features 81

8.1 Playing back MP3 ﬁles ....................... 81

8.2 Playing back video ﬁles ...................... 82

8.3 Viewing graphic ﬁles ........................ 82

8.4 Copying ﬁles ............................ 83

8.4.1 To copy a ﬁle to an external hard disk drive ...... 83

8.4.2 To copy a ﬁle from an external hard disk drive ..... 84

8.5 Playing back contents of YouTube ................ 84

8.6 Sharing image ﬁles by Flickr .................... 85

8.7 Weather ............................... 87

8.8 Network Game ........................... 87

8.8.1 To use the wireless keyboard ............... 87

8.8.2 Battle Tank Single Mode .................. 88

8.8.3 Battle Tank Network Mode ................ 93

9 Accessing to The Digital Receiver via The Internet 94

9.1 Conﬁguring the router ....................... 95

9.1.1 To access within the local area network ......... 95

9.1.2 To access over the Internet ................ 96

9.2 Conﬁguring the network settings on the digital receiver . . . . 97

9.3 Accessing the web server ..................... 98

9.4 Accessing the FTP server ......................100

10 Firmware Update 103

10.1 Checking the ﬁrmware information ...............103

10.2 From a USB memory ........................104

10.3 From the ﬁrmware server via the network ............104

10.4 Over the air .............................106

A Universal Remote Control 107

A.1 TV codes list .............................110

A.2 DVD codes list ...........................127

A.3 Audio system codes list ......................129

A.4 Additional codes list ........................131

viii CONTENTS

Index 132

Chapter 1

Introduction

Congratulations on buying a SRP - 2100. The SRP - 2100 allows

you to view and record digital TV programmes easily.

And the SRP - 2100 digital receiver is fully compliant with the

international Digital Video Broadcasting (DVB) standard, and

thus able to receive digital broadcasts of that standard.

For its operation you need an antenna which must be installed

appropriately.

NOTE

In general, we equate a channel with a frequency. However,

unlike analogue broadcasts, digital broadcasts are not all as-

signed to their own frequencies; instead, multiple television

broadcasts are transmitted through a single frequency. The fre-

quency in digital broadcasting is usually called transponder. To

reduce confusion in this manual, the word

service

is preferably

used than

channel

as a term to indicate one television or radio

broadcast.

2 Introduction

1.1 Features

The SRP - 2100 has plenty of features as follows:

•

Supports DiSEqC 1.0, DiSEqC 1.1, DiSEqC 1.2 and US-

ALS.

•

Can store up to 7,000 television and 3,000 radio services.

• You can edit the services list.

• You can create favourite lists of your favourite services.

•

You can see information about the current television or

radio programme.

•

Have electronic programme guides that provide an over-

view of scheduled programmes.

•

You can record one service while you are currently watch-

ing another.

•

You can record many programmes using a hard disk

drive with large storage capacity.

•

The time shift is available on the SRP - 2100. You can

pause the programme that you are watching and resume

it again at a later time. Then you can quickly go to any

part of the current programme by fast forward or back-

ward search.

•

If you have an external hard disk drive connected to

the digital receiver via the USB or eSATA ports, you can

record television programmes into it. You can use the

external hard disk drive as fast as the built-in hard disk

drive with eSATA port.

•

You can play back DivX and MP3 ﬁles and view image

ﬁles in JPG format.

• You can play a network game with other players.

•

You can play back various contents of the YouTube via

the network.
