Topfield CBV-7100 Manuel utilisateur

TOPFIELD

CBV-7100

User Guide

High Deﬁnition

Digital Cable Receiver

VIACCESS Embedded

ii CONTENTS

Contents

Contents ii

1 Introduction 1

1.1 Features .............................. 1

1.2 Controlling the digital receiver .................. 2

1.2.1 Front panel ........................ 2

1.2.2 Remote control ...................... 4

1.3 Subscription card information .................. 5

2 Setup 6

2.1 Unpacking ............................. 6

2.2 Safety precautions ......................... 6

2.3 Rear panel connections ...................... 8

2.4 Connecting up your digital receiver ............... 9

2.4.1 Connecting to the broadcasting cable .......... 9

2.4.2 Connecting to your television set ............ 9

2.5 Switching on for the ﬁrst time .................. 11

3 Service Search 14

3.1 Searching broadcasting services ................. 14

3.2 Resetting to factory settings ................... 15

4 Preference Settings 16

4.1 Language settings ......................... 16

4.1.1 Menu language ...................... 16

CONTENTS iii

4.1.2 Subtitle language ..................... 17

4.1.3 Audio language ...................... 17

4.2 Video and audio settings ..................... 17

4.2.1 High deﬁnition television ................ 17

4.2.2 Television aspect ratio .................. 18

4.2.3 Audio mode ........................ 19

4.3 Local time setting ......................... 19

4.4 Parental control .......................... 20

4.5 Adjusting the On-Screen Display ................ 22

4.6 Standby mode ........................... 23

5 Daily Usage 24

5.1 Volume control .......................... 24

5.2 Watching television ........................ 24

5.2.1 The services list ...................... 24

5.2.2 The favourite service lists ................ 26

5.2.3 Viewing programme information ............ 28

5.2.4 Selecting audio tracks .................. 29

5.2.5 Selecting subtitle tracks ................. 29

5.2.6 Viewing teletext ...................... 29

5.3 Viewing electronic programme guide .............. 29

5.4 Making timer events ....................... 31

6 Listing Services 33

6.1 Editing the services list ...................... 33

6.2 Editing the favourite lists ..................... 35

6.3 How to use on-screen keyboard ................. 37

7 Firmware Update 38

Index 39

Chapter 1

Introduction

The CBV-7100 digital receiver is fully compliant with the inter-

national Digital Video Broadcasting (DVB) standard, and thus

is able to receive digital broadcasts of that standard.

NOTE

In general we equate a channel with a frequency. However,

unlike analogue broadcasts, digital broadcasts are not all

assigned to their own frequencies; instead, multiple televi-

sion broadcasts are transmitted through a single frequency.

The frequency in digital broadcasting is usually called trans-

ponder. To reduce confusion in this manual, the word ser-

vice is preferably used than channel as a term to indicate

one television or radio broadcast.

1.1 Features

This digital receiver has the following features:

• Can store up to 2000 television and radio services.

• You can edit the services list.

• Can create favourite lists of your favourite services.

2 Introduction

• Can view information about the current television or ra-

dio programme.

• Has an electronic programme guide that provides an

overview of scheduled programmes.

1.2 Controlling the digital receiver

You can operate the digital receiver with the remote control or

the buttons on the front panel.

NOTE

When the digital receiver is oﬀ but plugged into a wall

socket, we say that it is in standby mode; on the other hand,

when it is on, it is in operation mode. Even when you are not

using the digital receiver, you should keep it plugged into a

wall socket to be in standby mode so that it can run timer

events at any time.

1.2.1 Front panel

The front panel of the digital receiver has buttons to control

the digital receiver, speciﬁc lamps and a display to indicate its

status. The following indicates what they mean.

button switches the digital receiver between standby mode

and operation mode.

CHANNEL

buttons switch to the previous or next ser-

vice. They are also used to navigate in menus and inter-

active screens.

1.2 Controlling the digital receiver 3

lamp blinks every time you press a button on the remote

control.

STANDBY lamp lights up while the digital receiver is in standby

mode.

Front display shows the current time in standby mode, and

displays the current service in operation mode.

You have to insert your subscription

card into the front slot to watch pay

services. When you insert a subscrip-

tion card, the side on which the chip is

mounted must face upward.

4 Introduction

1.2.2 Remote control

.1button switches the digital

receiver between standby mode

and operation mode.

.2is used to set a sleep timer in

10 minute increments.

.3







V−,







V+buttons decrease or in-

crease the volume. They are also

used to change values for menu

options.

.4mutes the sound. Press again

to switch it back on.

.5







P−,







P+buttons switch to the

previous or next service. They are

also used to navigate in menus

and interactive screens.

.6switches over between the

current service and the previ-

ously viewed one.

.7Numeric buttons are used to en-

ter a service number for service

change or to specify values for

menu options.

.8







OK displays the services list. See

§5.2.1 for more details. It is also

used to select a menu item.

.9







FAV displays the favourite lists.

.10 displays the service information box. It is also used

to display more information about a programme.

.11 is used to select an audio track and a sound mode.

1.3 Subscription card information 5

.12 is used to select a subtitle track.

.13 displays teletext.

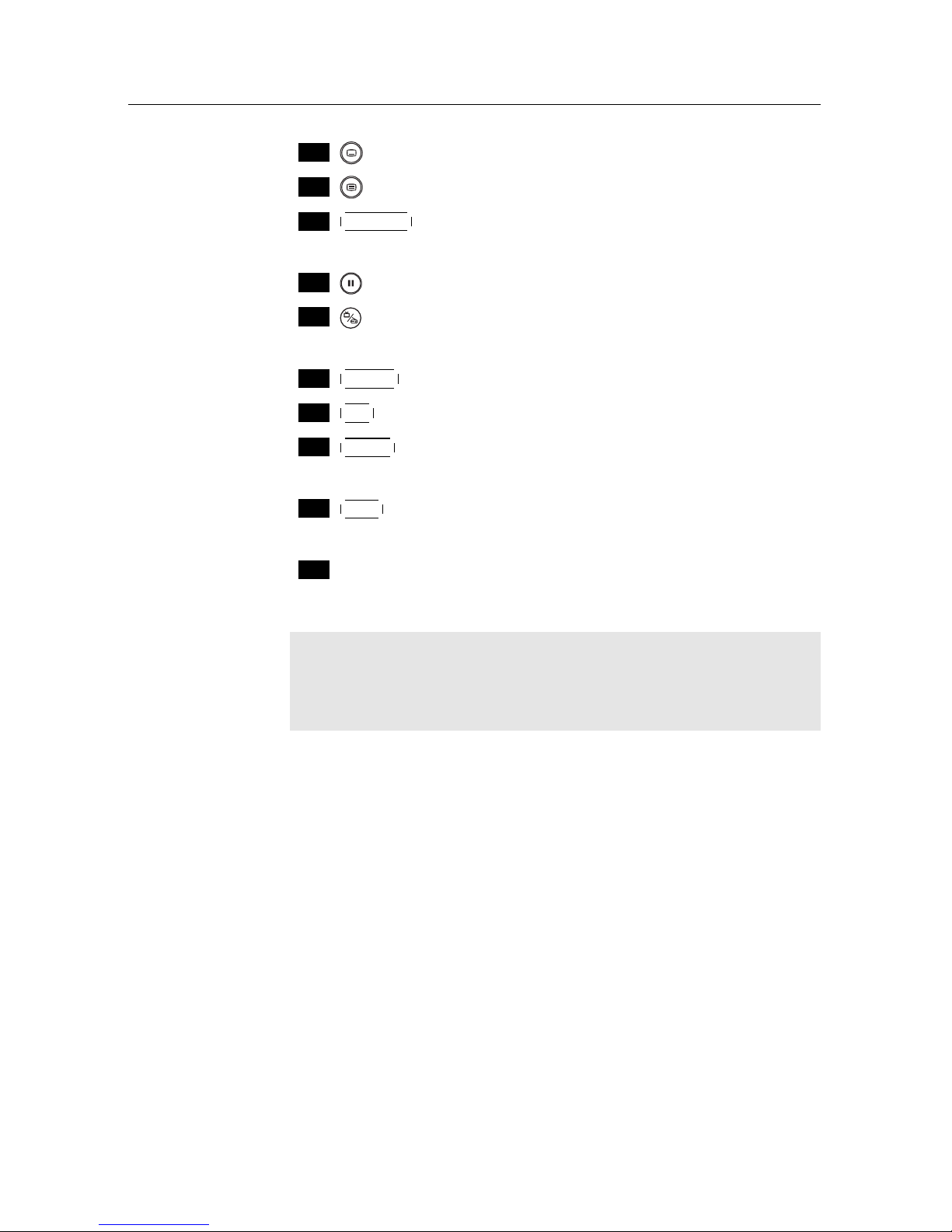

.14 







V.Format changes video resolution. See §4.2.1 for more

details.

.15 pauses live television.

.16 switches over between television services and radio

services.

.17 







GUIDE displays the electronic programme guide.

.18 







A/R changes aspect ratio. See §4.2.2 for more details.

.19 







MENU displays the main menu. It is also used to return

to the previous menu from a submenu.

.20 







EXIT is used to exit a menu or to hide on-screen informa-

tion.

.21 These buttons have diﬀerent functions per menu. They

will be guided by on-screen help.

NOTE

When using the remote control, point it at the remote sensor

on the front panel of the digital receiver.

1.3 Subscription card information

With this digital receiver, you can view pay services scrambled

with the VIACCESS conditional access system. Probably you

have a subscription card. If you would like to view information

in detail about your subscription card, select the Conditional

Access menu. There you can also check the messages from

the broadcasting operator.

6 Setup

Chapter 2

Setup

2.1 Unpacking

Before going any further, check that you have received the fol-

lowing items with the digital receiver.

• Remote control unit

• Two batteries for the remote control (AAA 1.5 V)

• A copy of this user guide

NOTE

Accessories may vary according to your local area.

2.2 Safety precautions

Please read carefully the following safety precautions.

• The mains voltage must range between 90 and 250 volts.

Check it before plugging the digital receiver to the wall

socket. For the power consumption of the digital re-

ceiver, refer to Table 2.1.

• The wall socket should be near the equipment. Do not

run an extension lead to the unit.
