Tone CSS60-BTL Manuel utilisateur

MODEL

CSS60-BTL / CSS90-BTL / CSS110-BTL

CAUTION

Read and fully understand all the instructions before use.

Keep this manual in designated place for easy and quick reference.

The models mentioned on this manual are designed for use outside Japan.

Warranty shall be void if above mentioned models are use in Japan.

- 1 -

PREFACE

Thank you for purchasing .

■Please confirm the following contents upon receipt of the product.

- During transportation, confirming the product for any damaged parts..

-Confirming that screws and bolts have not dropped and loosened in any part of

the product.

- Confirming that the product is the model number/specification as ordered

- Confirming that all accessories are completed. (➭P. 16).

If there are any problems, please contact the distributor where you purchased the

product.

■Read this instruction manual carefully before use.

A full understanding of the manual is essential to prevent personal injury

or malfunction.

■Keep this manual in a bag attached to the back of the metal case lid for

easy and quick reference.

■If the manual or warning label is lost or becomes illegible, or if an

additional manual is required, please contact the distributor where you

purchased the product.

If you have any questions about the product you have purchased or the

contents of the instruction manual, please contact the distributor where you

purchased the product.

■This manual is only applicable outside Japan.

- 2 -

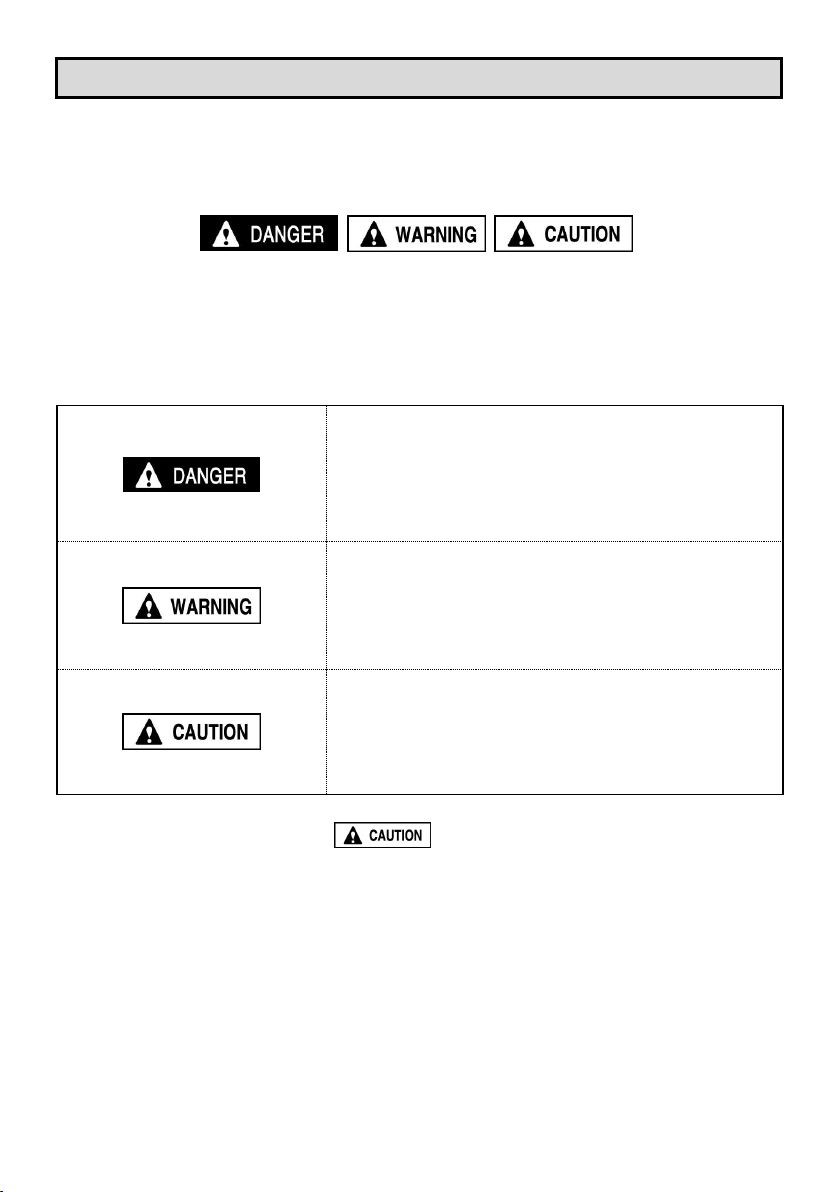

SAFETY INSTRUCTION

This manual specifies three (3) basic safety instructions:

■Instructions are classified by degree of risk and described as follows:

Danger is used to indicate threatening

dangerous or unsafe practices which could

immediately result in severe personal injury

or death in the worst case.

Warning is used to indicate hazardous or

unsafe practices which could result in severe

personal injury or death in the worst

occasion.

Caution is used to indicate hazardous or

unsafe practices which could result in

personal injury or product or property

damage.

Even if the risk is classified as , risk could become more serious result

depending on conditions. Make sure to follow all instructions when using.

- 3 -

TABLE OF CONTENTS

1．GENERAL SAFETY INSTRUCTIONS ・・・・・・ 5

2．APPLICATION ・・・・・・・・・・・・・・・・・・・・・・・・ 8

3．PRECAUTIONS FOR USE ・・・・・・・・・・・・ 8

4．NAME OF PARTS AND ACCESSORIES･････ 16

5．BEFORE USE ・･･・・・・・・・・･・・･・・・・・・・・・ 17

6．PRECAUTIONS FOR USE LITHIUM -ION

BATTERIES ・･･・・・・・・・・･・・･・・・・・・・・・・・・・ 18

7．INSTALLATION／REMOVAL OF STORAGE

BATTERY ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・22

8．REMAINING BATTERY LEVEL・・・・・・・・・・・23

9．PRECAUTIONS FOR WORK・･･・・・・・・・・･ 24

10．OPERATING PROCEDURE ・・・・・・・・・・・ 24

11．SOCKET REPLACEMENT・・・・・・・・・・・・・・ 26

12．INSPECTION & MAINTENANCE ・・・・・・・・ 28

- 4 -

13．TRA NSPORT ATIO N O F LIT HI UM -IO N

B A T T E R I ES・・・・・・・・・・・・・・・・・・・・・・ 3 0

14．STORAGE OF LITHIUM-ION BATTERIES・・・31

15．FAILURE DIAGNOSIS・・・・・・・・・・・・・・・・・ 32

16．FEATURES・・・・・・・・・・・・・・・・・・・・・・・・・・・32

17．SPECIFICATIONS ･・・・・・・・・・・・・・・・・・ 33

18．AFTERSALES SERVICE ・・・・･・・・・・・・ 34

- 5 -

1. GENERAL SAFETY INSTRUCTIONS

WARNING

When using electric tools, basic safety precautions, including the following, should

always be followed to reduce the risk of fire, electric shock and personal injury.

Read all these instructions before operating this product and keep these

instructions.

SAVE THESE INSTRUCTIONS

1) Work area

a) Keep work area clean and well lit. Cluttered and dark areas invite

accidents.

b) Do not operate power tools in explosive atmospheres, such as in

the presence of flammable liquids, gases or dust. Power tools create

sparks which may ignite the dust of fumes.

c) Keep children and bystanders away while operating a power tool.

Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way.

Do not use any adapter plugs with earthed (grounded) power tools.

Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces such as pipes,

radiators, ranges and refrigerators. There is an increased risk of electric

shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering

a power tool will increase the risk of electric shock.

- 6 -

3) Personal safety

a) Stay alert, watch what you are doing and use common sense

when operating a power tool. Do not use a power tool while you are tired

or under the influence of drugs, alcohol or medication.

A moment of inattention while operating power tools may result in serious

personal injury.

b) Use safety equipment. Always wear eye protection. Safety equipment

such as dust mask, non-skid safety shoes, hard hat, or hearing

protection used for appropriate conditions will reduce personal injuries.

c) Avoid accidental starting. Ensure the switch is in the off position

before plugging in. Carrying power tools with your finger on the switch

or plugging in power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on.

A wrench or a key left attached to a rotating part of the power tool may

result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times.

This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewelry. Keep your hair,

clothing and gloves away from moving parts. Loose clothes, jewelry or

long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection

facilities, ensure these are connected and properly used. Use of these

devices can reduce dust related hazards.

- 7 -

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your

application. The correct power tool will do the job better and safer at the

rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off.

Any power tool that cannot be controlled with the switch is dangerous and

must be repaired.

c) Disconnect the plug from the power source before making any adjustments,

changing accessories, or storing power tools. Such preventive safety

measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow

persons unfamiliar with the power tool or these instructions to operate the

power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts,

breakage of parts and any other condition that may affect the power tools

operation. If damaged, have the power tool repaired before use.

Many accidents are caused by poorly maintained power tools.

f) Use the power tool, accessories and tool bits etc., in accordance with

these instructions and in the manner intended for the particular type of

power tool, taking into account the working conditions and the work to be

performed. Use of the power tool for operations different from intended

could result in a hazardous situation.

5) Service

a) Have your power tool serviced by a qualified repair person using

only identical replacement parts. This will ensure that the safety of the

power tool is maintained.

- 8 -

2. APPLICATION

■is an electric tool for tightening

Tension Control Bolt/Nut/Washer assemblies.

3. PRECAUTIONS FOR USE

■To prevent accidents, personal injury, etc., read and follow all instructions listed

below.

■We are not responsible for any accidents caused by using this product on

applications not written on this manual.

■If non-genuine parts are used for this product, it will be judged as a modified

product and all warranties will be invalidating.

DANGER

●Beware of electric shock when operating at the high place.

○Failure to follow this instruction may result in fall down accidents.

WARNING

●Beware of electric shock.

○Never use the wrench under rainy or snowy conditions.

○Never touch the charger plug with wet hands.

Failure to follow this instruction may result in electric shock, fire, or

electric leakage.

●Never use the wrench around the place where gasoline, gas,

thinner, benzene, etc., are stored.

○Do not use the wrench around flammable substances. It may cause an

explosion or fire.

- 9 -

WARNING

●Beware of fall down accidents when working at a high place.

○Wear safety belt

○Provide safety net or canvas as safeguarding against falling items.

○Confirm that no one is underneath the working site before operation.

○Stop operation when physically or mentally tired.

Failure to follow these instructions may result in fall down accidents.

●Avoid overloading.

○Use the wrench and its accessories within the rated specifications.

Overloaded wrench and its accessories may result in a malfunction of

the wrenches, accidents, or personal injury.

●Properly install sockets as described in this manual.

○Incomplete installation may result in accidents and personal injury.

See “SOCKET REPLACEMENT”on page 26.

●Avoid accidental starting.

○Do not put your finger on the switch when carrying the wrench with the

storage battery installed.

○Before inserting the storage battery, make sure that the switch is

turned off. It may start up accidentally and may cause injury.
