TomTom LINK 510 Manuel utilisateur

TomTom LINK 510

User Manual

Contents

What’s in the box 4

Read me first 5

Congratulations ..................................................................................................................................5

What you need for the installation ....................................................................................................5

Safety first 6

Important safety notices and warnings.............................................................................................6

Updating the LINK 510 8

System Requirements........................................................................................................................8

Preparations........................................................................................................................................8

Updating the firmware on your LINK 510 .........................................................................................8

Using the XP Compatibility mode ...................................................................................................11

Activating the LINK 510 12

Connection overview 15

Choosing the correct position 16

Connecting to power 17

Mounting the LINK 510 18

Attaching the holder using the adhesive strips ..............................................................................18

Attaching the holder using self-tapping screws .............................................................................19

Attaching the holder using cable ties..............................................................................................19

Testing operation 21

Power or Ignition test.......................................................................................................................21

Mobile network reception test.........................................................................................................21

Connecting to PRO and WEBFLEET 22

Diagnostics 23

Monitoring operation .......................................................................................................................23

Support .............................................................................................................................................24

Resetting the LINK 510 25

Restarting your LINK ........................................................................................................................25

Resetting your LINK to factory settings...........................................................................................25

Technical data 26

Appendix: Using external antenna 28

Mounting the external GPS antenna ...............................................................................................28

Mounting the external mobile network antenna.............................................................................29

Appendix: Using the IO cable 31

Connecting a digital tachograph......................................................................................................31

Using the input IN 1 for idle time reporting ....................................................................................32

Using the input IN 1 for changing the logbook mode ....................................................................32

Wiring digital inputs .........................................................................................................................32

Wiring the digital output ..................................................................................................................33

Accessing FMS data.........................................................................................................................34

Addendum 35

Notices for Australia, New Zealand and South Africa ....................................................................37

TomTom LINK 510

1. Yellow LED - connection status indicator.

2. Green LED - system status indicator.

3. Connector (SMB) for optional external GSM antenna.

4. Service/Update Mini-USB-cable connector.

5. Power cable connector.

6. Reset button.

7. IO-Cable connector.

8. Connector (SMB) for optional external GPS antenna.

Power cable

Holder

Fixings - 2 cable ties, 2 adhesive strips, 2 self-tapping screws and a cleaning tissue

What’s in the box

Congratulations

You have chosen the TomTom LINK 510, a core hardware component from WEBFLEET. With

WEBFLEET from TomTom Telematics you are always connected to your people out on the road in

a smart and easy way.

TomTom LINK 510 is a GPS receiver and mobile network module in one unit, always providing the

vehicle’s current position.

When used with a compatible Driver Terminal*, you can easily handle orders, as well as text and

status messages. You can receive traffic information, and you are warned when you are driving or

cornering too fast. And you can get information about how much fuel you have used.

What you need for the installation

Before starting the installation of your TomTom LINK 510, read the installation instructions and the

safety notices and warnings carefully and make sure you have the following:

The WEBFLEET Contract Confirmation letter including the Activation Code.

All parts contained in the box.

A connection to the vehicle’s power supply that is fused with max. 10A.

A place with a clear view of the sky where you can move your vehicle to check GPS

reception.

A TomTom navigation device that is compatible with TomTom LINK 510* - optional.

* To check compatibility please visit business.tomtom.com/products

Read me first

Important safety notices and warnings

Important: Read the following safety instructions carefully. Read the instructions in this document

carefully.

TomTom Telematics accept no liability for damage that results from disregarding the safety

instructions. This document is part of the product. Keep it in a safe place. If you pass the unit on to

a new user, make sure you give them this document as well.

Use of this product is restricted in some areas

The TomTom LINK 510 contains a mobile network module which can interfere with electrical

devices such as cardiac pacemakers, hearing aids and aviation equipment. Interference with these

devices may endanger the health or life of you or others. If your device includes a mobile network

module, do not use it near unprotected electrical units or in areas where the use of mobile

telephones is prohibited, such as hospitals and aircraft.

Danger of explosion

Parts of the TomTom LINK 510 can cause sparks that can lead to explosions. This may endanger

human health and life. Do not use the unit in areas with high risk of explosion. When using a

TomTom LINK 510 in a vehicle fuelled by liquefied gas, follow the safety regulations of the country

in which the vehicle is operated.

Damage caused through improper installation

The installation and initial operation of the unit must be performed by authorised personnel only

for example, a qualified radio dealer or an automotive electronics workshop.

Risk of injury in case of accidents

Do not mount the unit or accessories in the inflation area of airbags or in the impact area for the

head or knees. Choose an installation location that will avoid interference with displays, safety

equipment and controls.

Damage to the chassis

Make sure you do not drill into parts of the chassis that have structural or security-related

functions. This is because you cannot be certain that they will function properly after modification.

Risk of fire

Make sure you do not drill into covered wiring harnesses, fuel lines or similar components. Drilling

into these can cause fire.

Safety first

Repair and replacement

Repairs must be carried out by authorised and qualified personnel only. Never replace damaged

parts of the unit yourself. Send the defective unit to TomTom Telematics for repair. Only the

qualified staff of TomTom Telematics are authorised to repair or replace parts.

Damage to the device

Short-circuits inside the unit can be caused by contact with water or other liquids. The unit may be

damaged by contact with water. Use and store the unit in an area protected from water.

Risk of accidents

Do not use the digital output to cut the engine power, to remotely stop the engine or to otherwise

remotely immobilise the vehicle.

We recommend updating the firmware on your LINK 510. You can do this by using the Firm-

ware-Update Tool and a Microsoft Windows® computer. A connection to the Internet or

WEBFLEET is not required.

System Requirements

Before you can use the LINK 510 Firmware-Update Tool, you need the following:

The TomTom LINK 510 Service Set.

A Microsoft Windows computer.

The latest LINK 510 Firmware-Update Tool (firmware is embedded).

The USB driver for TomTom LINK 510 devices.

Preparations

1. Install the USB driver.

This is required to establish a connection between your computer and your LINK 510 using the

USB cable.

You can download the USB driver from the Partner Portal. Install the driver on your computer

by double clicking the .exe file and following the instructions.

2. Install the latest Firmware-Update Tool version.

You can download the latest Firmware-Update Tool from the Partner Portal under Software

and Firmware. You must be logged in to the Partner Portal to download the Tool. The down-

loadable ZIP file contains the tool with the firmware update file embedded. Unzip the down-

loaded file to your local hard disk.

Updating the firmware on your LINK 510

To update the firmware on your LINK 510 using the Firmware Update Tool, do the following:

1. Connect your LINK 510 to a Microsoft Windows® computer using USB.

The first time you connect a LINK 510 to your computer’s USB port, a pop-up window tells you

about the installation of the hardware. Follow the instructions and select automatic installation.

A virtual COM port named TomTom LINK followed by a port number is assigned.

To find out the port number, do the following: Open the Windows Control Panel. Select the

Hardware tab. Select Device Manager. Open the list for Ports (COM & LPT).

2. Start the Firmware-Update Tool by double clicking on the .exe file.

On a computer with Microsoft Windows® Vista or Windows® 7, you must run the tool in

Windows© XP compatibility mode.

Updating the LINK 510

3. Select the COM port that was assigned to your LINK 510 from the list and click OK.

At the bottom of the window you can find information about the operating system installed on

the LINK 510, the serial number of the LINK 510 and which COM Port number was assigned, as

well as the operating system that will be installed with this update.

If the version number of the firmware installed on your LINK 510 is lower than the one includ-

ed in the Firmware-Update Tool, continue with the next ystep. If it is up-to-date, disconnect

your LINK 510 and activate your LINK 510.

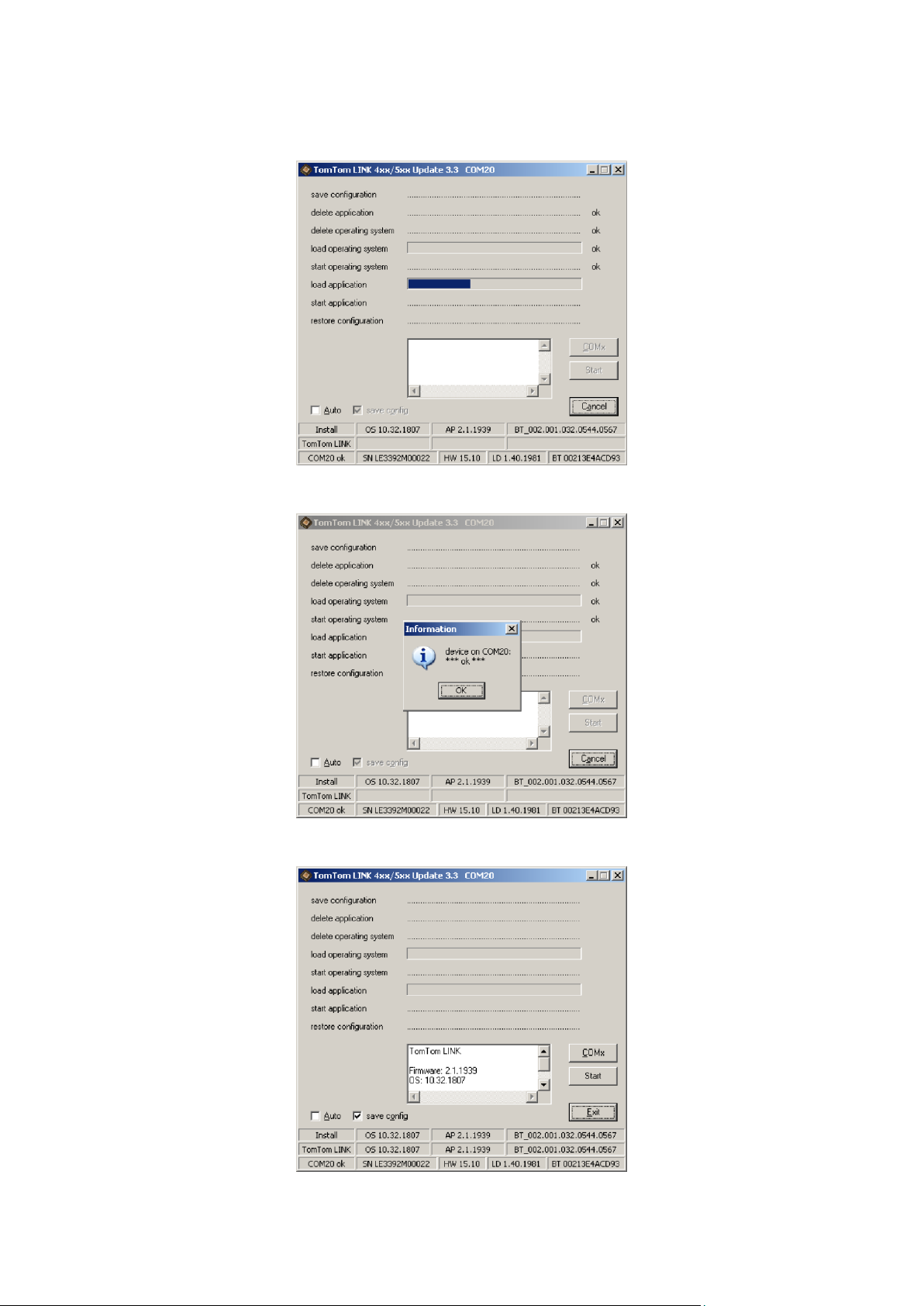

4. Select Start to initiate the firmware update installation process.

The old firmware is deleted and the new firmware is installed on the device. During the instal-

lation process the upper part of the window displays the installation progress.

5. When the firmware installation is complete, click OK to confirm.

6. To close the Firmware-Update Tool click Exit.
