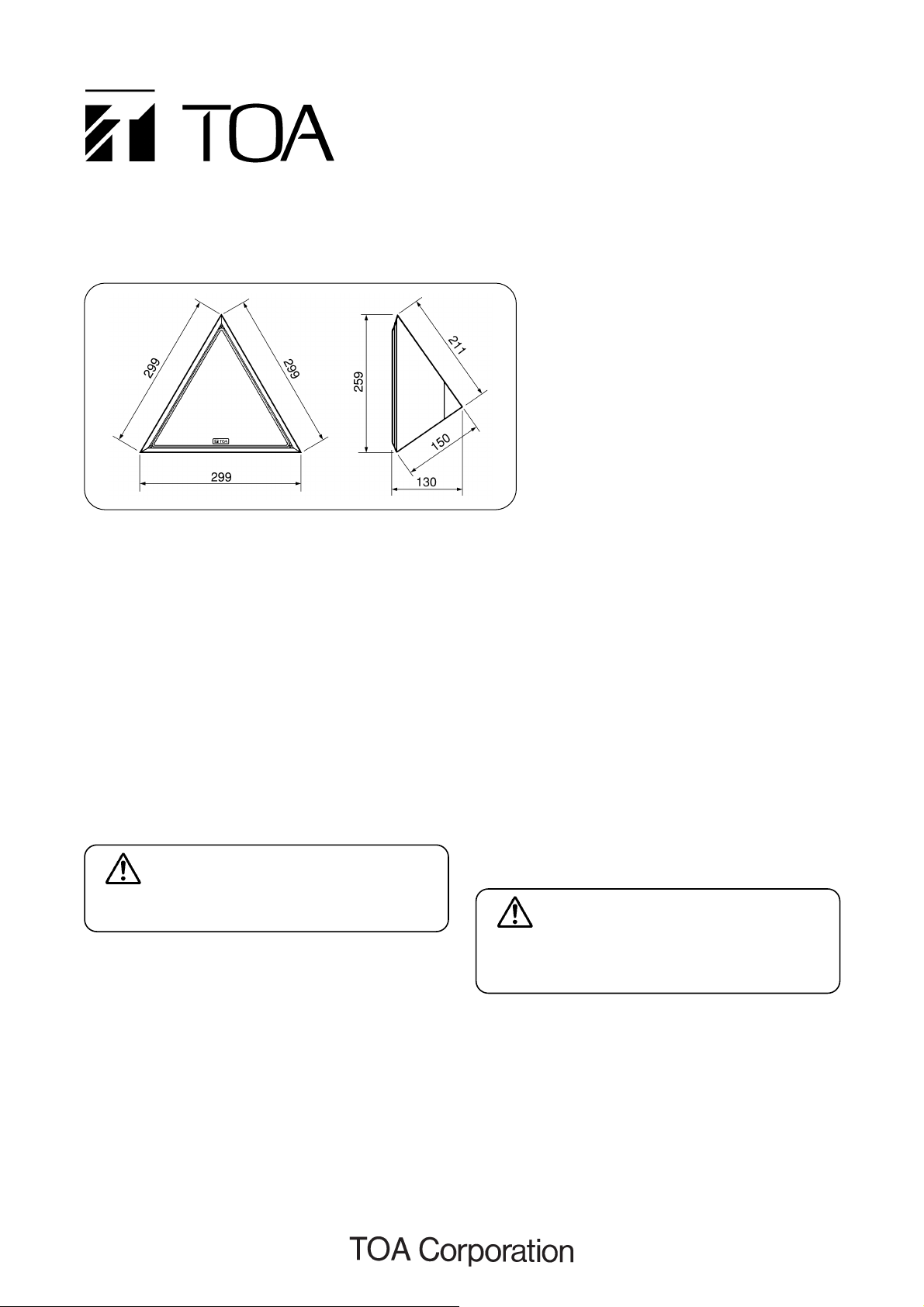

Please follow the instructions in this manual to obtain the optimum results from this unit.

We also recommend that you keep this manual handy for future reference.

SPEAKER SYSTEM

INSTRUCTION MANUAL

F-10W (White)

F-10B (Black)

F-10WM (White)

F-10BM (Black)

< Low impedance series >

< High impedance series >

Unit: mm

• Be sure to read the instructions in this section

carefully before use.

• Make sure to observe the instructions in this

manual as the conventions of safety symbols and

messages regarded as very important precautions

are included.

• We also recommend you keep this instruction

manual handy for future reference.

When Installing the Unit

• Install the unit only in a location that can

structurally support the weight of the unit and the

mounting bracket. Doing otherwise may result in

the speaker falling down and causing personal

injury and/or property damage.

• Because the tip of an enclosure is pointed, install

the speaker in safe locations to avoid personal

injury.

• Use mounting screws suited to the ceiling or wall

structures. If the mounting surface is not strong

enough to support the speaker weight, the speaker

may fall off, causing personal injury.

When the Unit is in Use

• Should the following irregularity be found during

use, immediately switch off the amplifier's power,

disconnect its power supply plug from the AC outlet

and contact your nearest TOA dealer. Make no

further attempt to operate the unit in this condition

as this may cause fire or electric shock.

· If you detect smoke or a strange smell coming

from the unit.

· If it is malfunctioning (no tone sounds.)

When the Unit is in Use

• Do not operate the speaker for an extended period

of time with the sound distorting. This is an

indication of a malfunction, which in turn can cause

heat to generate and result in a fire.

■SAFETY PRECAUTIONS

WARNING Indicates a potentially

hazardous situation which, if mishandled, could

result in death or serious personal injury. CAUTION Indicates a potentially

hazardous situation which, if mishandled, could

result in moderate or minor personal injury, and/or

property damage.

■FEATURES

• Compact yet full-range, sealed type that relizes wide frequency reproduction.

• Inorganic compound resin enclosure with excellent acoustic characteristics.

• Attractive, tetrahedron design for mounting on the wall or at the corner of the room without additional

brackets.

• Three LEDs for visual effects.

■HANDLING PRECAUTIONS

Perform impedance settings before speaker installation (F-10MW and F10BM only).

■NOMENCLATURE

■IMPEDANCE CHANGING (F-10WM and F-10BM only)

The speaker's impedance is preset to 2 kΩ(100 V line, 5 W) by the factory. To change the impedance, check

to confirm whether the speaker line is 100 V or 70 V, then connect the red lead wire connected to the built-in

transformer's terminal to the correspondingly-labeled terminal.

Important: When the speaker line voltage is 100 V, never use the 3 W or 5 W terminal of 70 V line as the

speaker may be damaged, resulting in amplifier malfunction.

■INSTALLATION

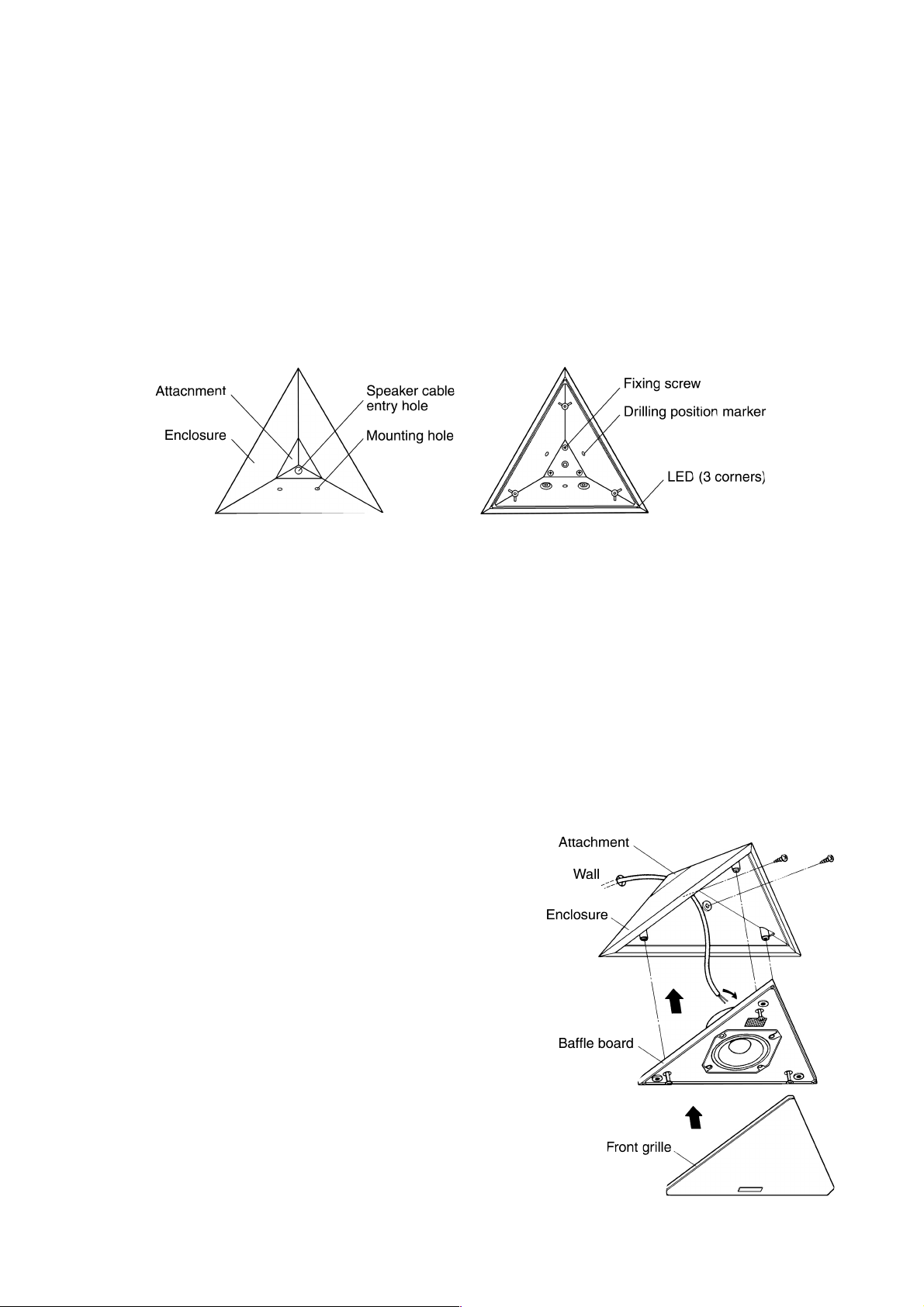

●Wall or Ceiling Mounting

[Method A]

1. Bring the speaker cable through the speaker cable entry hole,

and mount the enclosure to the wall or ceiling using screws

(mounting distance: 67 mm).

Note: Use proper type of screws depending on the structure

of the wall or ceiling. (No mounting screw is supplied

with the speaker.)

Tips: If it is difficult to run the speaker cable through the cable

entry hole, either detach the attachment by removing

fixing screws or drill the enclosure from the position

marked inside the enclosure. When the attachment is

removed, fit the supplied rubber bushing in the

attachment fixing hole from outside the enclosure.

2. Connect the speaker cable to the push terminal on the

reverse side of the baffle board, then mount the baffle board

to the enclosure.

(Note the correct direction of the baffle board when mounting.

Refer to the section "Front Grille Attachment.")

3. Attach the front grille.

Fastener

Front grille

Logo mark

[Method B]

It is also possible to mount the speaker to the wall or

ceiling by removing the attachment.

• Combining Speakers

When combining 2 or 4 speakers together for

wall or ceiling mounting, drill the enclosures

from the position marked inside the enclosure

and attach them to each other with bolts. This

will prevent the surface from producing a gap

and keep the speakers in place.

• Front Grille Attachment

To attach the grille to the speaker, align its fastener

with that on the speaker as shown below, and

press on the grille fastener till it snaps into place.

Note: When attaching the baffle board to the enclosure,

see to it that the fastener is positioned opposite

the logo mark as shown below.

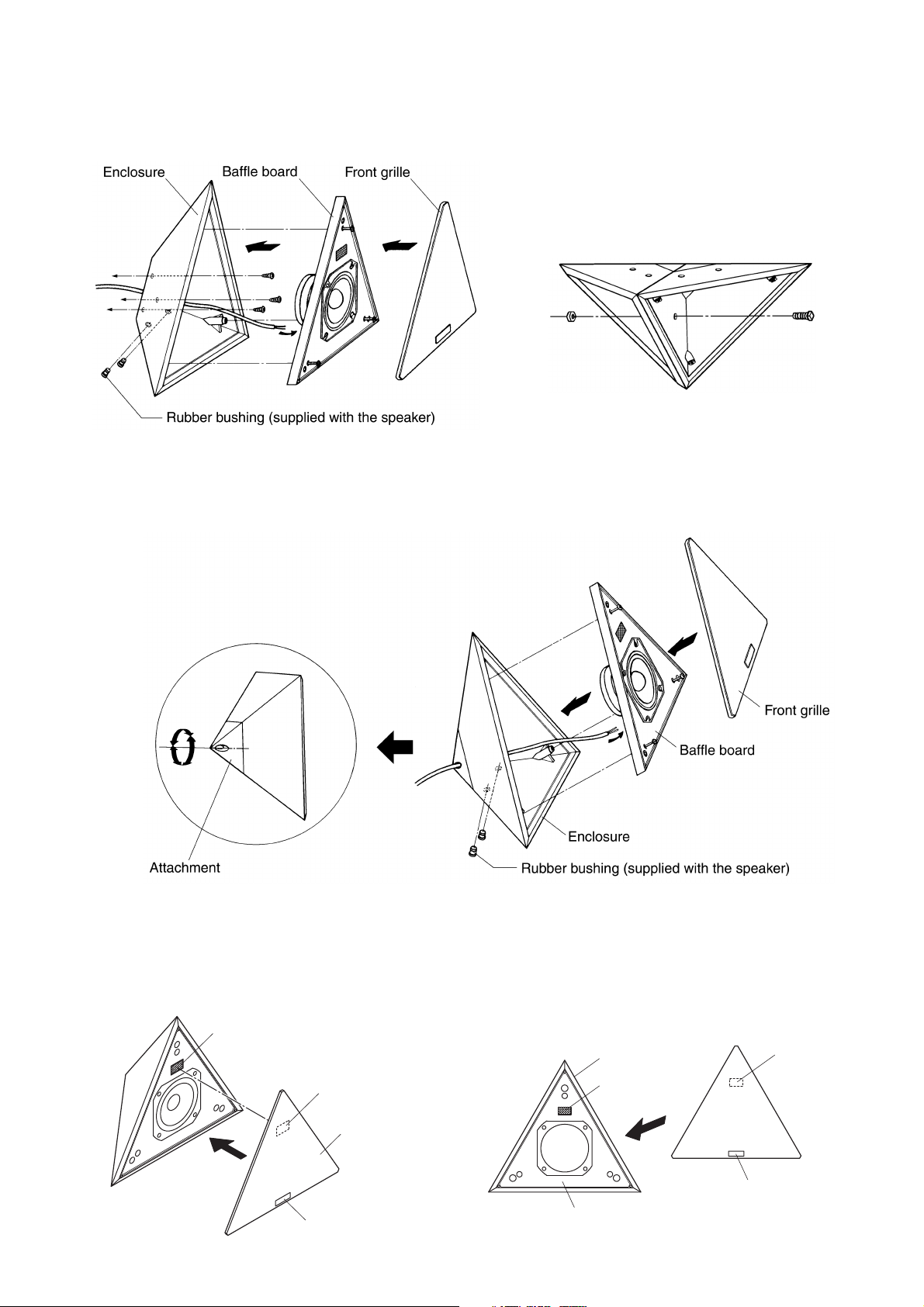

• Floor Installation

1. Unscrew the attachment and move 1/3 rotation (so that the cable entry hole is located on the side of the

enclosure when the speaker is installed with the enclosure surface having the mounting hole down).

2. Insert the supplied rubber bushings into the mounting holes in the enclosure

from the outside.

3. Assemble the speaker.

(Refer to "Method A" in the section "Wall or Ceiling Mounting.")

Baffle board

Logo mark

Fastener

Enclosure

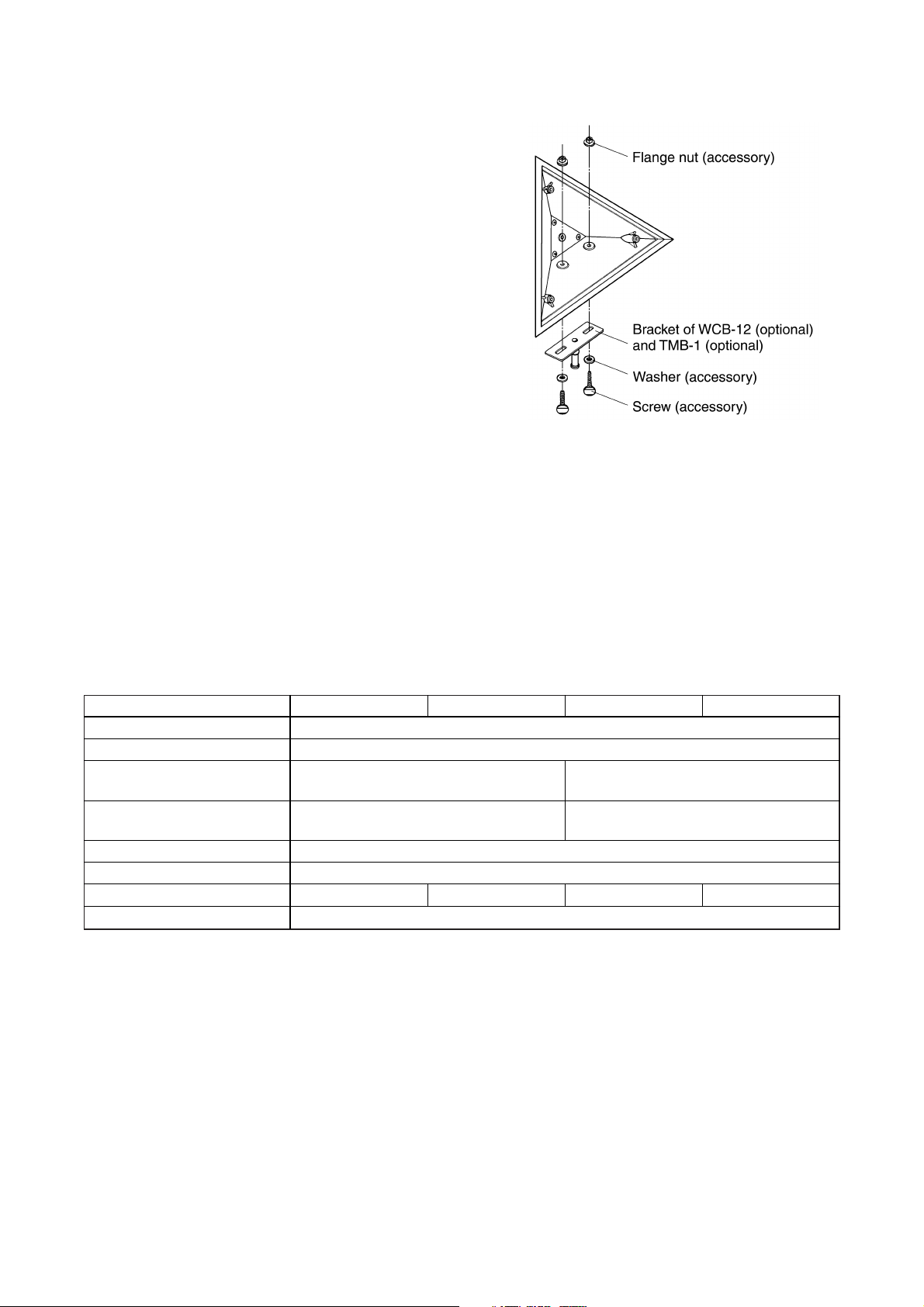

• Mounting the Speaker to the Optional Bracket WCB-12 or TMB-1

1. Replace speaker mounting screws (M5 x 15) of the

WCB-12 or TMB-1 with the screws (M5 x 20) supplied

with the speaker.

Note: Speaker mounting screws of the WCB-12 or

TMB-1 cannot be used for mounting the

speaker.

2. Mount the WCB-12 or TMB-1 to the wall, desk or other

desired place.

3. Assemble the speaker.

(Refer to "Method A" in the section "Wall or Ceiling

Mounting.")

■LED LAMPS

Three LED lamps installed at the three corners of the front grille light when the speaker receives an audio

signal from the amplifier, with their brightness level varying in response to strength of sound reproduced from

the speaker. The lamps do not light when the sound volume is low.

Tips: When it is not desirable that the lamps light, disconnect terminal connection between the speaker and

LED protection circuit located on the reverse side of the baffle board.

■SPECIFICATIONS

Rubber bushing ................................. 3

Screw ................................................. 2

Flange nut .......................................... 2

Washer .............................................. 2

133-01-233-6A

Model No. F-10W F-10B F-10WM F-10BM

Enclosure Sealed type

Internal Speaker 10 cm cone speaker

Power Handling Capacity 15 W (continuous pink noise)

45 W (continuous program input)

5 W (rated input)

Rated Impedance 8 Ω100 V line: 3.3 kΩ(3 W), 2 kΩ(5 W)

70 V line: 1.7 kΩ(3 W), 1 kΩ(5 W)

Ounput Sound Pressure Level

88 dB (1 W, 1 m)

Frequency Response 100 –18,000 Hz

Color White Black White Black

Weight 1.5 kg

Note: The design and specifications are subject to change without notice for improvement.

• Accessories
