Timotion TDH12P Manuel utilisateur
Hand Control Programming- TDH12P
Version 2 January 2021
1 of 9
1
error codes
20210105
User Manual
Hand Control
Programming-
TDH12P
Hand Control Programming- TDH12P
Version 2 January 2021
2 of 9
2
Contents
Contents .....................................................................................................................................................................2
Disclaimer ..................................................................................................................................................................3
1. User Interface Guide.............................................................................................................................................4
2. Reset....................................................................................................................................................................5
3. Adjusting the Height.............................................................................................................................................6
4. Setting the Memorized Position ...........................................................................................................................6
5. Presetting the Desk Starting Height .....................................................................................................................7
6. Switching Metric and Imperial Unit .......................................................................................................................7
7. Error Codes ..........................................................................................................................................................8
8. Power Saving Function - Waking Up the Control ...................................................................................................9
Hand Control Programming- TDH12P
Version 2 January 2021
3 of 9
3
Disclaimer
This user manual is ONLY for generic TiMOTION products. Manufacturers may have altered product settings
causing them to differ from this user manual. Please contact the manufacturer for a revised manual if the
product settings are different than this manual.
Hand Control Programming- TDH12P
Version 2 January 2021
4 of 9
4
1.User Interface Guide
* Rocker switch: Adjust the height adjustable desk to go up or down.
3-digit height display
Memory setting buttons
Rocker switch*
Hand Control Programming- TDH12P
Version 2 January 2021
5 of 9
5
2.Reset
1. Simultaneously press button 3and 4for 3 seconds. Continue pressing the buttons until both columns
are in the lowest position. When finished with the reset, the control box will make a “beep”sound and the
buttons can be released.
2. When finished with the reset, the display will show the starting height.
3. Users must conduct a reset when operating the desk for the first time.
Hand Control Programming- TDH12P
Version 2 January 2021
6 of 9
6
3.Adjusting the Height
Use the rocker switch to adjust the desk until the desk reaches the preferred height.
4.Setting the Memorized Position
TDH12P supports a maximum of 4 memory positions.
How to memorize a position:
1. Adjust the desk to the desired height.
2. Press preferred memory button (1, 2, 3, 4), with rocker switch for 2 seconds. Once the display shows P1,
P2, P3 or P4, the position is memorized.
3. Press (and hold) button 1, 2, 3 or 4 to move the desk to the memorized position. (Note 1)
Note 1: It depends on the control box setting whether or not the memory button needs to be held.
Hand Control Programming- TDH12P
Version 2 January 2021
7 of 9
7
5.Presetting the Desk Starting Height
(1) Use the rocker switch until the desk reaches its lowest position and then release button. Re-press the
rocker switch again for 5 seconds and the digital display will flash for 10 seconds.
(2) Adjust the starting height number through the rocker switch.
(3) After 10 seconds, the display will stop flashing and this will confirm that you have successfully set the
starting height.

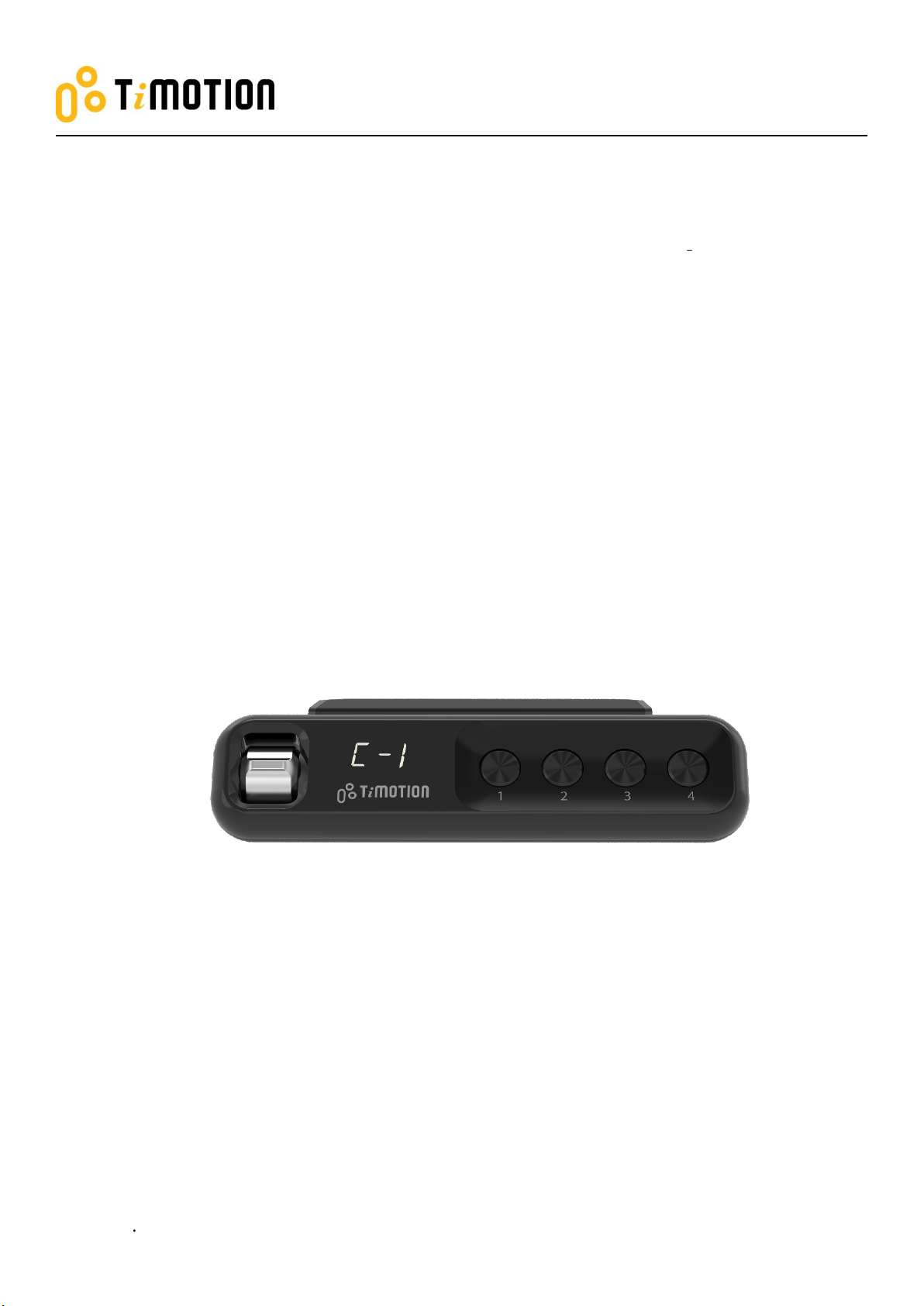

6.Switching Metric and Imperial Unit
(1) Press memory buttons 1, 2 and 4for 5 seconds.
(2) The digital display will show “C-I”. If no further instruction is input within 5 seconds, the system reverts to
normal operation mode.
How to choose a metric unit
Press button 2, the digital display will show “C”to stand for centimeter.
How to choose an imperial unit
Press button 3, the digital display will show “I”to stand for inch.
Hand Control Programming- TDH12P
Version 2 January 2021
8 of 9
8
7.Error Codes
The digital display shows the error codes below to suggest the issues that users may encounter during the
operation. (Note 2)
Error code
Descriptions
000
Resetting
E00
Not reset completely
E01
Overuse protection
E02
Unbalance protection
E03
Anti-collision
E04
T-touch Protection
E11
M1 Motor over-current protection
E12
M2 Motor over-current protection
E13
M3 Motor over-current protection
E21
No Hall sensor from M1
E22
No Hall sensor from M2
E23
No Hall sensor from M3
E31
No current from M1
E32
No current from M2
E33
No current from M3
Note 2: Some control boxes may not support this function.
Hand Control Programming- TDH12P
Version 2 January 2021
9 of 9
9
8.Power Saving Function - Waking Up the
Control
The digital display automatically turns off if no buttons are pressed within 25 seconds. Press any button
to light up the display again.
The system goes into <0.1W standby mode (Note 3) if no buttons are pressed within 30 seconds. Long
pressing any button will wake up the system and show desk height on the digital display.
Note 3: It depends on the control box whether it will support 0.1W standby mode or not.
