Timeguard TS900N Instructions d'installation
Installation & Operating Instructions
24 Hour Immersion
Heater Time Controller
Model: TS900N
All manuals and user guides at all-guides.com
all-guides.com
1 2
1. General Information
These instructions should be read carefully
and retained for further reference and maintenance.
2. Safety
• Before installation or maintenance, ensure the
mains supply to the time switch is switched off
and the circuit supply fuses are removed or the
circuit breaker turned off.
• It is recommended that a qualified electrician is
consulted or used for the installation of this time
switch and install in accordance with the current
IEE wiring and Building Regulations.
• Check that the total load on the circuit including
when this time switch is fitted does not
exceed the rating of the circuit cable,
fuse or circuit breaker.
All manuals and user guides at all-guides.com
2 3
3. Technical Specifications
• 230V AC 50 Hz
• This time switch is of class I construction
and must be earthed
• Switch Rating: 13A resistive (3kW)
400W filament lighting
60W Fluorescent/
CFL lighting
• Programme: 24 hour
• Minimum setting interval: 15 minutes
• Minimum ON/OFF time
between setting: 30 minutes
• Up to 24 ON & OFF programmes per day
(additional pins required).
• Operating temperature: 0°C to +40°C
• CE Approved
• Manual Override: Self-cancelling manual
override to the next
programme change.
Note: Not suitable for use with
LED or Discharge Lighting.
All manuals and user guides at all-guides.com
3 4
Diagram A
Self-
cancelling
override
switch
Time
indicator
Setting
pins
24 hour programme ring
(inner holes = ON, outer holes = OFF)
Concealed
wiring for
safety
Cover
fixing
screw
Removable
cover
All manuals and user guides at all-guides.com
4 5
4. Installation
• Ensure the mains supply is switched off and the
circuit supply fuses are removed or the circuit
breaker turned off.
• An isolating switch should be installed to
enable the power to be switched ON & OFF
for maintenance purposes.
• Remove the terminal cover by undoing the fixing
screw on the bottom of the time switch.
• Mark the position of the top wall mounting screw
and drill the hole ensuring not to infringe with any
gas/water pipes or electrical cables that may be
hidden below the surface. Insert the rawl plug
into the hole.
All manuals and user guides at all-guides.com
5 6
• Fix the top mounting screw in place (using the
correct screw for the rawl plug installed) and leave
2.5mm proud off of the wall.
• Place the key hole, located at the top of the
product, over the screw head and slide down.
• Mark the position of the lower mounting hole on
the wall using the wall plate as a template.
• Remove the unit and drill the hole, ensuring not
to infringe with any gas/water pipes or electrical
cables that may be hidden below the surface.
Insert the rawl plug into the hole.
• Remove the rear cable knock outs if required
and pass the 230V 50Hz mains supply and load
cables through the holes.
• Secure the unit to the wall by placing the key hole
located at the top of the product, back over the
screw head and slide down. Fix the lower mounting
screw in place (using the correct screw for the rawl
plug installed) and tighten to the wall.
2.5mm
All manuals and user guides at all-guides.com
all-guides.com
6
Note: The 230V 50Hz mains supply and load
cables can also enter through the cable entry ports
provided at the bottom of the unit. If you are not
wiring through the rear entry knock outs, use the
cable clamps provided to secure the cables.
• Terminate the supply and load cables to the
terminal block ensuring correct polarity is
observed and that all bare conductors
are sleeved. Please note the connections are
marked beneath the terminal block (see section 5.
Connection Diagram)
• Secure the terminal cover back into place
using the fixing screw
All manuals and user guides at all-guides.com
7 8
Supply
Live (Brown or Red) to Terminal 5
Neutral (Blue or Black) to Terminal 4
Earth (Green/Yellow) to Terminal E
Load
Switch Live (Brown or Red) to Terminal 1
Neutral (Blue or Black) to Terminal 2
Earth (Green/Yellow) to Terminal E

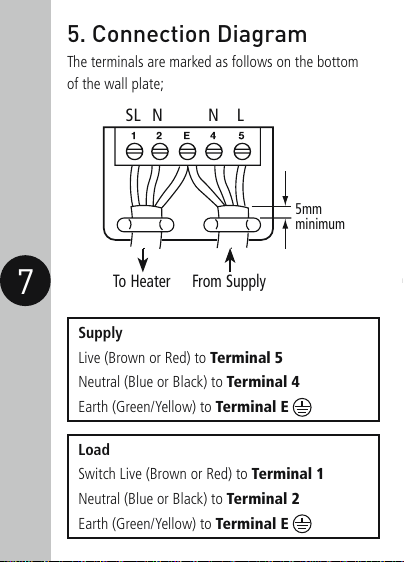

5. Connection Diagram
The terminals are marked as follows on the bottom
of the wall plate;
5mm
minimum
To Heater From Supply
SL N N L
All manuals and user guides at all-guides.com
