Timeguard SLDD1000 Manuel

INSTALLATION & OPERATING

INSTRUCTIONS

1000W DUSK TO DAWN

LIGHT CONTROLLER

Cat No. SLDD1000

iSLDD1000_Instructions.qxd 28/4/06 3:20 pm Page 8

Introduction

The SLDD1000 features an integral daylight sensing

photocell which will automatically switch connected

lights on at dusk and off at dawn.

It incorporates an adjustable operation delay to prevent

mis-operation due to e.g. car headlamps.

Top

Cable

clamp

Mains in Output

LED

Common

Cable clamp

fixing screws

x 2

Insert

screwdriver

and twist

Front cover

hinges

upwards

iSLDD1000_Instructions.qxd 28/4/06 3:20 pm Page 1

Parts included

• Photocell (Dusk/Dawn) Switch.

• Instruction manual. Please keep safe for future

reference.

• Accessory Pack.

Tools and parts needed

• 3 core cable

• Electric/hand-held drill & bits.

• Terminal or Electricians screwdriver

• Wire cutters

Unit can be used indoors or outdoors, but is specifically

designed for outdoor use.

Do not attempt to install during wet weather, if you are

suffering from nausea or dizzy spells or if you are

taking any medication with similar side effects.

Do not attempt to install during wet weather, if you are

suffering from nausea or dizzy spells or if you are

taking any medication with similar side effects.

If in any doubt, consult a qualified electrician.

Lux Time delay

View on underside of unit shows adjustments.

iSLDD1000_Instructions.qxd 28/4/06 3:20 pm Page 2

Installation

The unit is suitable for connection to a 240 V ac 50Hz

electricity supply. It is suggested that 3-core round

flexible cable of 1sq.mm gauge is used. An internal

switch should be installed to switch the power to the

unit ON & OFF. This allows the sensor to be easily

switched off when not required or for maintenance

purposes.

IMPORTANT

Switch off the electricity at the fuse box by removing the

relevant fuse or switching off the circuit breaker before

proceeding with the installation.

Open the unit by gently prying the “ears” on each side

of the unit. See diagram A. This can be done without a

tool, but if you prefer use a flat blade screwdriver, but

be careful not to damage the clips. They should release

easily. The front cover is hinged at the top, the front

cover will swing open upwards.

Using the unit as a template, drill the holes. Insert the

wall plugs into the holes. See diagram B.

It is recommended that the grommet is pierced with a

screwdriver to ensure a better seal.

Fix the unit to its mounting surface. Do not overtighten

the mounting screws as this could damage the unit. If

using a power screwdriver, use the lowest torque setting.

Remove the cable clamp. See diagram C

Pierce and pass the cables through the grommet. We

recommend you use a screwdriver to pierce the

grommet as this will give a better seal.

iSLDD1000_Instructions.qxd 28/4/06 3:20 pm Page 3

Isolation

switch

Mains in

Connection

Connect the incoming mains cable to the terminal block

on the unit as follows (see connection diagram):

NEUTRAL (Blue) N

EARTH (Green/Yellow)

LIVE (Brown) L

Connect the lighting load cable to the terminal block.

NEUTRAL (Blue) N

EARTH (Green/Yellow)

LIVE (Brown) L1

Please note the the N terminals are common.

Ensure that the connections are secure.

Re-attach the cable clamp and secure.

Close the front cover.

Installation is complete.

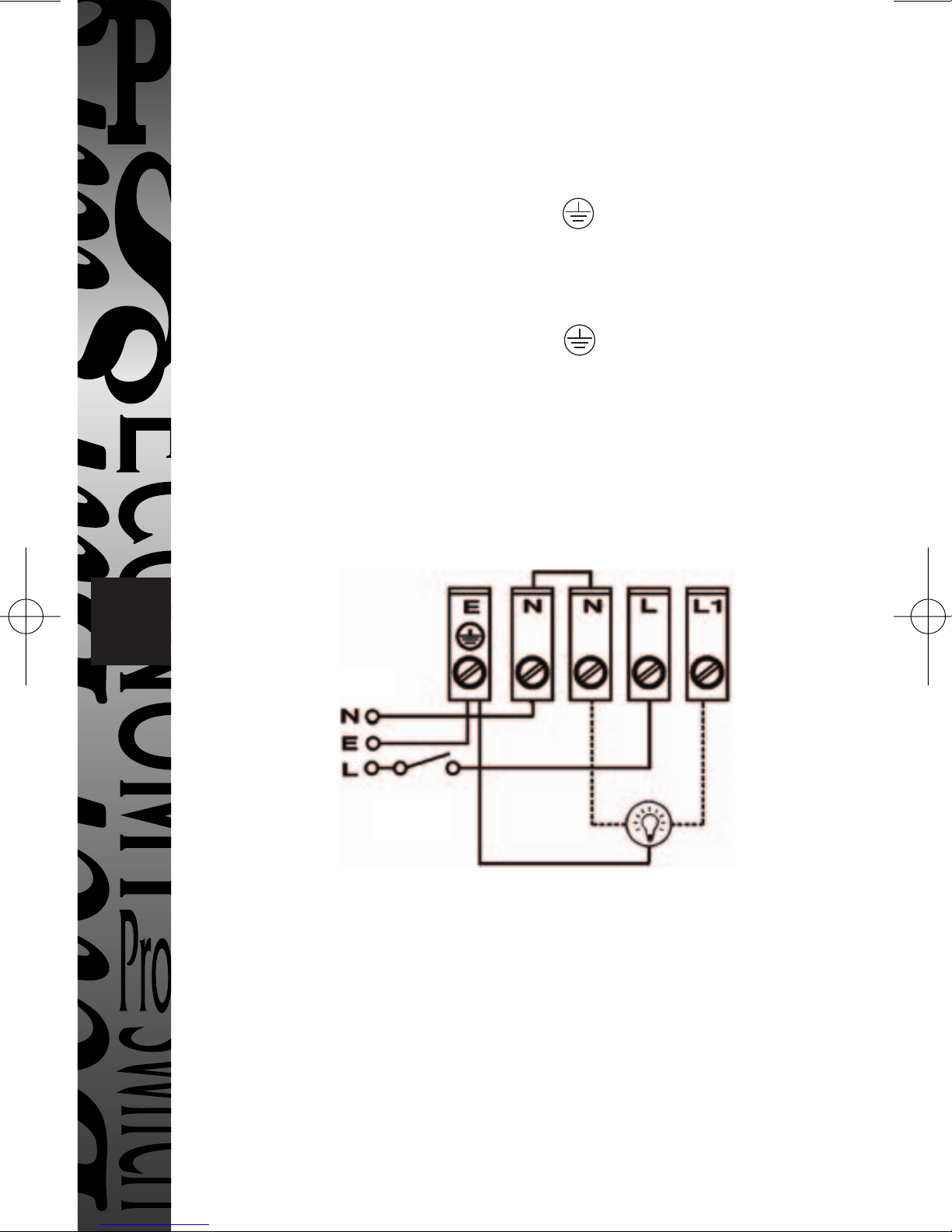

Connection Diagram

Testing

Set the adjustment knobs as follows:-

See diagram D.

Dusk setting, fully anti-clockwise (daylight setting)

Time Delay setting fully anti-clockwise (minimum 2 sec)

The Dusk setting determines at which light level the

switch will turn its connected load “ON”

Turning this setting fully anti-clockwise allows you to

test the circuit during daylight.

iSLDD1000_Instructions.qxd 28/4/06 3:20 pm Page 4

Connect the unit to the mains and switch power on.

After a short delay, the unit will switch ON. This is

indicated by the red LED see diagram C. Any attached

lights will also illuminate.

Setting up for automatic operation

The DUSK (LUX) control determines the level of

darkness required for the unit to start operating.

The setting is best achieved by the procedure below:

Set the Dusk and Time Delay control knob fully anti-

clockwise. Wait until darkness falls.

When the ambient light level reaches the level of

darkness at which you wish the lamps to become

operative (ie. At dusk), SLOWLY (a small step at a

time) rotate the control in a clockwise direction until a

point is reached where the lamp illuminates. Leave the

control set at this point.

At this position, the unit should become operative at

approximately the same level of darkness each evening.

Observe the operation of the unit. If the unit is starting

to operate too early (ie. when it is quite light), adjust

the control slightly anti-clockwise. If the unit starts to

operate too late (ie. only when it is very dark), adjust

the control slightly clockwise.

Continue to adjust until the unit operates as desired.

The Time Delay setting allows the user to determine at

which time after the required darkness level is reached

the lights will illuminate. This is beneficial in areas

where intermittent light/darkness exposure is possible

ie:- car headlights, or shadows.

Turning the adjustment knob fully anticlockwise will

illuminate the lamps 2 seconds after the lower lux level

is reached.

Turning the adjustment knob fully clockwise will

illuminate the lamps 5 minutes after the lower lux level

is reached. This will eliminate possible on/off

switching due to intermittent light/darkness exposure.

iSLDD1000_Instructions.qxd 28/4/06 3:20 pm Page 6

230 V AC ~ 50Hz

Filament/incandescent 1000W

Fluorescent 250W (iron ballast

only), not suitable for

electronic high frequency

ballast units including low

energy/compact fluorescent

lamps)

Not suitable for discharge

lighting

Dusk - Dawn (adjustable

daylight sensing)

IP44 (suitable for outdoor use)

73/23/EEC and 89/336/EEC

Technical specifications

Solution

The level of ambient light in the area may

be too bright to allow operation at the

current DUSK setting. During the hours of

darkness first turn the Time Delay knob to

minimum then adjust the DUSK control

slowly clockwise until the lamp illuminates.

Refer to previous section for more details.

Adjust the setting anti-clockwise to lower

the level of ambient light required for

activation.

Problem

• The sensor

will not

operate at

night.

• Unit

activates

during the

daytime.

Troubleshooting guide

Power Supply:

Maximum Switching

capacity:

Operation:

Environmental Protection:

Conforms to Directives:

iSLDD1000_Instructions.qxd 28/4/06 3:20 pm Page 7

For a product brochure please contact:

Timeguard Ltd.

Victory Park, 400 Edgware Road,

London NW2 6ND

020-8452-1112

or email csc@timeguard.com

3 Year Guarantee

In the unlikely event of this product becoming faulty due to

defective material or manufacture within 3 years of the date

of purchase, please return it to your supplier in the first year

with proof of purchase and it will be replaced free of charge.

For the second and third years or any difficulty in the first

year telephone the helpline on 020 8450 0515.

THREE YEAR

GUARANTEE

HELPLINE

020-8450-0515
