Thundercomm TurboX CM6125 Instructions d'utilisation
Thundercomm TurboX CM6125 Development Kit
Hardware User Manual
Empowering Every IoT Device with Our Technology
- 1 -
Table of Contents
Chapter 1. Product Overview ............................................................................................ - 2 -
1.1. Features and specifications ............................................................................................................. - 3 -
1.2. Product diagram .............................................................................................................................. - 4 -
1.3. Development kit introduction ......................................................................................................... - 5 -
1.4. DIP switches ................................................................................................................................... - 11 -
Chapter 2. Specifications for CM6125 DK ......................................................................... - 15 -
2.1. Main Board .................................................................................................................................... - 15 -
2.2. Interposer Board ............................................................................................................................ - 29 -
2.3. Audio Board ................................................................................................................................... - 31 -
2.4. Sensor Board.................................................................................................................................. - 32 -
Appendix 1. Compliance and Certificate Information ......................................................... - 34 -
Appendix 2. Contact Information of EU Local Agency ......................................................... - 39 -
Appendix 3. Contact Information of US Local Agency ......................................................... - 40 -
Appendix 4. Notices ........................................................................................................... - 41 -
Appendix 5. Trademarks .................................................................................................... - 43 -
- 2 -
Chapter 1. Product Overview
The TurboX CM6125 development kit is a cost-effective solution to evaluate the performance and build the
prototype of the smart cameras and intelligent IoT devices quickly. The development kit features rich
interfaces, including Type-C USB, LCD, and camera modules. The development kit supports Android-S
operating system, combining powerful artificial intelligence and machine learning to address increasing
demand for smart cities, commercial and enterprise, homes, and vehicles applications.
“TurboX” referred to herein is the English text of our registered trademark: .
Figure 1-1. CM6125 Development Kit - Board Identification
- 3 -
1.1. Features and specifications
Table 1-1. Features and specifications
Item Specification
Processor
CPU:
Customized 64-bit Arm v-8.0 compliant applications processor (Qualcomm®
Kryo™ 260 CPU)
Kryo Gold: quad-core (2.0 GHz high-performance)
Kryo Silver: quad-core (1.8 GHz low-power)
GPU: Qualcomm® Adreno™ GPU 610 at 950 MHz graphics processing unit
(GPU) with 64-bit addressing
DSP: Qualcomm® Hexagon™ DSP with Qualcomm® Hexagon™ Vector
eXtensions (dual HVX 512)
Memory eMCP (eMMC 5.1 + LPDDR4X)
Multimedia
Alternative of 4-lane MIPI DSI interface or LVDS interface
Three 4-lane MIPI CSI interfaces.
HDMI in and HDMI out 2.0 (TBD)
Native DisplayPort 1.4
FM (WCN3950/WCN3980)
USB
1 x USB 3.0 Type-C device port
1 x Micro USB 2.0 connector (for UART debug)
Onboard HUB:
1 x USB host Type-C
4 x USB Type-A
Ethernet 10BASE-Te/100BASE-Tx/1000BASE-T IEEE 802.3 compliant
SDIO 1 x TF Card
Sensor
1 x IMU
1 x ALS + Proximity
1 x barometer
1 x Mag sensor
Power supply DC-Jack: 1 x 12 V DC in
Audio
WCD9335 audio codec
1 x 3.5 mm audio jack HP jack
2 x WSA8815 audio amplifiers
8x DMIC IN
Charger PMI632 + SMB1355
Button
1 x Power on
2 x Volume
1 x Force_USB_boot
SIMs 2x UIM interface
Air interface
GSM/WCDMA/LTE
WLAN
BT
Operating temperature -25℃ to +75℃
- 4 -
1.2. Product diagram
Figure 1-2. Main Board Block Diagram
NOTE: Camera module and TFT-LCD are accessories to the development kit.
Figure 1-3. Interposer Board Block Diagram
- 5 -
1.3. Development kit introduction
TurboX CM6125 DK adopts TCSOM_Carrier which consists of various sub boards. CM6125 SOM is connected
to the DK via the Interposer Board.
Main Board
Core board of TCSOM_Carrier, adaptable to various SOMs via 500-pin connector. It mainly supports
functions of USB, LCM, HDMI out, camera, SD card, SIM card, key, LED, etc. In addition, it can be
connected to other expansion modules via rich peripheral interfaces including low-speed connectors,
camera interface, display connector, PCIe expansion connector, etc.
Interposer Board
Carrier board of SOM, transferring signal from SOM to the Main Board via 500-pin connector. It also
contains all RF interfaces and special SOM interfaces (for example, eDP).
Audio Board
This board is used together with the Main Board and is connected to the Main Board via the low-speed
connectors. It contains codec WCD9385, amp WSA8835, and supports speaker, DMIC as well as headset
functions.
Sensor Board
This board is used together with the Main Board and is connected to the Main Board via the low-speed
connectors. It is mainly used for sensors. In addition, it is fit for applications including battery, NFC, CAN,
FAN, etc.
To fit all the boards together, refer to Figure 1-1.
Refer to the following sub sections for the detailed description of interfaces on each board.
- 6 -
1.1.1. Main Board overview
Figure 1-4. Main Board Overview
Table 1-2. Main Board interface list
Item
Reference Description
1 J600 12V DC jack input, 2.5mm/5.5mm
2 USB3400 UART debug port, UART to USB
3 J3901 a) USB Type-A port, only as host
17 USB3900 b) Micro USB port, sharing DP/DM with USB Type C connector, adb/download/host/device
4 J3900 USB Type-C port, adb/download/host/device
5 J3800 HDMI out interface, 2.0
6 J3700 c) LCD1 interface (option)
7 J1200 PCIe expansion module connector, 2 x 2-lane
8 J3401 Camera interface #5
9 J3400 Camera interface #4
10 J3300 Camera interface #2
11 J3301 Camera interface #3
12 J3200 Camera interface #0
13 J3201 Camera interface #1
14
LED4408 d) LED4408, Flash LED #3
LED4409 LED4409, Flash LED #2
LED4410 LED4410, Flash LED #1
15 SIM4201 Nano SIM card slot #2
16 SIM4200 Nano SIM card slot #1
19 CON1000 500-pin connector to the Interposer Board
20 J4100 SD card slot
- 7 -
Item
Reference Description
21 SW4404
6-pin switch, boot configuration and CBL
SW1, SDM_WDOG_DISABLE
SW2, SDM_FAST_BOOT_0
SW3, SDM_FAST_BOOT_1
SW4, SDM_FAST_BOOT_2
SW5, SDM_FAST_BOOT_3
SW6, CBL_PWR_N
22 SW4403 Key, Force USB boot button
23 SW4401 Key, Volume up button
24 SW4402 Key, Volume down button
25 SW4400 Key, Power on button
26
LED4406
LED4407
LED4411
3 x RGB LED from PMIC with independent brightness control:
LED4406, red LED
LED4407, green LED
LED4411, blue LED
18
LED4400
LED4402
LED4404
3 x RGB LED from GPIO, for example, BT/Wi-Fi activity:
LED4400, red LED, no use
LED4402, green LED, indicating Wi-Fi status
LED4404, blue LED, indicating BT status
27
J1100
J1101
J1102
J1103
Low-speed connector to low-speed expansion board
4 x 80-pin B2B connector
28 LED4401 LED4401, indicating Main Board 4V2 OK
LED4403 LED4403, indicating SOM power input OK
29 J3500 90-pin B2B connector, for camera interface extension such as HDMI in function and so on
(with HDMI in)
30 J3600 LCD0 interface
31 J5000 90-pin B2B connector, for display interface extension such as LVDs, 4k LCM
40
SW1300
SW1301
SW2100
SW2101
SW2200
DIP switches for board function control
a) Only HS 2.0 signal is available on CM6125 SOM.
b) CM6125 USB0 is a complete Type-C port. By default, USB3900 is not used.
c) CM6125 has only one group of DSI0, and thus all LCD1 interfaces are unavailable.
d) Unavailable on CM6125.
- 8 -
1.1.2. Interposer Board overview

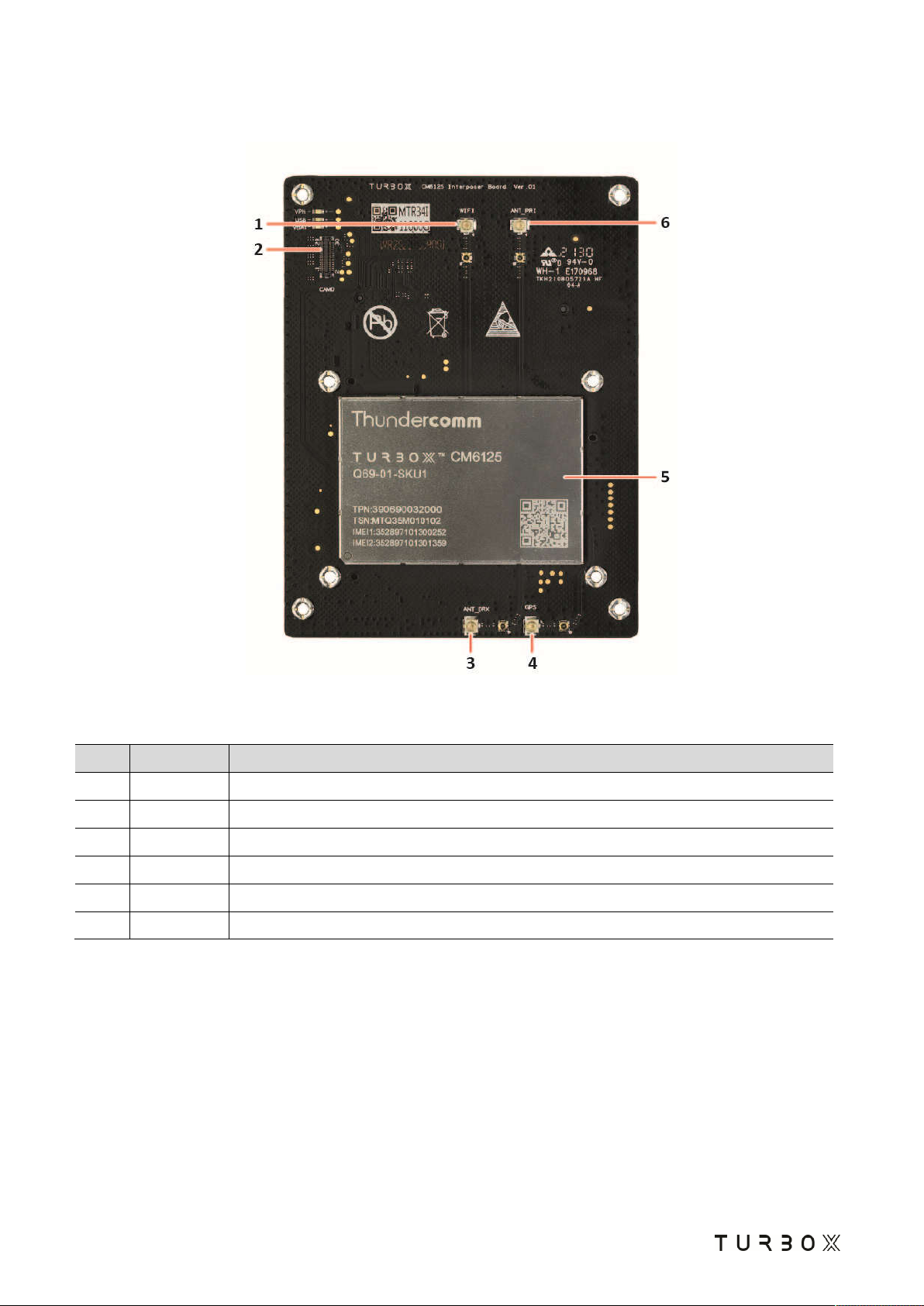

Figure 1-5. Interposer Board Overview
Table 1-3. Interposer Board interface list
Item
Reference
Description
1 J1600 ANT_2G_5G_WLAN, Wi-Fi 2.4G/5G&BT
2 J1400 a) Camera module connector, CSI4
3 J1602 ANT_DRX, 2G+3G+4G RF Diversity RX
4 J1606 ANT_GPS_L1_IN, GPS, GLONASS, BeiDou, Galileo, QZSS, SBAS
5 J1000 CM6125 SOM
6 J1604 ANT_PRI, 2G+3G+4G Primary RX and TX
a). This connector is reserved for internal CSI signal test only, and is thus unavailable to users.
- 9 -
1.1.3. Audio Board overview
Figure 1-6. Audio Board Overview
Table 1-4. Audio Board interface list
Item Reference Description
1
J900
J901
J902
J903
Low-speed connector to low-speed expansion board
4 x 80-pin B2B connector
2
SW3400
SW3401
SW3402
SW3403
SW3404
DIP switch for DMIC connection selection
3
SW3100
SW3101
SW3102
DIP switch to control Audio Board configuration
4 J3505 Speaker connector
5 J3301M a) Right WSA881x speaker connector
6 J3300M a) Left WSA881x speaker connector
7 J3201M a) Right WSA883x speaker connector
8 J3200M a) Left WSA883x speaker connector
9 J3504 Ear out connector
10 J3503 Line out connector
11 J3500 Analog microphone connector 1
12 J3501 Analog microphone connector 3
13 J3502 Headset connector
21
J1000
J1100
J1101
J1102
Low-speed connector to Main Board
4 x 80-pin B2B connector
a) CM6125 uses WSA8835 as the speaker amplifier, and thus J3201M and J3200M are available for CM6125
speaker connection.
